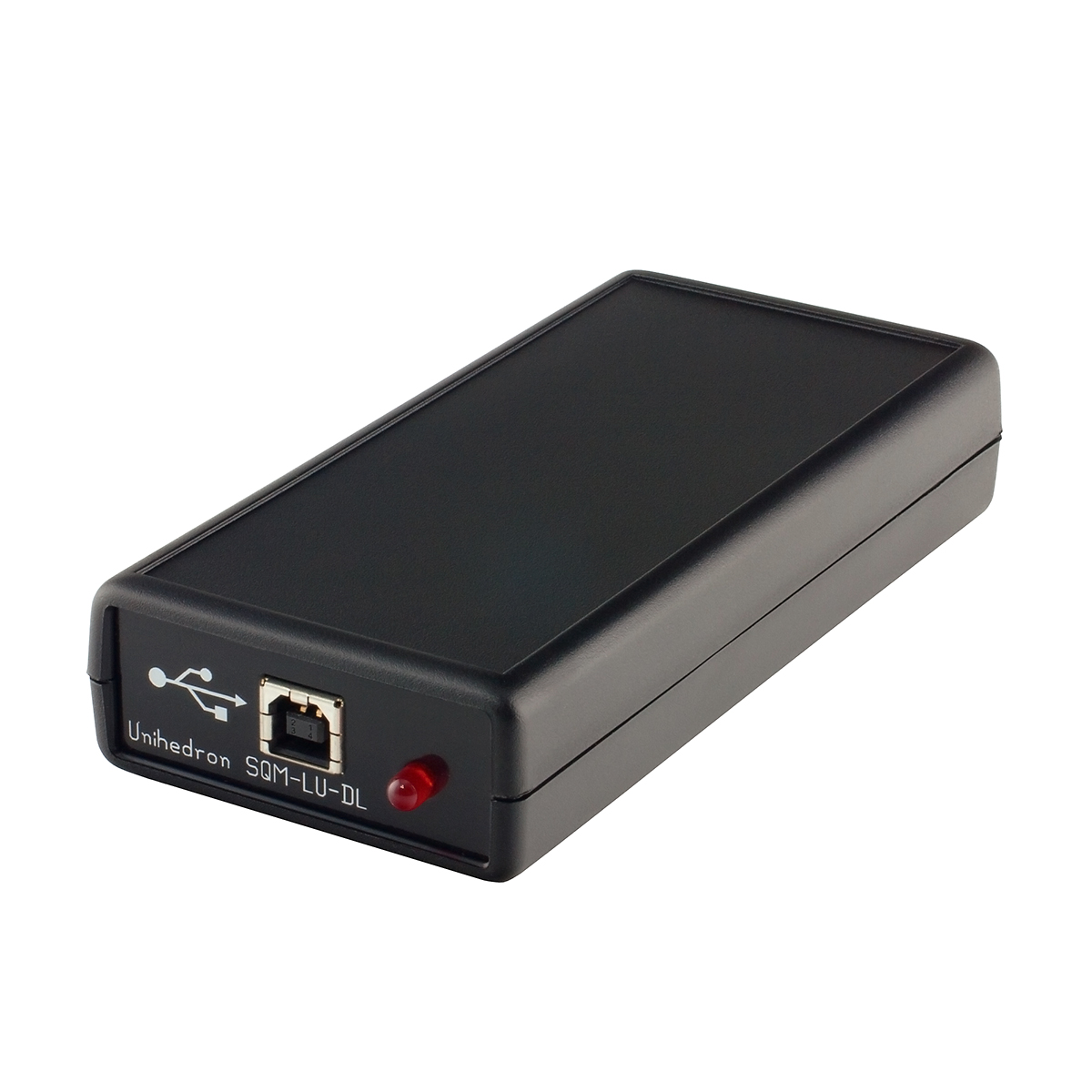

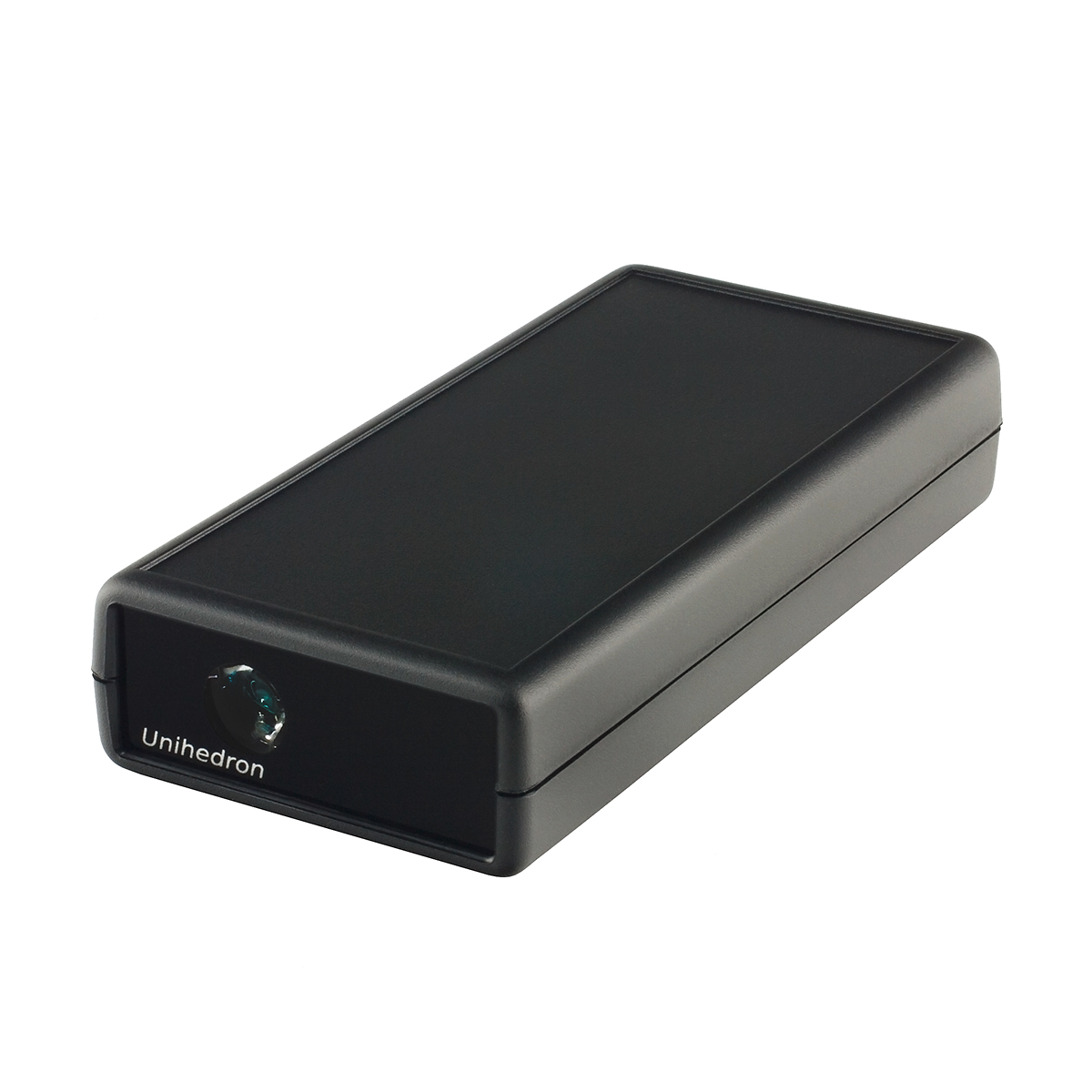

Unihedron SQM-LU-DL-V Sky Quality Meter with USB and Data Logging
  Zoom
 Unihedron SQM-LU-DL-V Sky Quality Meter with USB and Data LoggingUnihedron SQM-LU-DL-V Sky Quality Meter with USB and Data Logging

Unihedron SQM-LU-DL-V Sky Quality Meter with USB and Data Logging

£349.00✓ 2 year warranty

:

Usually shipped 10-15 working days.

About this product

Model:  unihedron-sqm-lu-dl-v
Part Number:  SQM-LU-DL-V

A USB enabled vector data-logging light meter for night-time sky brightness monitoring!

An affordable meter for continual, connected or autonomous data-logging to measure sky brightness for astronomers and light pollution investigators.

The "Sky Quality Meter - LU-DL-V" (SQM-LU-DL-V) measures the brightness of the night sky in magnitudes per square arcsecond.

Designed by Dr. Doug Welch and Anthony Tekatch

Uses

  • Measuring the night sky brightness during remote biological field experiments.
  • Find out how good the night or site REALLY is.
  • Compare the sky brightness at different sites quantitatively.
  • Document the evolution of light pollution in your area.
  • Set planetarium dome illumination to mimic the skies people are likely to experience elsewhere in the city.
  • Monitor sky brightness through the night, night-to-night, and year-to-year.
  • Determine which nights show the greatest promise for finding the 'faintest fuzzies'!
  • Calibrate the effect of sky brightness on qualitative measures such as the Bortle Scale.
  • Investigate how sky brightness correlates with the solar cycle and month-to-month sunspot activity.
  • Help provide local ground truth for future sky brightness prediction with the Clear Sky Clock.
  • CCD users can make a correlation between the SQM reading and when the background reaches some ADC level.

Features

  • Sky brightness reported in visual magnitudes per square arcsecond.
  • Infrared blocking filter restricts measurement to visual bandpass.
  • Sensor temperature, model number, and serial number are provided.
  • Precision readings at even the darkest sites.
  • Field-upgradeable firmware.
  • All the features of our SQM-LU (USB model) plus Data logging capabilities and vector measurements.
  • Open protocol and product manual..

Specifications

  • USB connectivity
  • Data-logging capabilities while operated from external battery.
  • Vector measurements of Altitude and Azimuth (built-in accelerometer/compass module).
  • Included applications for reading data in Perl.
  • The Half Width Half Maximum (HWHM) of the angular sensitivity is ~10°. The Full Width Half Maximum (FWHM) is then ~20°. The sensitivity to a point source ~19° off-axis is a factor of 10 lower than on-axis. A point source ~20° and ~40° off-axis would register 3.0 and 5.0 magnitudes fainter, respectively.
  • Size 5.5 x 2.6 x 1.1 in.
  • Maximum light sampling time: 80 seconds.
  • Minimum light sampling time: 1 seconds.
  • Specifications are subject to change without notice.

Notes

  • The compass readings are very sensitive to any nearby hard and soft iron. The unit works well by hand operation.
  • There is a slight magnetic offset (pinched and stretched at ≈5 in some directions) due to internal components which have yet to be compensated for in the UDM software, but the compensation is planned for a future release of UDM.
  • What's in the box

    • SQM-LU-DL-V Unit
    • USB Flash drive including a manual, operation software (UDM) and example software.
    • 15ft USB Cable
    • Battery-to-USB Adapter & Battery Holder
    • Calibration Sheet - Indicated unit USB serial number and calibration values
