About this product
Part Number: SQM-WM

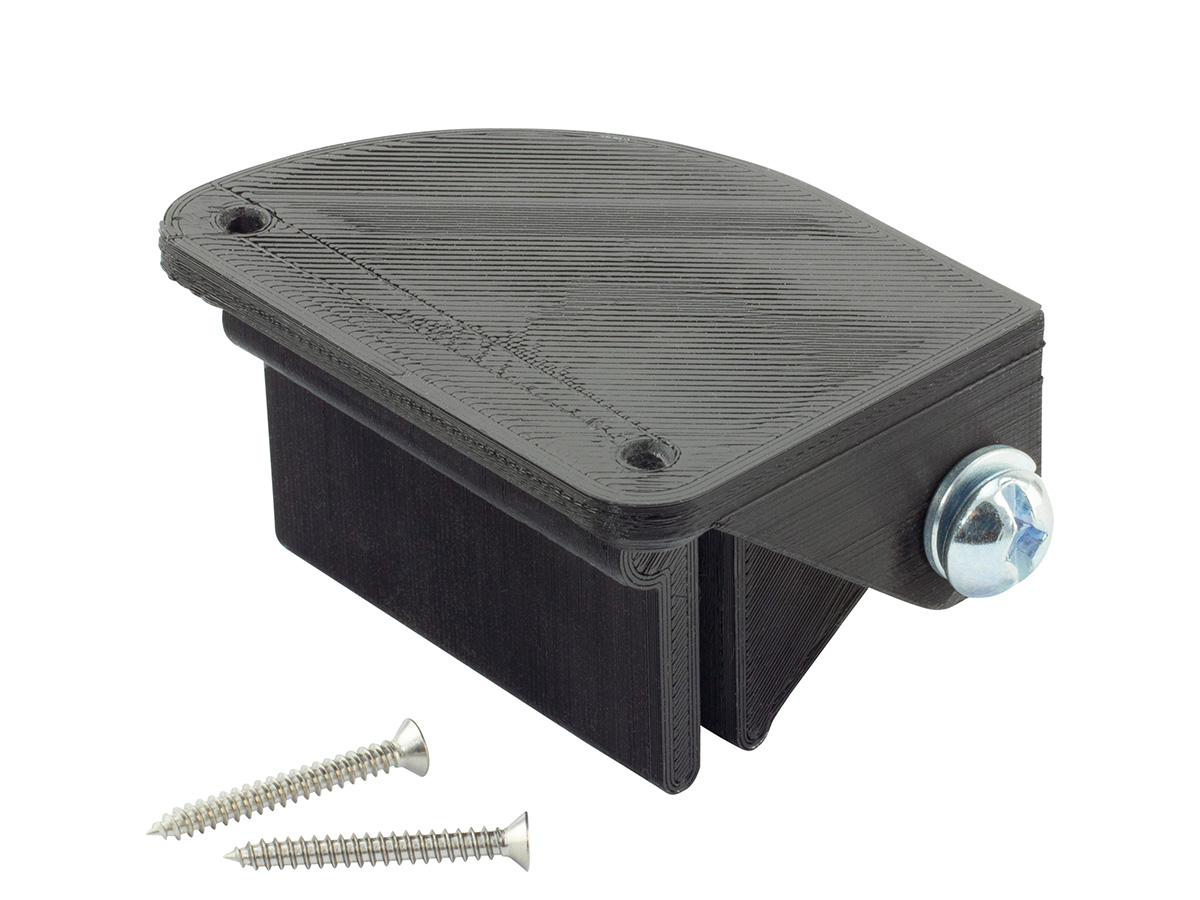

This Window mounting bracket is used for moving light pollution studies while a "connected" meter and GPS are attached to a computer using UDM logging continuously with the GPS option enabled described here.
The relatively broad "head" on the part of the bracket that mounts to the window should accommodate a range of window seal contours. The adjustable connection between the window mount and SQM mount allows for vertical mounting regardless of window slope.
Adjustment can be done by eye, or with a level held against the meter, or a smart phone with built-in inclinometer app to adjust the vertical angle.

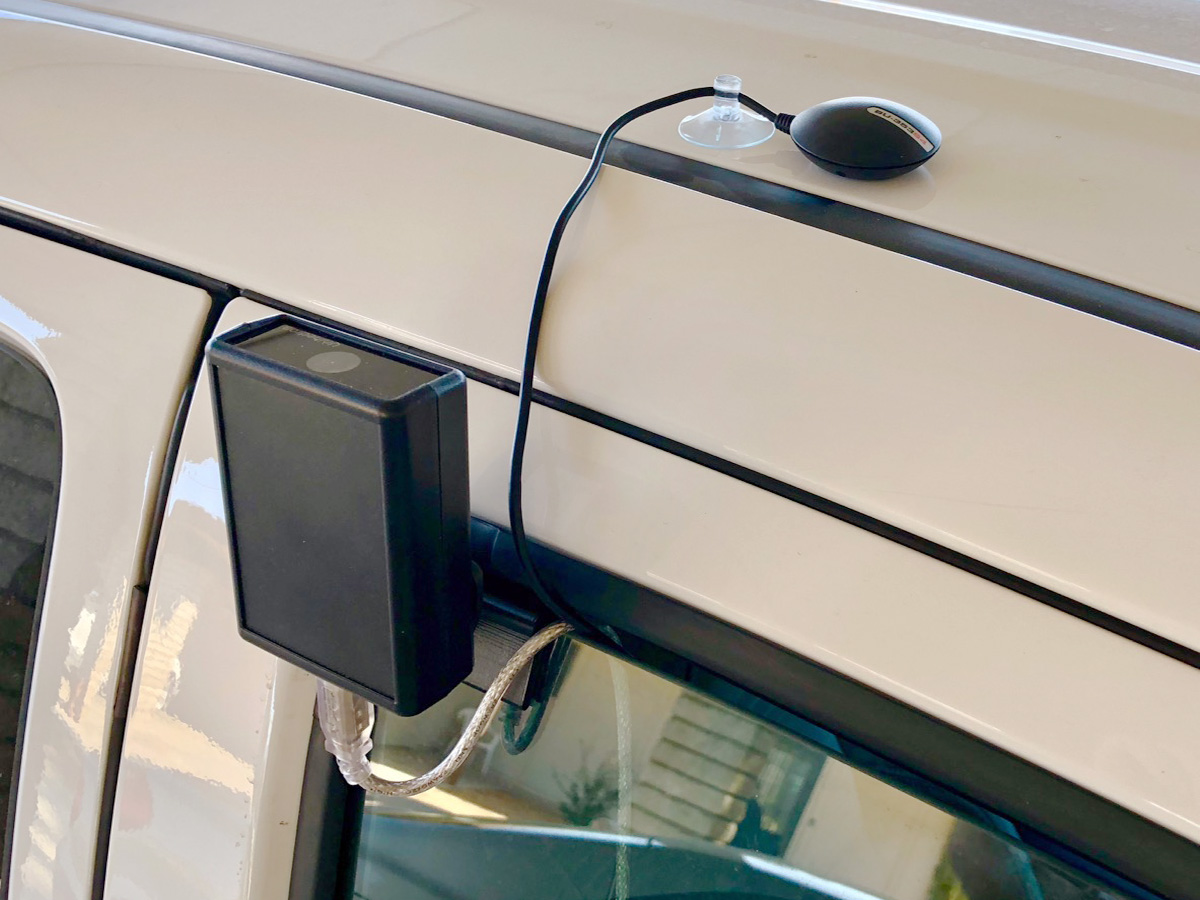

The unit should be mounted near the part of the window that has a curve which comes closest to horizontal.
The adjustable connection allows adjustment in yaw, position along the window curve becomes the pitch adjustment.
