Vortex Optics Diamondback HD 20-60x85 Angled Spotting Scope

£499.00✓ 2 year warranty


Out of stock due 30-40 working days

About this product

Model:  vortex_dbk_80_s_a
Part Number:  DS-85A

VIP Unconditional Lifetime Warranty

VIP Unconditional Lifetime Warranty Details

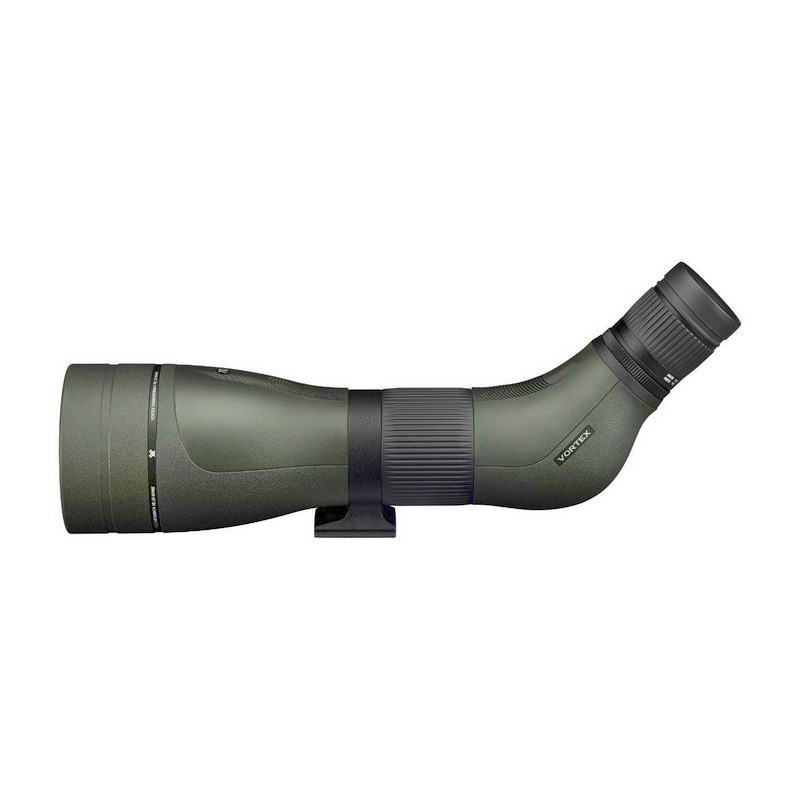

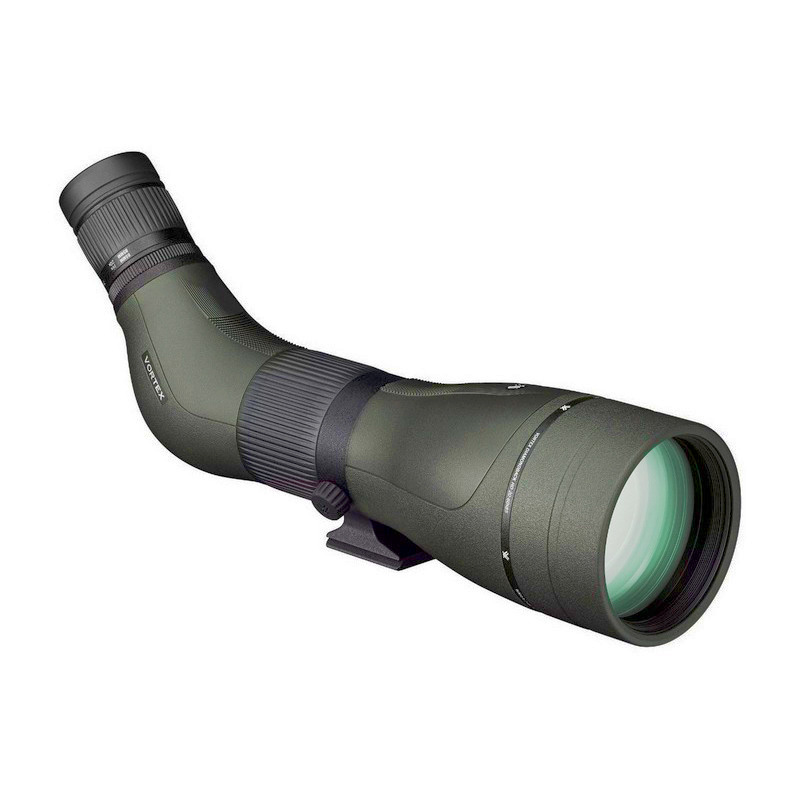

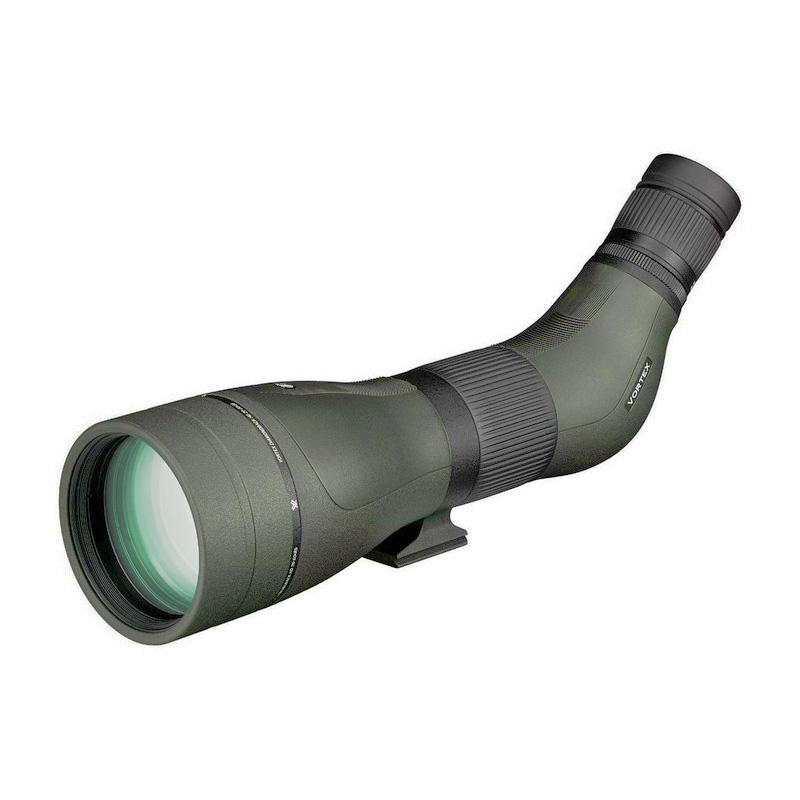

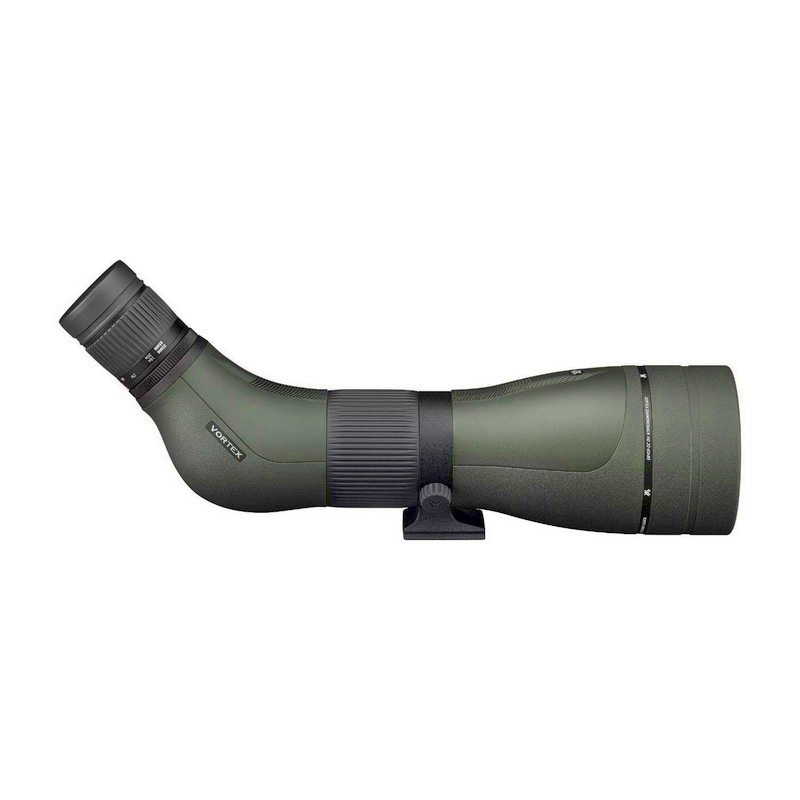

The new Diamondback HD 20-60x85mm angled spotting scope has been completely redesigned to take on the "family look" of the Viper HD and Razor HD 'scopes and optically upgraded to feature HD glass and a bigger objective lens for improved clarity and brightness of the image. A helical/barrel focus wheel allows for a sleeker design and a more rugged construction and new 20-60x zoom eyepiece gives a notable increase of up to 20% field of view.

The new rugged aluminium chassis has all-over full-body protective rubber armouring and the scope has Argon gas purging to prevent internal fogging and are fully waterproof. The external lenses have Armortek hardened coatings and features a built-in sunshade and rotating tripod mount.

All of the new Diamondback HD scopes come complete with protective eyepiece and objective lens covers, a Neoprene Stay-on-Scope case and are of course covered by the Vortex Unlimited Lifetime Warranty when purchased from a Vortex UK authorised dealer.


  • HD Optics: Optimized optical system delivers impressive resolution, reduces chromatic aberration and provides excellent colour fidelity, edge-to-edge sharpness and light transmission.
  • XR Lens Coatings: Vortex proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
  • Dielectric Prism Coatings: Multi-layer prism coatings provide bright, clear, colour-accurate images.
  • ArmorTek: Exterior lenses are protected by ArmorTek — an ultrahard, scratch-resistant compound that repels oil, dirt and the corrosive salts of fingerprints.


  • Porro Prism: Offers maximum image quality and performance in a traditional design.
  • Angled Body Design: Enables a lower mounting height for greater stability in wind and provides greater comfort when viewing for extended periods. Also permits use of a smaller, lighter tripod.
  • Waterproof: Optics are sealed with O-rings to prevent moisture, dust, and debris from getting inside the spotting scope.
  • Fogproof: Nitrogen gas purging delivers fogproof and waterproof performance.
  • Rubber Armour: The all-over rubber armouring protects the exterior of your scope.


  • Adjustable Eyecup: Twists up and down to provide comfortable viewing with or without spectacles.
  • Sunshade: Reduces glare and shields the objective lens from raindrops and snow.
  • Rotating Tripod Ring: Allows rotation of the eyepiece to a sideways position—most useful for viewing through an angled spotting scope body on a car window mount.


What's in the box

  • Vortex Spotting Scope
  • Eyepiece Cap
  • Objective Lens Cover
  • Neoprene Stay-On Case


Magnification 20-60 x
Objective Lens Diameter 85 mm
Linear Field of View 108-60 feet/1000 yards
Angular Field Of View 2.1-1.1 degrees
Close Focus 7.5m / 24.6 feet
Eye Relief 20.3mm - 18.3mm
Exit Pupil 4.25mm - 1.41mm
Length 406mm / 16 inches
Weight 1730g / 60.9 ounces

Customer reviews

Be the first to Write a Review for this item!


Please fill in the form below to ask a question.

Please add the two numbers

Q1. How much does this spotting scope weigh?

The Vortex Diamondback 20-60x80 Angled Spotting Scope weighs 1,320g / 47.1oz.
