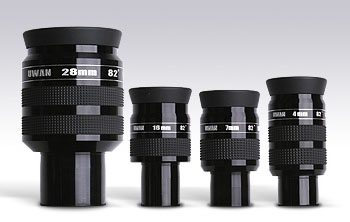

William Optics UWAN Eyepiece

William Optics UWAN Eyepiece


Unavailable - Please contact us.

Model:  WOuwan-1
Part Number:  E-UWA04
Brand:  William Optics

William Optics UWANs are outstanding eyepieces that offer a real alternative to high-end designs from other manufacturers, at less than high-end prices.

Ultra-wide 82 degree apparent FOV with excellent edge of field correction.High quality multicoatings, internal baffling and blackened lens edges for superior contrast.  Threaded for filters.

William Optics UWAN review by Tom Trusock


Technical specs:

4mm UWAN, 1.25"
7/4 lenses/groups
82 degrees FOV
12mm eye-relief
Weight 200g

7mm UWAN, 1.25"
7/4 lenses/groups
82 degrees FOV
12mm eye-relief
Weight 200g

16mm UWAN, 1.25"
7/4 lenses/groups
82 degrees FOV
12mm eye-relief
Weight 200g

28mm UWAN, 2"
6/4 lenses/groups
82 degrees FOV
18mm eye-relief
Weight 1000g

There are currently no specifications available for this product.

William Optics UWAN Eyepiece Questions & Answers

Please fill in the form below to ask a question.

Your Name: *
Your Email Address: *
Your Question: *
Please add the two numbers

Average Rating (1 Review):
Write a Review and share your opinions!

Rating (max 5):
28mm UWAN
Tuesday, 17 May 2011  |

This is a BIG eyepiece. It is the jewel in the crown of the William Optics range and the fit and finish are first class.

Optically the performance is pretty good. These 82 degree eyepieces are inevitably compared to the legendary TeleVue Naglers and it is a worthy comparison. The performance is indeed pretty close. In my own direct comparison, the Nagler 26mm was slightly better than the 28mm UWAN but not by that much. Stars were sharp across the vast majority of the field but I did find a slight amount of colour on the edge of the field with the UWAN that just wasn't there on the Nagler. However this was only evident on the moon or where a bright object like Jupiter was right at the edge of the field of view.

Using this eyepiece is immersive and you can get lost in the star fields of the milky way.

You will like it, but be ready for the large size and heavy weight on your focuser.
