ZWO M68 Off Axis Guider (OAG)
  Zoom
 ZWO M68 Off Axis Guider (OAG)ZWO M68 Off Axis Guider (OAG)

ZWO M68 Off Axis Guider (OAG)

£189.00✓ 2 year warranty

:

Usually shipped 15-20 working days.
Request a Price Match

About this product

Model:  zwo_m68_oag
Part Number:  ZWO-M68-OAG

New! ZWO M68 off-axis guider (OAG) suitable for full frame cameras.

Specifically designed for use with the new ZWO Full Frame Cooled Mono / Colour Cameras.

FEATURES

  • Lightweight and Exquisite, 17.5mm thickness
  • Prism size: 8*8mm
  • Connect the main imaging camera and the guide camera simultaneously. No guide scope required!
  • High stability, strong connection to the telescope
  •  Currently compatible with ASI6200MM/MC Pro camera only, rather than other ZWO ASI cameras

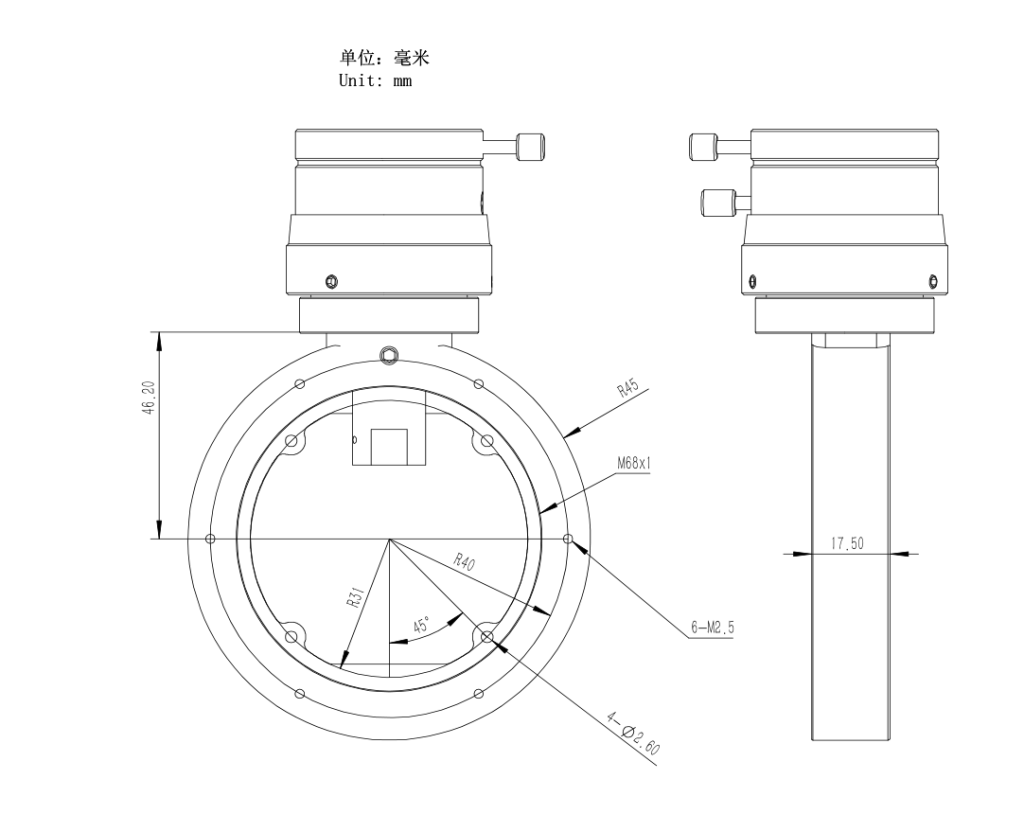

Mechanical Diagram

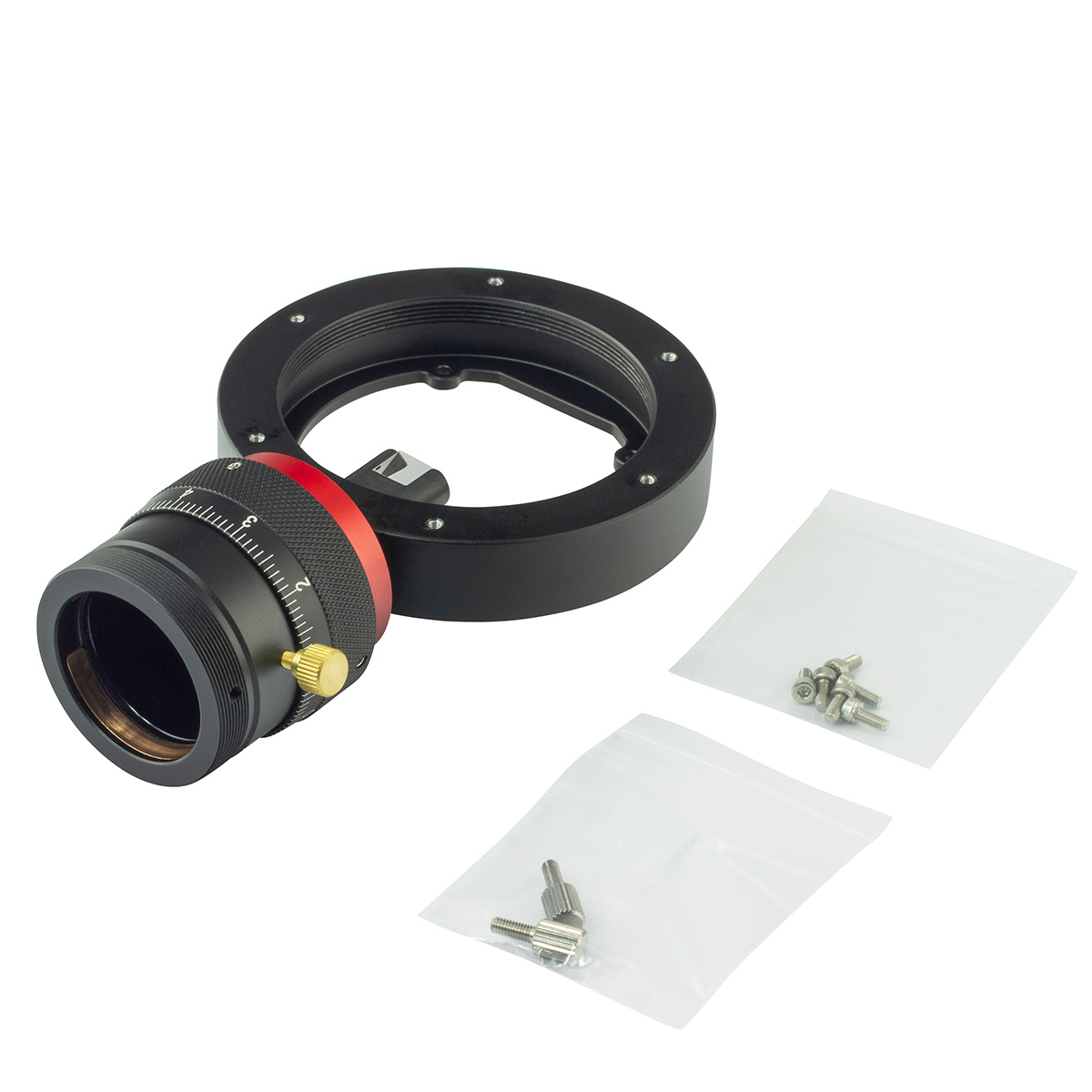

What's in the box

  • OAG Body with M48 Telescope Adapter
  • 1.25" Eyepiece / Camera Holder
  • 5mm T2 Extension
  • M42 Camera Adapter
  • M48 Camera Adapter
  • M42 Telescope Adapter

Customer reviews

Be the first to Write a Review for this item!

FAQ

Please fill in the form below to ask a question or request a price match.

*
Your Name:
*
Your Email Address:
*
Your Question / Request:
URL of the Cheaper Price:
If you are requesting a price match please let us know the URL where you have seen the product cheaper.

Q1. How can I remove flex / wobble with the Prism stalk of my ZWO OAG?

Once you have adjusted the ZWO to be parfocal with the Imaging camera and have the Prism stalk adjusted to the position you require then you can tighten the two grub screws, one on the OAG body and one on the stalk, to remove any flex/wobble

The Allen keys required are supplied with the OAG
