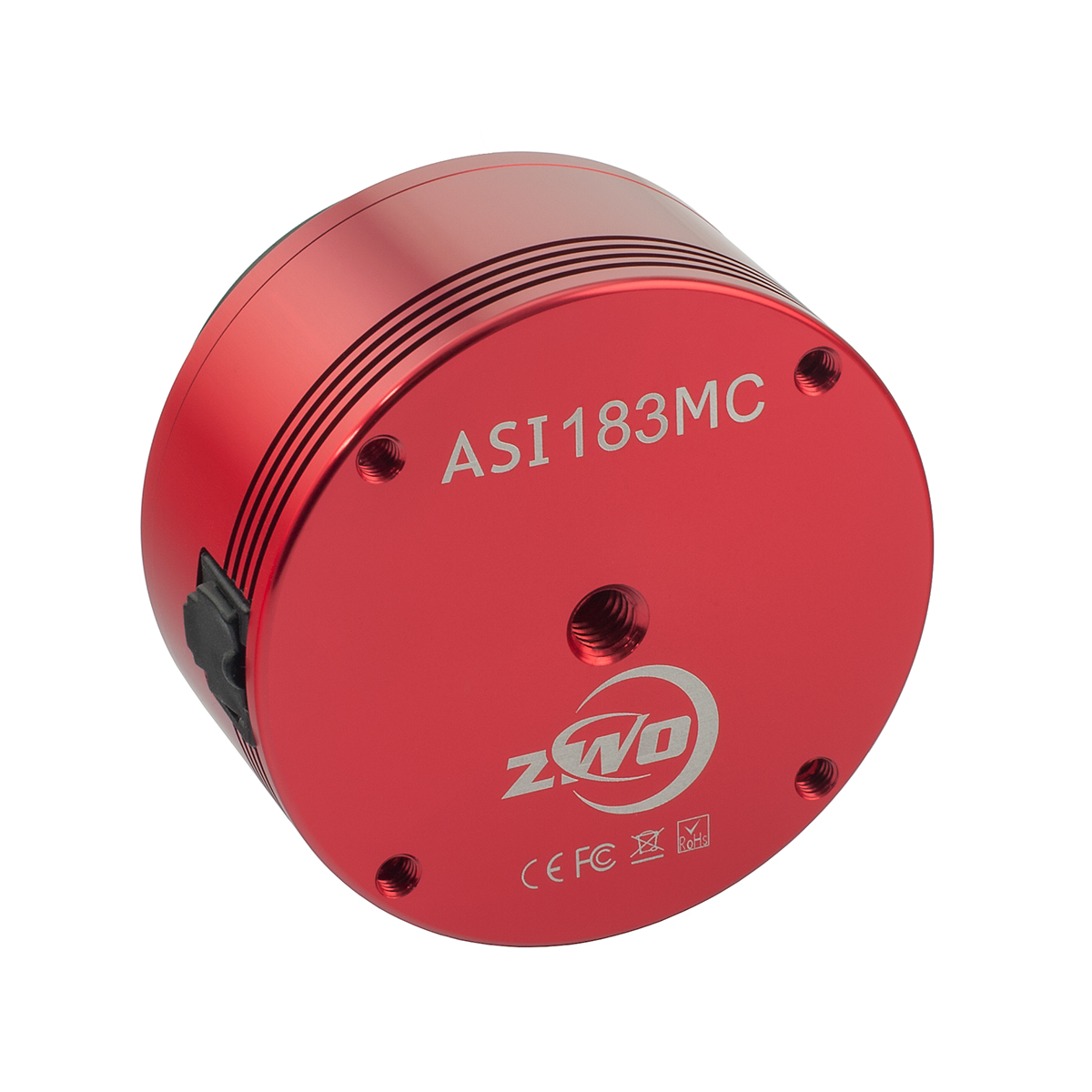

ZWO ASI 183MC USB 3.0 Colour Camera

ZWO ASI 183MC USB 3.0 Colour Camera
  Zoom
ZWO ASI 183MC USB 3.0 Colour CameraZWO ASI 183MC USB 3.0 Colour CameraZWO ASI 183MC USB 3.0 Colour Camera
£570.00

:

Incoming - Shipped 7-10 working days.

Model:  zwo_asi183mc
Part Number:  ASI183MC
Brand:  ZWO

ZWO

INCLUDED IN THE BOX

  • ASI183MC Camera
  • T2-1.25" Nosepiece Adapter
  • 1.25" Cap
  • 2" Cap
  • 2-metre USB 3.0 Cable
  • ST4 Cable
  • T2-1.25" Adapter
  • Quick Start Guide
  • Driver CD

The ASI183 Colour is an excellent alternative to a DSLR camera for astrophotography!

Fitted with Sony's highly sensitive 20mp (5496x3672) BSI IMX183 sensor with amp glow reduction and incredibly low read noise.

FEATURES

  • Sony IMX183 Sensor
  • Extremely low read noise - 1.6e @30db gain
  • 12Bit ADC - provides real 12bit dynamic range
  • Electronic shutter - no issues with vibrations sometimes found in mechanical shutters
  • USB3.0 Port (back compatible with USB2.0) - 19fps@5496x3672  308fps@320X240
  • AR coated protective window - all light can pass
  • Compatible with Windows / Mac OS / Linux

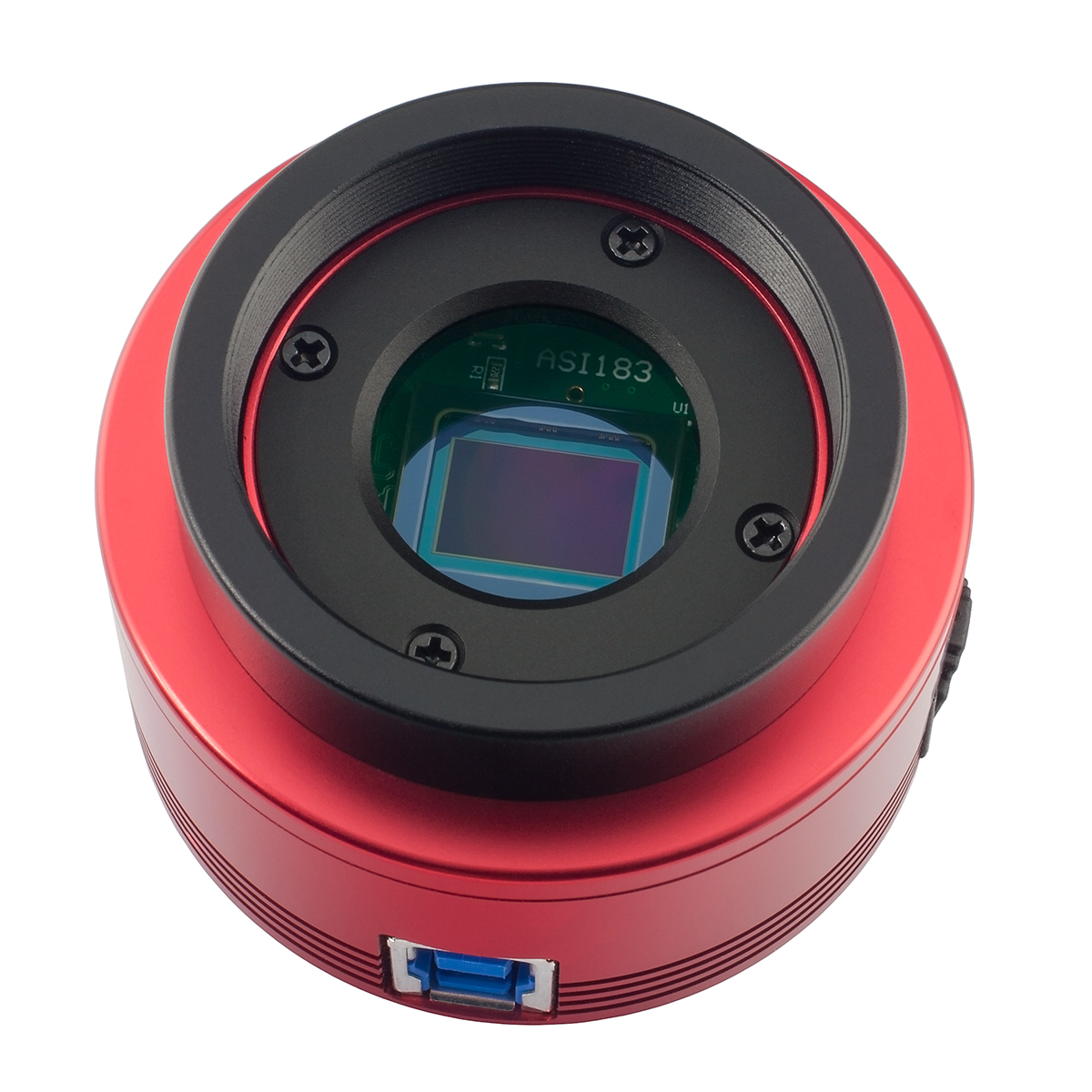

IMX183 Sensor

13.2mm x 8.8mm, 15.86mm diagonal, approximately 20.18 megapixels.

Back illuminated, high sensitivity with 2.4μm pixels.

All ZWO cameras include a 2-year warranty.

Camera Field of View Simulator

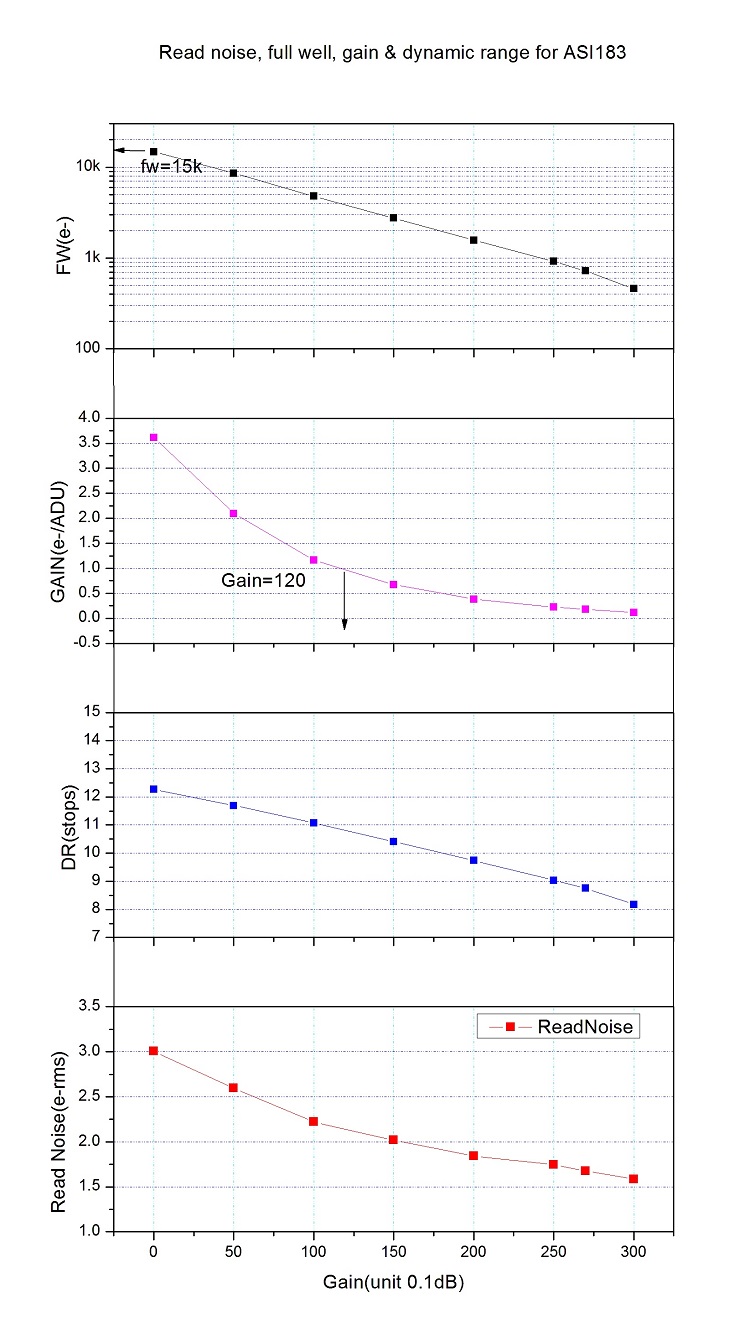

Astrophotography Performance

The ASI183 cameras has a very large full well capacity(15000e for such small pixel size, 1.6e read noise @ 30DB, and 12stops dynamic range @ Gain=0. The ASI183 cameras also utilise firmware features to minimise amplifier glow for maximum performance in astrophotography.

High Speed

Fast FPS can be used in solar and lunar imaging, as well as for live viewing/EAA.The high speed readout may also be used for real-time focusing, true lucky imaging of double stars and other small objects, planetary imaging of the major planets in the solar system, and much more.

10Bit ADC

  • 5496×3672    19fps
  • 3840×2160    41.04fps
  • 1920×1080    80.10fps
  • 1280×720      117.30fps


12bit ADC

  • 5496×3672    19fps
  • 3840×2160    36.12fps
  • 1920×1080    70.48fps
  • 1280×720      103.23fps

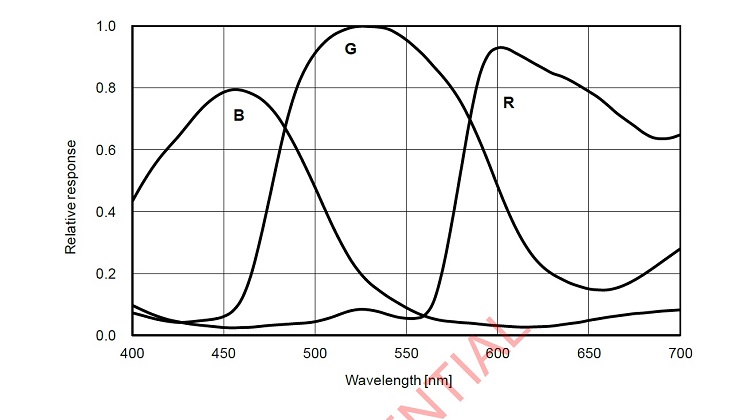

High QE

Sony’s back-illuminated Exmor R technology, gives it excellent Deep Sky performance. ASI183 QE peak reaches a remarkable 84%. In the Ha channel, QE is still over 60%.

Having high QE means more of the light that enters your telescope and reaches the sensor is actually used. With 84% peak Q.E. and no less than ~50% within the visible spectrum, the ASI183 will utilise a high percentage of the light that reaches it, improving your signal quality.

Dark Current

The dark current of the ASI183 is extremely low, based on our test results.

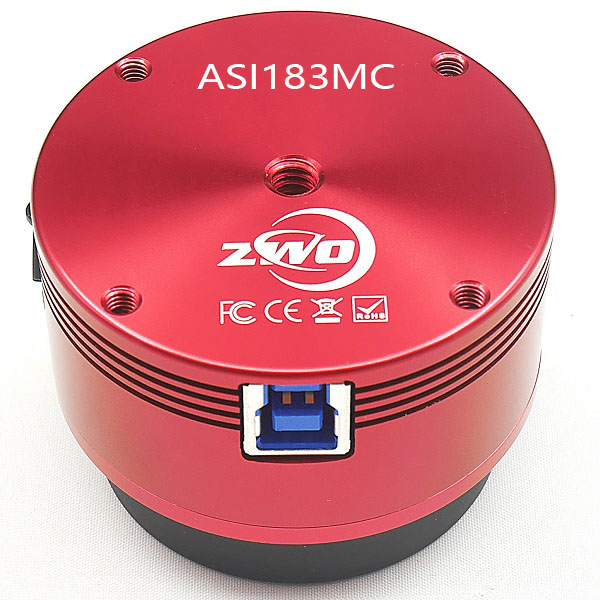

USB Ports

USB 3.0 Port: Provide 5Gb bandwidth to make it possible for ASI183 to run at 19 fps (12bit, normal mode) or 19 fps (10bit, high speed mode)  at full resolution(20.18Mega).

ST4 Port: can be used connect with auto guide port of mount, for guiding.

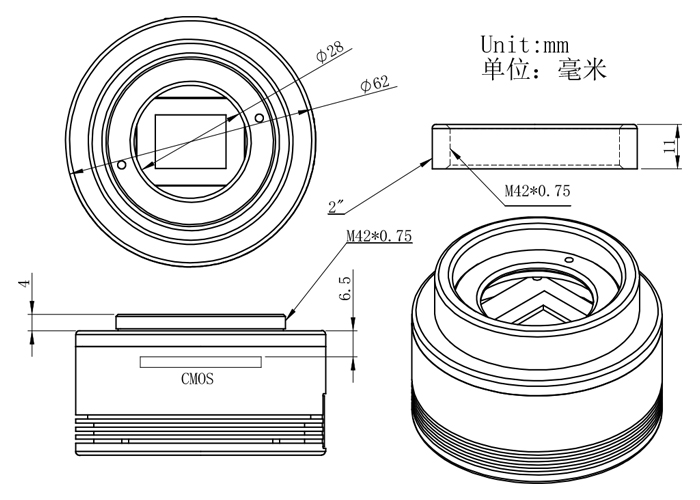

ASI183MC Mechanical Drawing



Product Specifications

Sensor 1″ CMOS IMX183CLK-J/CQJ-J
Diagonal 15.9mm
Resolution 20.18Mega Pixels 5496*3672
Pixel Size 2.4μm
Bayer Pattern None
Shutter Rolling shutter
Exposure Range 32µs-2000s
ROI Supported
Read Noise 1.6e @30db gain
QE peak 84%
Full well 15ke
ADC 12bit
Interface USB3.0/USB2.0
Adaptor M42X0.75
Protect window AR window
Dimensions 62mm Diameter x 36mm
Weight 120g
Back Focus Distance 6.5mm
Working Temperature -5°C—45°C
Storage Temperature -20°C—60°C
Working Relative Humidity 20%—80%
Storage Relative Humidity 20%—95%



Supported Resolutions:

10Bit ADC

  • 5496×3672 19fps
  • 3840×2160 41.04fps
  • 1920×1080 80.10fps
  • 1280×720 117.30fps
  • 640×480 169.92fps
  • 320×240 308.17fps

12bit ADC

  • 5496×3672 19fps
  • 3840×2160 36.12fps
  • 1920×1080 70.48fps
  • 1280×720 103.23fps
  • 640×480 149.53fps
  • 320×240 271.19fps

Additional resolutions can be user defined.

The following manuals and downloads are available for this product:

Manuals

ZWO ASI Camera User Manual v1.3 (PDF)

ZWO ASI USB2.0 Camera FAQ v1.0 (PDF)

ZWO ASI USB2.0 Camera Troubleshooting v1.0 (PDF)

Software

ZWO Software and Drivers
