ZWO ASI 385MC-Cool USB 3.0 Colour Camera

ZWO ASI 385MC-Cool USB 3.0 Colour Camera
  Zoom
ZWO ASI 385MC-Cool USB 3.0 Colour CameraZWO ASI 385MC-Cool USB 3.0 Colour CameraZWO ASI 385MC-Cool USB 3.0 Colour Camera
£665.00

:

In stock - Shipped 1-2 working days.

Model:  zwo_asi385mc-cool
Part Number:  ASI385MC-C
Brand:  ZWO

ZWO

INCLUDED IN THE BOX

  • ASI183MC-Cool Camera
  • Camera Bag
  • T2-1.25" Nosepiece Adapter
  • 1.25" Cap
  • 2-metre USB 3.0 Cable
  • 2x 0.5m USB 2.0 Cables
  • Quick Start Guide
  • Driver CD

The new ASI385 series replaces the ASI2185 series with almost double it's sensitivity!

Features Sony's highly sensitive IMX385LQR CMOS sensor with large 1936x1096 (2.12mp) resolution.

FEATURES

  • Sony IMX385 (8.35mm diagonal, 2.12 megapixels, 1/2" format)
  • Low read noise - 0.7e
  • 12Bit ADC - provides real 12bit dynamic range
  • Electronic shutter - no issues with vibrations sometimes found in mechanical shutters
  • USB3.0 Port (back compatible with USB2.0) - 67fps@1936x1096
  • AR coated protective window - all light can pass
  • Compatible with Windows / Mac OS / Linux

IMX385 Sensor

8.35mm diagonal, approximately 2.12 megapixels.

High sensitivity with 3.75μm pixels.

Sony developed the IMX385LQR CMOS image sensor for industrial applications but it's sensitivity is nearly twice that of the sensor it replaces (IMX185LQJ) so is an excellent choice for astrophotography.

The IMX385LQR sensor's large 3.75μm pixels have a sensitivity of 2350 mV (the highest among Sony image sensors for industrial applications) and SNR1s of 0.13 lx (the highest among Sony Full HD-compatible image sensors for industrial applications). This is achieved via an internal programmable gain amplifier and high conversion gain pixels. It also combines HDR (High Dynamic Range) technology with technology that improves sensitivity in the near-infrared light region for truly remarkable performance!

All ZWO cameras include a 2-year warranty.

Camera Field of View Simulator

Astrophotography Performance

ASI385MC offers very good performance for astrophotography. Low read noise, high dynamic range, QE peak >80%, AR protective window and much more.

Dark Currents

ASI385MC-Cool has extremely low dark current, click here to see a dark frame from ASI385 camera (HDR settings, 60s, -10°C).

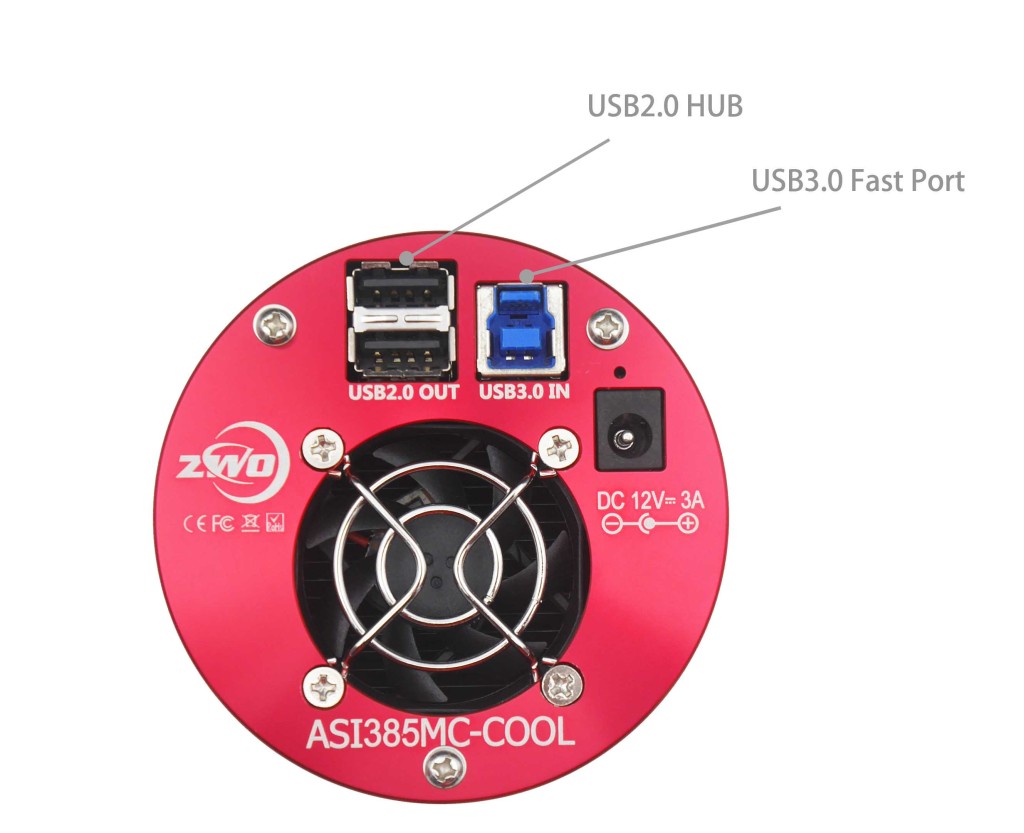

USB Ports

USB 3.0 Port: Provide 5Gb bandwidth to make it possible for ASI385 to run at 67 fps (12bit, normal mode) or 120 fps (10bit, high speed mode) at full resolution (2.13Meg).

Power Requirements

ZWO recommend 12V at 3A~5A or more DC adapter for cooler power supply (2.1*5.5, center positive).

Battery from 9-15V is also suitable for cooling power supply.

USB 2.0 HUB: Can connect with various accessories, such as filter wheel, guide camera and electronic focuser, for convenient cable management using it's inbuilt USB2.0 hub. The USB Hub draws power from an external power supply if you have one connected. Two short 0.5m USB2.0 cables are included.

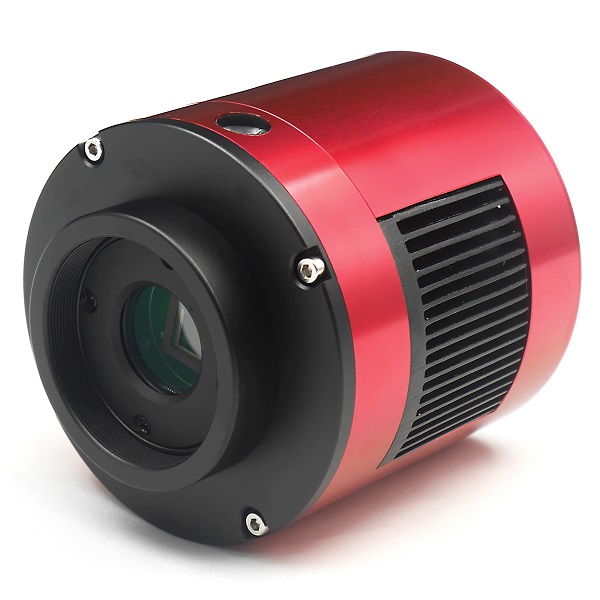

Cooling System

ASI385MC-Cool has 2 stage TEC cooling system to enable very deep cooling (40°C-45°C below ambient).

You need an external power supply to power the cooler. An AC-DC power adapter is not included in this package.

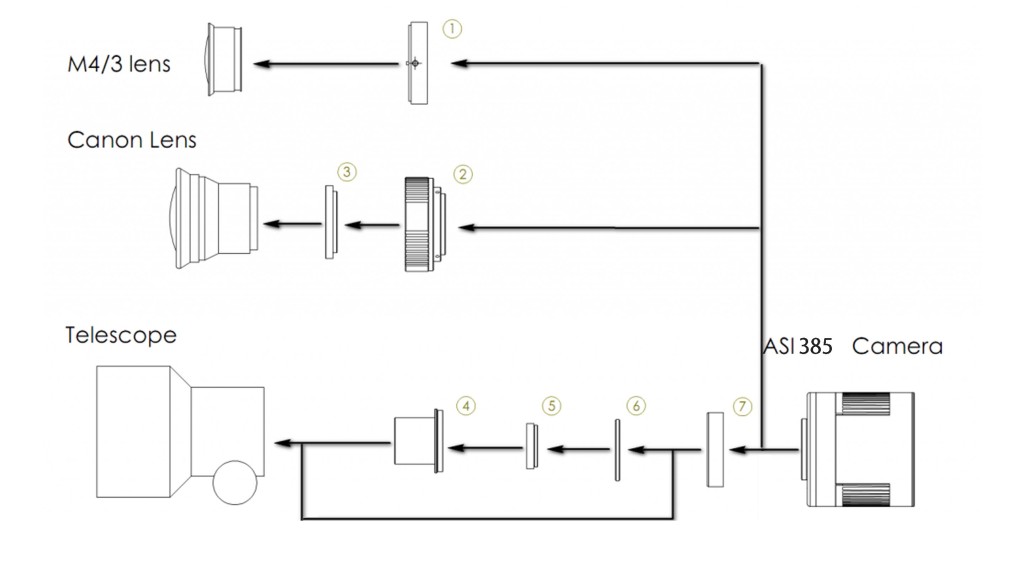

ASI385MC Connection Drawing

  1. M43-T2 adapter
  2. EOS-T2 adapter
  3. 2”Filter (optional)
  4. 1.25” T-Mount
  5. 1.25” Filter (optional)
  6. M42-1.25” adapter (optional)
  7. T2 extender 11mm

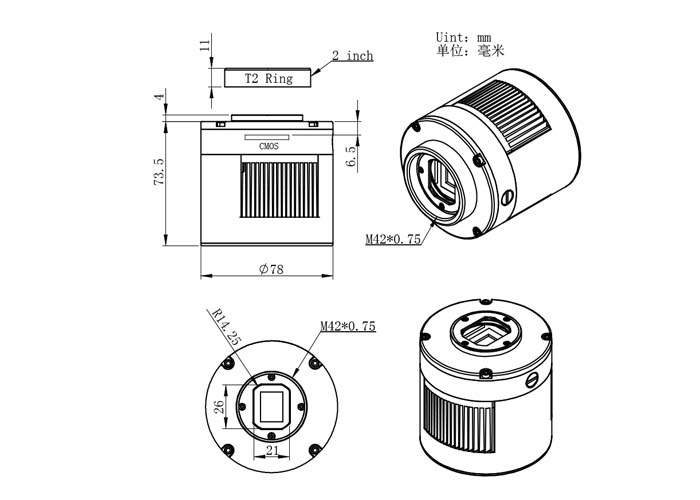

ASI385MC Mechanical Drawing



Product Specifications

SensorSONY IMX385 CMOS
Diagonal8.35mm
Resolution2.12Mega Pixels 1936X1096
Pixel Size3.75m
Bayer PatternRGGB
ShutterRolling shutter
Exposure Range32s-2000s
ROISupported
Read Noise0.75e @30db gain
QE peak>80%
Full well18.7Ke
ADC12bit
InterfaceUSB3.0/USB2.0
AdaptorM42X0.75
Protect windowAR window
Dimensions78mm Diameter
Weight420g
Back Focus Distance6.5mm
CoolingRegulated Two Stage TEC
Delta T40C-45C below ambient
Camera Power consumption650mA at 5V
Cooler Power consumption12V at 3A Max
Working Temperature-5C45C
Storage Temperature-20C60C
Working Relative Humidity20%80%
Storage Relative Humidity20%95%



Supported Resolutions:

10Bit ADC

  • 1936×1096 120fps

12bit ADC

  • 1936×1096 67fp

Additional resolutions can be user defined.

The following manuals and downloads are available for this product:

Manuals

ZWO ASI Camera User Manual v1.3 (PDF)

ZWO ASI USB2.0 Camera FAQ v1.0 (PDF)

ZWO ASI USB2.0 Camera Troubleshooting v1.0 (PDF)

Software

ZWO Software and Drivers
