About this product
Part Number: ASI385MC
The new ASI-385 series replaces the ASI-185 series with almost double it's sensitivity!
Features Sony's highly sensitive IMX385LQR CMOS sensor with large 1936x1096 (2.12mp) resolution.
- Sony IMX385 (8.35mm diagonal, 2.12 megapixels, 1/2" format)
- Low read noise - 0.7e
- 12Bit ADC - provides real 12bit dynamic range
- Electronic shutter - no issues with vibrations sometimes found in mechanical shutters
- USB3.0 Port (back compatible with USB2.0) - 67fps @ 1936x1096
- AR coated protective window - all light can pass
- Compatible with Windows / Mac OS / Linux
8.35mm diagonal, approximately 2.12 megapixels.
High sensitivity with 3.75μm pixels.
Sony developed the IMX385LQR CMOS image sensor for industrial applications but it's sensitivity is nearly twice that of the sensor it replaces (IMX185LQJ) so is an excellent choice for astrophotography.
The IMX385LQR sensor's large 3.75μm pixels have a sensitivity of 2350 mV (the highest among Sony image sensors for industrial applications) and SNR1s of 0.13 lx (the highest among Sony Full HD-compatible image sensors for industrial applications). This is achieved via an internal programmable gain amplifier and high conversion gain pixels. It also combines HDR (High Dynamic Range) technology with technology that improves sensitivity in the near-infrared light region for truly remarkable performance!
All ZWO cameras include a 2-year warranty.
Camera Field of View Simulator

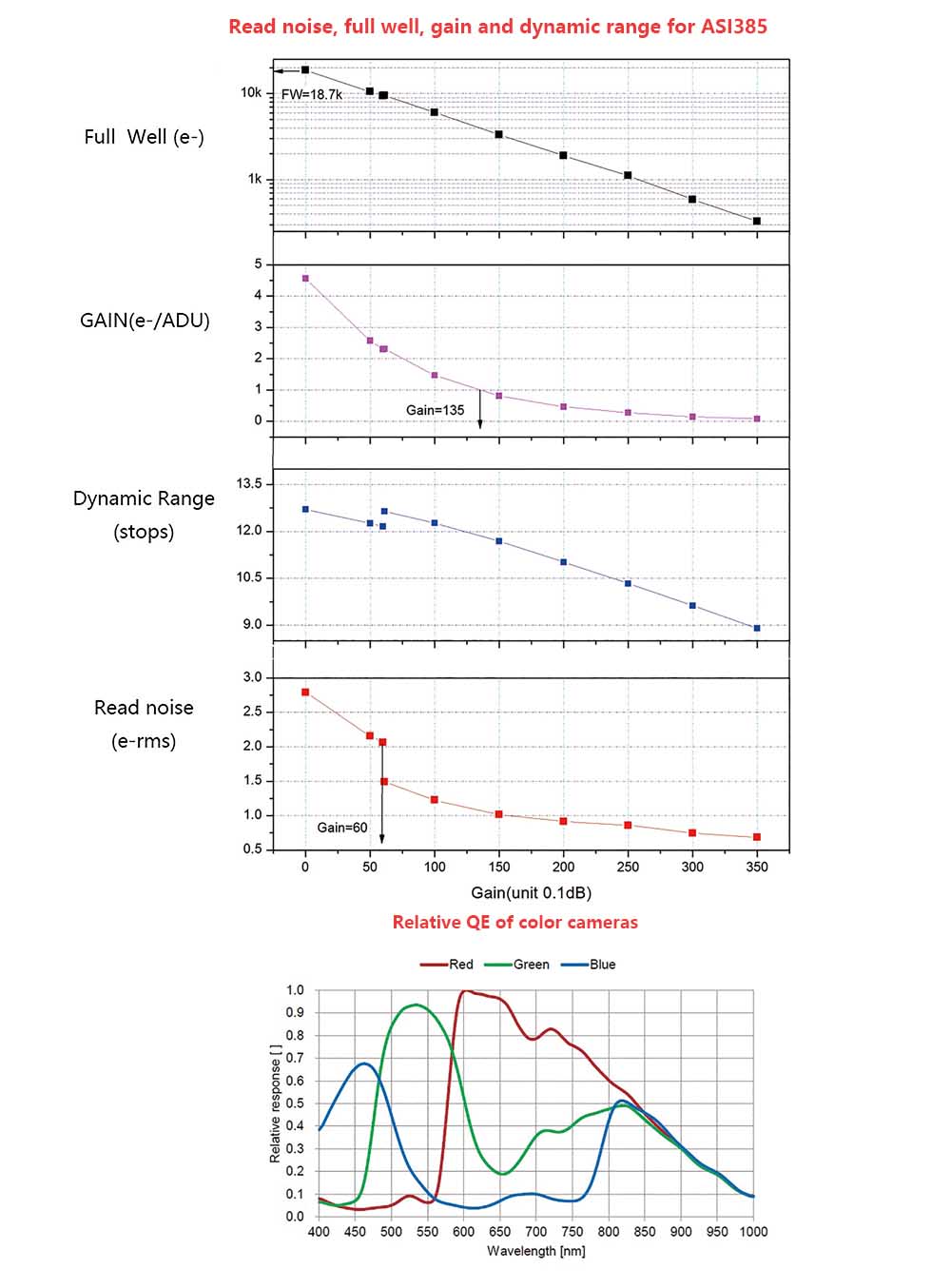

ASI385MC offers very good performance for astrophotography. Low read noise, high dynamic range, QE peak >80%, AR protective window and much more.
ASI385MC-Cool has extremely low dark current, click here to see a dark frame from ASI385 camera (HDR settings, 60s, -10°C).

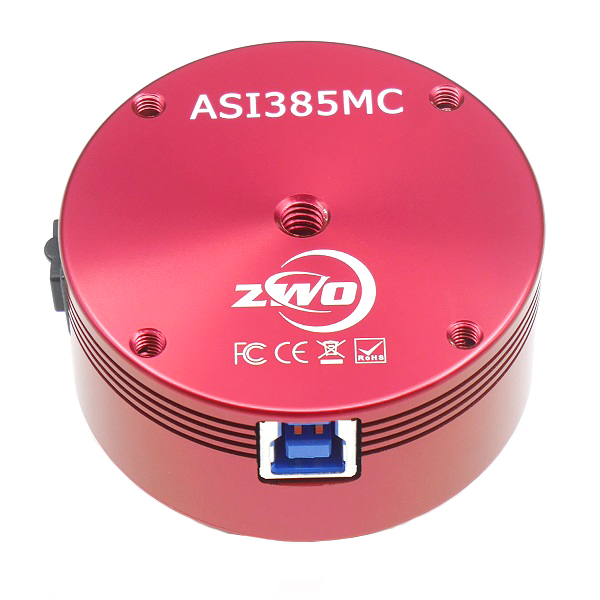

USB 3.0 Port: Provide 5Gb bandwidth to make it possible for ASI385 to run at 67 fps (12bit, normal mode) or 120 fps (10bit, high speed mode) at full resolution (2.13Meg).
ZWO recommend 12V at 3A~5A or more DC adapter for cooler power supply (2.1*5.5, center positive).
Battery from 9-15V is also suitable for cooling power supply.
USB 2.0 HUB: Can connect with various accessories, such as filter wheel, guide camera and electronic focuser, for convenient cable management using it's inbuilt USB2.0 hub. The USB Hub draws power from an external power supply if you have one connected. Two short 0.5m USB2.0 cables are included.

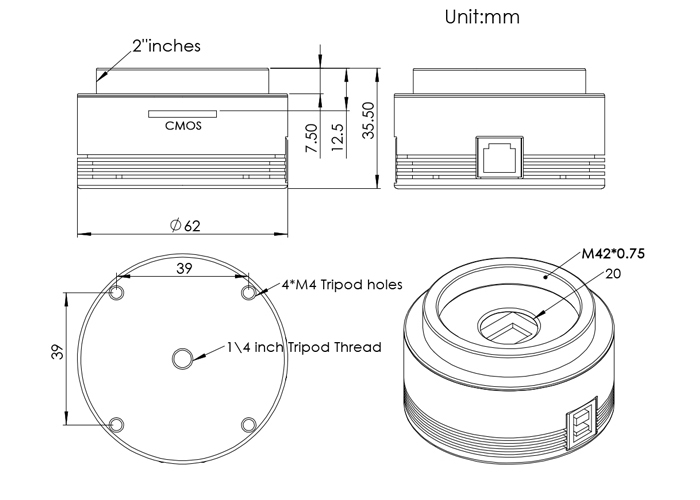

ASI385MC Mechanical Drawing
What's in the box
- ASI385MC Camera
- T2-1.25" Nosepiece Adapter
- 1.25" Cap
- 2-metre USB 3.0 Cable
- ST4 Cable
- Quick Start Guide
- Driver CD
|Sensor ||1/2″ CMOS IMX385 |
|Diagonal ||8.35mm |
|Resolution ||2.12Mega Pixels 1936×1096 |
|Pixel Size ||3.75µm |
|Exposure Range ||32µs-2000s |
|ROI ||Supported |
|ST4 Guider Port ||Yes |
|Focus Distance to Sensor ||12.5mm |
|Shutter Type ||Rolling Shutter |
|Protect window ||AR coated window |
|Operating System Compatibility ||Mac, Windows, Linux |
|Interface ||USB3.0/USB2.0 |
|Bit rate ||12bit output(12bit ADC) |
|Adaptor ||2″ / 1.25″ / M42X0.75 |
|Dimension ||φ62mm X 36mm |
|Weight ||120g or 4.2 ounces (without lens) |
|Working Temperature ||-5°C—45°C |
|Storage Temperature ||-20°C—60°C |
|Working Relative Humidity ||20%—80% |
|Storage Relative Humidity ||20%—95% |
Additional resolutions can be user defined.
