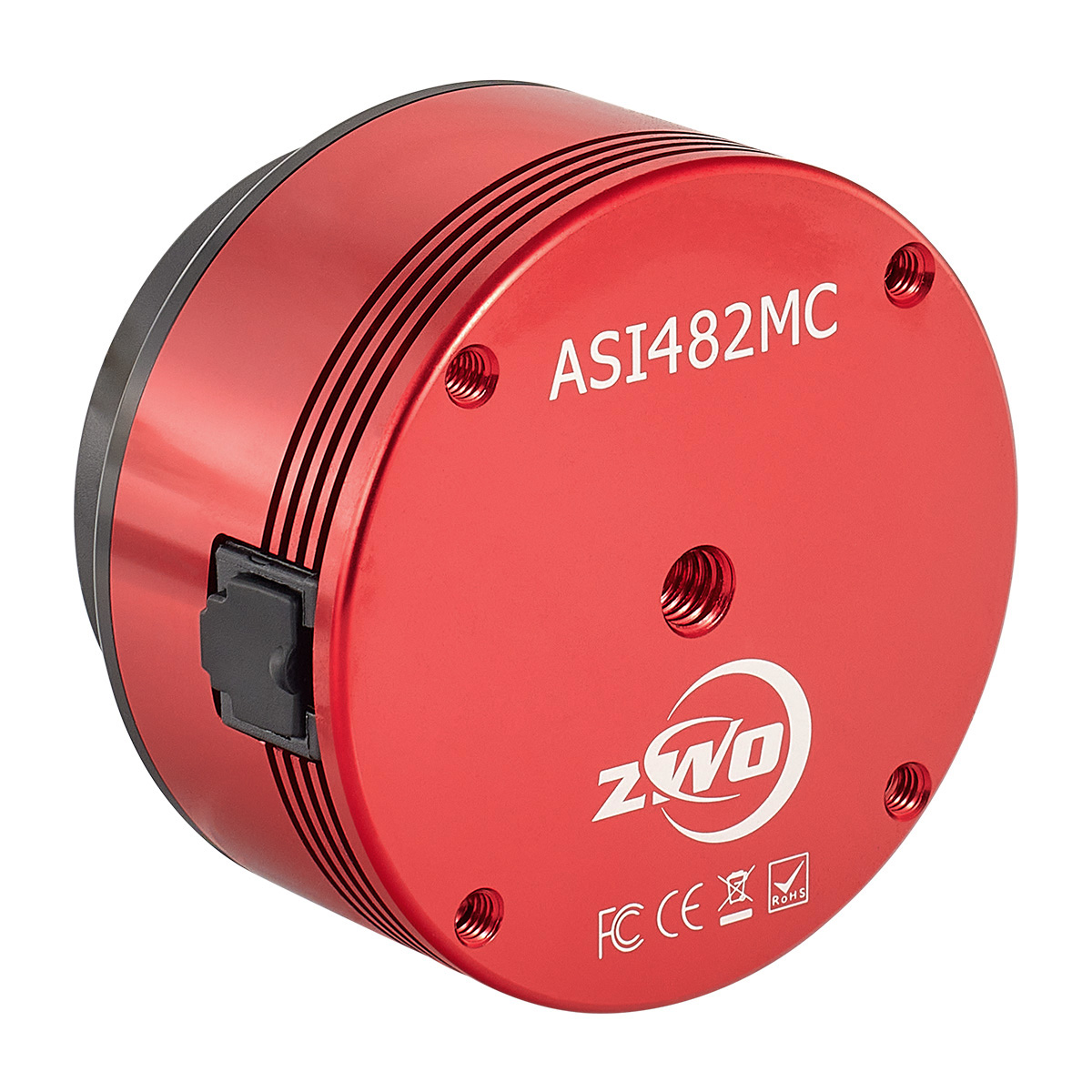

ZWO ASI 482MC USB 3.0 Colour Camera
  Zoom
ZWO ASI 482MC USB 3.0 Colour CameraZWO ASI 482MC USB 3.0 Colour CameraZWO ASI 482MC USB 3.0 Colour CameraZWO ASI 482MC USB 3.0 Colour Camera

ZWO ASI 482MC USB 3.0 Colour Camera

£385.00✓ 2 year warranty

:

Out of stock due 10-15 working days

About this product

Model:  zwo_asi482mc
Part Number:  ASI482MC

New ZWO ASI482MC Colour Planetary Camera

The ASI482MC is a new (Sep 2021) USB 3.0 OSC planetary camera featuring the Sony IMX482 sensor with large 5.8um pixels, impressive 51.5ke- full-well depth, extremely high sensitivity and super low read out noise.

A versatile camera suitable not only for lunar and planetary imaging but also for DSO astrophography (multiple images with short exposure times stacked to improve SNR).

Can also be used as an EAA or all-sky camera.



FEATURES

  • Sony IMX482 Sensor
  • 1/1.2" format sensor, 11.1 x 6.2mm
  • 1920 x 1080 Resolution
  • 5.8μm Square Pixels
  • 12bit ADC
  • Peak QE ~85%
  • 1.5-12.9e Read Noise, 51000e Full Well
  • Up to 83fps capture rate
  • ST4 Port
  • USB3.0
  • Weighs only 133g!

Camera Field of View Simulator

1/1.2” format 2 megapixel sensor

Compared to the ZWO ASI 485MC, the Sony IMX482 back-illuminated CMOS sensor fitted to this camera has the same physical size but features 4x larger effective pixels for higher sensitivity.

The sensor length and width are 11.13mm x 6.26mm. Diagonal is 12.86mm.

SNR1s=0.08lx

Sony introduced SNR1s [lx] as an index to quantitatively evaluate picture quality at low illumination. SNR1s [lx] is an acronym consisting of “SNR” (Signal-to-Noise Ratio), “1” (represents that the signal level when noise = 1 is 1) and “s” (for Security). The lower the value, the greater the image quality at low illumination.

The 5.8um large pixel size produces a remarkably low SNR1s value of 0.08lx for the ASI482MC. This results in a sensor with almost twice the sensitivity of the ZWO ASI 385MC with 0.13lx.

51.5ke- full well capacity

The full well capacity of 51.5ke- and very low SNR1s makes this a versatile camera suitable not only for lunar and planetary imaging but also for DSO astrophography (multiple images with short exposure times stacked to improve SNR).

The ASI482MC can also be used as an EAA or all-sky camera.

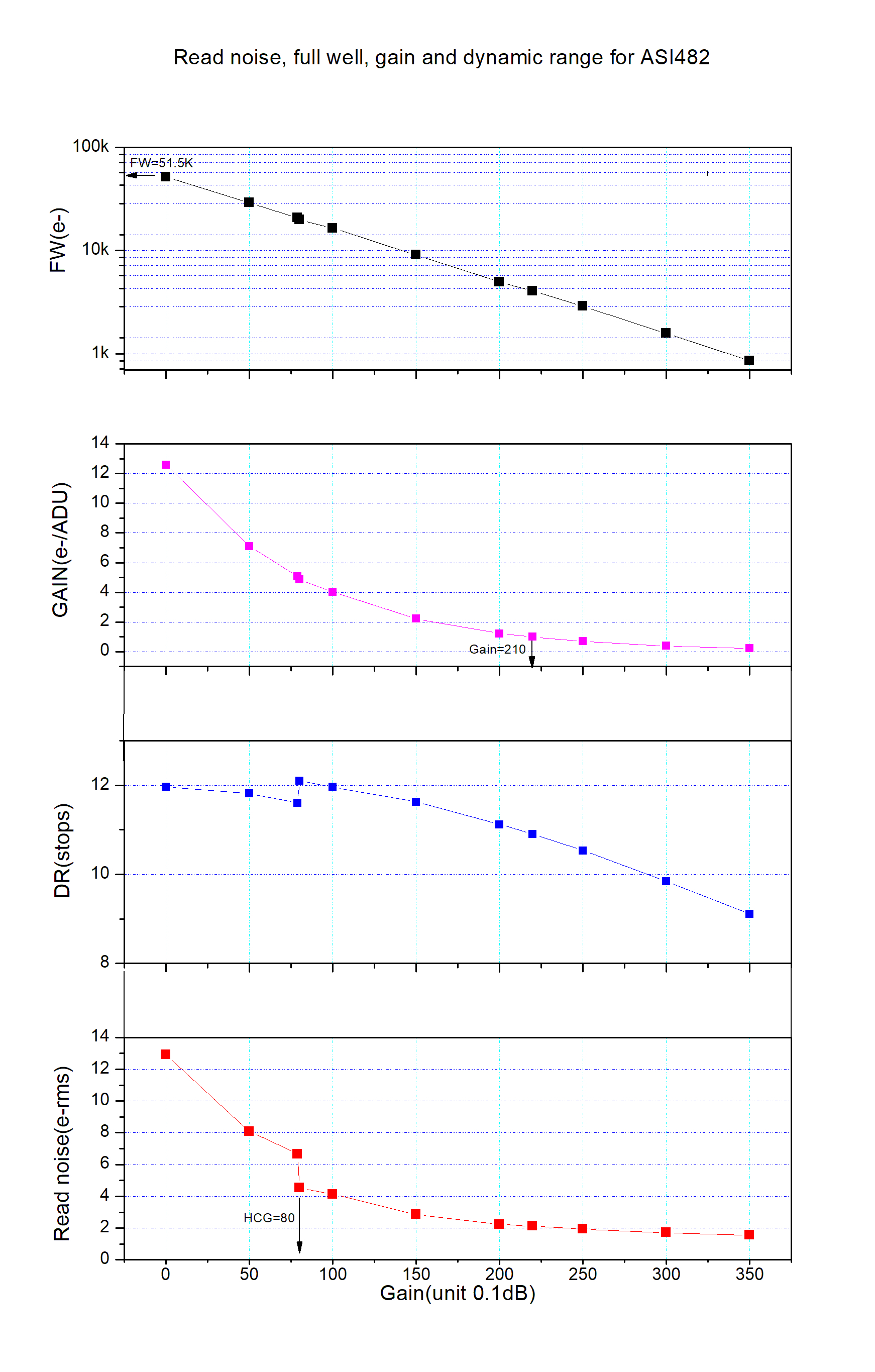

HCG Mode

The ASI482MC's integral HCG mode effectively reduces readout noise at high gain while maintaining the same wide dynamic range you would expect at low gain.

When the gain is 80, HCG mode is automatically activated. This results in read noise as low as 1.5e- and dynamic range close to 12 stops.

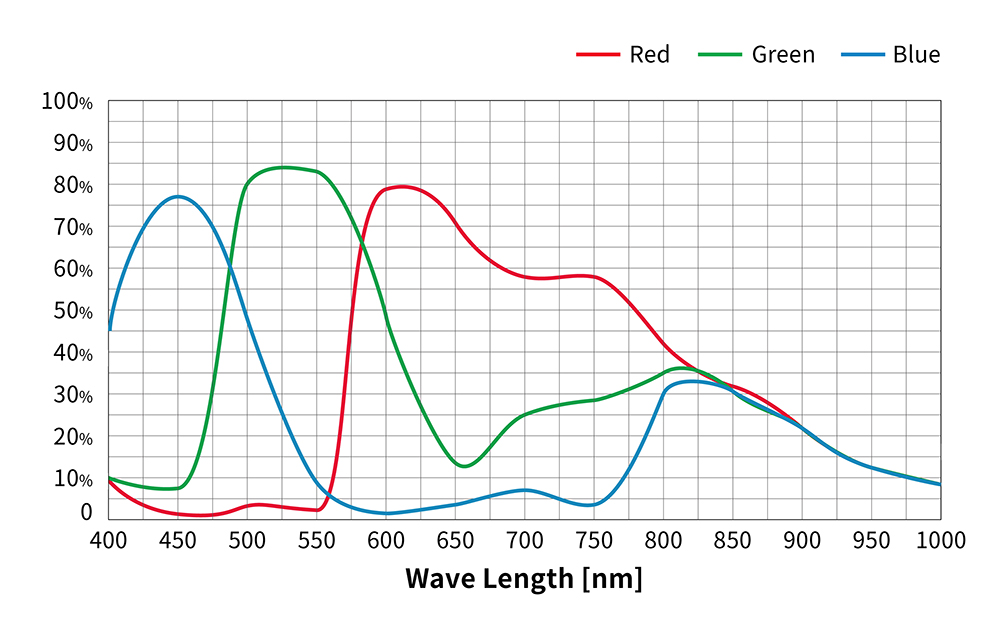

QE curve

Zwo estimate a QE peak value of ASI482MC of 85% at 530nm.

USB 3.0 Port & ST4 Port

USB 3.0 Port: Like other ASI cameras, the ASI482MC is powered and controlled via USB 3.0. The 5Gb bandwidth enables the camera to run at 82.5fps (10bit, high speed mode) or 57.5fps (12bit, normal mode) at full resolution (2 Mp).

ST4 Port: Used for direct connection to a suitably specified mount for auto-guiding.

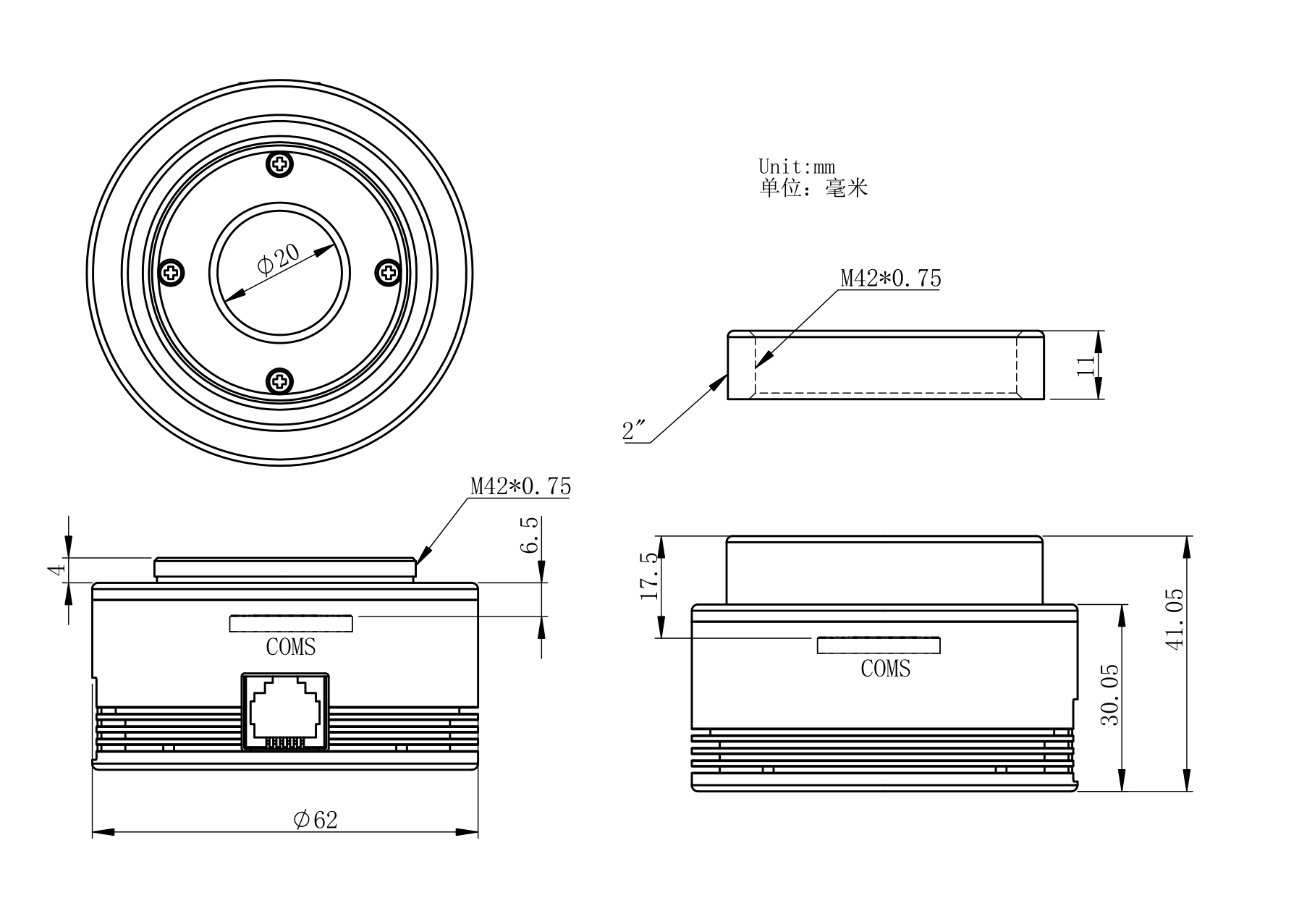

Mechanical Diagram

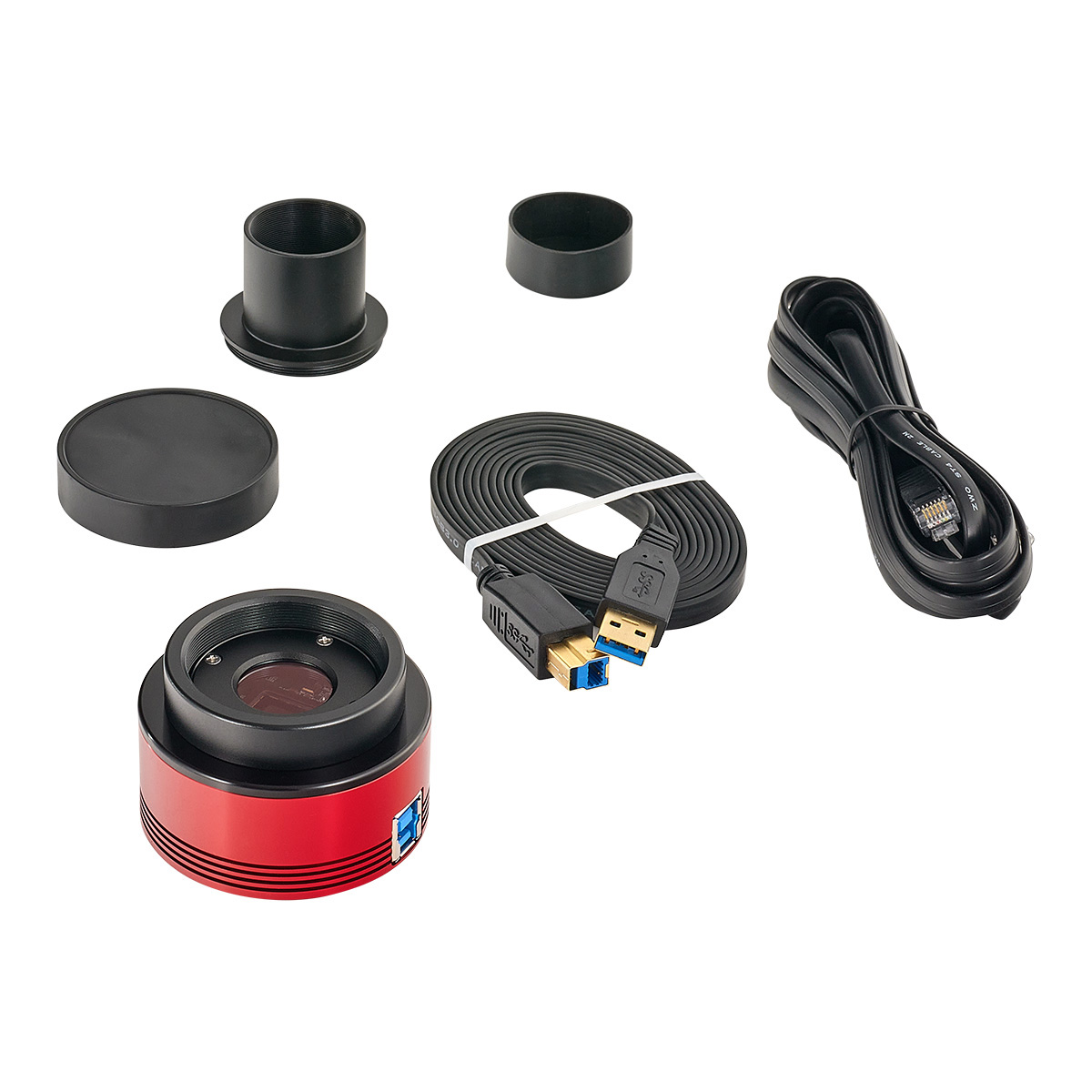

What's in the box

  • Camera Body
  • 1.25" Cover
  • 2" Cover
  • 1.25" Nosepiece
  • 3m USB 3.0 Cable
  • ST4 Cable
  • Quick Guide

Specifications

Sensor1/1.2″ CMOS Sony-IMX482
Bayer PatternR Gr Gb B
QE peak85%@530nm
Back focus length17.5mm
Max fps82.5fps
Full well51.5K e
ShutterRolling shutter
Resolution2.07Mega Pixel,1920*1080
Pixel Size5.8m
Data FormatRAW8、RAW16、RGB24、Mono8
Exposure Range32μs~2000s
InterfaceUSB3.0
Protect windowAR
ADC12bit
Dimensionφ78mmX73.5mm
Weight0.133KG
Working Temperature-5℃~50℃
Storage Temperature-10℃~60℃
Working Relative Humidity0-80%
Supported OSWIN7/8/10 32&64bit, Linux, Mac

Downloads / Manuals

The following manuals and downloads are available for this product:

Software

ZWO Software and Drivers
