ZWO ASI 071MC-PRO USB 3.0 Cooled Colour Camera

ZWO ASI 071MC-PRO USB 3.0 Cooled Colour Camera
  Zoom
ZWO ASI 071MC-PRO USB 3.0 Cooled Colour CameraZWO ASI 071MC-PRO USB 3.0 Cooled Colour CameraZWO ASI 071MC-PRO USB 3.0 Cooled Colour Camera
£1,479.00

:

Incoming - Shipped 7-10 working days.

Model:  zwo_asi071mc-pro
Part Number:  ASI071MC-PRO
Brand:  ZWO

ZWO

INCLUDED IN THE BOX

  • ASI071MC-Cool Camera
  • Soft Padded Case
  • M42-M42 21mm Extender
  • M42-M48 16.5mm Extender
  • M42-1.25" Nosepiece
  • M42-M48 Adapter
  • 2" Dust Cap
  • 2m USB3.0 Cable
  • Short USB2.0 Cable x 2
  • Allen Key
  • Drivers & Extra Software CD

New 'PRO' version features a 256MB memory buffer for improved image transfer

The ASI071MC-PRO (ZWO's newest camera) features the popular Sony IMX071 APS-C (1.8") sensor for very high quality images.

Regulated two-stage, tec-cooling will cool to 35-40 degrees below ambient temperature.

Features a controllable anti-dew protect window heater and an external desiccant tube design so you will never need to physically open the camera.

FEATURES

  • Sony IMX071 APS-C (1.8″) Sensor
  • 256MB DDR3 Memory Buffer
  • Regulated two-stage Tec-Cooling: 35-40 degree below ambient temperature
  • Very low read noise - 2.3e @24db gain 3.3e @lowest gain
  • 14Bit ADC - provides real 14bit dynamic range
  • Electronic shutter - no issues with vibrations sometimes found in mechanical shutters
  • USB3.0 Port (back compatible with USB2.0) - 10fps@4944X3284  134fps@320X240
  • AR coated protective window - all light can pass
  • Controllable Anti-Dew protective window heater (can be turned off to save power)
  • Compatible with Windows / Mac OS / Linux

DDR Memory Buffer

ZWO Pro cameras feature a 256MB DDR3 memory buffer to help maintain data transfer stability and reduce amp-glow issues caused by the slow data transfer speed when using a USB2.0 port.

All ZWO cameras include a 2-year warranty.

Camera Field of View Simulator

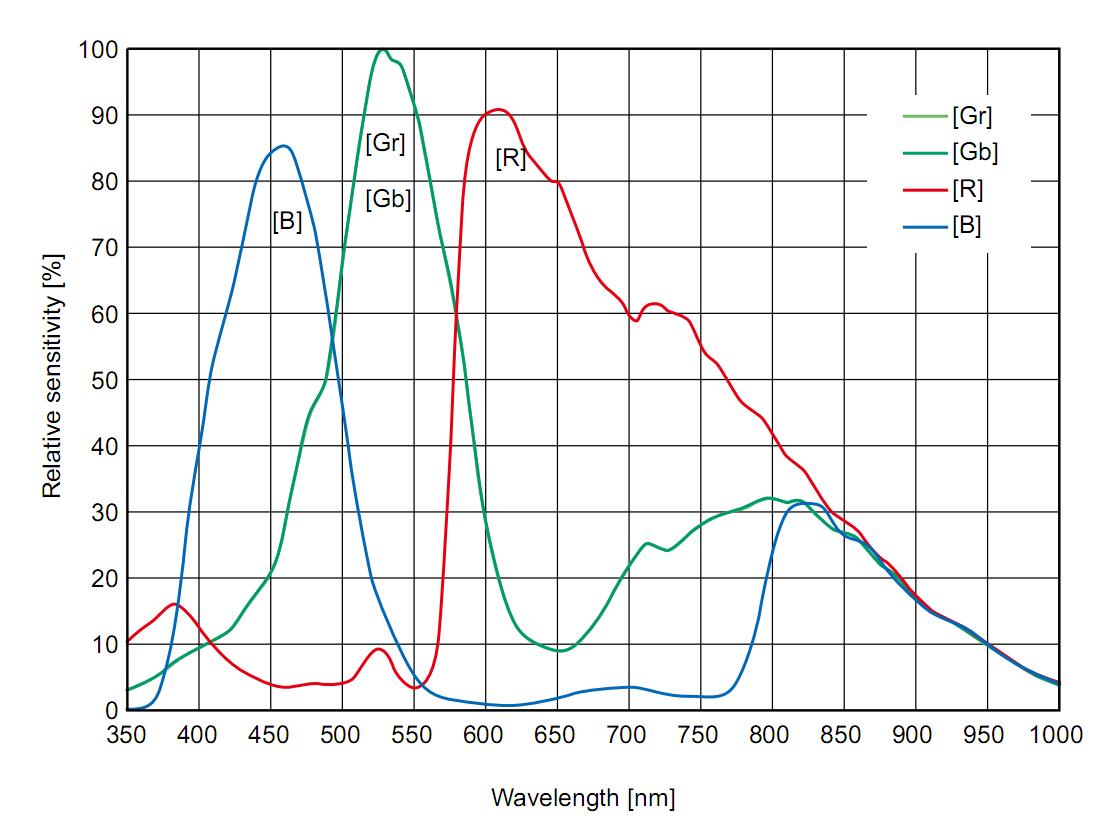

ASI071MC QE Curve

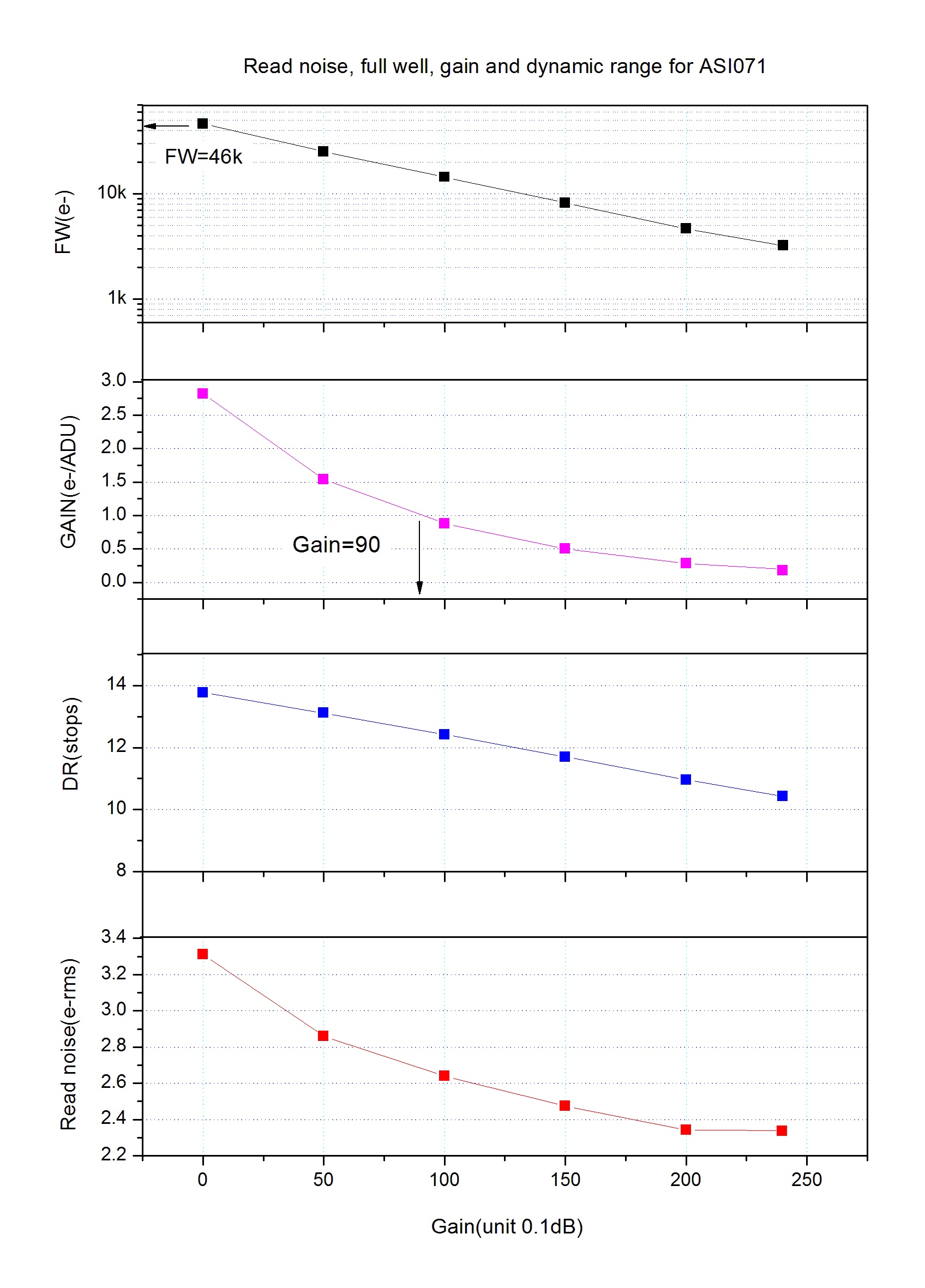

ASI071MC Read Noise

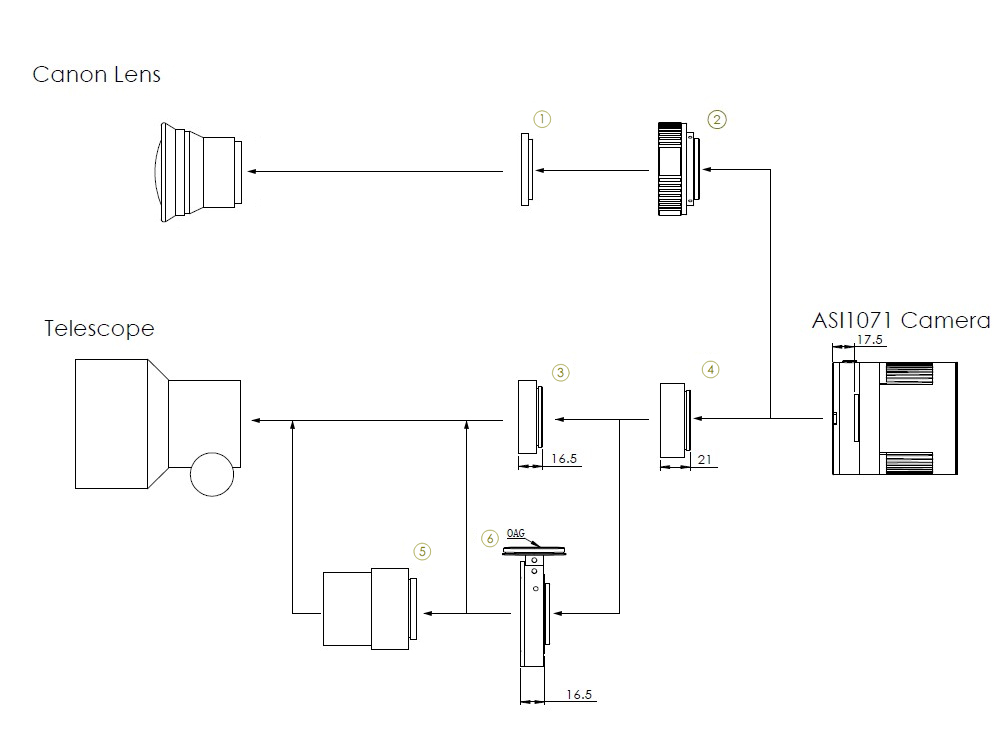

ASI071MC System Diagram

  1. 2" Filter (optional)
  2. EOS-T2 Adapter
  3. M42 to M48 Extender (16.5mm)
  4. M42 Extender (21mm)
  5. Focal Reducer
  6. Off Axis Guider (OAG)

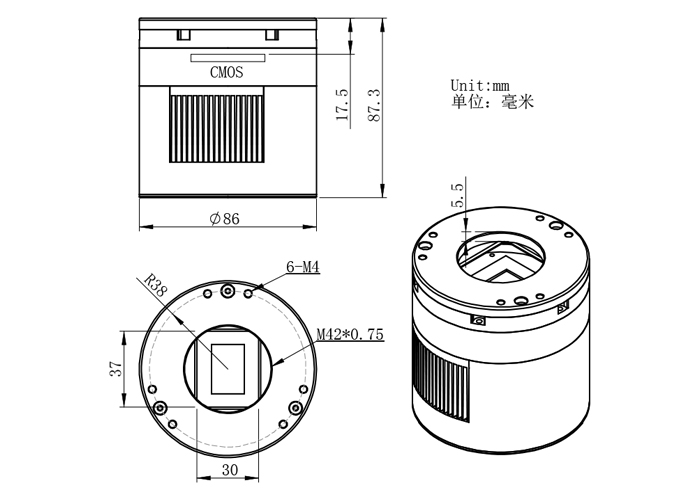

ASI071MC Mechanical Drawing



Product Specifications

Sensor SONY IMX071 CMOS
Diagonal 28.4mm
Resolution 16Mega
Pixels 4944X3284
Pixel Size 4.78µm
Max FPS at full resolution 10FPS
Shutter Rolling shutter
Exposure Range 64µs-2000s
ROI Supported
Read Noise 2.3e @24db gain
QE peak TBD
Full well 46ke
ADC 14bit
Interface USB3.0/USB2.0
Adaptor M42X0.75
Protect window AR window
Dimensions 78mm Diameter
Weight 500g
Back Focus Distance 17.5mm
Cooling Regulated Two Stage TEC
Delta T 35-40 below ambient
Cooler Power consumption 12V at 3A Max
Working Temperature -5°C—45°C
Storage Temperature -20°C—60°C
Working Relative Humidity 20%—80%
Storage Relative Humidity 20%—95%



Supported Resolutions:

14Bit ADC

  • 4944×3284 10fps
  • 1920×1200 28fps
  • 1280×1080 33fps
  • 640×480 70fps
  • 320×240 134fps

Additional resolutions can be user defined.

The following manuals and downloads are available for this product:

Manuals

ZWO ASI Camera User Manual v1.3 (PDF)

ZWO ASI USB2.0 Camera FAQ v1.0 (PDF)

ZWO ASI USB2.0 Camera Troubleshooting v1.0 (PDF)

Software

ZWO Software and Drivers



ZWO ASI 071MC-PRO USB 3.0 Cooled Colour Camera Questions & Answers

Please fill in the form below to ask a question.

Your Name: *
Your Email Address: *
Your Question: *
 *
Please add the two numbers

Average Rating (1 Review):
Write a Review and share your opinions!

Rating (max 5):
New wide field colour camera
Thursday, 12 April 2018  |

Due to the clouds included with the new camera, Iíve only had a few hours to test under the stars, but first impressions are very favourable - I unscrewed my 183MC, screwed on the 071, opened Nebulosity4, and found an almost perfectly focused image! The field of view is around 2.4x1.6 degrees, and seemed paetty flat, but the clouds rolled in before I could capture enough data to confirm this. Quite easy to avoid saturation using this camera, which was one of my targets.
Overall, very pleased, so far.
Minor niggle, in that Win10 doesnít seem to get on with the cameraís USB hub, but once it stops trying, everything else settles down & works fine.
