ZWO ASI1600MM-Cool USB 3.0 Mono Camera

ZWO ASI1600MM-Cool USB 3.0 Mono Camera
  Zoom
£1,309.00

:

In stock - Shipped 1-2 working days.

Model:  zwo_asi1600mm-cool
Part Number:  ASI1600MM-COOL
Brand:  ZWO

ZWO


INCLUDED IN THE BOX

  • ASI1600MM Camera
  • Soft Padded Case
  • T2-1.25" Nosepiece Adapter
  • 1.25" Cap
  • 2-metre USB 3.0 Cable
  • USB 2.0 Short Cable x2
  • T2-1.25" Filter adapter (3mm Thickness)
  • T2 Extender 18.5mm
  • Desiccant Tablets
  • Driver CD

Latest MK3 model with integrated USB2 hub, air socket for desiccant and screwed front cover.

ZWO are well known for their lunar, solar and planetary imaging cameras but this new model, with it’s large (4/3” diagonal) cooled sensor, is aimed at deep-sky imagers.

It is the shift from CCD to CMOS that most interests us.

Imaging with CMOS will probably require a different approach, tests suggest more frames / shorter exposures work better than less frames / longer exposures. This takes advantage of the CMOS sensor's very low read noise and stacking more frames suits the type of data CMOS sensors produce (12 or 14-bit, rather than the 16-bit we are used to).

From a practical point of view the ASI1600’s large sensor means those using 1.25” filters will need to mount them as close to the sensor as possible. Flat frames can be used to even out uneven illumination at the frame edges.

Includes an M42 extender ring, when removed shortens the back focus distance to only 6.5mm.

Camera Field of View Simulator

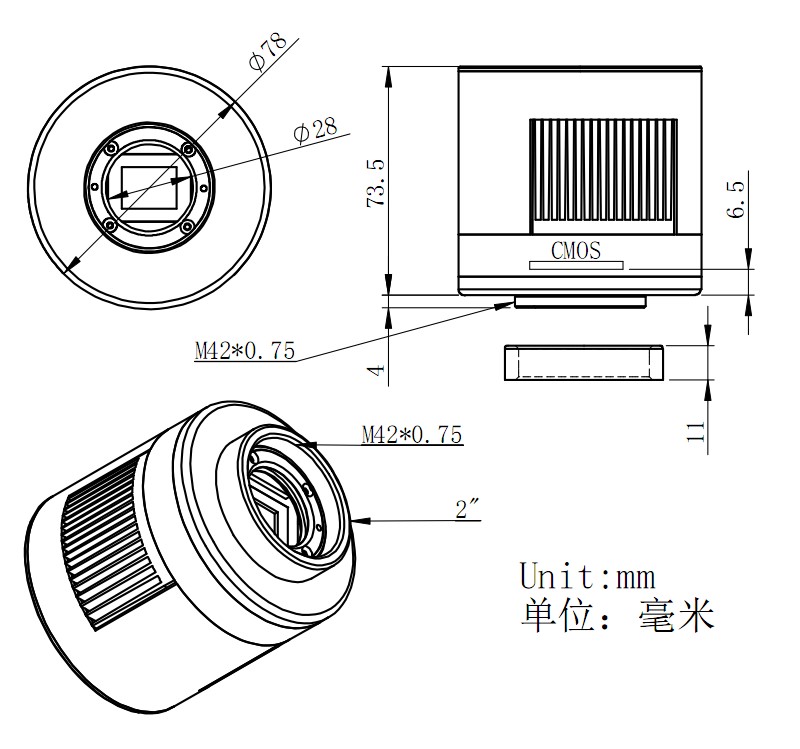

Mechanical Drawing

Product Specifications

Sensor 4/3″ CMOS
Diagonal 21.9mm
Resolution 16Mega Pixels 4656×3520
Pixel Size 3.8µm
Max FPS at full resolution 23FPS
Exposure Range 32µs-2000s
Read Noise 1.2e @30db gain
QE peak TBD
Full well 20ke
ADC 12bit
Interface USB3.0/USB2.0
Adaptor 2″ / 1.25″ / M42X0.75
Protect window AR window
Dimensions 78mm Diameter
Weight 410g
Back Focus Distance 6.5mm
Cooling Regulated Two Stage TEC
Delta T 40-45 below ambient
Cooler Power consumption 12V at 2A Max



Supported Resolutions:

12Bit ADC

  • 4656×3520 14.7fps
  • 3840×2160 23.1fps
  • 1920×1680 32.9fps
  • 1280×960 47.1fps
  • 640×480 80.4fps
  • 320×240 124.4fps

10Bit ADC

  • 4656×3520 23fps
  • 3840×2160 36.2fps
  • 1920×1680 57.7fps
  • 1280×960 73.6fps
  • 640×480 125.7fps
  • 320×240 192.4fps

Additional resolutions can be user defined.

The following manuals and downloads are available for this product:

Manuals

ZWO ASI Camera User Manual v1.3 (PDF)

ZWO ASI USB2.0 Camera FAQ v1.0 (PDF)

ZWO ASI USB2.0 Camera Troubleshooting v1.0 (PDF)

Software

ZWO Software and Drivers



ZWO ASI1600MM-Cool USB 3.0 Mono Camera Questions & Answers

Please fill in the form below to ask a question.

Your Name: *
Your Email Address: *
Your Question: *
 *
Please add the two numbers

Average Rating (1 Review):
Write a Review and share your opinions!

Rating (max 5):
great camera
Monday, 27 March 2017  |

Well built and sturdy, the integrated USB hub keeps cable tangle down.
This is a very fast camera v my old CCD allowing better quality LRGB imaging in just one hour; used to be 1hr 30 mins and not as good quality images.
When running 1s - 5s imaging vertical banding appears which dark frames do not fully remove. 30s images are better and show no banding and very limited amp glow which darks will deal with.
When I bought this camera there was almost no information about narrowband imaging so I was concerned this would be an issue. Shouldn't have worried 11x2 min exposures of M101 shows good H alpha detail in the outer arms.
After much experimenting gain 30, offset 10 gives superb results with 30s subs LRGB and 2min subs narrow band.
Only disadvantage is 2x2 binning only supports 10bit output so software binning is a must.
Must buy a bigger hard disk; 230 files = approx. 4.5GB
As an experienced deep sky imager I would recommend this camera every time at this price point.
