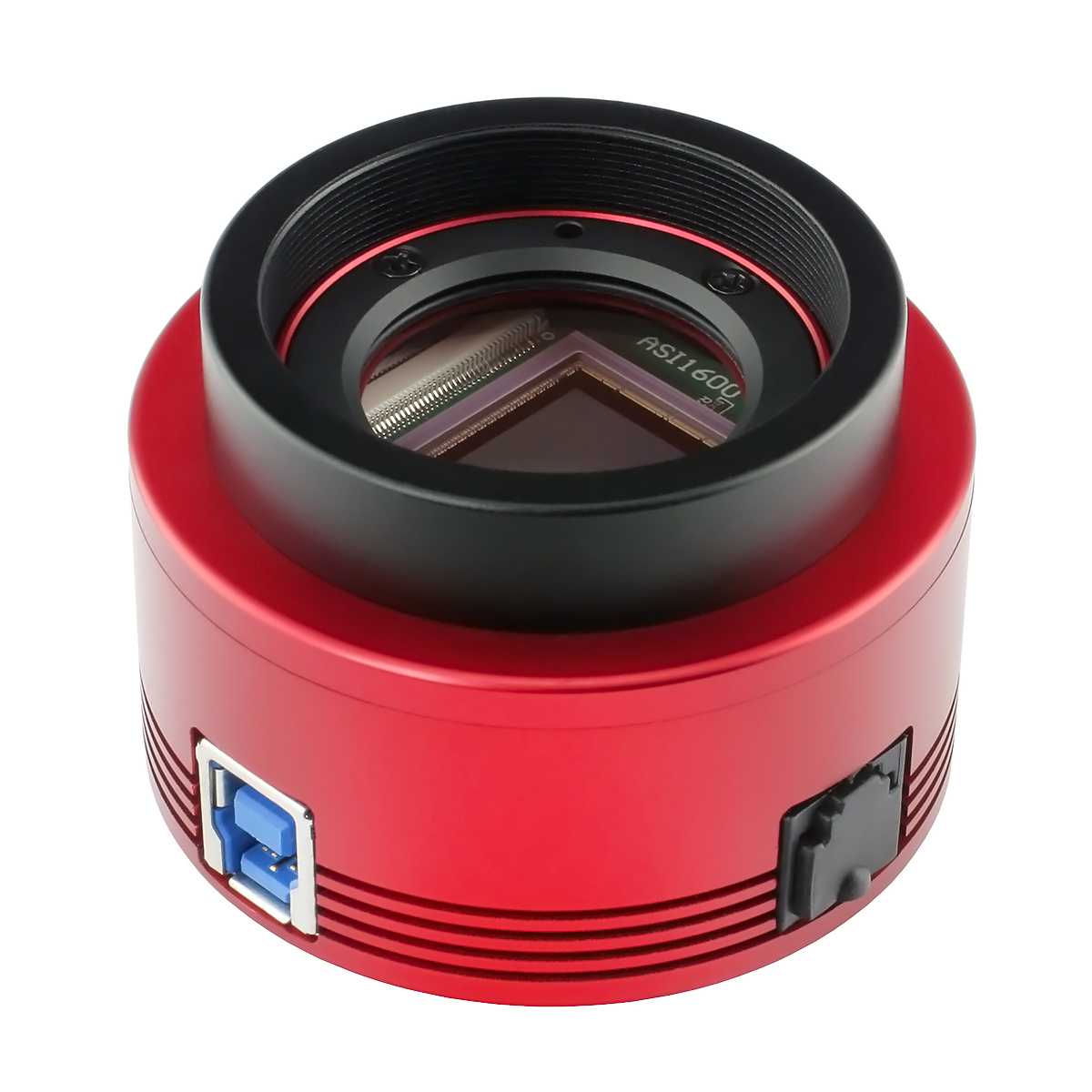

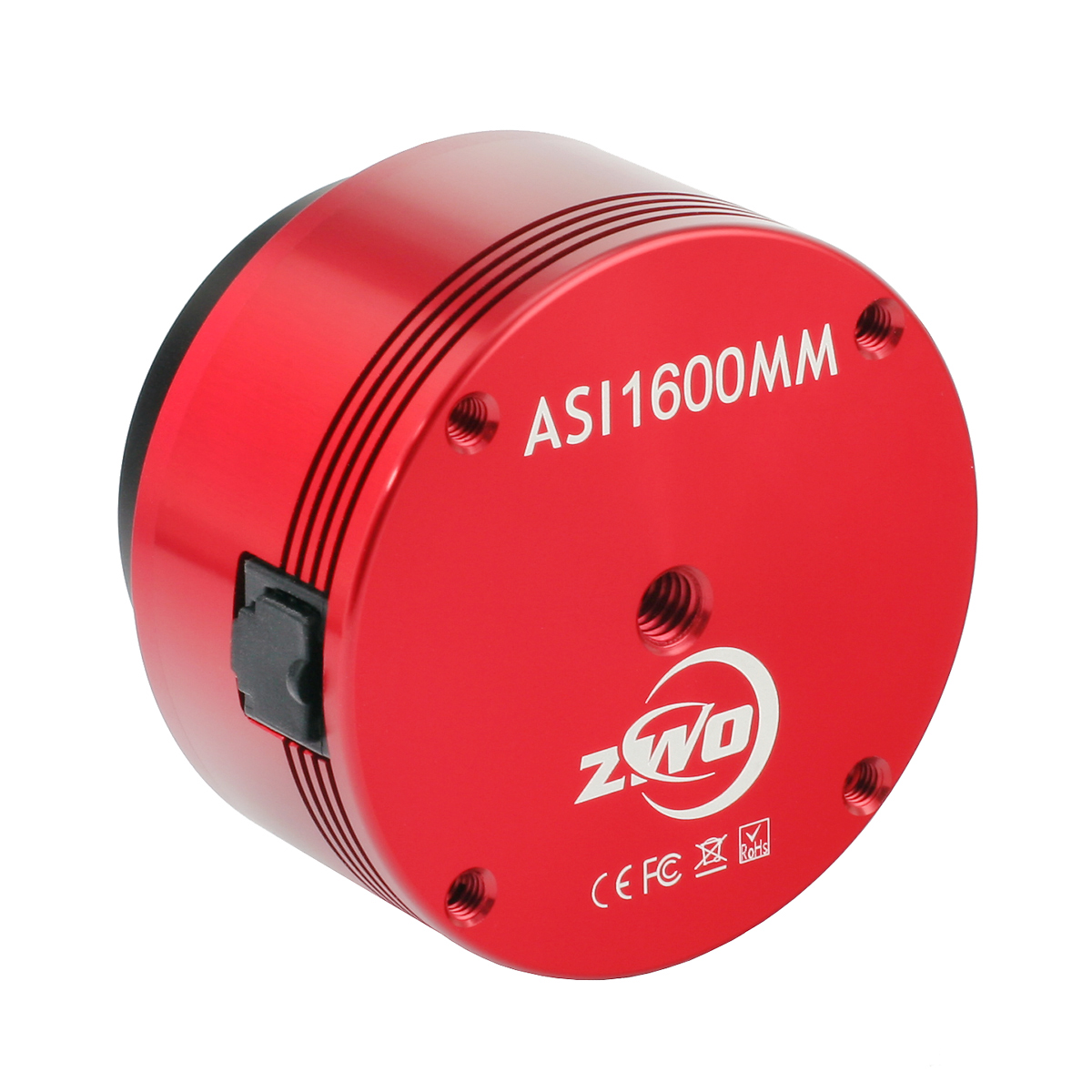

ZWO ASI1600MM USB 3.0 Mono Camera

ZWO ASI1600MM USB 3.0 Mono Camera
  Zoom
£999.00Regular Price:  £1,076.00

:

Available - Delivery 3-5 working days.

Model:  zwo_asi1600mm
Part Number:  ASI1600MM
Brand:  ZWO

ZWO

ZWO Summer Promo - Ends 31st August (subject to availability)


INCLUDED IN THE BOX

  • ASI1600MM Camera
  • M42-2" Nosepiece Adapter
  • 2" Cap
  • 2-metre USB 3.0 Cable
  • 2-metre ST-4 Cable
  • Driver CD

ZWO are well known for their lunar, solar and planetary imaging cameras but this new model, with it’s large (4/3” diagonal) sensor, is aimed at deep-sky imagers.

It is the shift from CCD to CMOS that most interests us.

Imaging with CMOS will probably require a different approach, tests suggest more frames / shorter exposures work better than less frames / longer exposures. This takes advantage of the CMOS sensor's very low read noise and stacking more frames suits the type of data CMOS sensors produce (12 or 14-bit, rather than the 16-bit we are used to).

From a practical point of view the ASI1600’s large sensor means those using 1.25” filters will need to mount them as close to the sensor as possible. Flat frames can be used to even out uneven illumination at the frame edges.

Includes an M42 extender ring, when removed shortens the back focus distance to only 6.5mm.

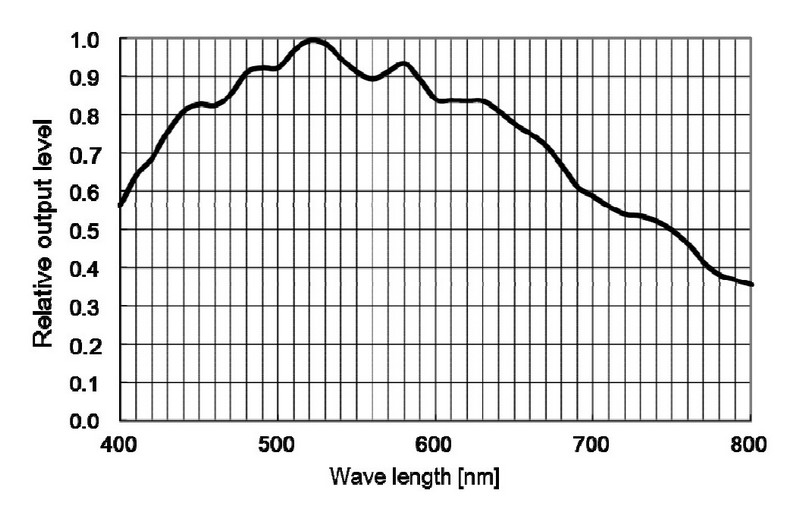

ASI1600MM relative QE Curve

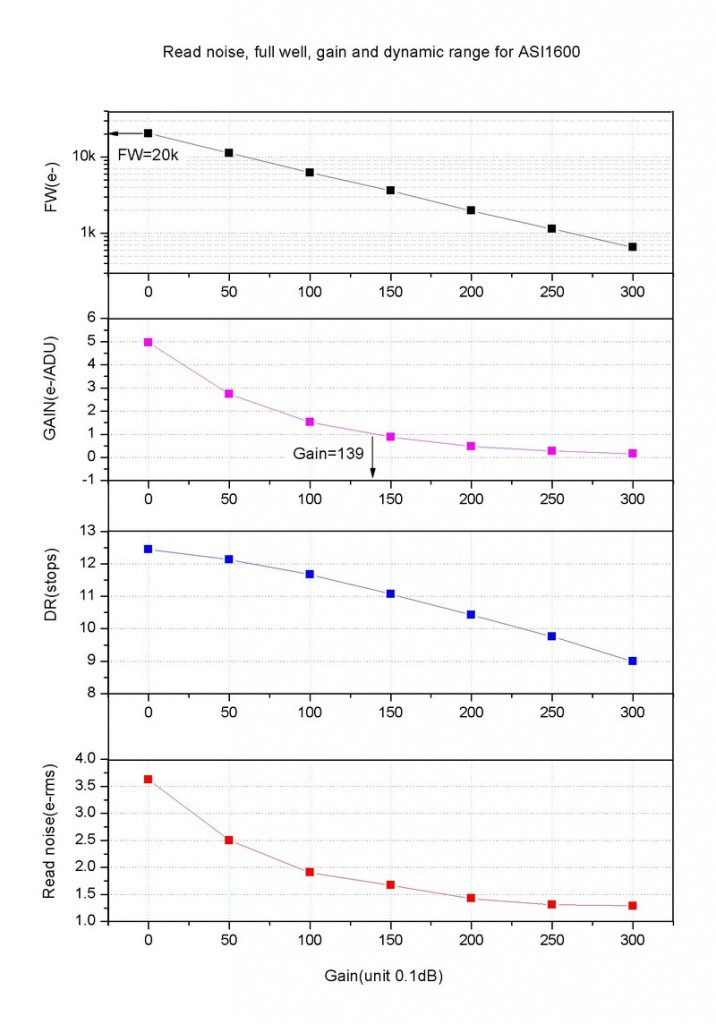

Read Noise

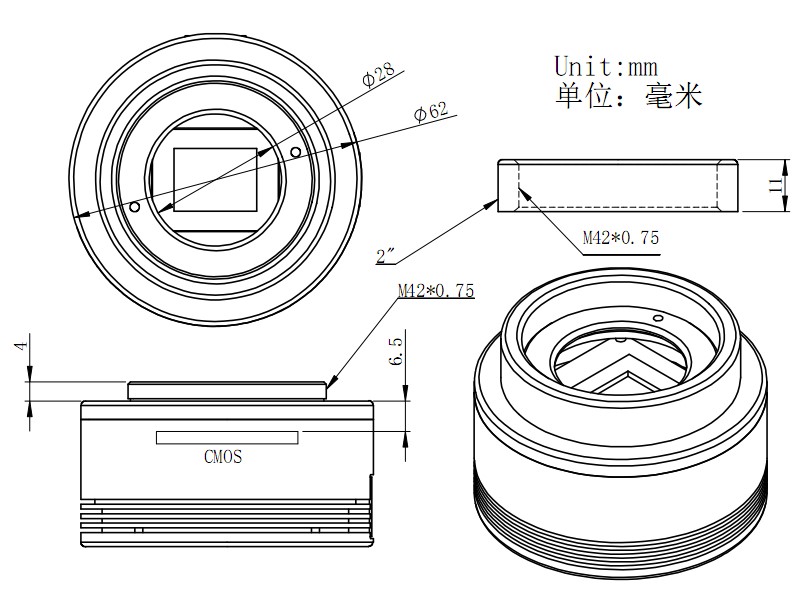

Mechanical Drawing

Product Specifications

Sensor 4/3″ CMOS
Diagonal 21.9mm
Resolution 16Mega Pixels 4656×3520
Pixel Size 3.8µm
Max FPS at full resolution 23FPS
Exposure Range 32µs-2000s
Read Noise 1.2e @30db gain
QE peak TBD
Full well 20ke
ADC 12bit
Interface USB3.0/USB2.0
Adaptor 2″ / 1.25″ / M42X0.75
Protect window AR window
Dimensions φ62mm X 41mm
Weight 140g
Back Focus Distance 6.5mm
Working Temperature -5°C—45°C
Storage Temperature -20°C—60°C
Working Relative Humidity 20%—80%
Storage Relative Humidity 20%—95%



Supported Resolutions:

12Bit ADC

  • 4656×3520 14.7fps
  • 3840×2160 23.1fps
  • 1920×1680 32.9fps
  • 1280×960 47.1fps
  • 640×480 80.4fps
  • 320×240 124.4fps

10Bit ADC

  • 4656×3520 23fps
  • 3840×2160 36.2fps
  • 1920×1680 57.7fps
  • 1280×960 73.6fps
  • 640×480 125.7fps
  • 320×240 192.4fps

Additional resolutions can be user defined.
