ZWO ASI 174MM-Cool USB 3.0 Mono Camera

ZWO ASI 174MM-Cool USB 3.0 Mono Camera
  Zoom
ZWO ASI 174MM-Cool USB 3.0 Mono CameraZWO ASI 174MM-Cool USB 3.0 Mono CameraZWO ASI 174MM-Cool USB 3.0 Mono Camera
£869.00

:

Incoming - Shipped 7-10 working days.

Model:  zwo_asi174mm-cool
Part Number:  ASI174MM-COOL
Brand:  ZWO

ZWO

INCLUDED IN THE BOX

  • ASI174MM-Cool Camera
  • M42-1.25" Nosepiece Adapter
  • 1.25" Cap
  • 2" Cap
  • Spare Desiccant Tablets
  • 2-metre USB 3.0 Cable
  • 2-metre ST-4 Cable
  • Driver CD

New cooled version of ASI174MM Mono CMOS Imaging Camera enables sensor cooling to 35-40C degrees below ambient!

The 1″ sensor and 5.86 pixel size is well suited to deep-sky imaging.

Anti-reflective (AR) optical window.

The cooler requires a 12v power supply at 2.5A or 3A max DC adapter.

The camera can be used without the external power supply but will run in the normal, uncooled mode.

All ZWO cameras include a 2-year warranty.

Camera Field of View Simulator

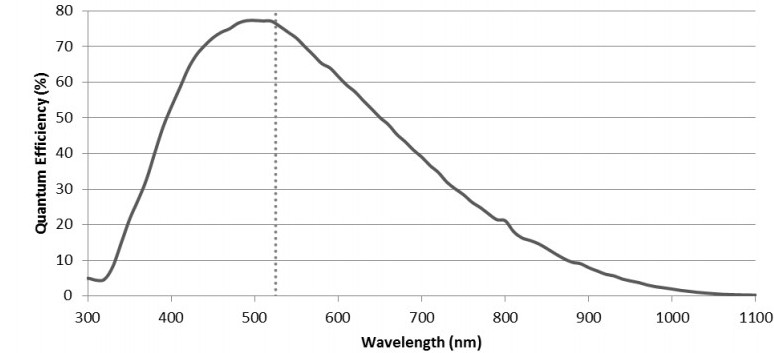

ASI174MM QE Curve

Mechanical Drawing

Product Specifications

Sensor1/1.2″ CMOS IMX174LLJ / IMX174LQJ
Resolution2.3Mega Pixels 1936×1216
Pixel Size5.86µm
Exposure Range32µs-1000s
ROISupported
InterfaceUSB3.0/USB2.0
Bit rate12bit output(12bit ADC)
Adaptor2″ / 1.25″ / M42X0.75
Dimensions78 mm Diameter
Weight410g
Back Focus Distance17.5mm
CoolingRegulated Two Stage TEC
Delta T35-40 degrees C
Cooler Power Supply Required12V at 2A Max

Supported Resolutions:


12bit ADC:

Binning 1×1:

  • 1936X1216@128FPS
  • 640×480@309FPS
  • 320×240@577FPS

Binning 2×2:

  • 968×608@128FPS

10bit ADC:

Binning 1×1:

  • 1936X1216@164FPS
  • 640×480@397FPS
  • 320×240@740FPS

Binning 2×2:

  • 968×608@164FPS
