ZWO ASI 178MM-Cool USB 3.0 Mono Camera
  Zoom
ZWO ASI 178MM-Cool USB 3.0 Mono CameraZWO ASI 178MM-Cool USB 3.0 Mono CameraZWO ASI 178MM-Cool USB 3.0 Mono Camera
ZWO ASI 178MM-Cool USB 3.0 Mono CameraZWO ASI 178MM-Cool USB 3.0 Mono CameraZWO ASI 178MM-Cool USB 3.0 Mono Camera

ZWO ASI 178MM-Cool USB 3.0 Mono Camera

£637.00✓ 2 year warranty

:

Incoming - Shipped 7-10 working days.

About this product

Model:  zwo_asi178mm-cool
Part Number:  ASI178MM-COOL

New cooled version of ASI178MM Colour camera enables sensor cooling down to to 35-40C degrees below ambient!

The ASI178MC is built around the back-illuminated Sony IMX178 1/1.8″ 6.4Mp sensor with Sony Starvis and ExmorR technology and 14bit ADC.

Anti-reflective (AR) optical window.

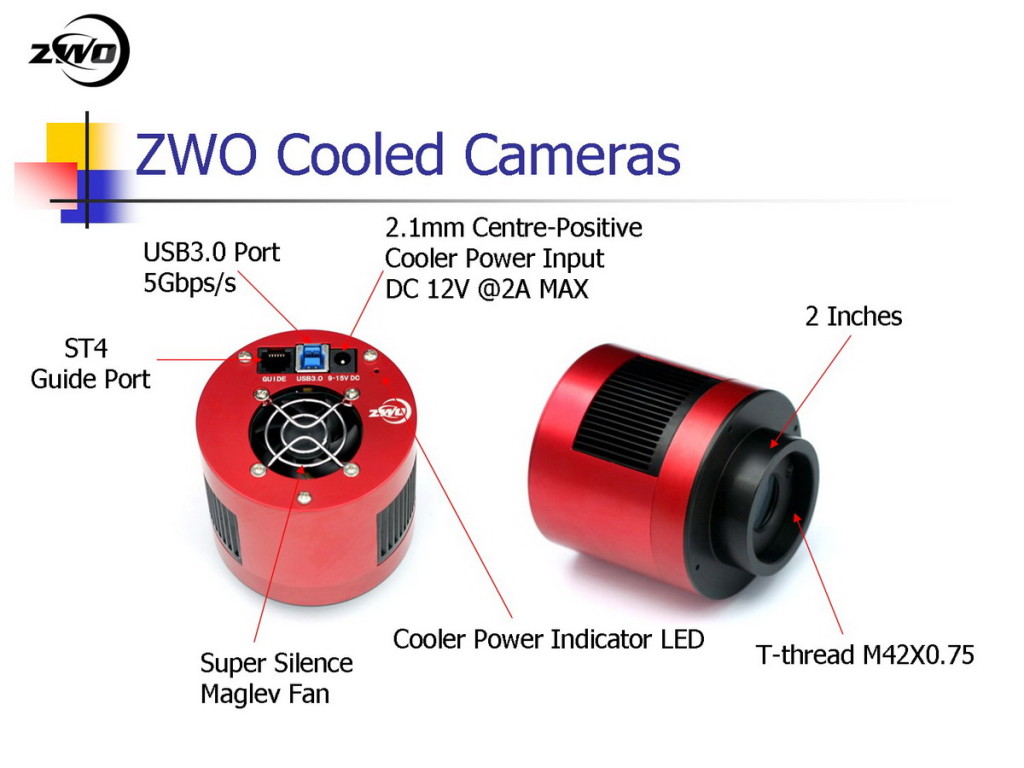

The cooler requires a 12v power supply at 2.5A or 3A max DC adapter.

The camera can be used without the external power supply but will run in the normal, uncooled mode.

All ZWO cameras include a 2-year warranty.

Camera Field of View Simulator

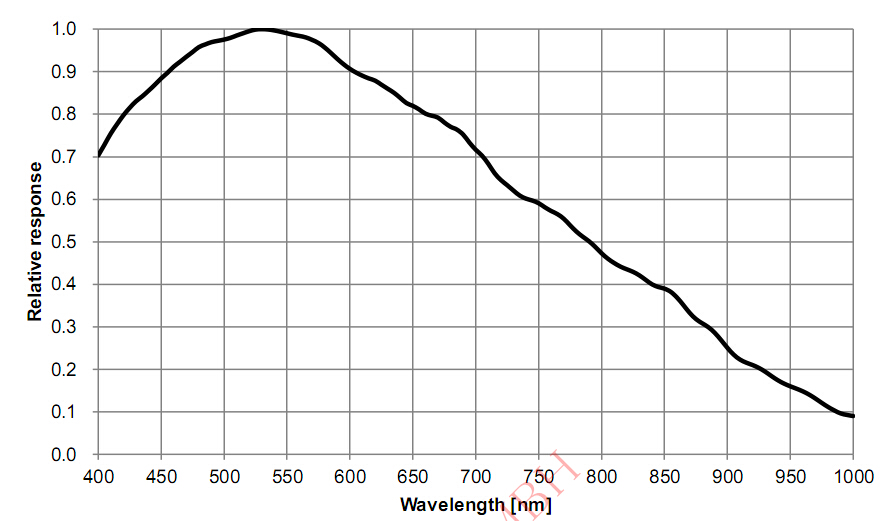

ASI178MM QE Curve

Relative QE Curve, we estimate the Peak Value to be between 75%-80%

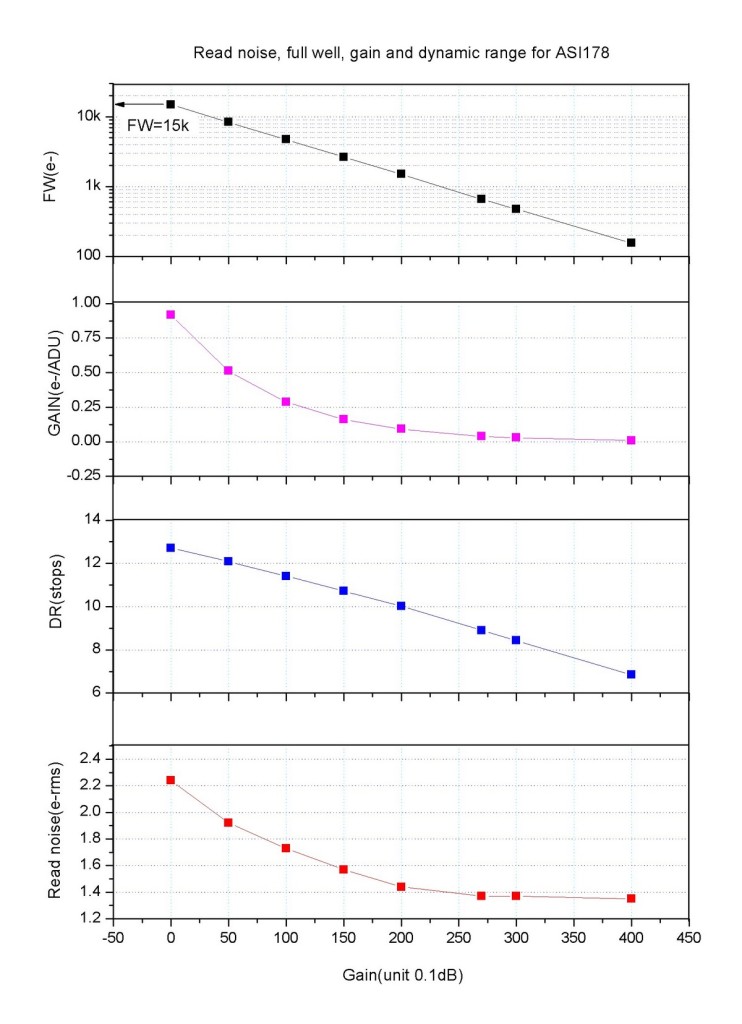

Extremely low read noise (2.2 e) , high sensitivity and 14bit ADC make it very suitable for astronomy and microscopy high resolution photograph.

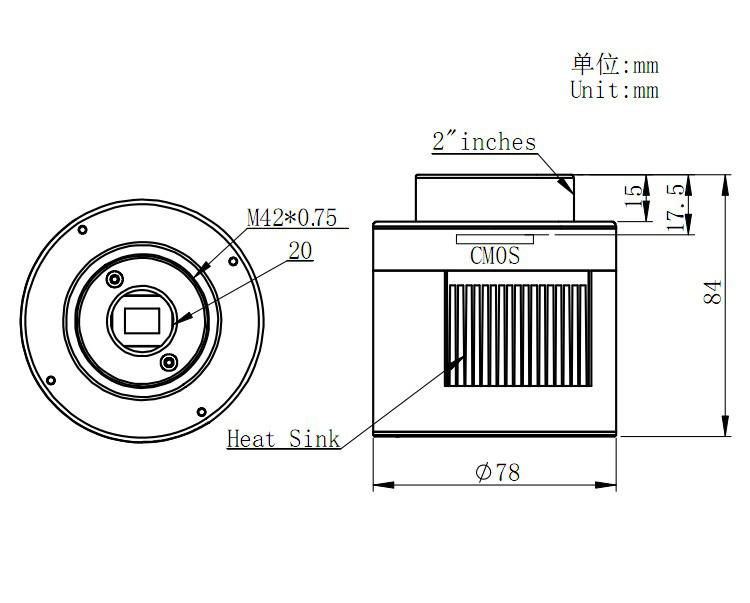

Mechanical Drawing





What's in the box

  • ASI178MM-Cool Camera
  • M42-1.25" Nosepiece Adapter
  • 1.25" Cap
  • 2" Cap
  • Spare Desiccant Tablets
  • 2-metre USB 3.0 Cable
  • 2-metre ST-4 Cable
  • Driver CD

Specifications

Sensor 1/1.8” CMOS IMX178
Resolution 6.4 Mega Pixels 3096*2080
Pixel Size 2.4µm
Sensor Size 7.4mm*5mm
Diagonal 8.92mm
Exposure Range 32µs-1000s
ROI Supported
ST4 Guider Port Yes
Focus Distance to Sensor 12.5mm
Shutter Type Rolling Shutter
Protect window AR clear window
Operating System Compatibility Mac, Windows, Linux
Interface USB3.0/USB2.0
Bit rate 14bit output(14bit ADC)
Adaptor 2″ / 1.25″ / M42X0.75
Dimensions 78 mm Diameter
Weight 410g
Back Focus Distance 17.5mm

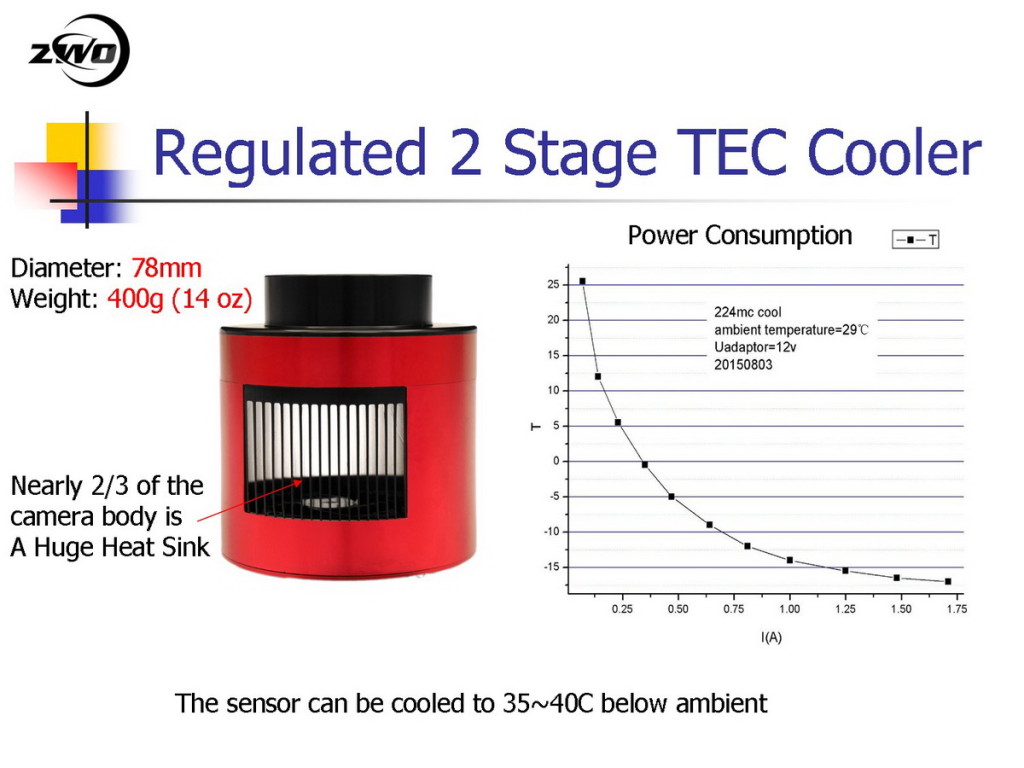

Cooling Regulated Two Stage TEC
Delta T 35-40 degrees C
Cooler Power Supply Required 12V at 2A Max



Supported Resolutions:

10bit ADC/14bit ADC
3096×2080 60fps / 30fps
2560×2048 62fps / 31fps
2048×1080 116fps / 58fps
1280×960 130fps / 65fps
800×600 204.7fps / 102.3fps
640×480 253.1fps / 126.5fps
320×240 479.7fps / 239.8fps

Additional resolutions can be user defined.
