Part Number: ASI290MC
The ZWO ASI290MM/MC features the new 1.28" 2.13Mp Sony IMX290LQR / IMX291LQR back-Illuminated CMOS sensors with 2.9 µm pixels.
Improved visible light and near-Infrared sensitivity.
Supports Full HD 1080p
Anti-reflective (AR) optical window.
Comes with a 2.5mm accessory 'all sky' lens which can provide a nearly 170° view of the sky!
All ZWO cameras include a 2-year warranty.
Camera Field of View Simulator

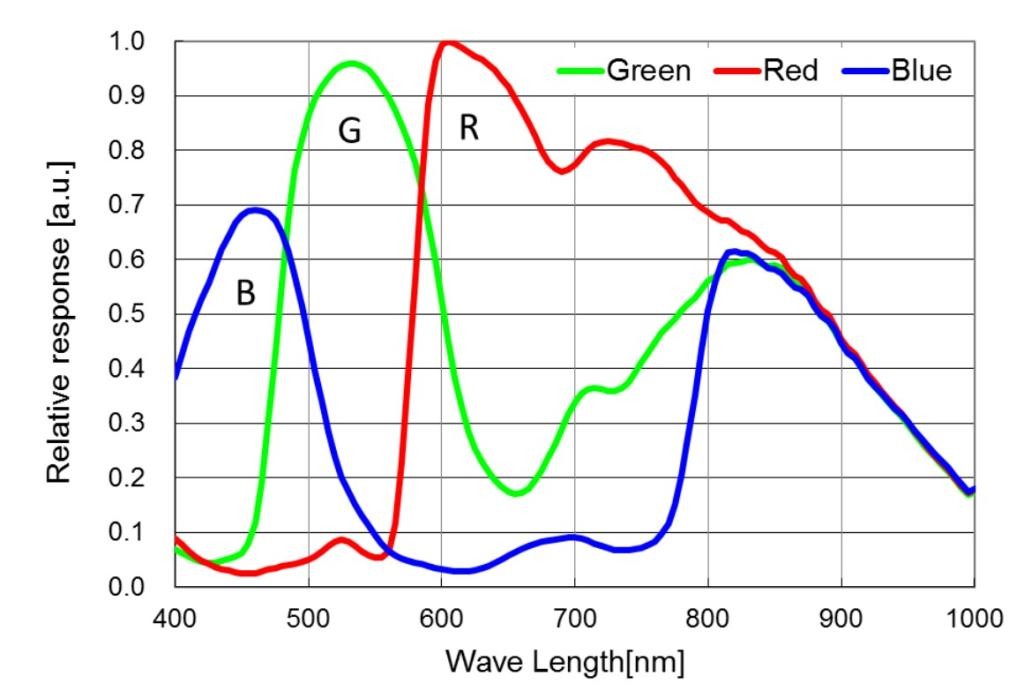

ASI290MC relative QE Curve
What's in the box
- ASI290MC Camera
- 170° Lens
- M42-1.25" Nosepiece Adapter
- 1.25" Cap
- 2-metre USB 3.0 Cable
- 2-metre ST-4 Cable
- Driver CD
|Sensor ||1/2.8″ CMOS IMX290/IMX291 |
|Resolution ||2.1Mega Pixels 1936×1096 |
|Pixel Size ||2.9µm |
|Exposure Range ||32µs-2000s |
|ROI ||Supported |
|ST4 Guider Port ||Yes |
|Focus Distance to Sensor ||12.5mm |
|Shutter Type ||Rolling Shutter |
|Protect window ||AR coated window |
|Operating System Compatibility ||Mac, Windows, Linux |
|Interface ||USB3.0/USB2.0 |
|Bit rate ||12bit output(12bit ADC) |
|Adaptor ||2″ / 1.25″ / M42X0.75 |

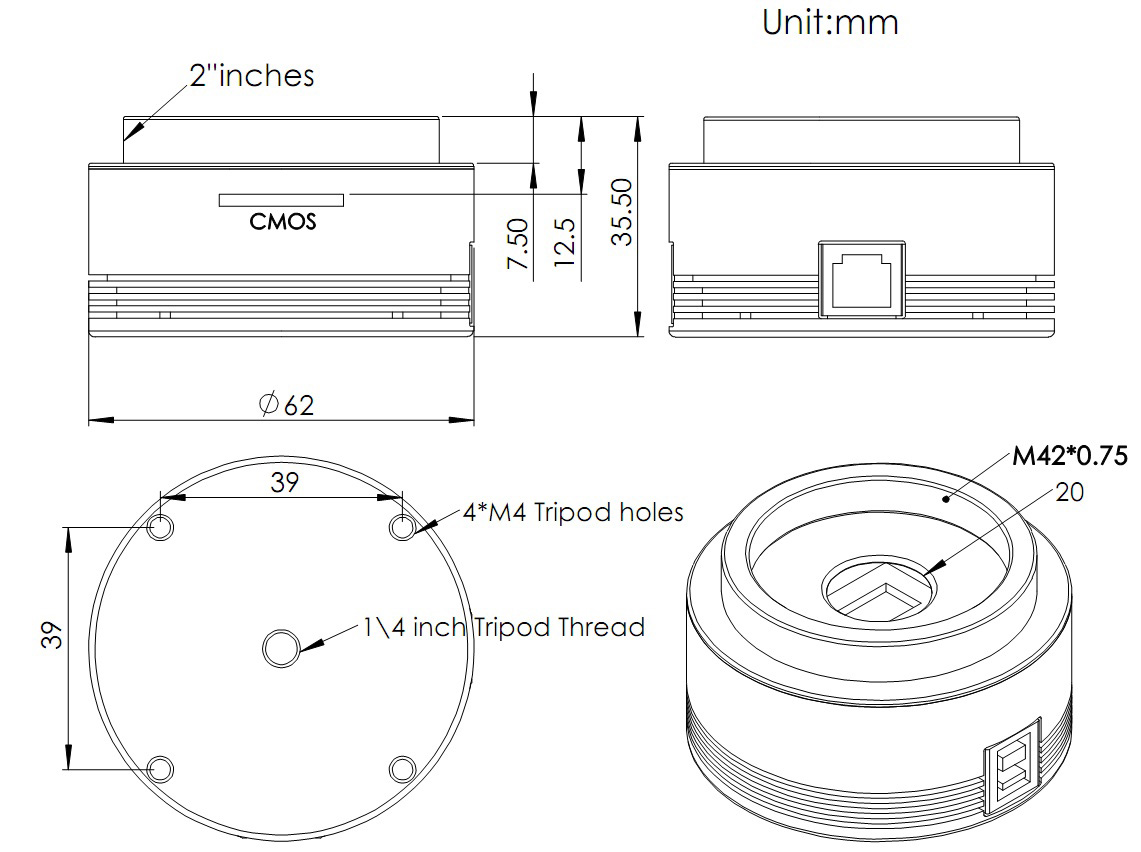

|Dimension ||φ62mm X 36mm |
|Weight ||120g or 4.2 ounces (without lens) |
|Working Temperature ||-5°C—45°C |
|Storage Temperature ||-20°C—60°C |
|Working Relative Humidity ||20%—80% |
|Storage Relative Humidity ||20%—95% |
USB2.0 MAX FPS
- 1936×1096: 20.4
- 1280×960: 35.3
- 640×480: 141.5
- 320×240: 355.9
- 2X2Bin :968×548: 20.4
USB3.0 MAX FPS(12bit/10bit)
- 1936×1096: 82.2/170
- 1280×960: 93.6/193.9
- 640×480: 184/381.2
- 320×240: 355.9/737.5
- 2X2Bin :968×548: 82.2/170
Additional resolutions can be user defined.
Downloads / Manuals
The following manuals and downloads are available for this product:
ZWO ASI Camera User Manual v1.3 (PDF)
ZWO ASI USB2.0 Camera FAQ v1.0 (PDF)
ZWO ASI USB2.0 Camera Troubleshooting v1.0 (PDF)
ZWO Software and Drivers
|Average Rating (3 Reviews): |
Tuesday, 18 February 2020 | Sindre
Easy to use and I really enjoy what this camera can do. The settings/features/options on this camera is really cool like recording RAW video, recording without debayering the colors, High FPS and custom resolutions. Good infrared performance and many options for filters and barlows/teleconverters. I get very high magnification and the camera sees full spectrum with colors by default and with good performance. Amazing live view on my computer. For terrestrial view I get good image wih extreme range, especially with barlow/teleconverter. It is not 4K because it need a smaller sensor with large pixels for high magnification and sensor noise performance. Buildt for planetary viewing but works for anything you want to do with it. I am very satisfied. Tested with ZWO 850nm IR Pass filter and it works very well.
What a great little camera
Wednesday, 25 July 2018 | Mark
Very impressed with how flexible this camera is. Good resolution and easy to use. Have used it on the Moon, Jupiter, Saturn and a few deep sky objects as well.
Definitely need an IR/UV filter with as it is so sensitive in the infrared that everything gets a pink tinge otherwise. But as a result it works well with an IR pass filter which gives great results for daytime imaging of the Moon and planets. No reason to stop imaging during the summer twilight months here in Scotland now.
FireCapture works well with it and I prefer to use that for lunar/planetary captures. SharpCap Live Stacking gives good results for deep sky objects. The camera is uncooled so I keep the exposures relatively low (less than 15s) to keep the noise down but get some pleasing images this way. You will never get the best deep sky images using this method but that's not what EAA is about (I use a cooled CCD for that). But you do get instant images of a lot more objects this way.
I'm surprised at just how good this camera is and really enjoying using it.
ZWO ASI 290MC USB 3.0 Colour Camera
Sunday, 29 April 2018 | Chris
Works fine with fitted lens, 80 frames per second at full resolution. Yet to use in anger as no clear skys.
