About this product
Part Number: ASI290MM-COOL
New cooled version of the ZWO ASI290MM/MC features the new 1.28" 2.13Mp Sony IMX290LQR / IMX291LQR back-Illuminated CMOS sensors with 2.9 µm pixels.
"There's no doubt that this is a strong contender when it comes to Solar System imaging, with excellent deep-sky performance too. The camera has an exposure range of 32 microseconds up to a maximum of 2,000 seconds, offering exciting opportunities for chasing smaller objects such as planetary nebulae or galaxies." Pete Lawrence writing for 'BBC Sky at Night' magazine January 2017.
Improved visible light and near-Infrared sensitivity.
Supports Full HD 1080p
Anti-reflective (AR) optical window.
Comes with a 2.5mm accessory 'all sky' lens which can provide a nearly 170° view of the sky!
The cooler requires a 12v power supply at 2.5A or 3A max DC adapter. The camera can be used without the external power supply but will run in the normal, uncooled mode.
All ZWO cameras include a 2-year warranty.
Camera Field of View Simulator

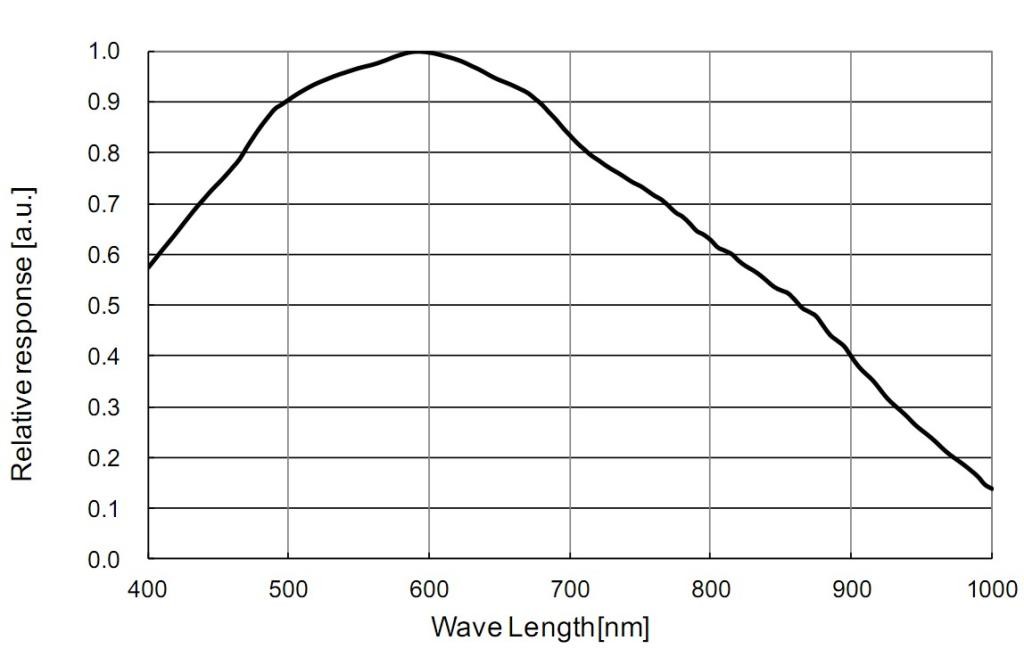

ASI290MM relative QE Curve
What's in the box
- ASI290MM-Cool Camera
- M42-1.25" Nosepiece Adapter
- 1.25" Cap
- 2" Cap

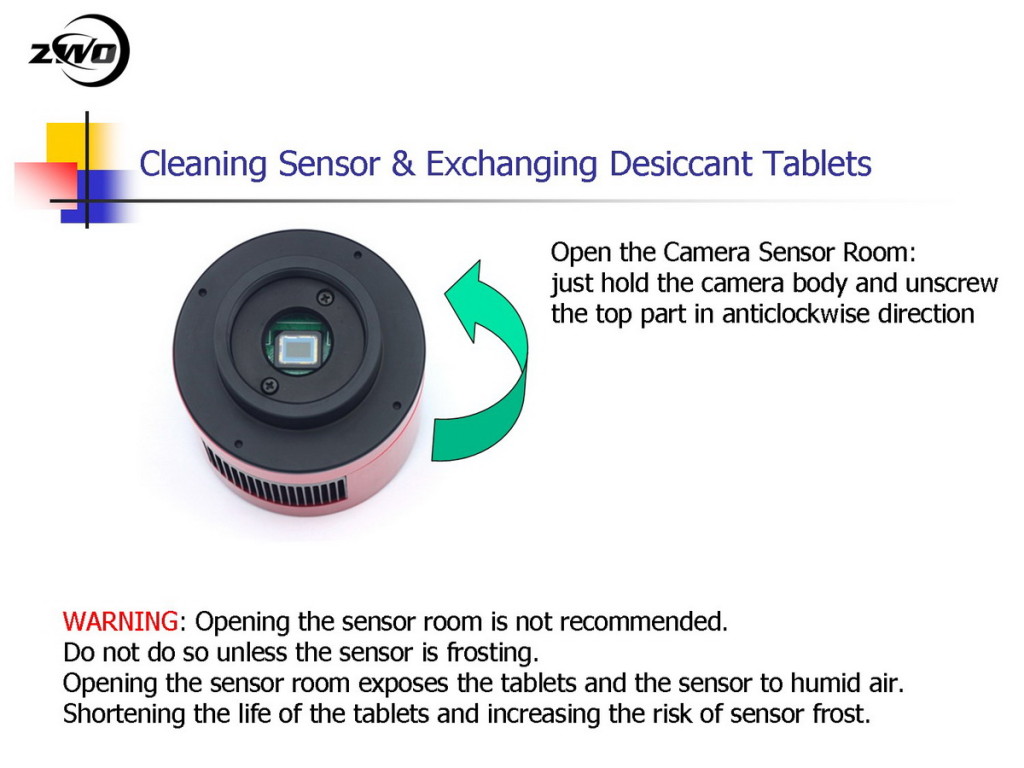

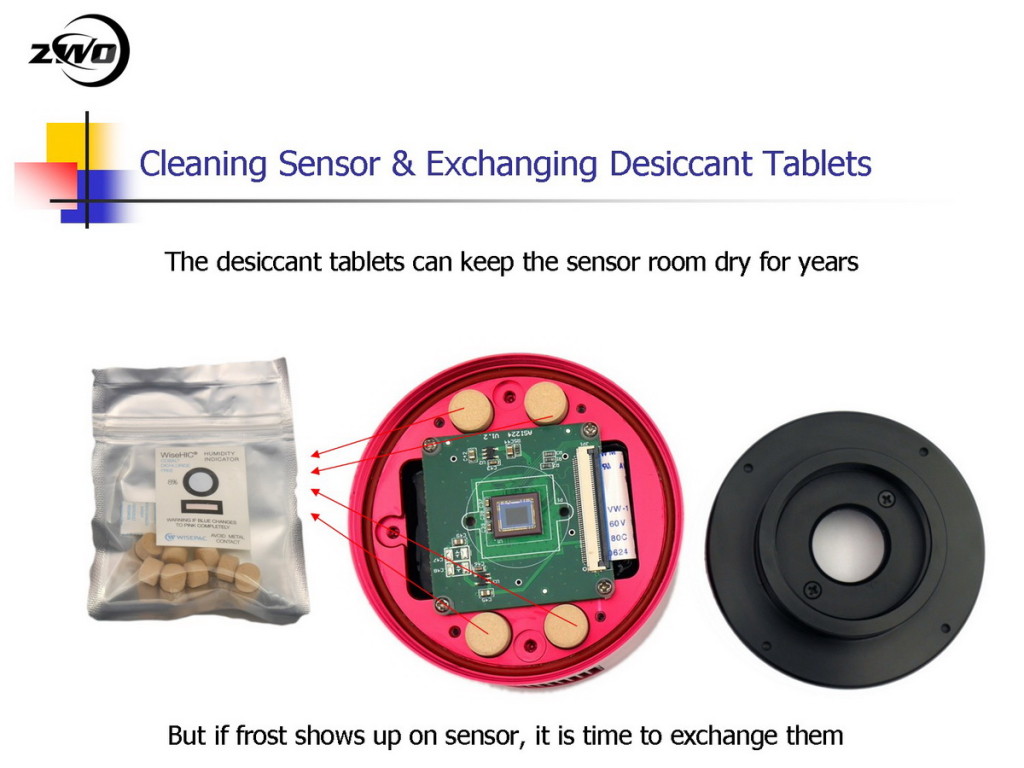

- Spare Desiccant Tablets
- 2-metre USB 3.0 Cable
- 2-metre ST-4 Cable
- Driver CD
|Sensor ||1/2.8″ CMOS IMX290/IMX291 |
|Resolution ||2.1Mega Pixels 1936×1096 |
|Pixel Size ||2.9µm |
|Exposure Range ||32µs-2000s |
|ROI ||Supported |
|ST4 Guider Port ||Yes |
|Focus Distance to Sensor ||12.5mm |
|Shutter Type ||Rolling Shutter |
|Protect window ||AR coated window |
|Operating System Compatibility ||Mac, Windows, Linux |
|Interface ||USB3.0/USB2.0 |
|Bit rate ||12bit output(12bit ADC) |
|Adaptor ||2″ / 1.25″ / M42X0.75 |
|Dimension ||φ62mm X 36mm |
|Weight ||120g or 4.2 ounces (without lens) |
|Working Temperature ||-5°C—45°C |
|Storage Temperature ||-20°C—60°C |
|Working Relative Humidity ||20%—80% |
|Storage Relative Humidity ||20%—95% |
USB2.0 MAX FPS
- 1936×1096: 20.4
- 1280×960: 35.3
- 640×480: 141.5
- 320×240: 355.9
- 2X2Bin :968×548: 20.4
USB3.0 MAX FPS(12bit/10bit)
- 1936×1096: 82.2/170
- 1280×960: 93.6/193.9
- 640×480: 184/381.2
- 320×240: 355.9/737.5
- 2X2Bin :968×548: 82.2/170
Additional resolutions can be user defined.
Downloads / Manuals
The following manuals and downloads are available for this product:
ZWO ASI Camera User Manual v1.3 (PDF)
ZWO ASI USB2.0 Camera FAQ v1.0 (PDF)
ZWO ASI USB2.0 Camera Troubleshooting v1.0 (PDF)
ZWO Software and Drivers
