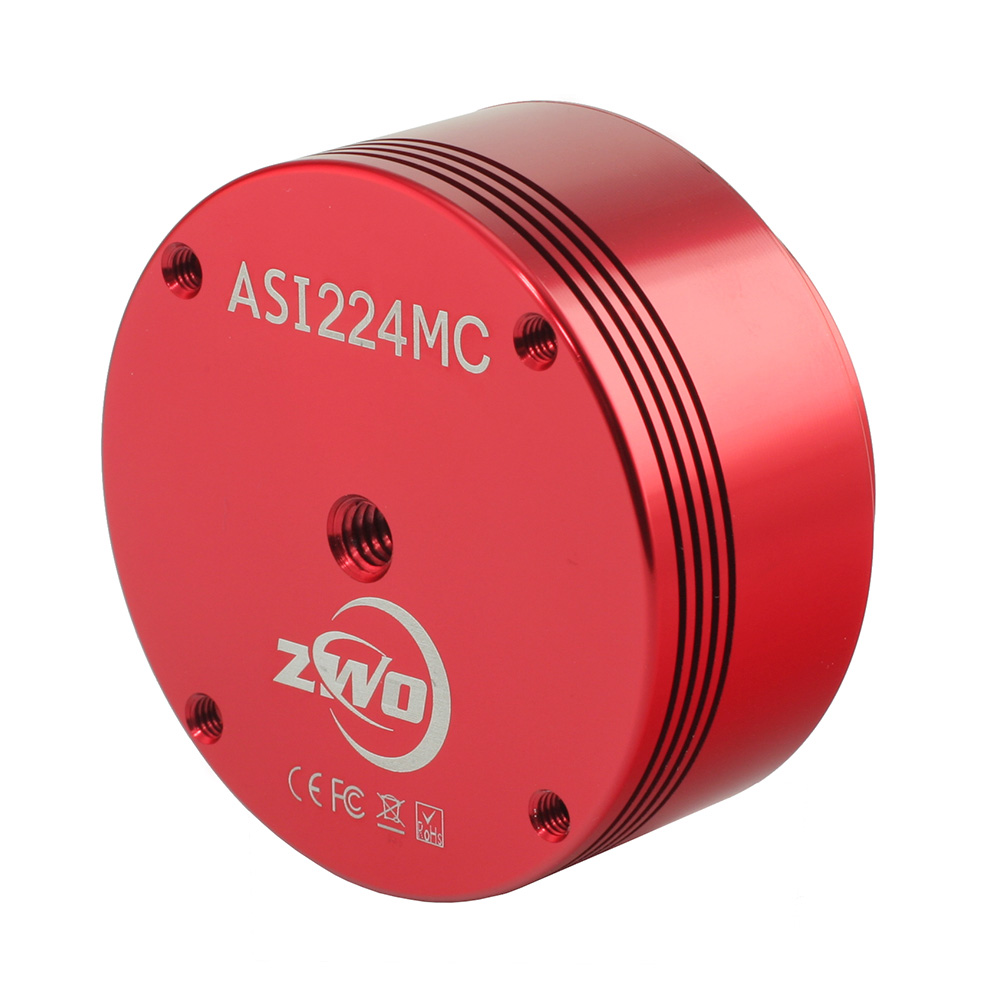

ZWO ASI 224MC USB 3.0 Colour Camera
  Zoom
ZWO ASI 224MC USB 3.0 Colour CameraZWO ASI 224MC USB 3.0 Colour CameraZWO ASI 224MC USB 3.0 Colour Camera

ZWO ASI 224MC USB 3.0 Colour Camera

£203.00
  (24 Reviews)
✓ 2 year warranty



22x in stock shipped 1-2 working days

About this product

Model:  zwo_asi224mc
Part Number:  ASI224MC

At its price, the ASI224MC is the BEST colour planetary imaging camera available!

Peak QE of 75% (better than the ICX618) and no fixed pattern noise!

This combination of high sensitivity and very, very low read noise makes the ASI224MC a hugely successful camera (read noise is the primary source of noise in planetary imaging).

The IMX224 sensor is also very sensitive to infrared, so can be used for infrared imaging with great success. Sharp lunar images in infrared are also achievable - the infrared image won't have natural colours, but after stacking, you can convert the image to grayscale for a more natural look. To maximise the sensor's IR performance, the protective anti-reflection cover glass does not include UV/IR cut, but a separate UV/IR cut filter can be obtained and fitted for colour imaging.

This camera can also be used for solar imaging, though when used with a solar telescope, image quality may not be as good as that achieved with a mono sensor.

The ASI224MC can even be used for Deep-Sky imaging!

Supports 30FPS at its maximum 1280x960 resolution and long exposures up to 1000s.

It has an ST4 guide port, so can also be used as a guide camera.

Includes a 150-degree wide lens, so you don't need even a telescope to start imaging the stars!

All ZWO cameras include a 2-year warranty.

Camera Field of View Simulator

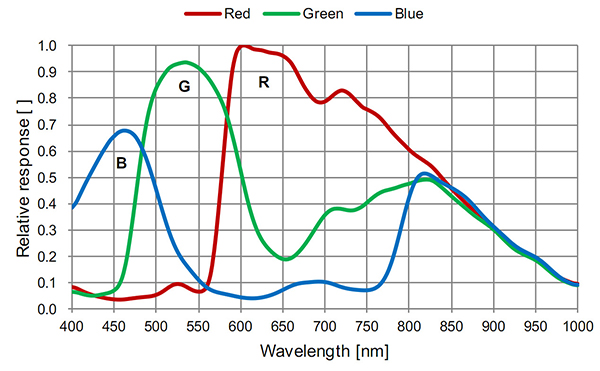

ASI224MC QE Curve

Relative QE Curve, we estimate the Peak Value to be between 75%-80%

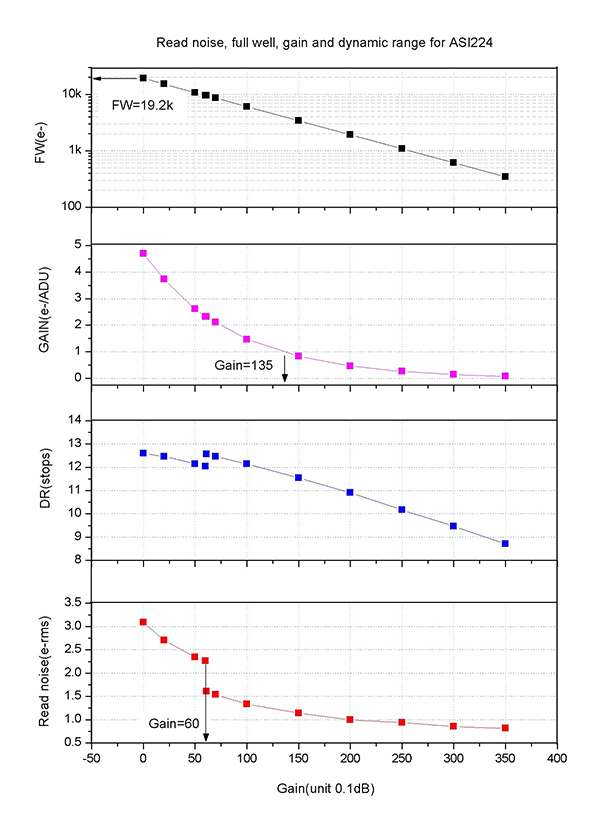

Super Low Read Noise less than 1e, which can compare with sCMOS or EMCCD sensors

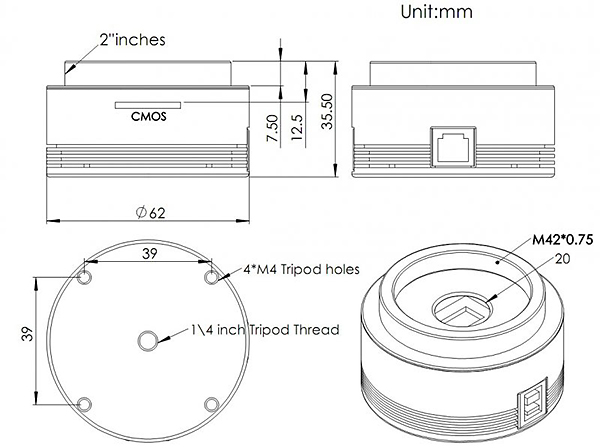

Mechanical Drawing

What's in the box

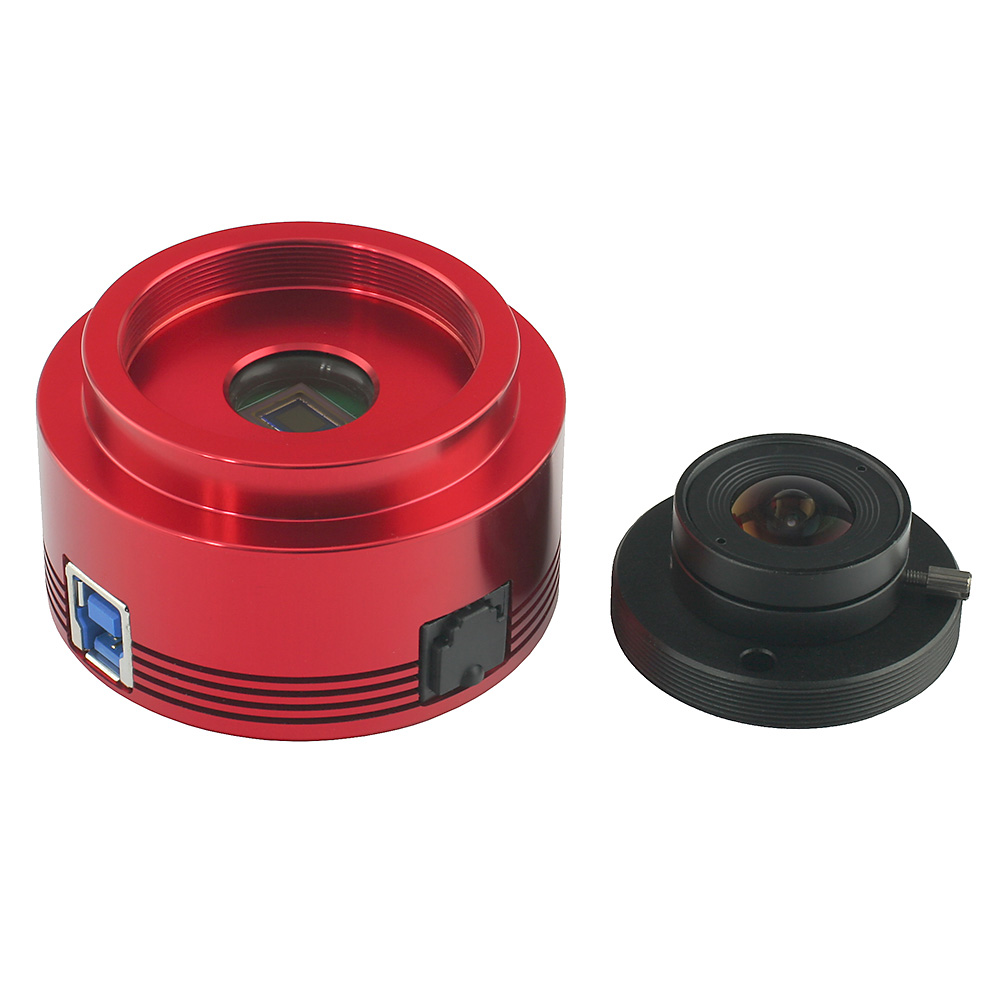

  • ASI224MC Camera
  • 150° Lens
  • M42-1.25" Nosepiece Adapter
  • 1.25" Cap
  • 2-metre USB 3.0 Cable
  • 2-metre ST-4 Cable

Specifications

Sensor1/3” CMOS IMX224/IMX225
Resolution1.2Mega Pixels 1304X976
Pixel Size3.75µm
Sensor Size4.8mm*3.6mm
Diagonal6.09mm
Exposure Range32µs-1000s
ROISupported
Binning2×2 binning supported
Focus Distance to Sensor12.5mm
Shutter TypeRolling Shutter
Protect windowAR coated window
Operating System CompatibilityMac, Windows, Linux
InterfaceUSB3.0/USB2.0
Bit rate12bit output(12bit ADC)
Adaptor2″ / 1.25″ / M42X0.75
Dimensions62 mm Diameter
Weight100g



Supported Resolutions:

10bit ADC / 12bit ADC
1304×976 150fps / 64fps
1280×960 152.4fps / 65fps
800×600 241.2fps / 102.9fps
640×480 299.4fps / 127.6fps
320×240 577.9fps / 256.4fps

Additional resolutions can be user defined.

Downloads / Manuals

The following manuals and downloads are available for this product:

Software

ZWO Software and Drivers
