StellaLyra 10" f/4 M-LRN Newtonian Reflector with 3" Dual-Speed Focuser

£549.00
  (1 Review)
✓ 2 year warranty

:

Out of stock due 10-15 working days

About this product

Model:  stellalyra_10_f4_newt
Part Number:  GS800

10" f/4 StellaLyra Imaging Newtonian Reflector Telescope

Designed and manufactured to a very high standard by Guan Sheng Optical (GSO) in Taiwan.

This 10" StellaLyra reflector with a fast f/4 focal ratio is an excellent choice for deep-sky imaging with a dedicated astronomy CMOS/CCD camera or DSLR.

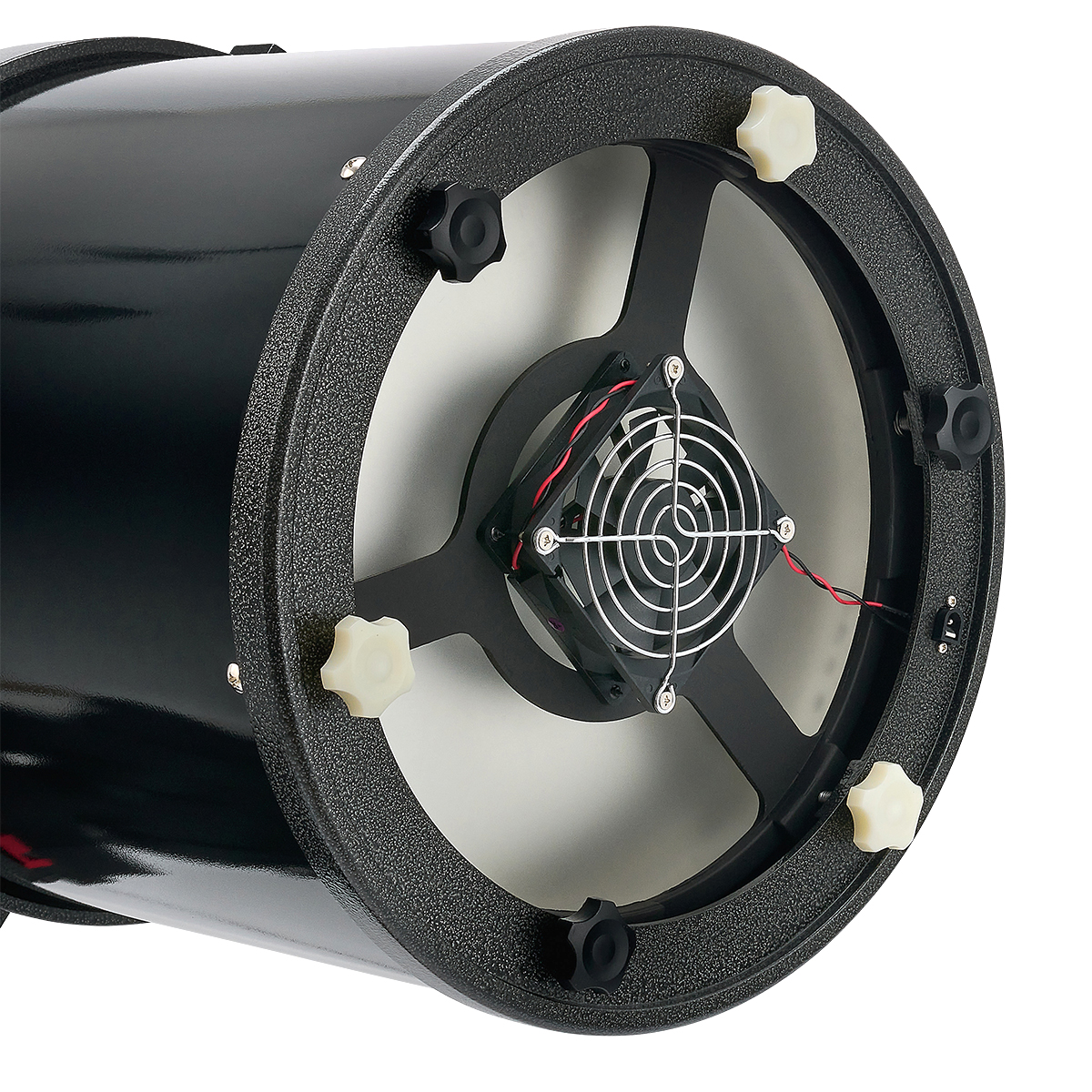

All StellaLyra Newtonian telescopes feature GSO aluminised parabolic primary mirrors with minimum 93% reflectivity and a silicon-dioxide protective overcoat to ensure the surface remains bright for years. Chunky collimation knobs enable easy collimation adjustment without tools, and an integrated fan reduces cooling time. ​

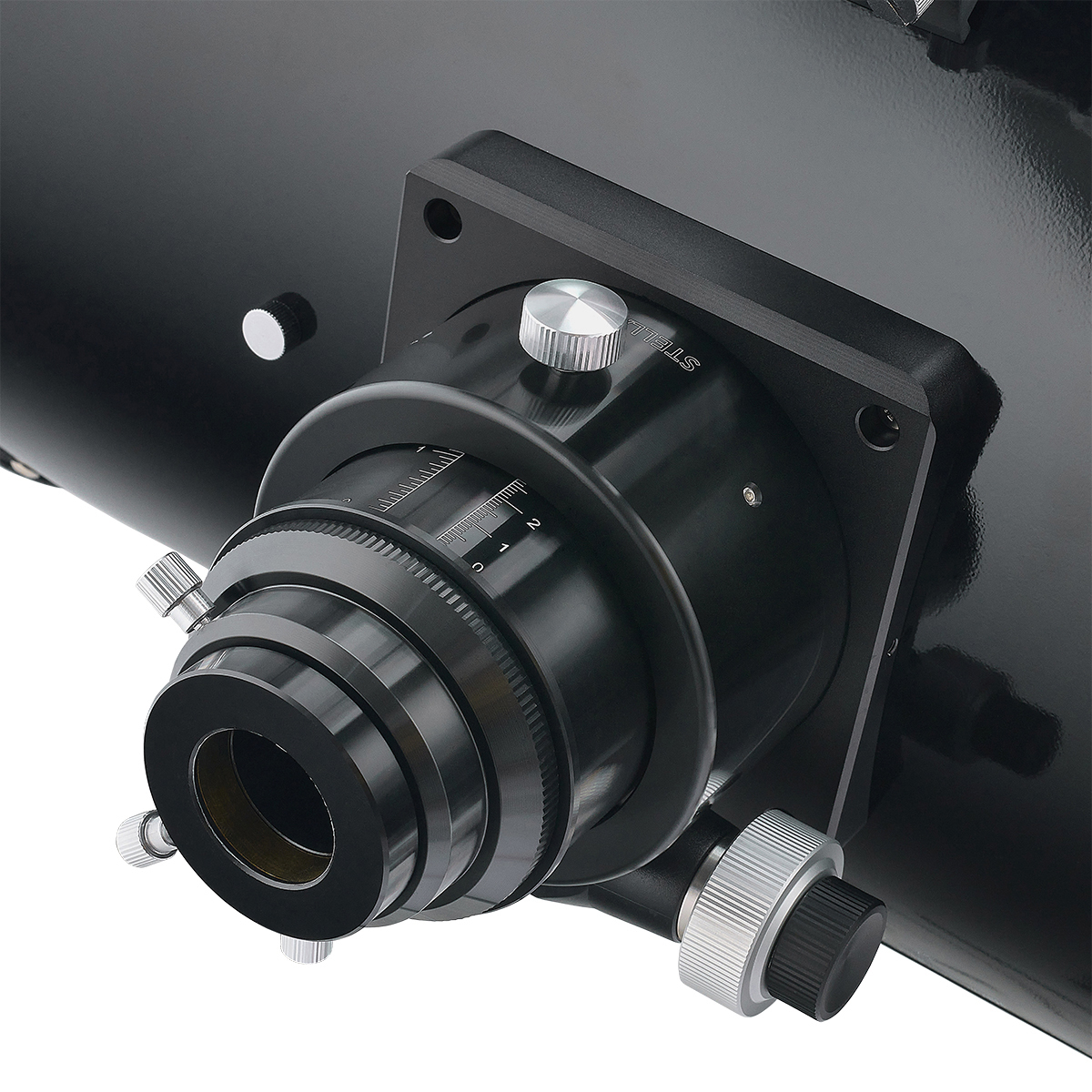

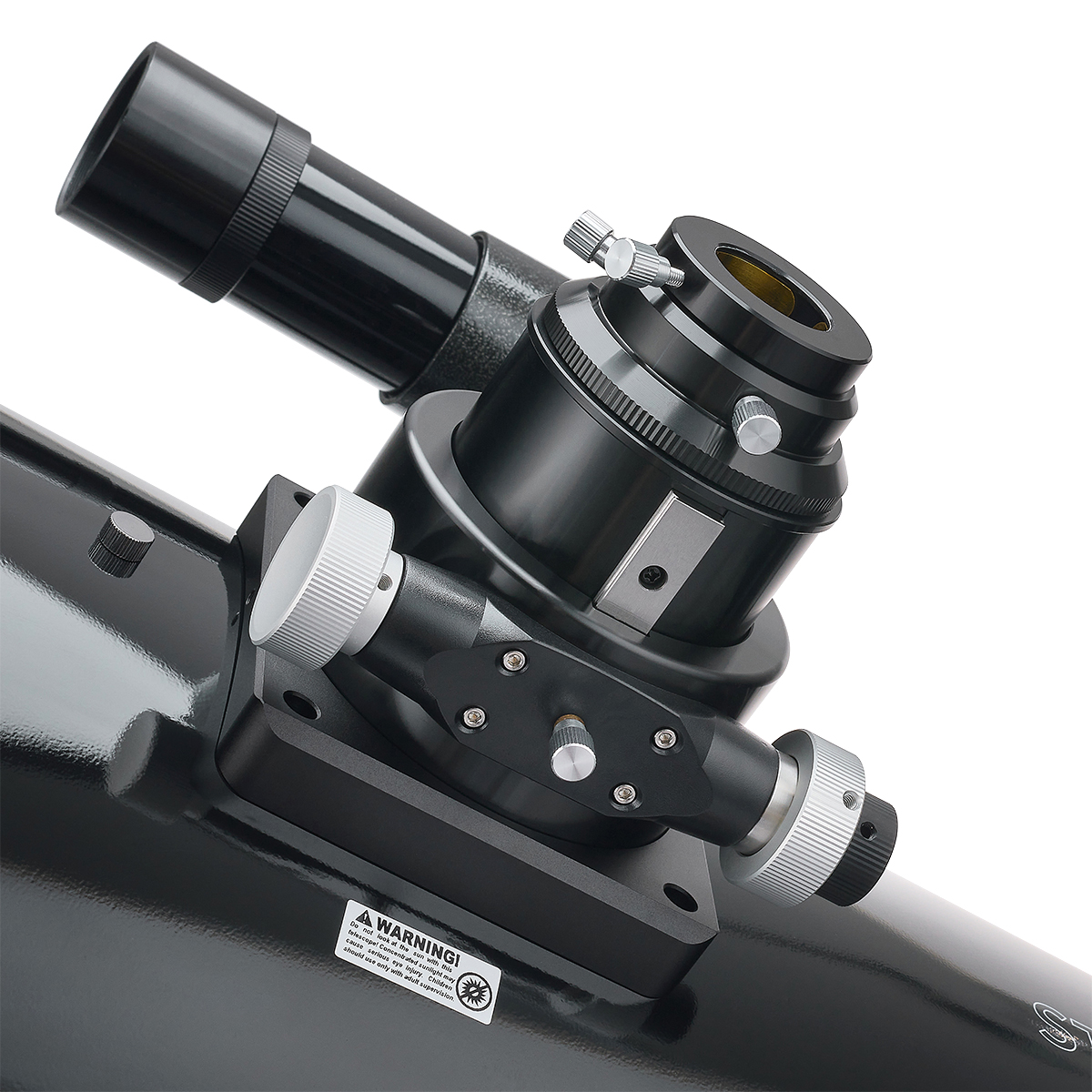

The sturdy dual-speed 3" Linear Crayford focuser has enough tension for most small/medium size imaging payloads and provides precise, smooth focus adjustments.

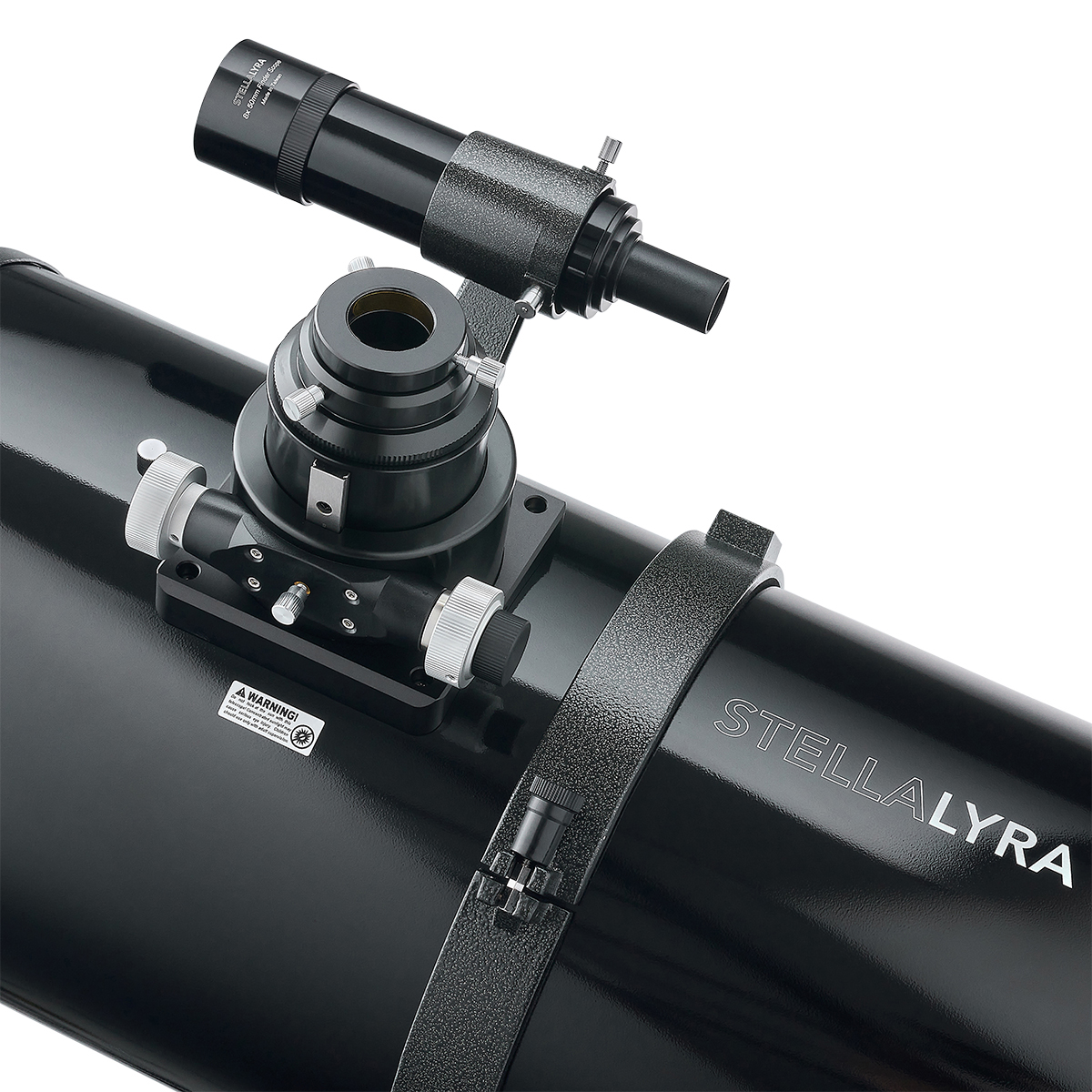

A nicely made 8x50 straight finderscope with fully multicoated optics is included and can be adapted (adapter available separately) for use as a convenient guide-scope.

An adapter for 2" & 1.25" eyepieces and a 35mm focus extender is included for visual astronomy.

It is supplied with metal tube-rings and a Vixen-style dovetail mounting plate.

Note: For astrophotography, a coma corrector is required for optimum results.

Mount shown in the photos is not included smiley



FEATURES

  • 254mm (10") optical aperture
  • 1016mm focal length
  • f/4 focal ratio
  • BK7 primary and secondary mirrors
  • Parabolic Primary mirror with enhanced Al coating for 93%+ reflectivity
  • 70mm Minor Axis Secondary mirror with enhanced Al coating for 93%+ reflectivity
  • Adjustable primary and secondary collimation
  • 3" dual-speed Linear Crayford focuser
  • Vixen/Synta Style Finder scope base
  • 8x50 Straight through finder and bracket
  • Vixen-Style 44mm Dovetail

Telescope Field of View Simulator


What's in the box

  • Telescope OTA
  • 8x50 Finderscope
  • 35mm 2" Focus Extension tube
  • 2" to 1.25" Adapter
  • Tube Rings
  • Vixen-style Dovetail
  • Cooling Fan & Battery Holder

Specifications

Model 10" f/4 Imaging Newtonian
Optical design Newtonian Reflector
Aperture 254mm (10")
Focal ratio f/4
Focal length 1016mm
Primary mirror BK7 Parabolic primary mirror, minimum 93% reflectivity
Mirror coatings Aluminum and silicone dioxide (SiO2)
Secondary mirror Minimum 93% reflectivity
Focuser 2" dual-speed Crayford
Finderscope Straight Through 8x50
Accessories 35mm 2" extension tube & 2" to 1.25" eyepiece adapter
Tube outside diameter 307mm / 12.1" At End Caps, 303mm / 12" Across Tube Body
Tube length 980mm / 38.6"
Tube weight 14.8kg / 32lbs 10oz with Rings / Dovetail / Finder

Customer reviews

Average Rating (1 Review):
Write a Review and share your opinions!

Rating (max 5):
Great, if heavy, scope
14 January 2024  |

I spent about a year pondering whether to get this scope and whether it would be too much of a pain to collimate and too much of a wind sail to use much. I'm glad I decided to chance it though as I'm very happy with it's performance. Since this is a rebranded GSO 10" newtonian reflector it's easy enough to see the sort of images it's capable of on astrobin too.

The major warning is that this is a big, awkward, heavy scope. You do not want to be breaking it down and putting it up again too much. A telegizmo cover helps with leaving it out between imaging sessions. I also got some Oklop lift and carry straps with it. Moving it around without that would be tricky and potentially dangerous.

The EQ6-R I've got has no problem moving it around, if it's roughly balanced (getting it exactly balanced is hard and I haven't bothered). The two 5kg weights supplied with the EQ6 at the end of the extension bar do not come close to balancing it though; I needed to use the bigger of the two weights which comes with the Eq3 too (3.5kg?).

The focuser is good and solid... but it's not ideal for the TS-GPU CC which I already had. The extra 20mm it adds to the focus position, which is great for the 130PDS and stops the focus tube poking out too much, means you can't reach focus with the CC fully inserted into the tube, it needs to be withdrawn about 10-15mm. This seems to work OK but ccd inspector can see some tilt there. Long term I think I'll screw the CC to the focuser via a rotator (removing the 2 inch clamp from the focus tube leaves a M74 male thread you can screw things too).

Collimation isn't too bad at all. It seems happy with a check of the primary before using and didn't seem to noticeably change while imaging. Every time I adjusted the main mirror though I made sure to screw in the screws to compress those springs. Wind wise you can't use it during high winds but it doesn't seem too sensitive. My garden is reasonably sheltered though.

Focusing did change through the night though (I guess as the tube changed temperature) and I think an auto focuser is a must or it would get quite annoying. The ZWO AEF fits easily enough (although it needs longer screws than supplied with the AEF but nothing a local screwfix wouldn't stock).

The fan at the base of the tube is a life saver. Without it the main mirror dews over really quickly in dewy conditions and it can clear a heavily dewed main mirror in an hour or so.

My only half criticism would be the supplied vixen dovetail seemed a bit flimsy for such a big scope. I replaced it with a losmandy bar and added a pegasus accessories plate on top which seems quite solid and rigid.
