Askar 107 PHQ Flatfield Astrograph
Askar 107 PHQ Flatfield AstrographAskar 107 PHQ Flatfield AstrographAskar 107 PHQ Flatfield Astrograph
Askar 107 PHQ Flatfield AstrographAskar 107 PHQ Flatfield AstrographAskar 107 PHQ Flatfield Astrograph

Askar 107 PHQ Flatfield Astrograph

  (2 Reviews)
✓ 2 year warranty


Out of stock due 10-15 working days

About this product

Model:  askar_107phq
Part Number:  Askar 107PHQ

Optical Bench Test

At FLO, we check all our Askar telescopes on an optical bench before dispatch.

So you can be confident your telescope will have well-figured optics, negligible false colour and spherical aberration, and no astigmatism (the bane of any optical system!). Star shapes will be round, not triangular, oval or egg-shaped!

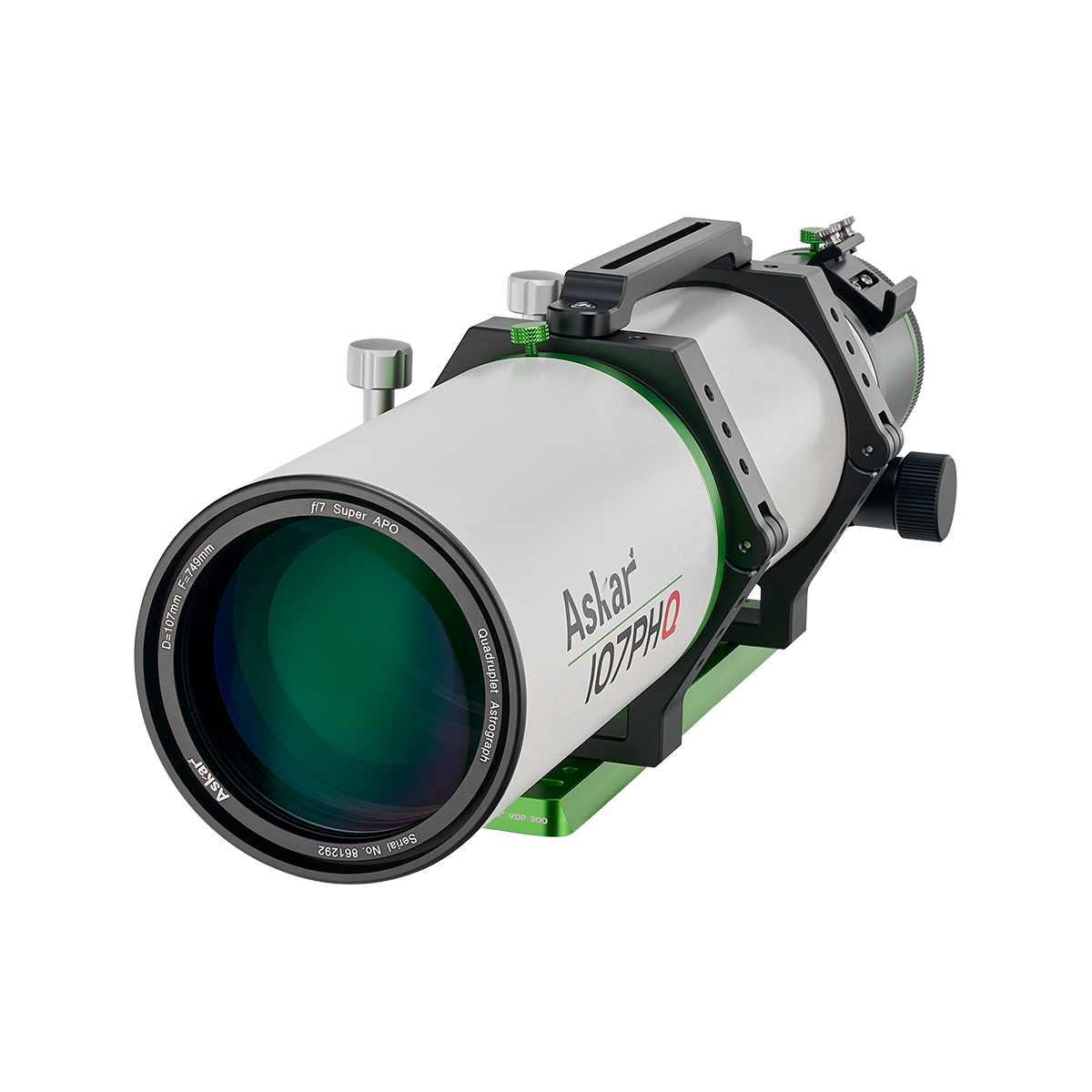

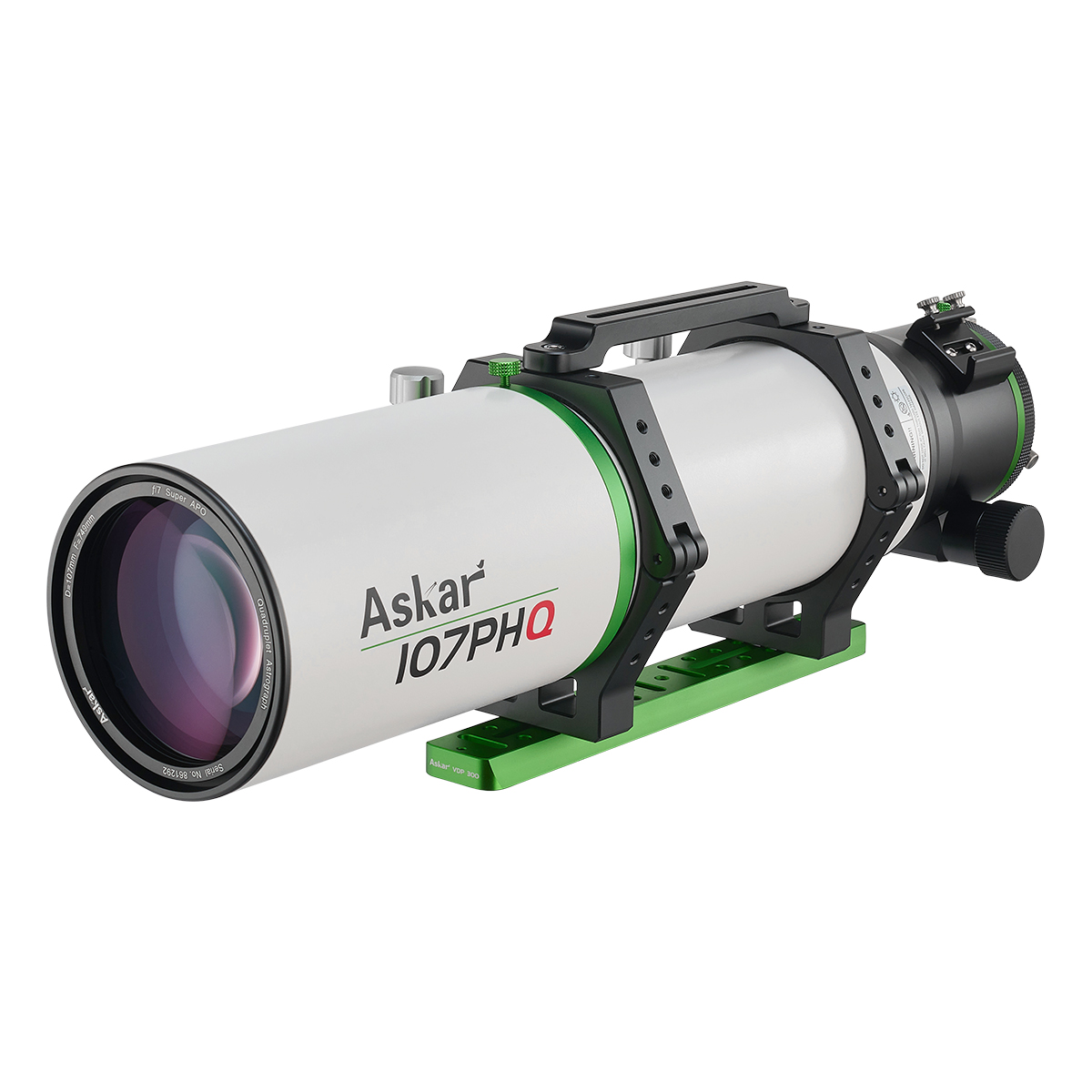

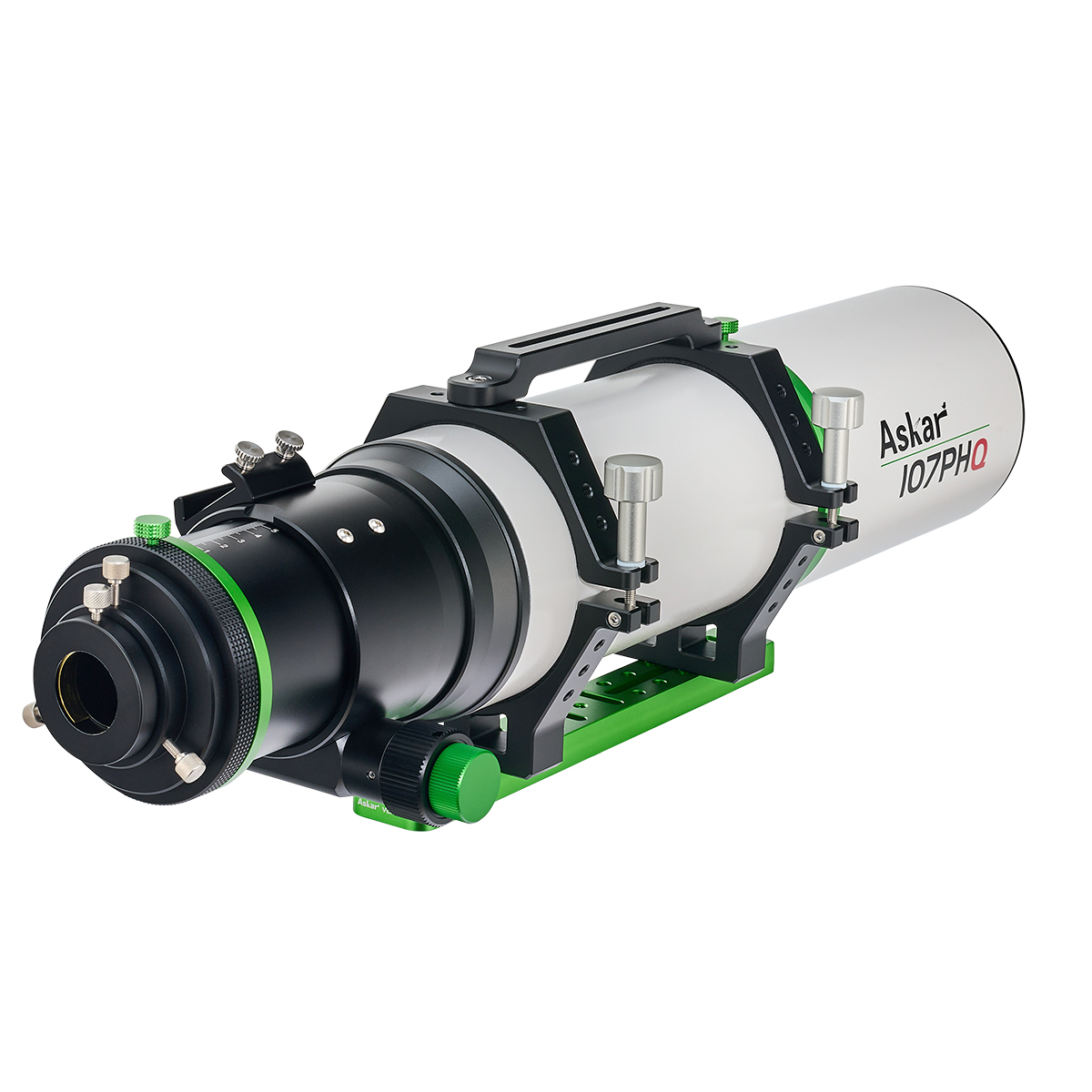

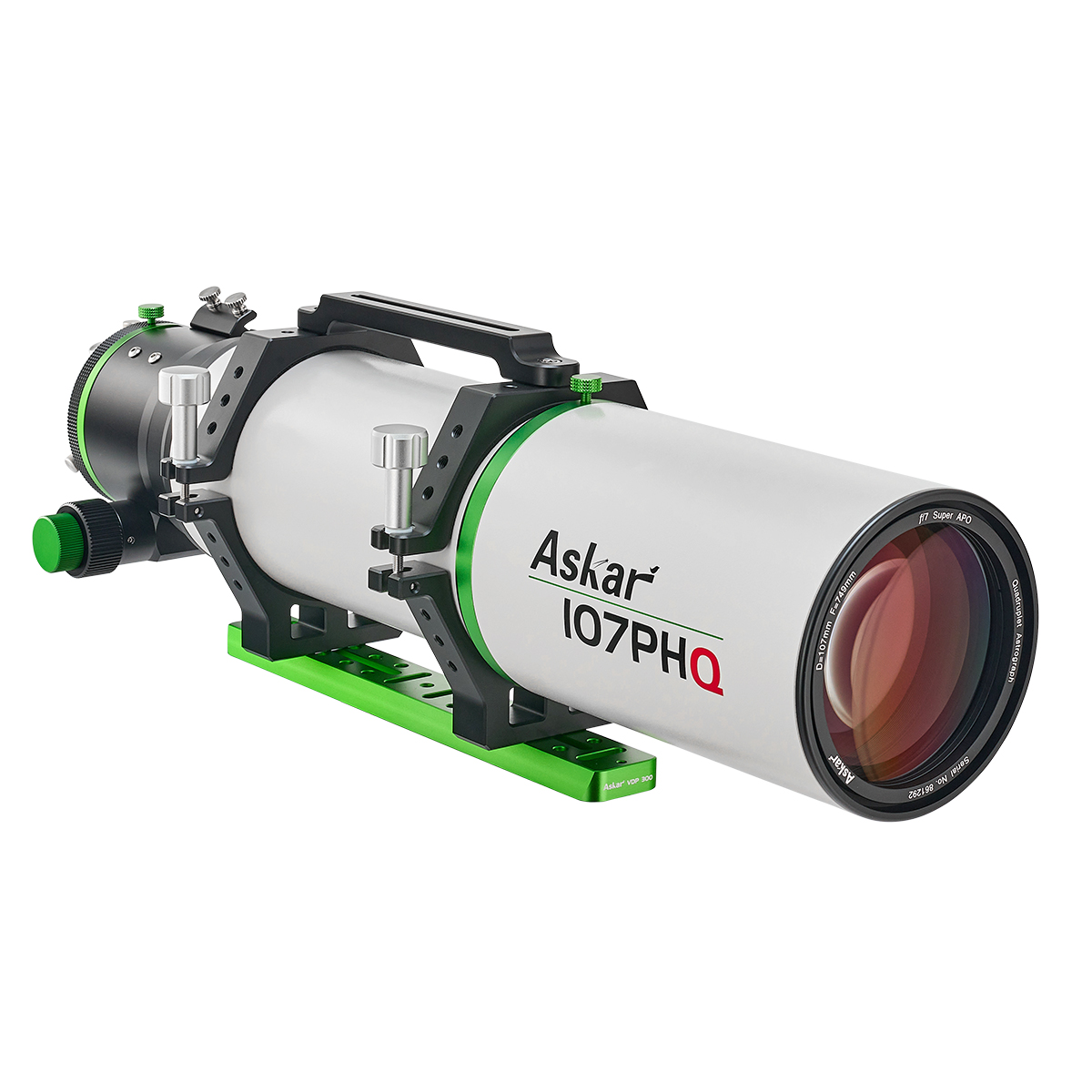

Introducing the new Askar 107 PHQ f/7 Flat Field APO Refractor.

The Askar 107 PHQ is a medium focal ratio Flat Field APO Refractor that features a 4-element optical design for sharp, false colour and aberration-free images.

The focal length of 749mm is ideal for imaging medium to large-sized targets with large sensors and achieving excellent resolution with a decent resolution per pixel when used with most modern sensors. It also ensures the 107 PHQ works very well visually, ensuring this instrument is truly a dual-purpose telescope. The 107 PHQ can be used at high power for lunar and planetary observing and is equipped with a suitable long focal length eyepiece for outstanding views of the milky way and other deep sky targets.

The built-in field flattener ensures a 44mm imaging circle, rendering the 107 PHQ suitable for use with full-format sensors. No additional field flattener is necessary, so the 107PHQ is easy to use with a wide variety of cameras and imaging accessories.

An optional focal reducer will be available later this year (some high-resolution full-frame sensors may reveal slight aberrations at the field edge, particularly when used with the reducer).

The air-spaced triplet objective lens includes two ED elements for outstanding colour correction.

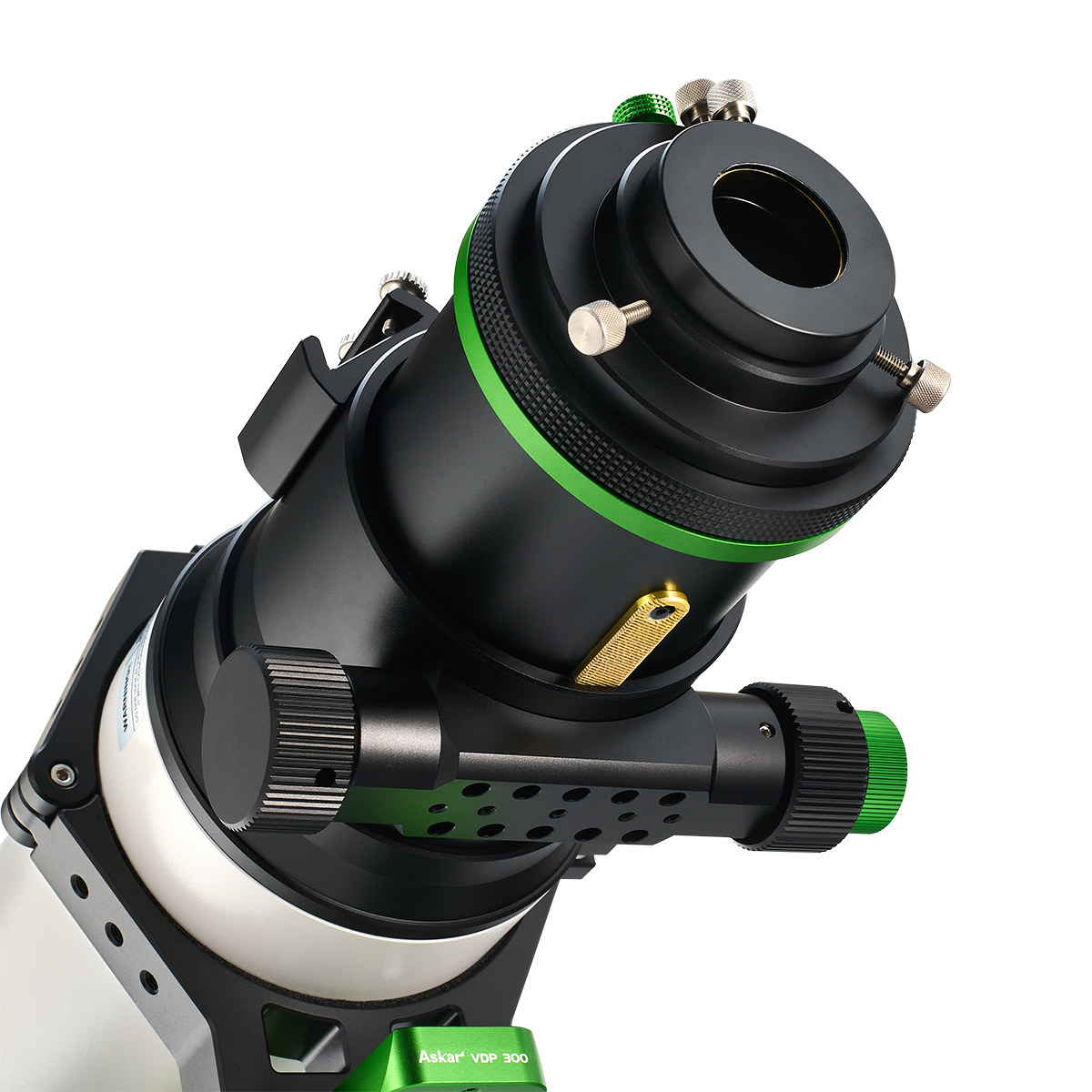

Featuring a high-quality 3.4" Dual Speed Rack and Pinion focuser that is fully rotatable and capable of handling loads up to 8kg. A visual adaptor is also included permitting the use of 2" and 1.25" accessories.

With the visual adapter removed, the focuser tube terminates with an M86x1 thread. The scope also includes four stackable adapters for direct attachment of a wide variety of cameras with standard metric threads.

Includes a set of tube rings, a Vixen-style dovetail and a carry handle with mounting holes for additional accessories.

Also included is a standard Finderscope adaptor enabling the use of many Finderscopes and Finder/Guidescopes and a foam-filled metal carry case.

The 107 PHQ gives excellent overall performance and is a fine choice for anyone wanting a versatile, high-quality astrograph, ideal for use with APS-C and Full Format sensors and a superb visual instrument.

Video Tour

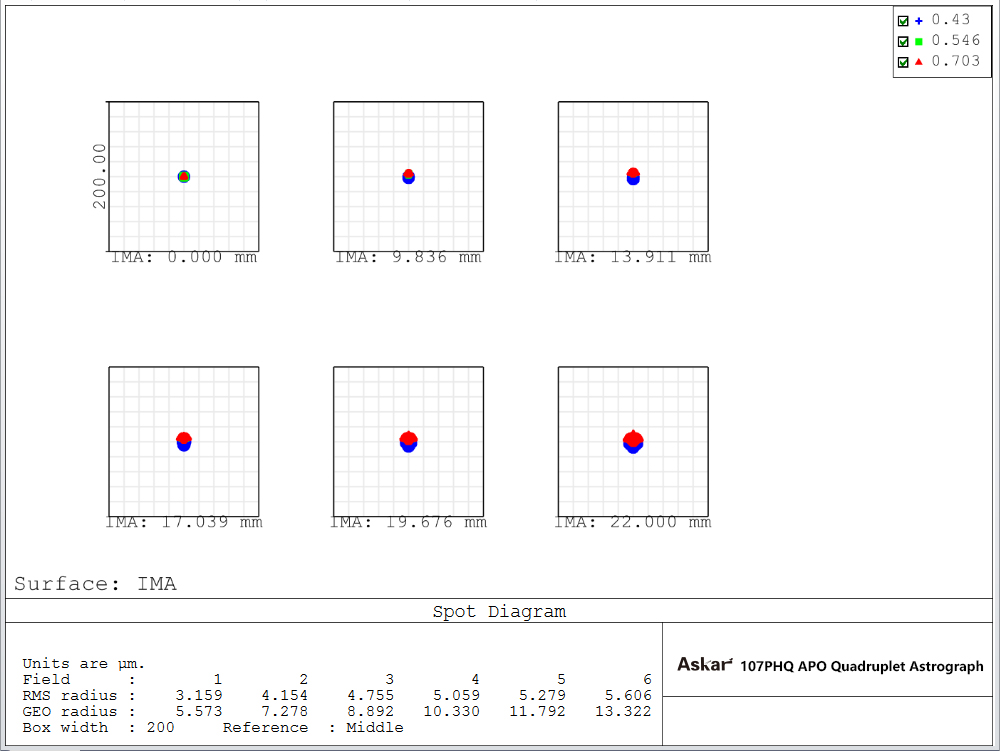

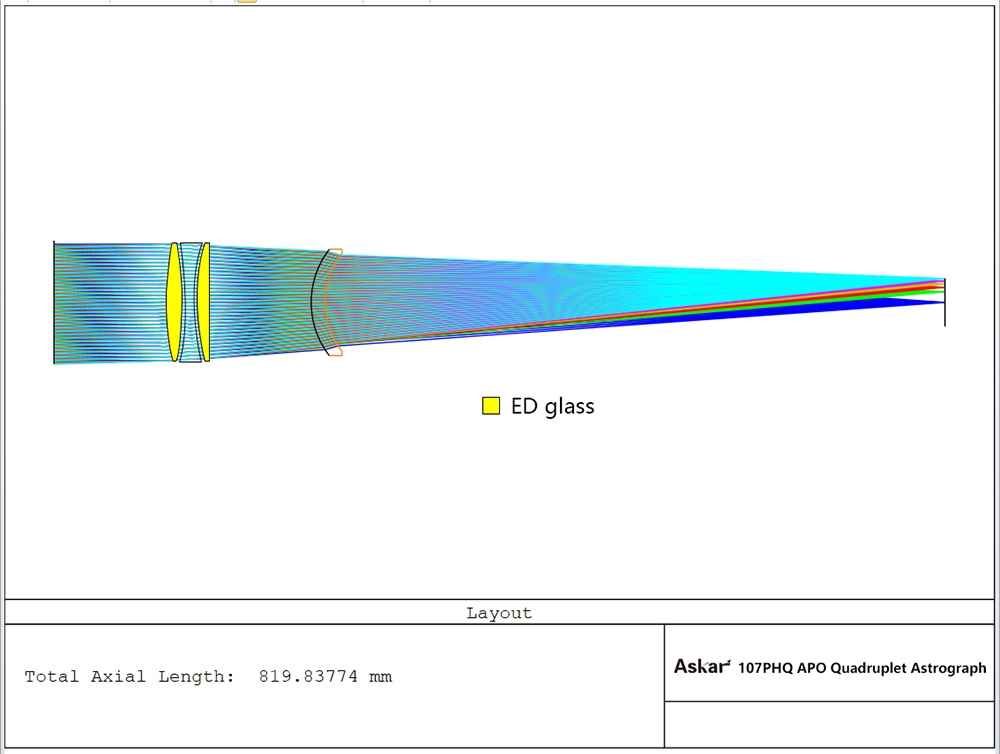

Optical Diagrams

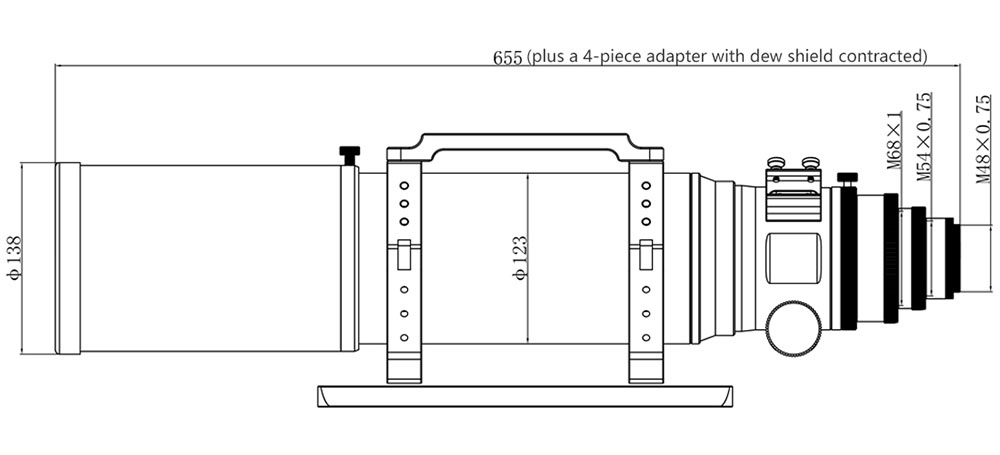

Mechanical Diagram

What's in the box

  • Askar 107PHQ OTA
  • Pair of tube rings
  • Handle
  • Askar 300mm Vixen-style dovetail plate
  • Set of four-piece M86-M48 adapters
  • Manual

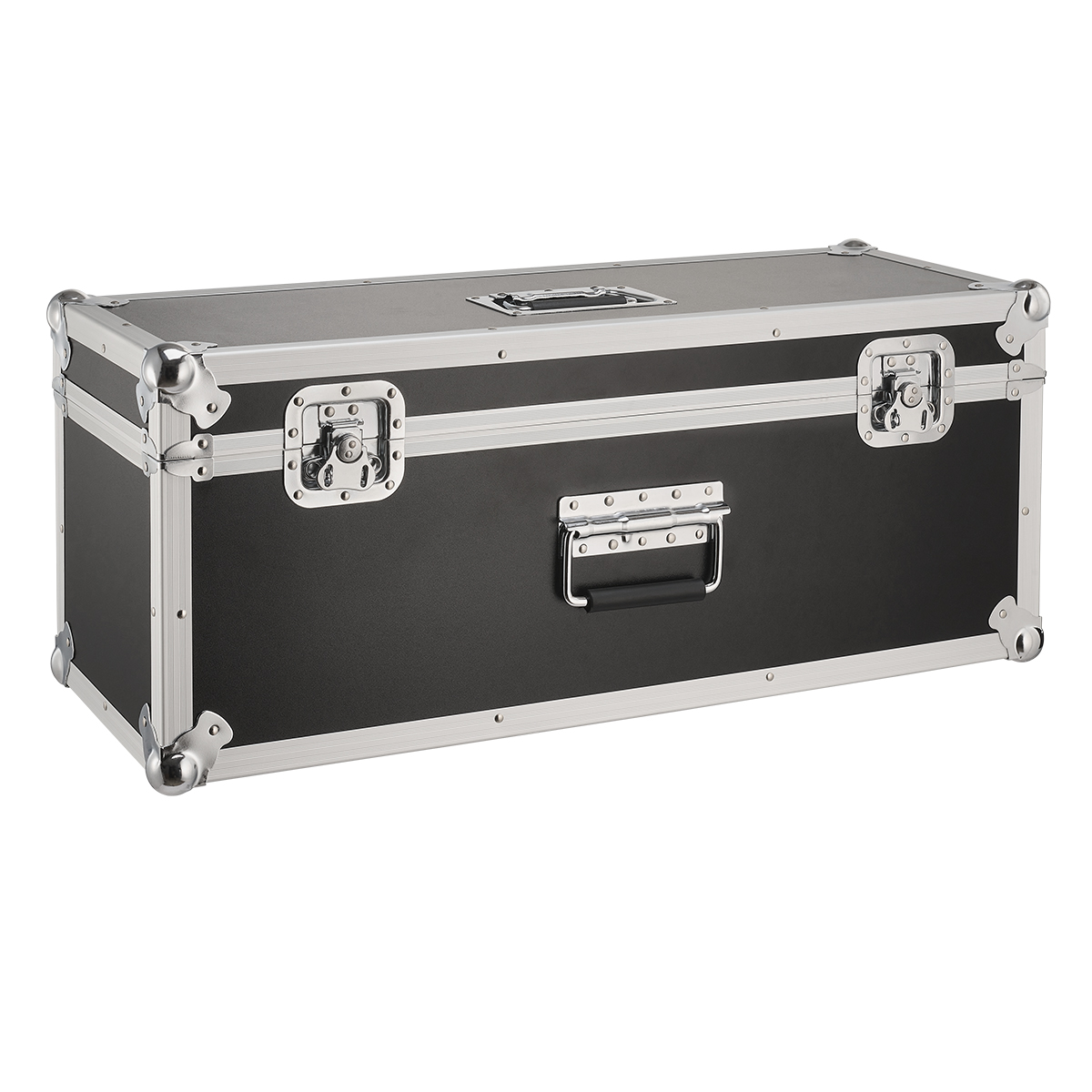

  • High-quality aluminium case


  • Aperture size: 107mm
  • Focal length: 749mm
  • Focal ratio:f/7
  • Objective lens:Quadruplet air-spaced APO (including two ED glass)
  • Image circle:44mm
  • Net weight:5.7kg
  • Gross weight:6.9kg
  • Rear-end thread type:M86×1 to M68×1
  • M68×1 to M54×0.75
  • M54×0.75 to M52×0.75
  • M52×0.75 to M48×0.75(with M48×0.75 filter thread)
  • Four-piece photographic adapter:M48×0.75

Maximum accessory connection (with the focuser fully retracted):

Imaging mode

  • 79mm (from the base of M48×0.75 male thread)
  • 99mm (from the base of M54×0.75 male thread)
  • 119mm (from the base of M68×1male thread)
  • 149mm (from the base of M86×1 male thread)

Observing mode:

  • 120mm (from the end of 2" visual back)
  • Total length:603mm(when the dew shield is contracted)
  • 754mm(when the dew shield is stretched)

Customer reviews

Average Rating (2 Reviews):
Write a Review and share your opinions!

Rating (max 5):
Great scope
30 March 2023  |

The only disappointing thing with this scope is the weather that came with it - I have only had a couple of hours of reasonably clear weather since it arrived.

The scope itself has a real quality feel to it. It comes very well packed with a good metal case. Everything needed to connect to your dedicated astro cam is also included. The dual speed focuser is exceptionally smooth and very easy to attach an electronic focuser in no time at all. The field is perfectly flat without the need for a flattener which removes the hassle of dealing with back-focus and makes set up for first imaging very easy.

All in all an excellent scope which is worth the price. As always, the help and advice from FLO was excellent.

Rating (max 5):
Askar 107PHQ
03 October 2022  |

Very fast delivery. One excellent telescope (mechanically and optically). Tiny, pinpoint stars corner to corner - no problem to cover full frame sensor (maybe more with better adapter than M48 T2), no trace od chromatic aberation. Can only recommend.
