Atik APX26 APS-C Mono & Colour CMOS Camera

Now: Please Contact Us (Save: £4,498.00) Was: ~~£4,498.00~~✓ 2 year warranty

Product description
In the box
Specifications
FAQ

Choose:

Colour APX26
Mono APX26

:	Out of stock due 7-10 working days

Notify me when back in stock

Ask a Question Ask a Wishlist

Add To Wishlist

Send To Friend

About this product

Model: atik_apx26_colour

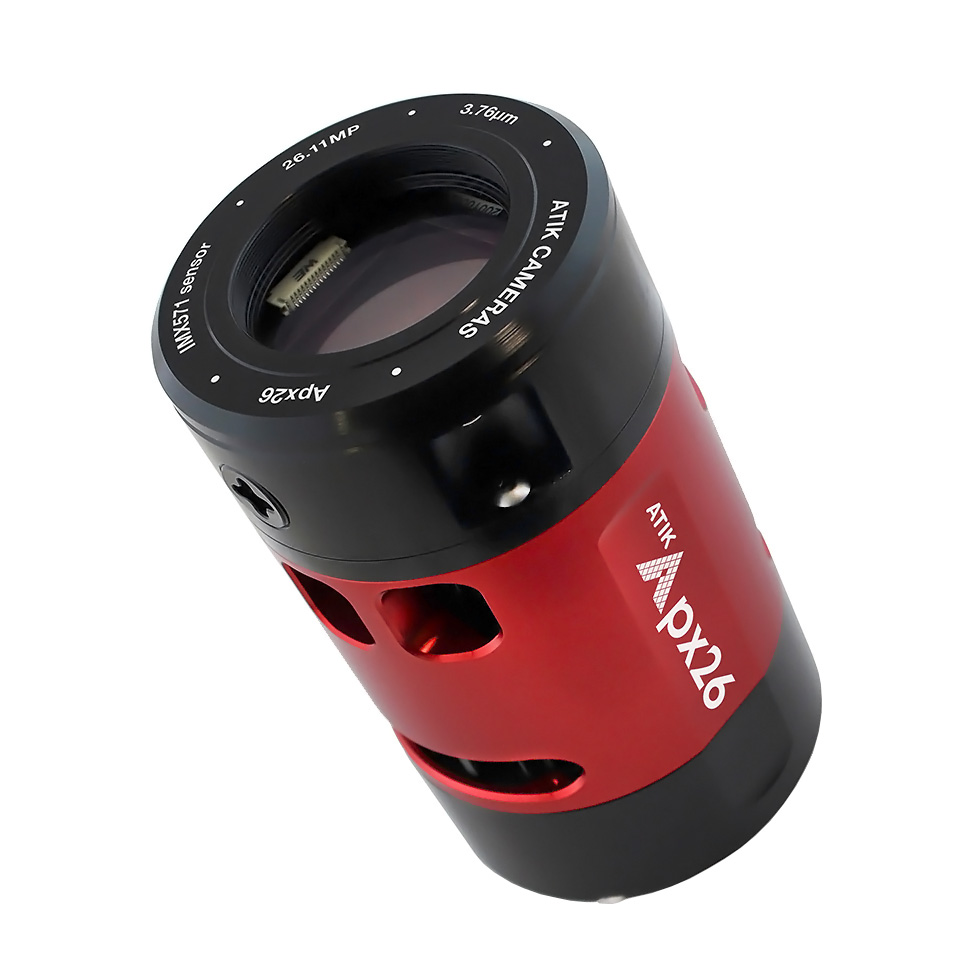

ATIK APX26 APS-C Format Mono and Colour CMOS Camera

Promo Price: £3198 for the APX26 Colour Camera and £3798 for the APX26 Mono camera.

The Apx26 utilises the Sony IMX 571 APS-C sensor, combining versatility with wide-field views. This 26.11-megapixel sensor has low read noise, high quantum efficiency, and 16-bit analogue to digital conversion, perfect for a wide range of applications and telescopes.

The advanced Sony sensors used in the ATIK Apx series are well known for their ‘no glow’ quality with outstanding detail. The Apx26 also seamlessly integrates with Atik’s advanced software solutions. The camera has a 512MB memory buffer to prevent image artefacts and dropped frames. Furthermore, the Apx26 has a built-in USB hub, high-performance cooling, anti-condensation and anti-reflection optics, and easy chip adjustment. Completed with Atik’s exceptional premium electronics and build quality to deliver incredible images for scientific OEM applications and astrophotography.

FEATURES

Sony IMX571 Sensor
6244 x 4178 3.76 μm Pixels
Huge,APS-C Sensor - 23.5mm x 15.7mm
Zero Amp Glow!
Regulated Tec-Cooling: 35 degrees below ambient temperature, -40°C with short exposure
Read Noise - 1.7 e- (typical)
Digitisation (MPPS): Limited by USB 3-speed
16Bit ADC
Full Well Capacity: 51,000e
Max Exposure: Unlimited
Min Exposure: TBC
Electronic shutter - no issues with vibrations sometimes found in mechanical shutters
PC Interface: USB3.0
Power Requirements: 12VDC, 5A
Back Focus Distance: Default = 17mm +/- 0.5mm; Without Levelling Plate = 9.5mm +/- 0.5mm
Thread On Front: M54 x 0.75
Weight: 1KG
Overall Dimensions: 89mm x 152mm
Monochrome or Colour

What's in the box

Camera body with 2” adapter
3-metre USB cable
1.8-metre battery power connector (car lighter plug)
CD-ROM with drivers, software and user's manual (PDF)
Quickstart guide (paper)

Specifications

Image Sensor	Sony IMX571 CMOS sensor
Resolution	6244 x 4168
Pixel Pitch	3.76 μm
Sensor Size	28.3mm diagonal (23.5mm x 15.7mm)
Full Well	51,000 e-
Read Noise	1.7 e- (typical)
Dark Current Noise at camera set point	0.0008 e-/p/s
Set Point Cooling at ambient of 20oC	-15°C
Frame Rate	~4FPS (Full Frame image)
Mount Type	M54 x 0.75
ADC	16 bit
Backfocus Distance	17mm ±0.5; without levelling plate = 9.5mm ±0.5
Reading Mode	Rolling shutter
Exposure Range	1 ms - 24 hours
System Requirements	Windows 10 USB 3.0 8GB Ram 64 bit Operating System
