Part Number: HE692B

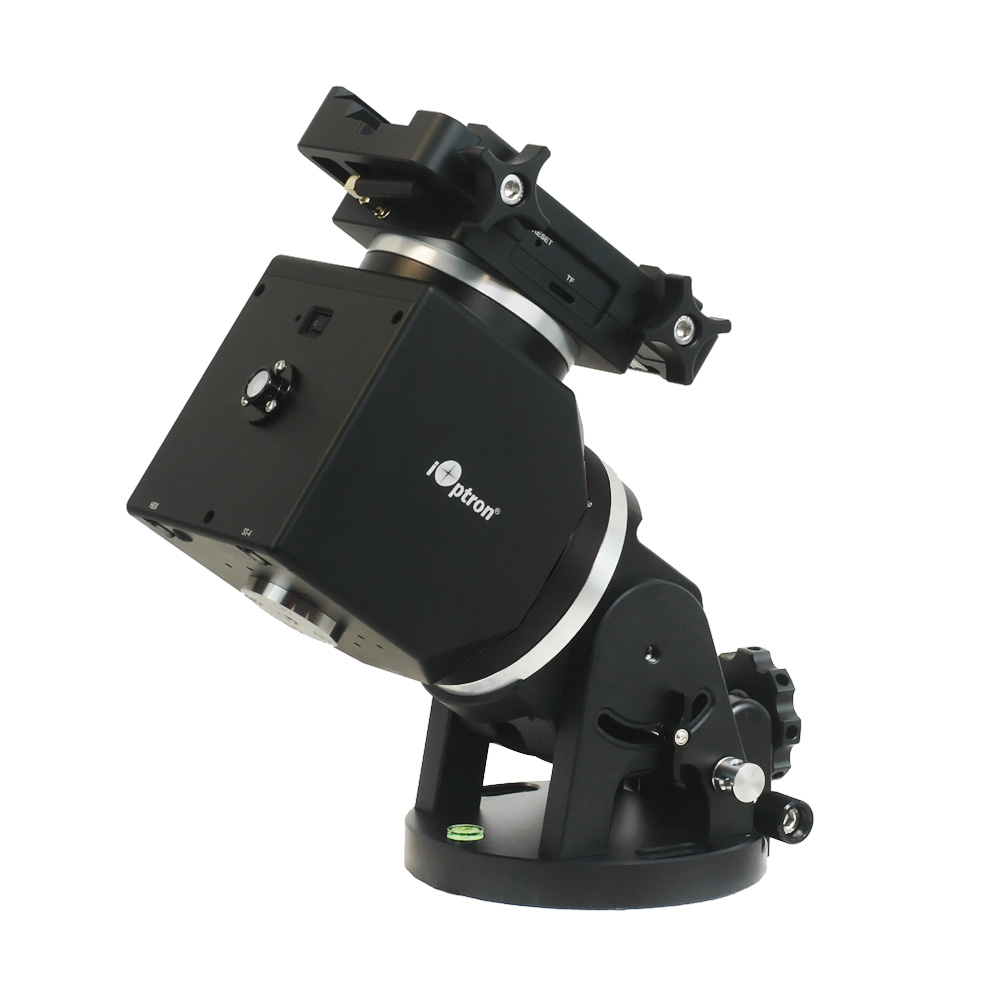

iOptron HAE69B-iMate Dual AZ/EQ SWG Mount with iPolar
Keeping pace with rapidly developing technology, the iOptron HAE69 and HAE69EC SWG mounts have evolved into the HAE69B iMate.

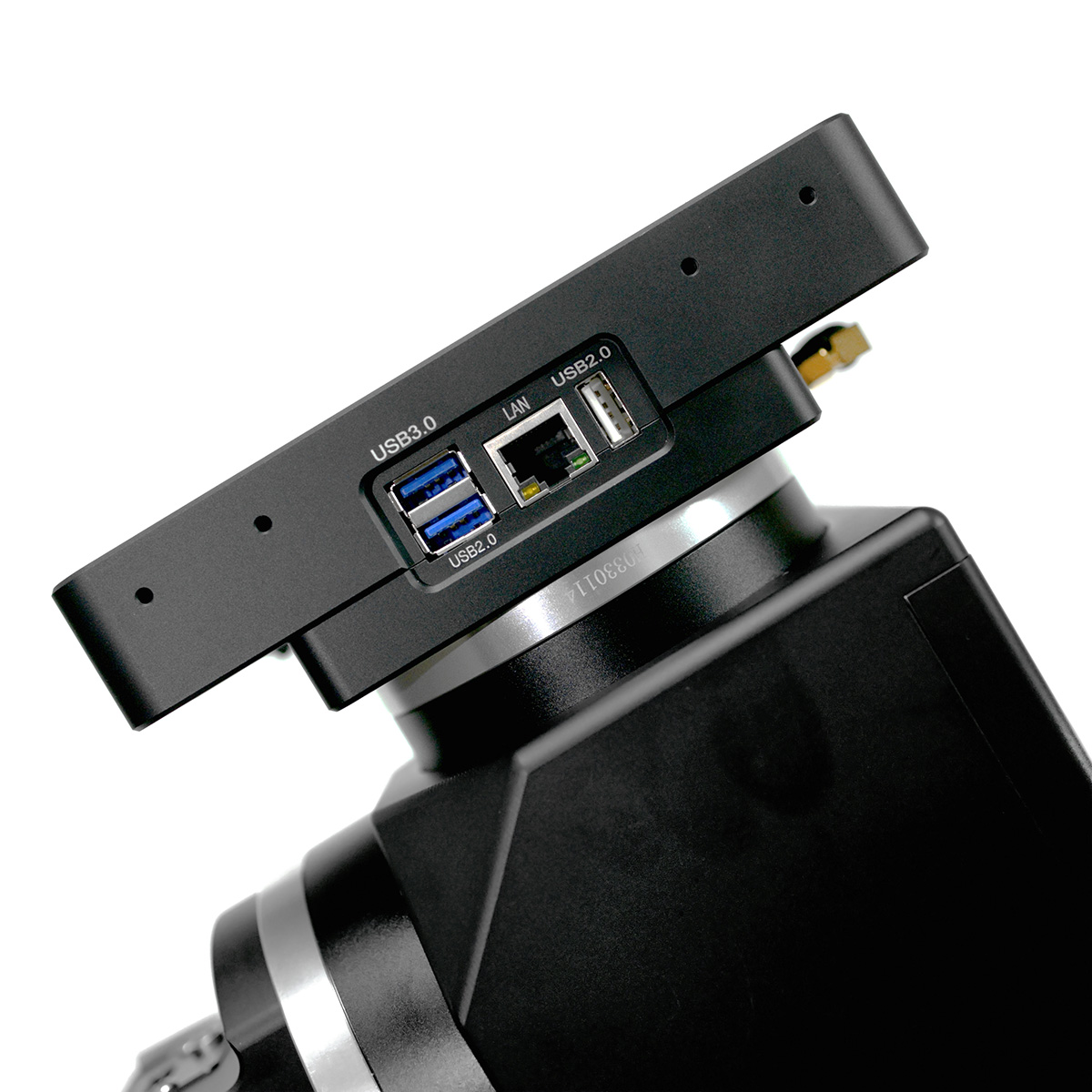

The iMate models feature a powerful 64-bit ARM-based onboard computer with Wi-Fi, preloaded KStars planetarium software, Ekos control and automation tool and INDI drivers. This hardware-software combination will support most current and future devices (cameras, focusers, filter wheels, etc.) from multiple brands.
With 32Gb eMMC storage and a slot for up to 64Gb TF (micro SD) memory, the iMate can control and capture an entire automated imaging session. The iMate is cross-platform; use it with Windows, IOS, Linux, Android, etc.
HAE69B iMate dual SWG Alt-az/ Eq mounts now have an internal main board and no longer require use with a handset.
These lightweight, compact, medium payload titans will deliver an astronomy experience like never before. Imagine a mount head weighing in at 19 lbs with a payload capability of 69 lbs without needing a cumbersome counterweight or shaft. Applying iOptron’s multi-decade experience creating precision mounts, the HAE69 makes this vision possible.
Utilising state-of-the-art strain wave gear technology for both RA and DEC movement, the HAE69 mounts deliver unparalleled weight to payload efficiency. Its black anodised, all-metal CNC machined body is a rugged platform that will perform at the highest level for many years. Unique features such as an electronic friction brake and power-down memory allow the mount to safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).
Includes an aluminium carrying case.
- Advanced strain-wave gear drive technology
- Payload capacity of 31 kg (69 lbs) with a mount weight of only 8.6 kg (19 lbs, including dovetail saddle)
- CNC machined
- iMate 64-Bit ARM-Based On-Board Computer
- iPolar Included
- Unique friction brake to safely stop movement during a planned or unplanned power interruption
- 270 Second Gear Period

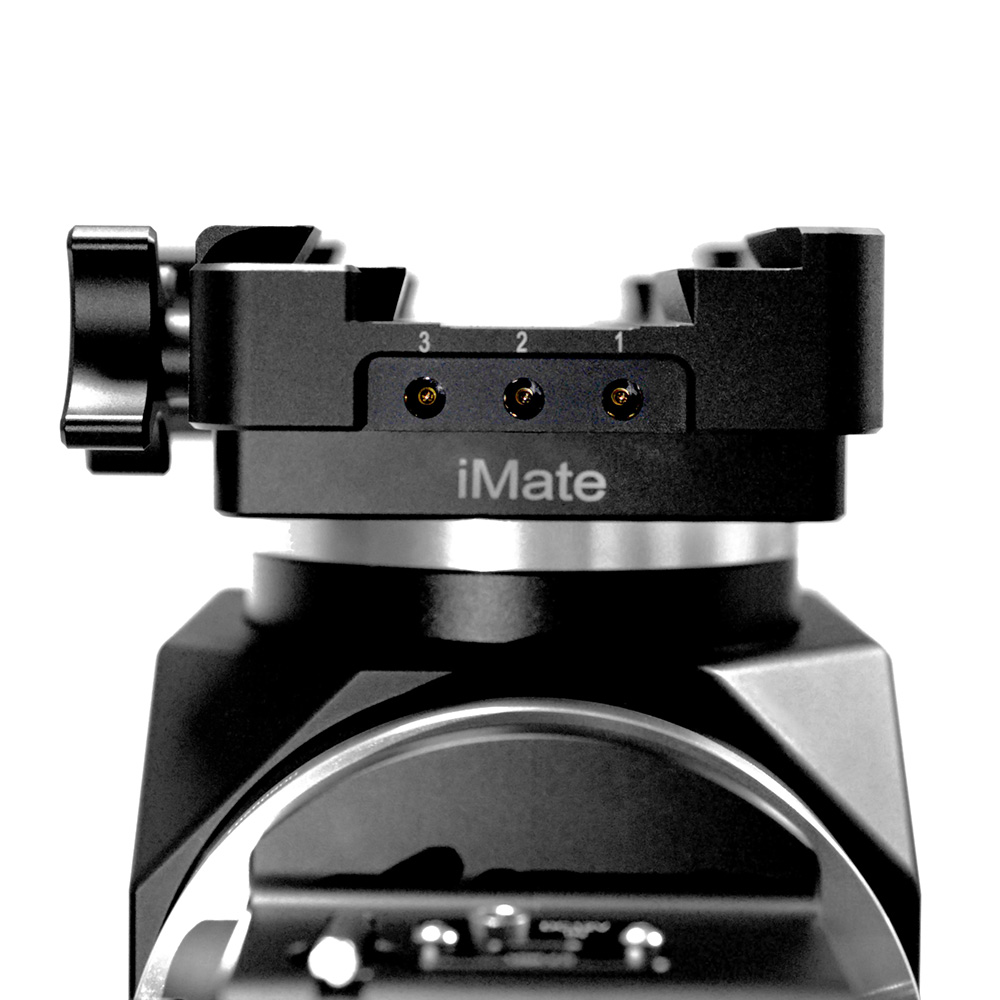

- Dual saddle (vixen and Losmandy-D styles)
- Cable passthrough ready for customer cable management
- Built-in zero position search and locator
- Power down position and location memory
- Integrated ST-4 auto-guiding port
- Integrated ST-4 Guide Port
- Built-in Wi-Fi
- USB port for firmware upgrade and computer control
- Aluminium carrying case
- Two-year warranty
Quick Start Manual
Download Latest Software
|Mount ||Strain Wave Altazimuth/Equatorial Mount |
|RA gear system ||Strain Wave Gear |
|DEC gear system ||Strain Wave Gear |
|Reduction ratio ||RA 800:1, DEC 800:1 |
|Payload w/o CW * ||69 lbs (31 kg) |
|Mount weight ||19 lbs (8.6 kg) with dovetail saddle |
|Payload/Mount weight ||3.6 |
|Payload with CW* ||79 lbs ( 36kg) |
|Period ||270 second |
|PE (by encoder)** ||< ± 15 arcsec |
|Azimuth adjustment range ||0°~ 90° |
|Latitude adjustment range ||± 8° |
|Drive motor ||Stepper motor |
|Structure Material ||All metal, CNC machined |
|Exterior finish ||Anodized black |
|Polar Scope ||iPolar electronic polar scope (external) |
|Level indicator ||Level bubble |
|Control system ||GOTONOVA/Commander/iMate |

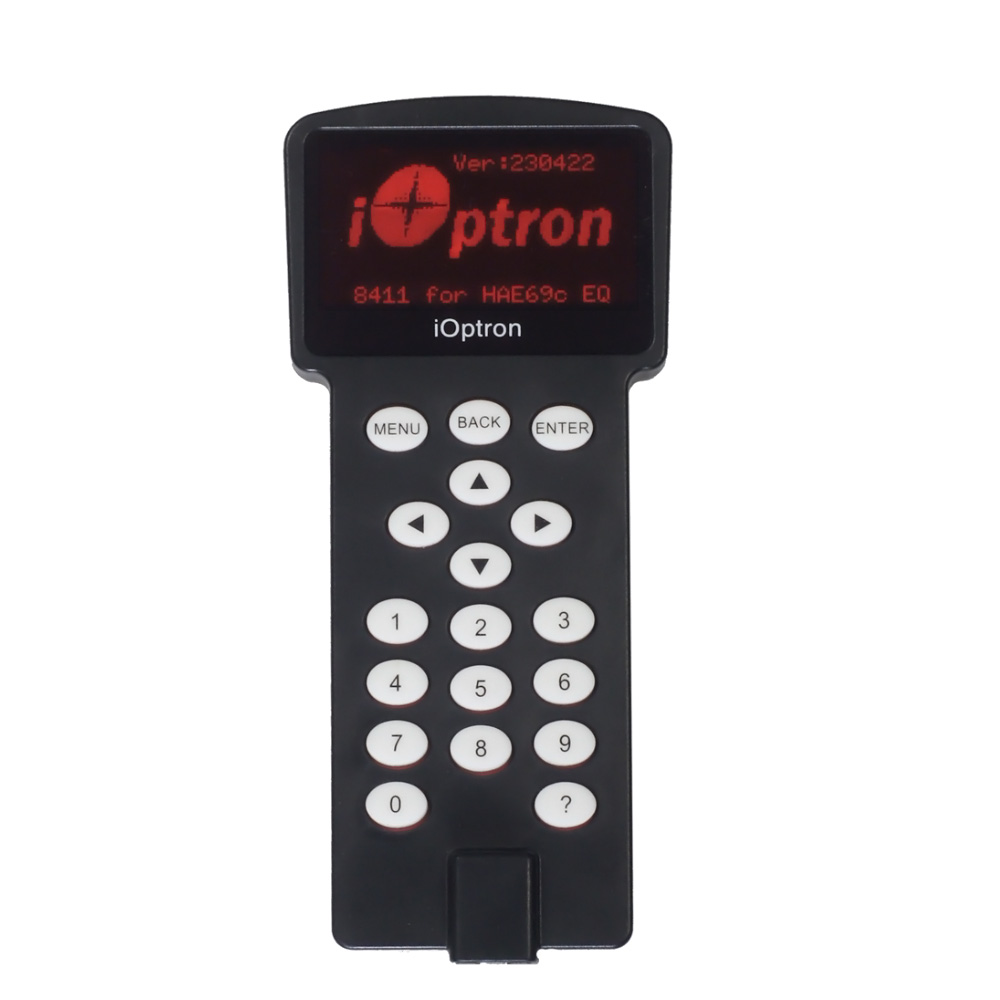

|Hand Controller ||Optional |
|Tracking ||Automatic |
|Maximum slew speed ||4.5º/sec |
|Power consumption ||0.6A(Tracking), 1.6A(GOTO) |
|Power ||DC12V-5A (5.5/2.5mm DC plug) |
|AC adapter ||100V ~ 240V (included, indoor use only) |
|Cable management ||Ready for DIY |
|Power off brake ||Electronic friction brake |
|Power-down memory ||Yes |
|Wi-Fi ||Built-in |
|Communication port ||Yes (Wi-Fi and USB, via HC) |
|Autoguide port ||Yes (ST-4 compatible) |
|Firmware upgrade ||Yes |
|Dovetail saddle ||Vixen/Losmandy dual saddle |
|Mounting base diameter ||152mm |
|Tripod ||Optional |
|Counterweight Shaft ||SS Φ20X200mm, 3/8"-16 thread (Optional) |
|Counterweight ||10 lbs (4.5kg)(Optional) |
|Operation temperature ||-20ºC ~ 40ºC (hand controller -10ºC ~ 40ºC) |
|Warranty ||Two years |
* 200mm, with payload centre of gravity to the RA rotation axis. Or an OTA size of ~212mm.
** Measured with encoder on the bench, 270 seconds
