Meade Series 5000 PWA 1.25'' 4mm Eyepiece

Meade Series 5000 PWA 1.25" 4mm Eyepiece

£135.00✓ 2 year warranty


1x in stock shipped 1-2 working days

About this product

Model:  meade_5000_pwa_ep_4mm
Part Number:  607040

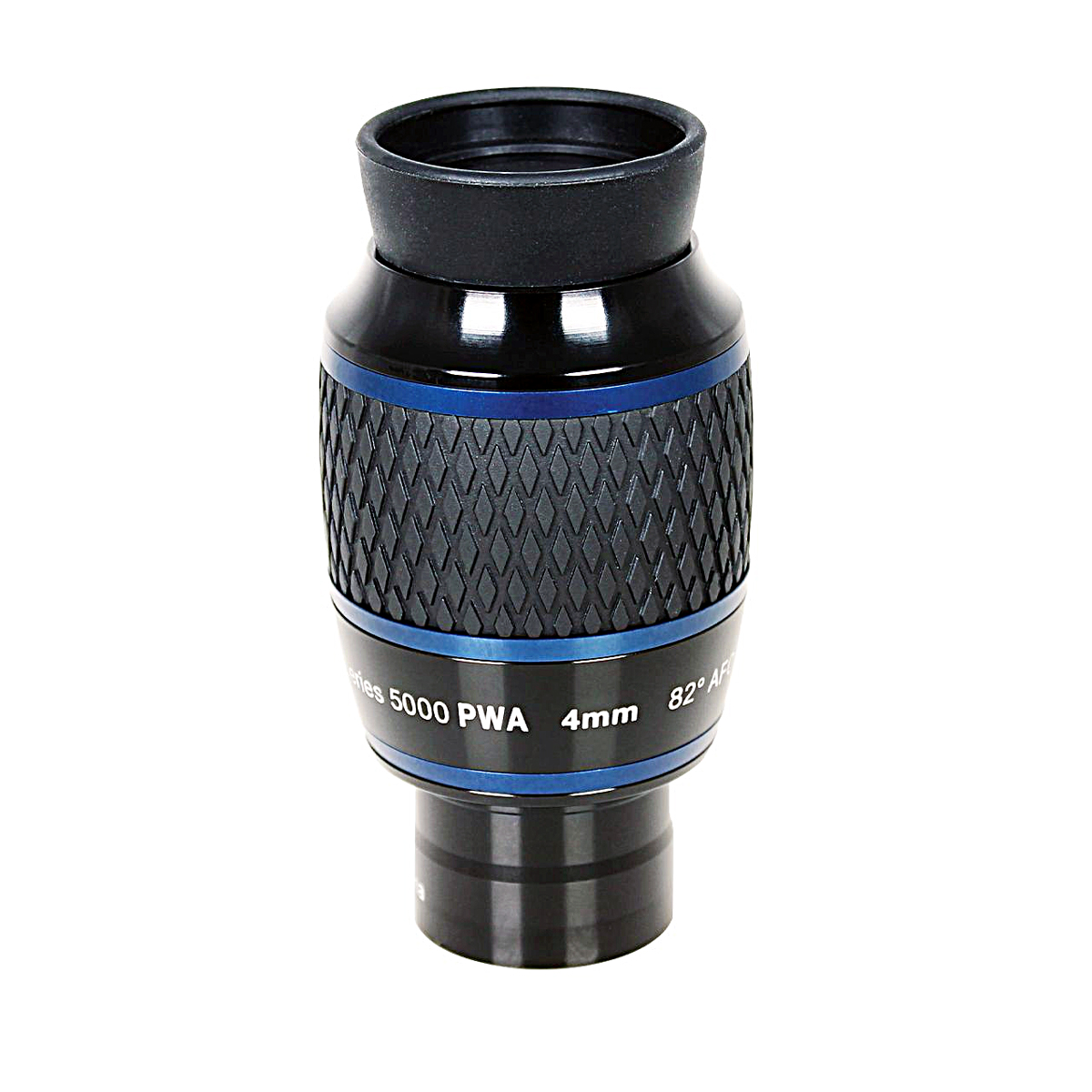

Meade Series 5000 Premium Wide Angle (PWA) 1.25" 4mm Eyepiece

Meade’s Series 5000 Premium Wide-Angle (PWA) eyepieces provide a generous 82º Apparent Field of View.

The fully multi-coated optical design with premium glass ensures the best possible colour, contrast, and brightness.

Blackened lens edges provide enhanced contrast and reduce internal reflections, and the parfocal design means there is little-to-no focus change when switching between other eyepieces in the series.

Other features include generous eye relief and a soft rubber eyecup, so suitable for use even when wearing glasses.

PWA eyepieces are great for viewing celestial objects requiring a wide field of view - such as star clusters and large deep-sky objects, including galaxies and nebulae.


  • 4mm Focal Length
  • 12mm Eye Relief
  • 82º Apparent Field of View (AFOV)
  • 1.25" Nosepiece
  • 7 Element, Fully Multi-Coated Optical Design
  • Blackened Edges for Enhanced Contrast
  • 205g / 0.45lb

Eyepiece Field of View Simulator


Series Series 5000 PWA Eyepieces
Focal Length 4mm
Barrel Size 1.25"
Apparent FOV 82º
Eye Relief 12mm
# of Elements 7
Optical Coatings Fully Multi-Coated
Blackened Edges Yes
Parfocal Yes
Product Weight 205g / 0.45lb
Product Dimensions 14.3cm x 10.6cm x 8cm / 5.63" x 4.17" x 3.15"
