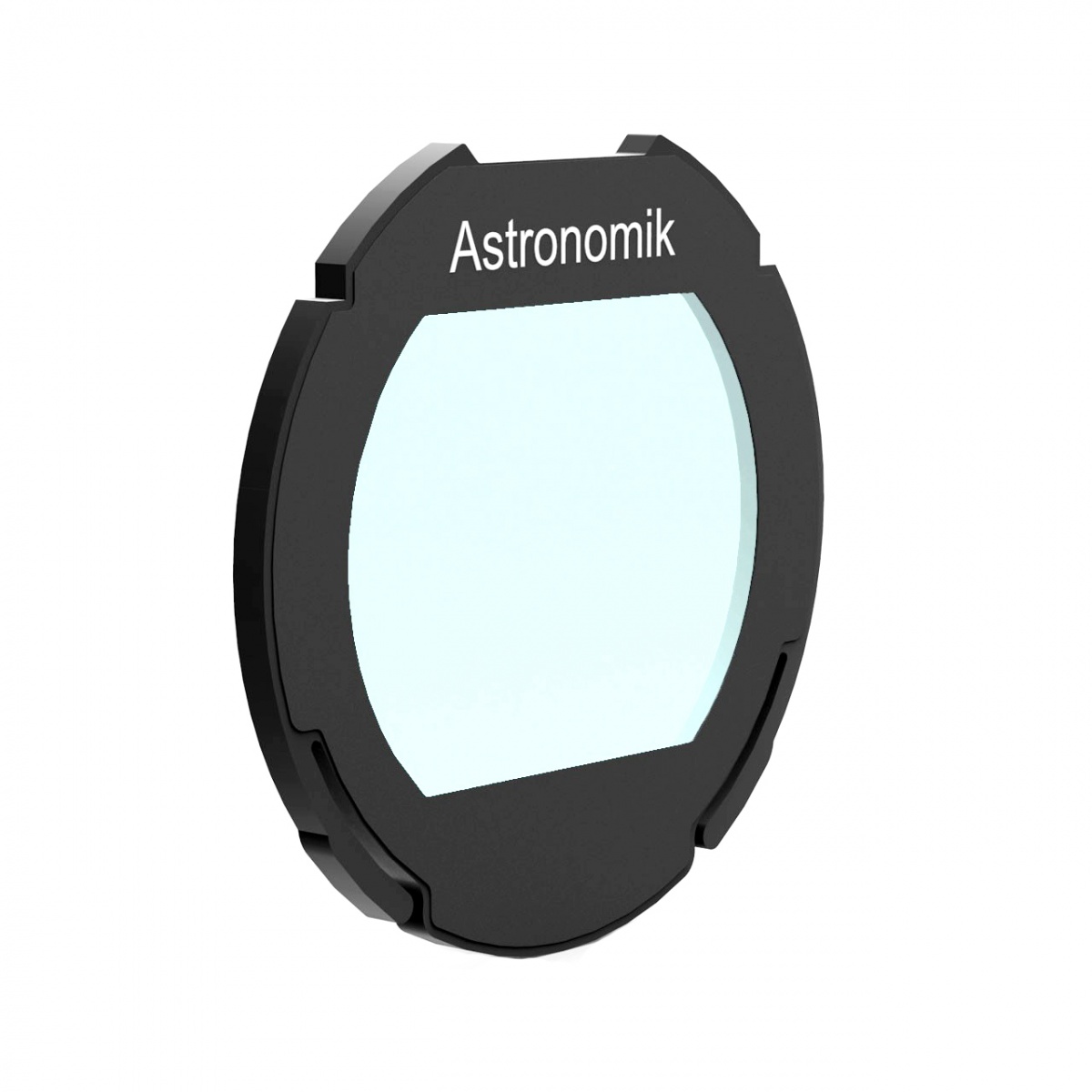

Astronomik OWB-CCD Typ 3 Filter

Astronomik OWB-CCD Typ 3 Filter
  Zoom
£116.00
Choose:


:

Incoming - Shipped 4-6 working days.

Model:  ak_owb-typ-3_clip_canon_eos_aps-c
Part Number:  8H00KA
Brand:  Astronomik

Astronomik

The Astronomik OWB filter restores the original white balance of astro-modified DSLR cameras to enable them to be used for daytime photography as well.

The OWB (Original White Balance) filter shifts the complete spectrum of a converted DSLR in such a manner that the camera will not be exclusively usable for astro-photography. Therefore the decision, which in former times had to be made, whether to 'victimise' a DSLR in order to exclusively use it for astronomical tasks or accept the lower sensitivity on the red end of the spectrum it is now a thing of the past and disencumber your purse, too.

FEATURES

  • Special spectrum in order to adapt modified DSLR cameras (removed or substituted inbuilt IR-filter) to achieve standard colour space in digital imaging.
  • Optically polished substrate, striae-free and free of residual stresses
  • Not sensitive to high humidity or ageing effects
  • Scratch-resistance!
  • Excellent quality substrate, diffraction limited - the optical performance of your telescope will not be reduced
  • Parfocal with other Astronomik filters
  • 1mm Glass Thickness
  • Supplied in a high-quality, long lasting, filter box

Main use

DSLR cameras which have been converted for astronomical use by removing the inbuilt IR-filter or by substituting it with a filter with greater range for H-alpha, have a white balance that made them unable for 'terrestrial' purpose. The spectral sensitivity of the DSLR will be changed by an OWB-Filter to the former range. In other words: The OWB pretend to be the conventional built-in filter!

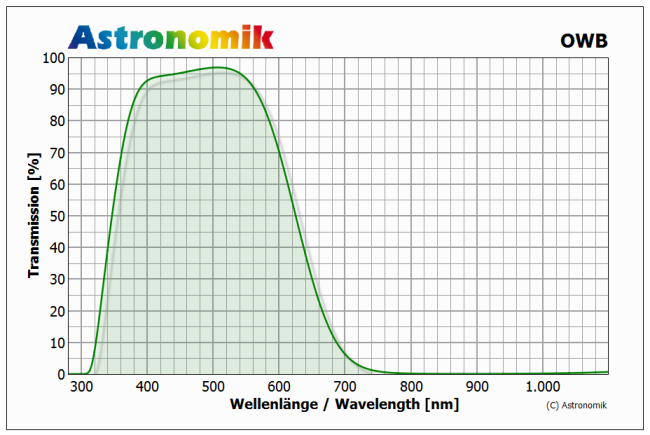

Transmission Chart

  • The horizontal axis is the Wavelength in Nanometers (nm). 400nm is deep blue, at 520nm the human eye senses green and at 600nm red. At 656nm is the famous "H-Alpha" emission line of hydrogen.
  • The transmission in % is plotted on the vertical axis.
  • The blue line shows the transmission of the filter.
  • The most important emission lines from nebulas are shown in orange. The most important lines are from ionised Hydrogen (H-alpha and H-beta) and double ionised oxygen (OIII).

The major emission lines of artificial light pollution:
| Hg 435,8nm | Hg 546,1nm | Hg 577,0nm | Hg 578,1nm |
| Na 589,0nm | Na 589,6nm | Na 615,4nm | Na 616,1nm |

The major emission lines of nebulas:
H-β 486,1nm | OIII 495,9nm | OIII 500,7nm | H-α 656,3nm

Suitability

  • Visual observation (dark skies): Unsuitable
  • Visual observation (urban skies): Unsuitable
  • Film photography: Unsuitable
  • CCD photography: Unsuitable
  • DSLR photography (original): Unsuitable
  • DSLR photography (astro modified): Very good, achieves a standard white balance for 'terrestrial' photography
  • DSLR photography (MC modified): Very good, achieves a standard white balance for 'terrestrial' photography
  • Webcam / Video (Planets): Unsuitable
  • Webcam / Video (Deep Sky): Unsuitable

Technical Data

  • Special spectrum in order to adapt modified DSLR cameras (removed or substituted inbuilt IR-filter) to achieve standard colour space in digital imaging.
  • Parfocal with all Astronomik filters
  • Thickness of 1mm
  • Not sensitive to moisture, scratch resistant or ageing
  • Optically polished substrate, striae-free and free of residual stresses
  • Astronomik filters are delivered in a high-quality, long lasting, filter box



There are currently no specifications available for this product.
