About this product
Part Number: 140PH
Optical Bench Test
All SharpStar telescopes are tested in the UK on an optical bench.

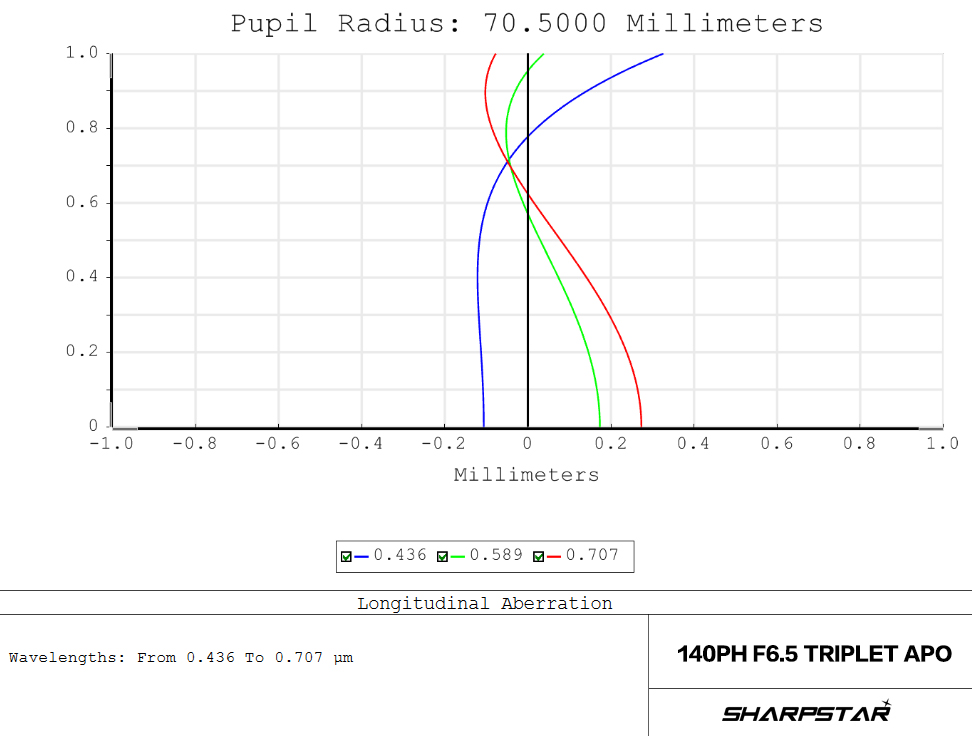

This ensures you can be confident your telescope will, from the outset, have well figured optics, negligible false colour and spherical aberration, and no astigmatism (the bane of any optical system!). Star shapes will be round, not triangular, oval or egg-shaped!

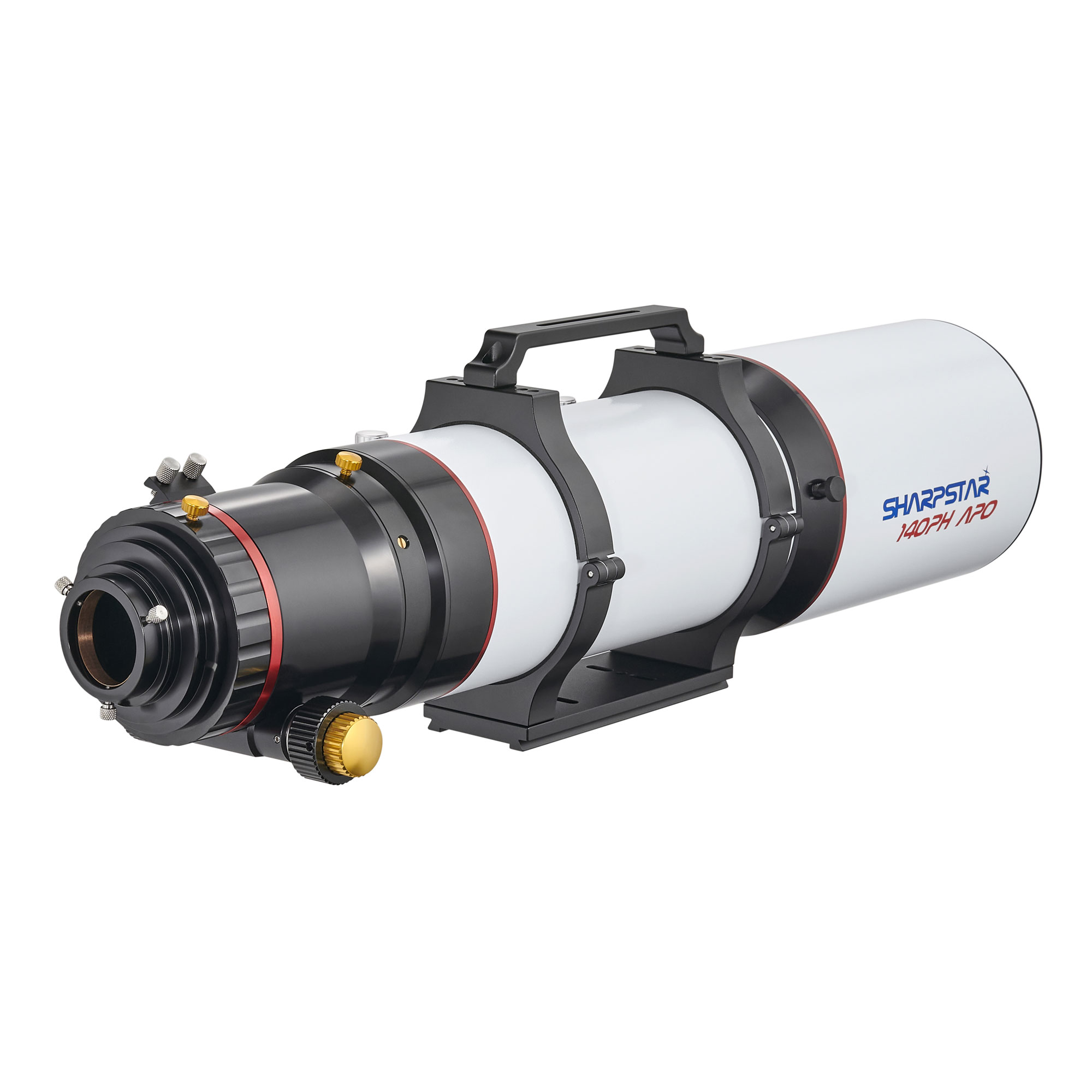

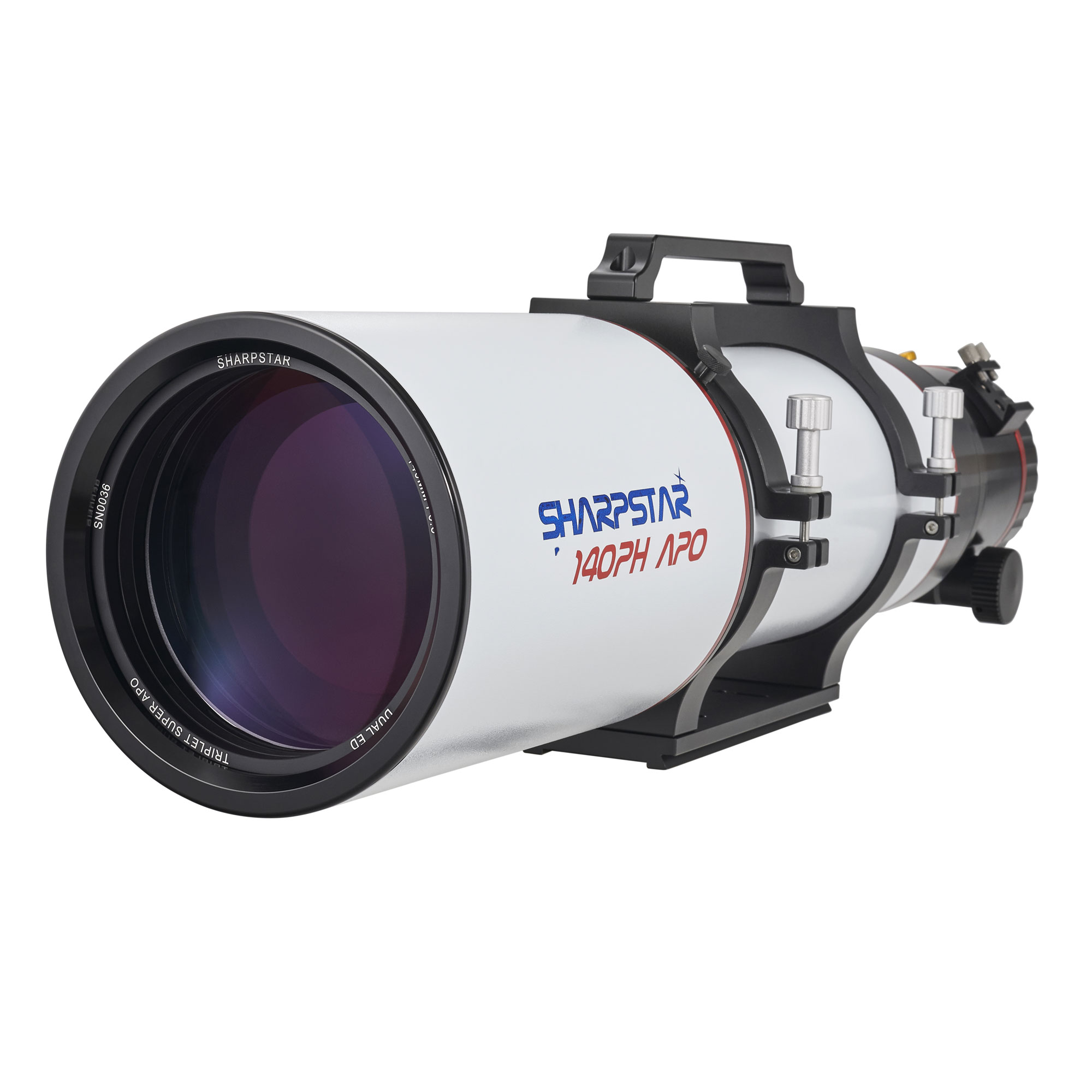

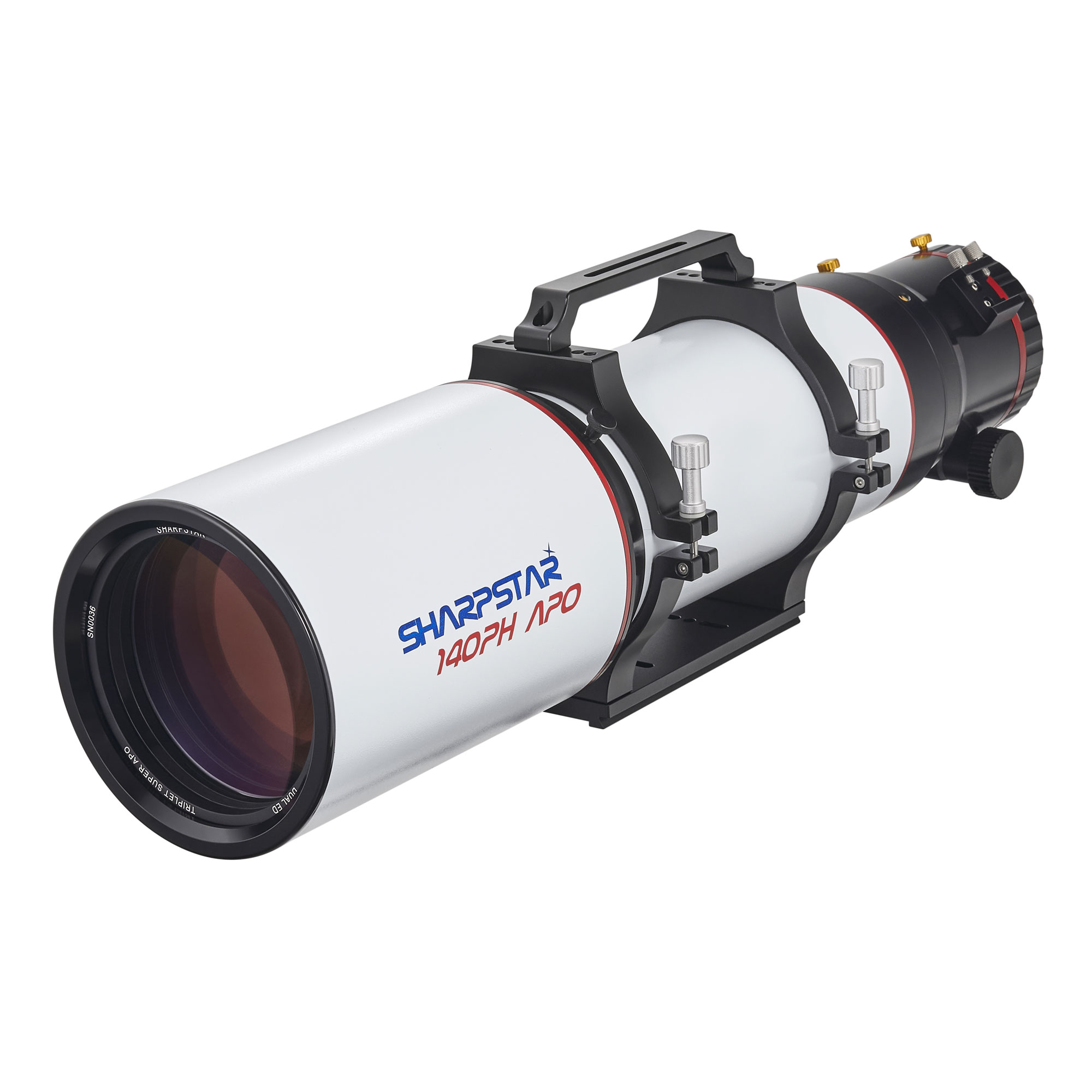

SharpStar 140PH f/6.5 Triplet Dual-ED APO Telescope
The SharpStar 140PH scope features a 140mm air-spaced triplet objective with two ED glass elements for excellent colour correction, contrast, and image sharpness.
With a native focal ratio of f/6.5, the scope measures just 739mm in length with its dew shield retracted and weighs 10.1kg making it an ideal choice for those requiring excellent optics with a larger aperture.

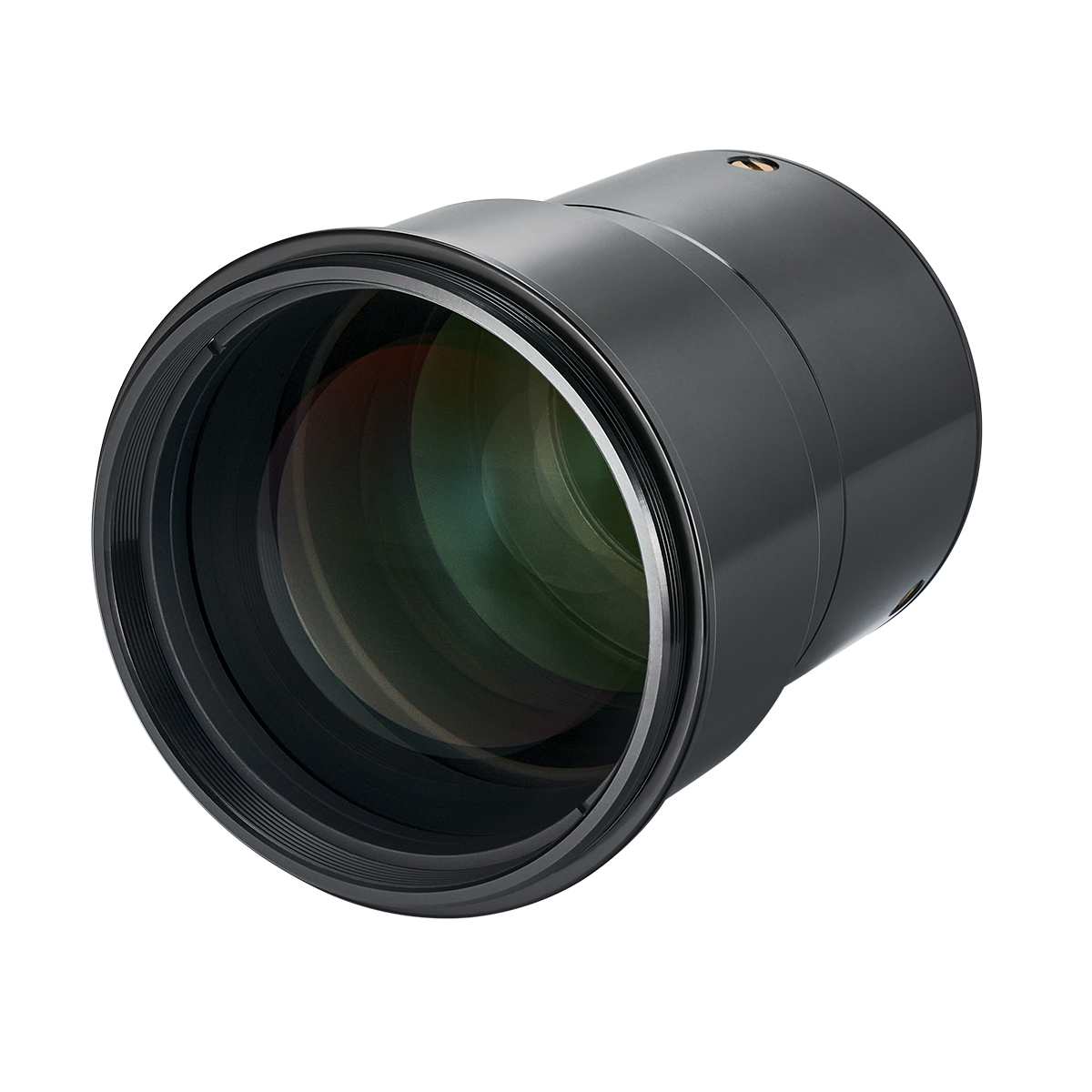

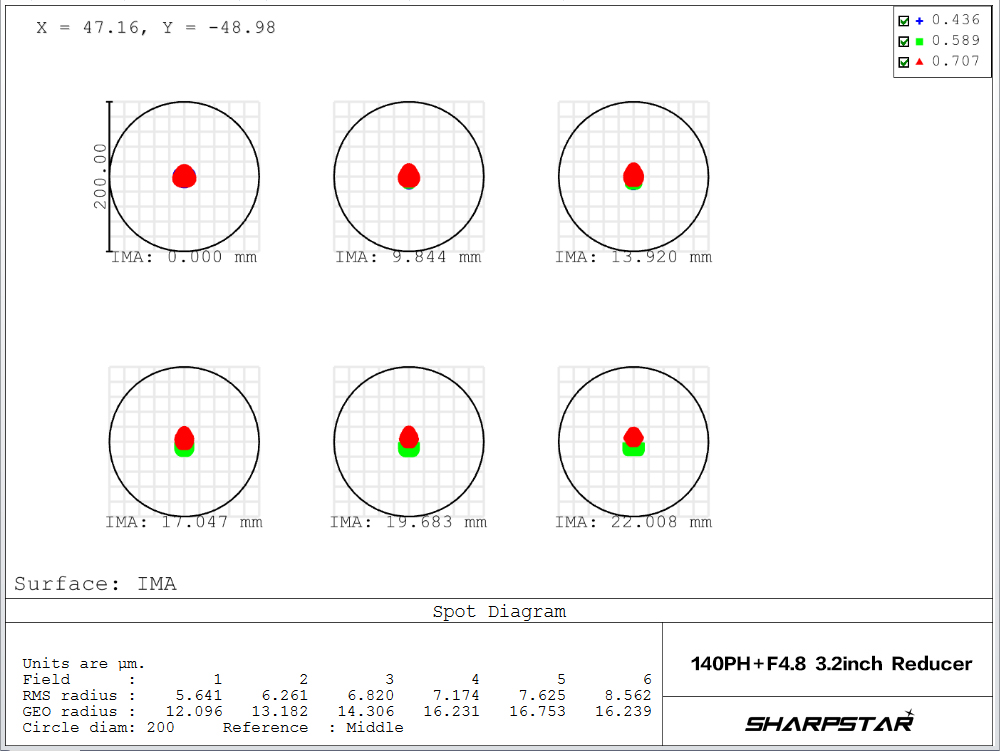

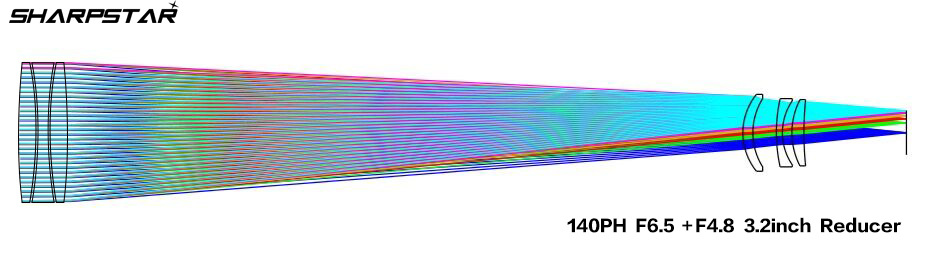

With a standard focal length of 910mm, the 140PH can be used with a dedicated 0.73x 3" Reducer / Flattener to bring the focal ration down to a very fast f/4.8 delivering tack-sharp stars across a 44mm field with a full-frame camera. It’s also an excellent fast-focal-ratio telescope for visual observation.

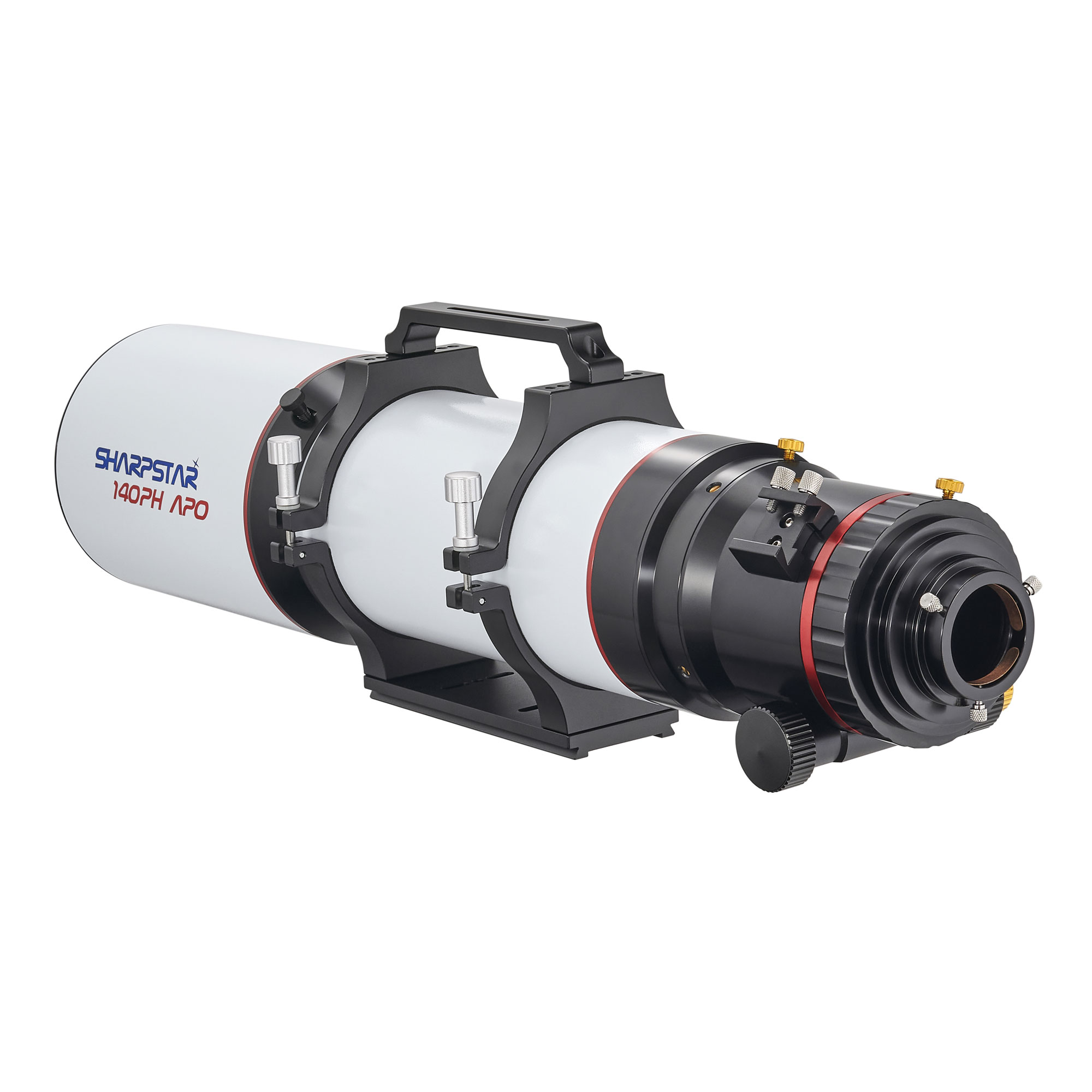

The high quality optics are matched by the excellent mechanics and high quality cosmetic fit and finish. The black CNC trim and carrying handle together with the white gloss tube provide this scope with a distinctive and attractive look. The 140PH features a premium 4” dual-speed 10:1 rack-and-pinion focuser strong enough to handle most full-frame astronomy cameras.

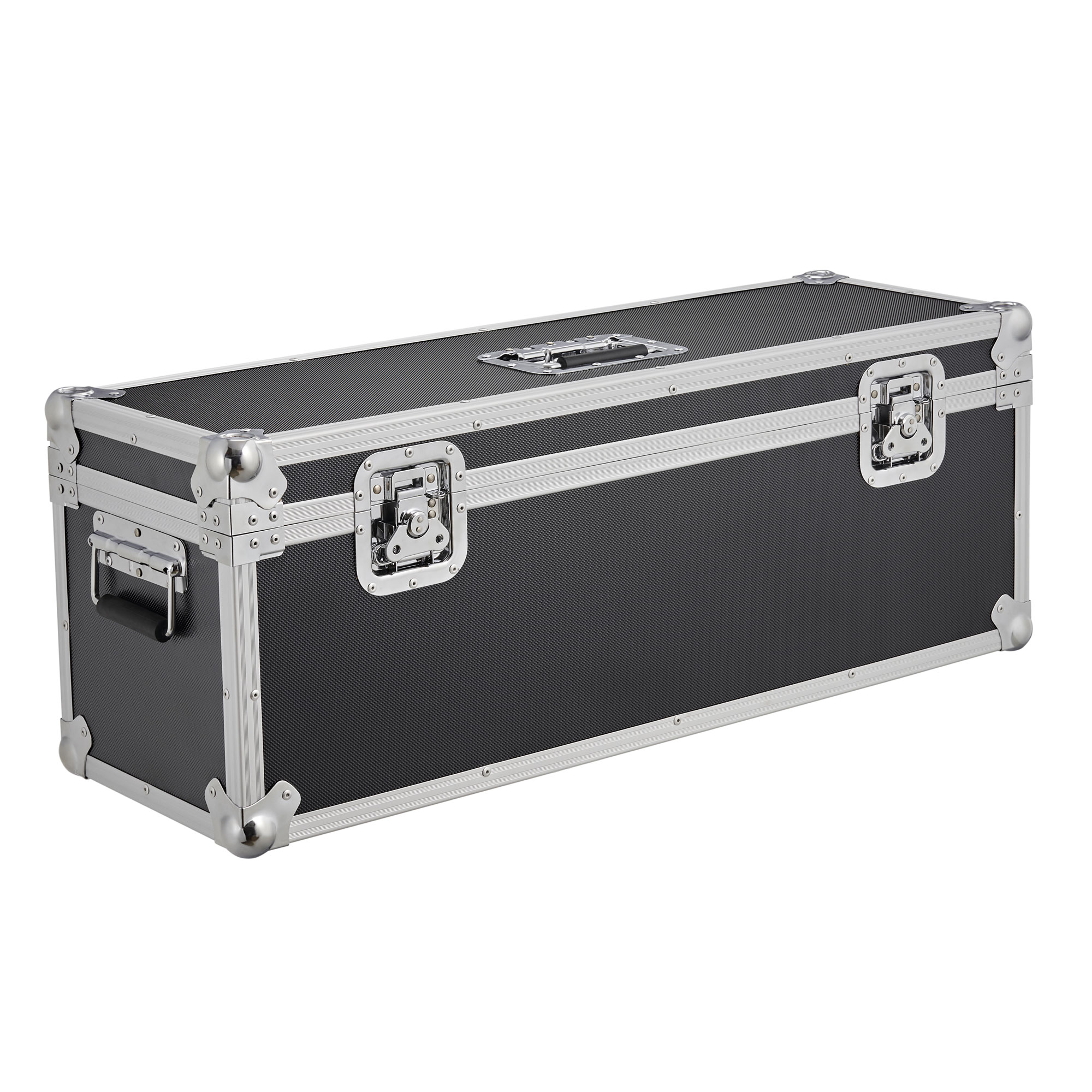

Supplied in a useful aluminium carry case.
- 140mm Aperture
- f/6.5 focal ratio / 910mm focal length
- Three-element air-spaced APO optical design
- Includes two ultra low dispersion ED lenses

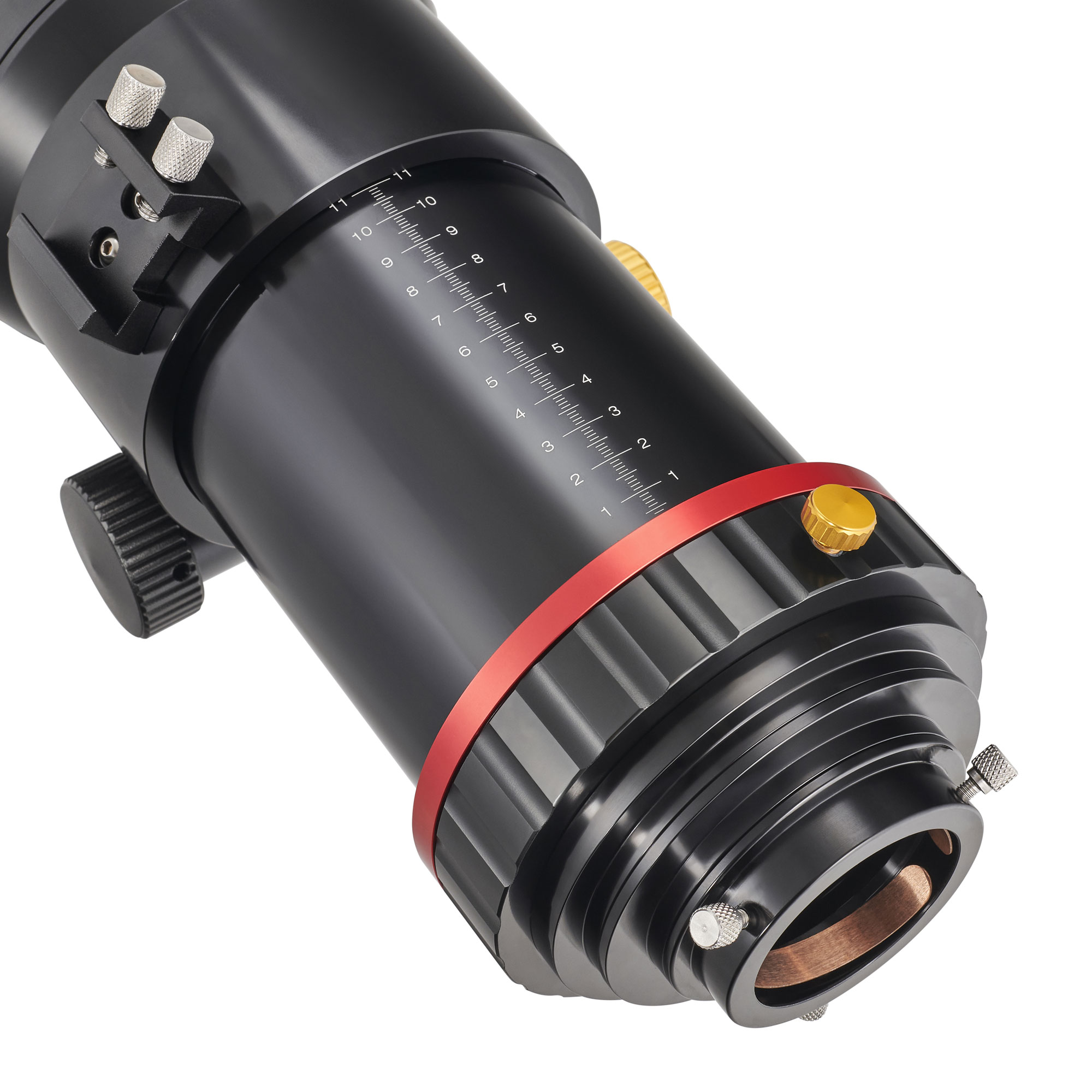

- 4" dual-speed rack and pinion focuser, 10:1 fine focus
- Fully multi-coated optical surfaces
- 2" Eyepiece Adaptor
- Camera Angle adjuster for 360 degree rotation
- Universal Losmandy-style dovetail bar
- Complete with Finderscope Mounting Shoe
- OTA weighs 10.1kg / 11.7kg with rings & dovetail

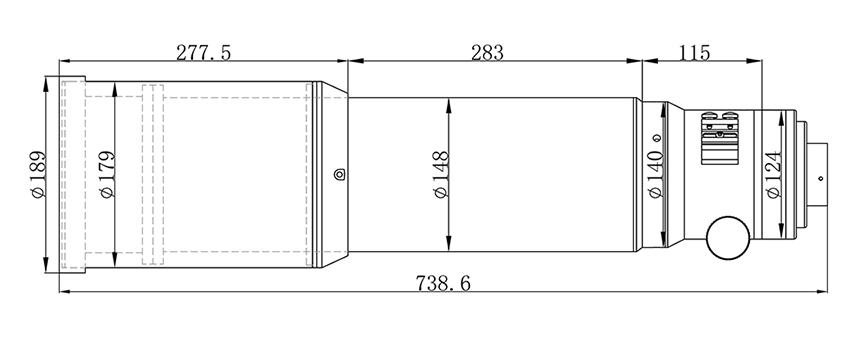

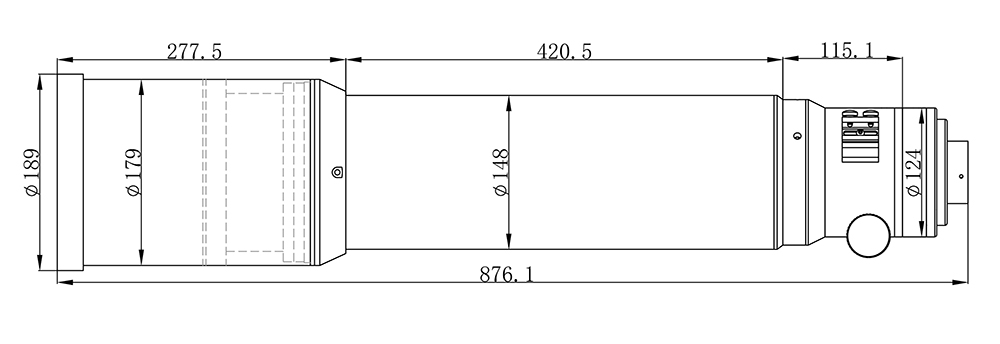

- 739mm Tube length (Retracted)
Telescope Field of View Simulator
What's in the box
- SharpStar 140PH Triplet Apochromatic Refractor
- Hard Case
- CNC Tube Ring / Cradle & Handle
- Losmandy-style Dovetail
- 2" Eyepiece Adaptor
