Takahashi Mewlon 180C f/12 Dall-Kirkham Reflector
  Zoom
Takahashi Mewlon 180C f/12 Dall-Kirkham ReflectorTakahashi Mewlon 180C f/12 Dall-Kirkham ReflectorTakahashi Mewlon 180C f/12 Dall-Kirkham Reflector
Takahashi Mewlon 180C f/12 Dall-Kirkham ReflectorTakahashi Mewlon 180C f/12 Dall-Kirkham Reflector

Takahashi Mewlon 180C f/12 Dall-Kirkham Reflector

£1,995.00
  (1 Review)
✓ 2 year warranty

:

2x in stock shipped 1-2 working days

About this product

Model:  tak_tlk18100
Part Number:  TLK18100

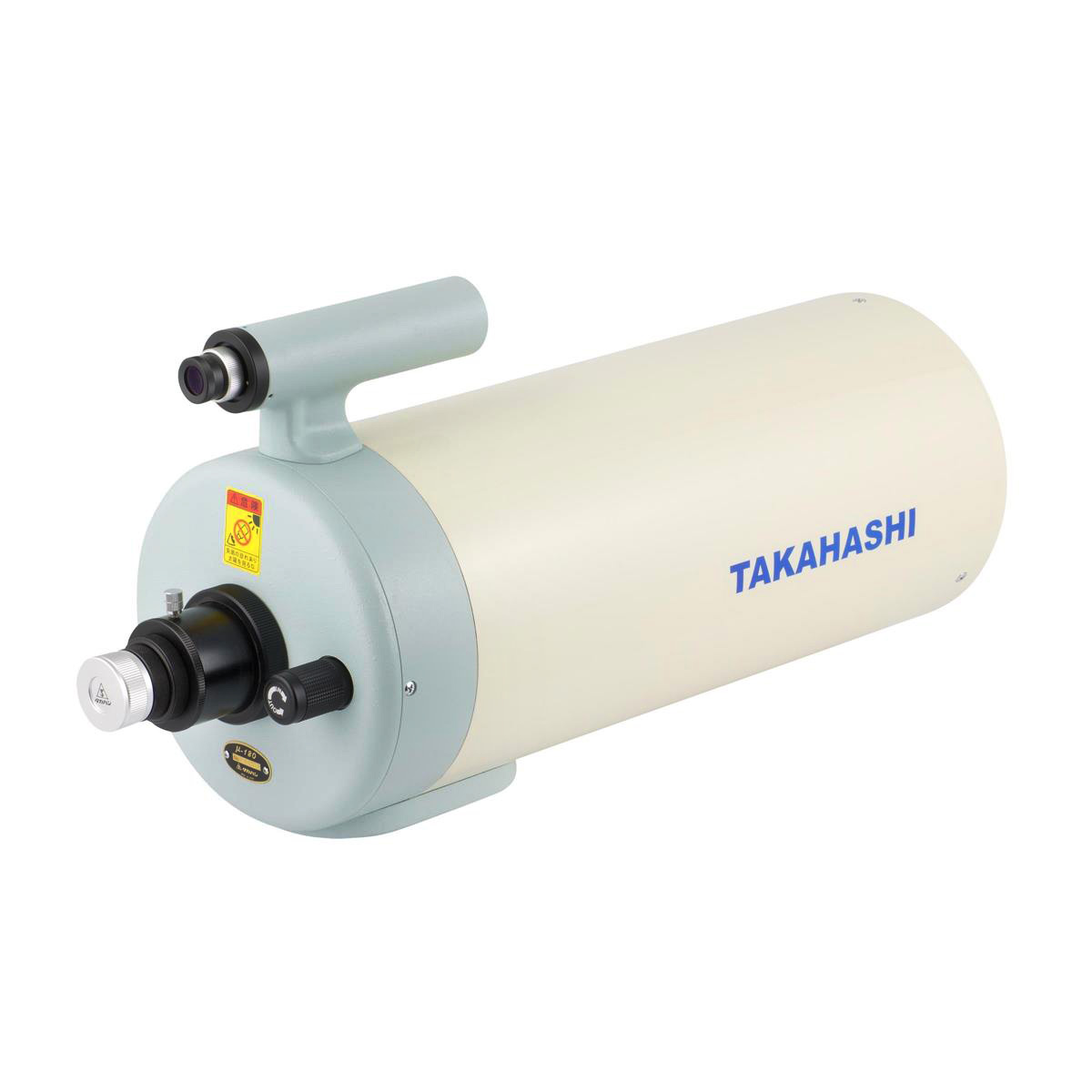

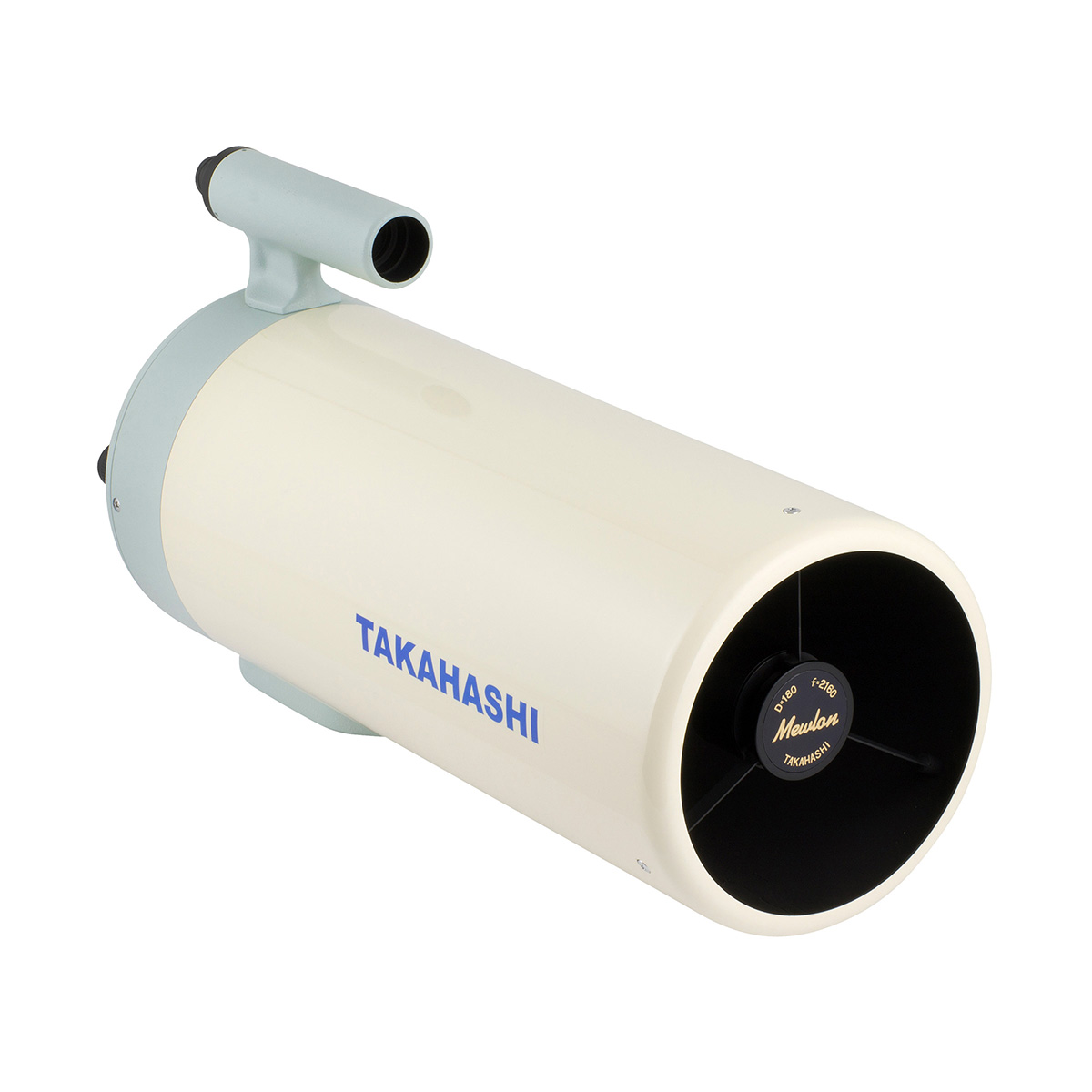

Takahashi Mewlon 180C f/12 Dall-Kirkham Reflector

The Mewlon 180 is a Japanese-made portable premium quality Cassegrain that provides sharp contrasty views. An excellent telescope for both deepsky and Lunar/Planetary observing.

An F9.8 reducer is available for those that want to do some deep sky astrophotography.

The package version includes dovetail adapter and integrated 6x30 finderscope.

Telescope Field of View Simulator

What's in the box

  • Mewlon 180C OTA

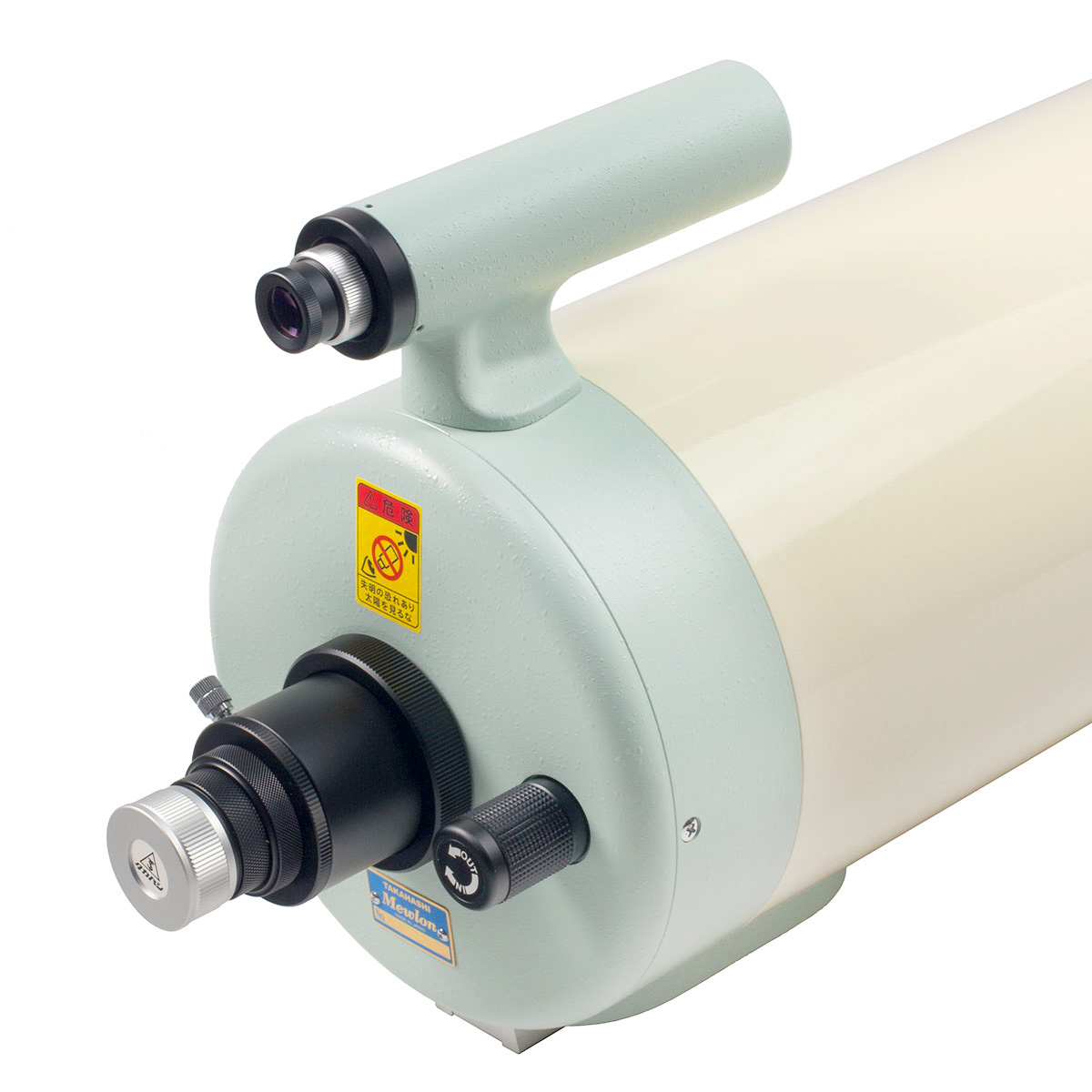

  • TLK18110 Mewlon-180 and 6 X 30 integrated finder

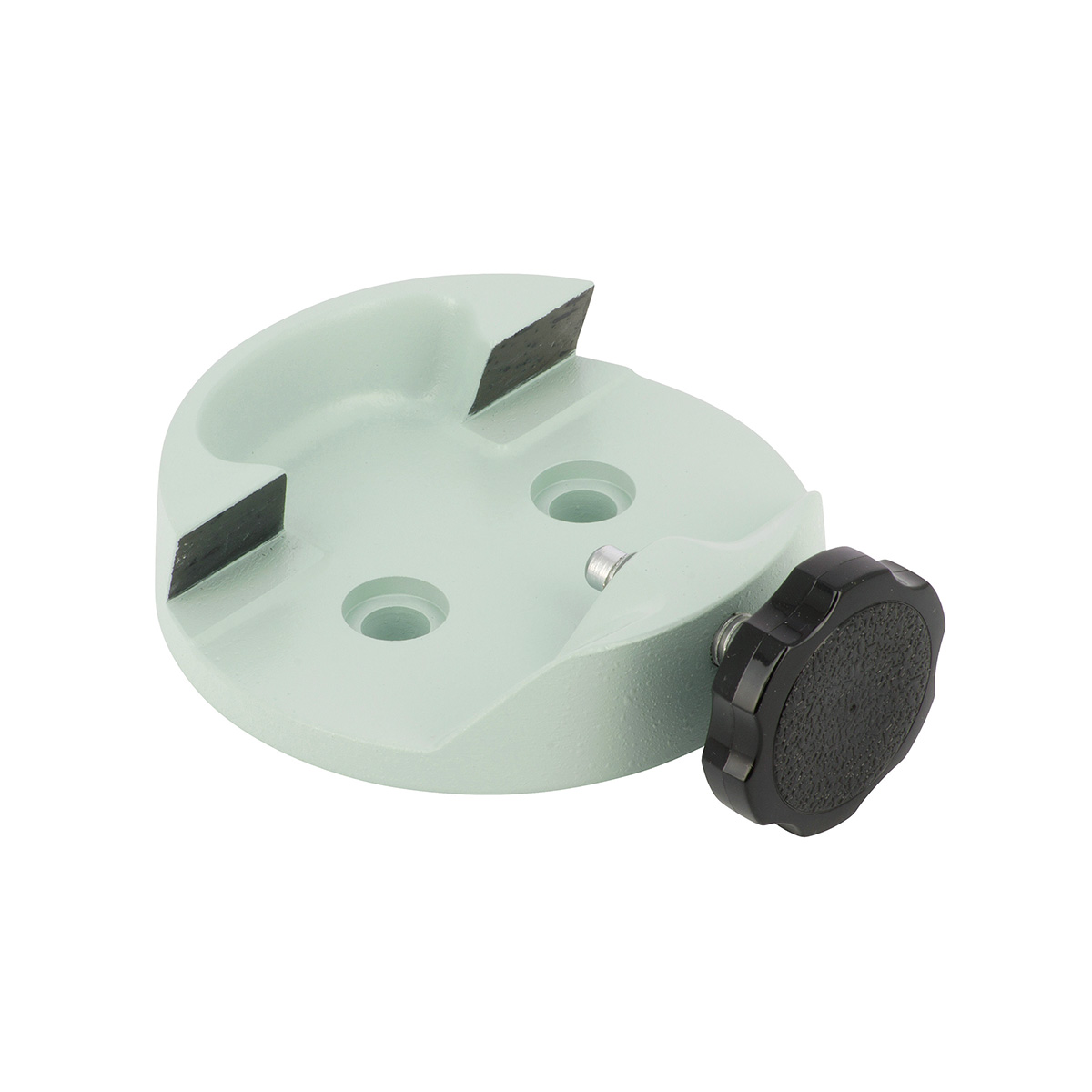

  • TKP70422 Dove-tail adapter (female)

Specifications

Effective aperture180mm HR Multi-Coated
Effective Focal Length2160mm
With Flattener/reducer1760mm
Effective Focal Ratio1 : 12.0
With Flattener/reducer1 : 9.8
Secondary Mirror54mm HR Multi-Coated
Resolving Power0.64"
Limiting Magnitude13.0
Light Gathering Power661x
Total length of main tube625mm
Diameter of main tube210mm
Total Weight of Tube6.2 kg
Finder scope6x30 built-in
AccessoriesDove-tail adapter (female)
ToolsHexagon wrench 1.5mm & 2.5mm

Customer reviews

Average Rating (1 Review):
Write a Review and share your opinions!

Rating (max 5):
A Joy to Use and Easy to Carry
21 January 2024  |

First light with my Mewlon 180C was to split Rigel and observe Jupiter. The former was so easy, the latter so gorgeous, even though the seeing was only a bit above average in Bortle 6 (I did take the time to allow the scope to cool down though). More recently, I was able to use it to look at the moon, and the views up close had such detail that they were a delight. I did not notice mirror shift when finding focus during any of my observing sessions.

Both the telescope and finder scope arrived collimated. The finder scope was a joy to use, both as a finder scope and as the handle. I did not expect the OTA to feel so light, but that appears to be because the centre of mass is under the finder scope/handle, making it easier to carry than lighter OTAs. My two irritations with the finder scope is that the front cap is too easy to dislodge when using it as a handle, and that I wish it would have a right-angle adapter (I bought a third party one but it doesn't do the finder scope justice). Nonetheless these are easily forgotten when I start using the finder scope and the scope itself.

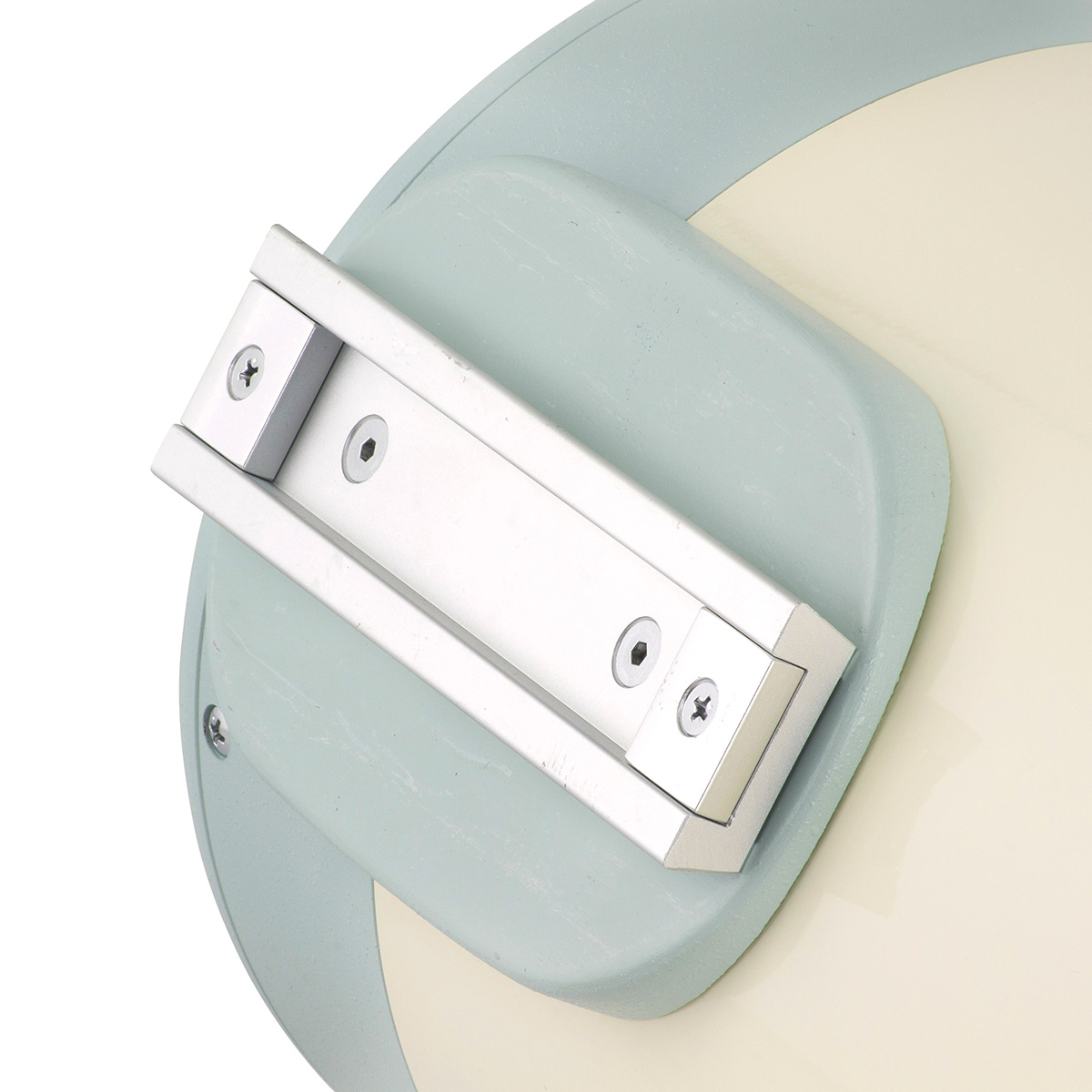

The stock dovetail plate is beautiful and has the correct chamfer angle for clamping by my Skywatcher dual saddle's Vixen-style dovetail clamp. However, it is slightly small such that the clamping, while adequate, could have had more contact area. I eventually replaced it with an Askar 150mm Vixen-style dovetail plate, but this replacement was not straightforward as the Askar dovetail plate is designed for M6 screws, whereas the Mewlon 180C uses M5 screws for attaching the dovetail plate. I had to source for M5 socket shoulder screws with 6mm shoulder diameter of 4mm length, with 6mm thread length. An excellent result once done, and I even was able to add safety stop bolts (the ones on the stock dovetail plate did not actually provide any safety when used with the Skywatcher Vixen-style dovetail clamp).
