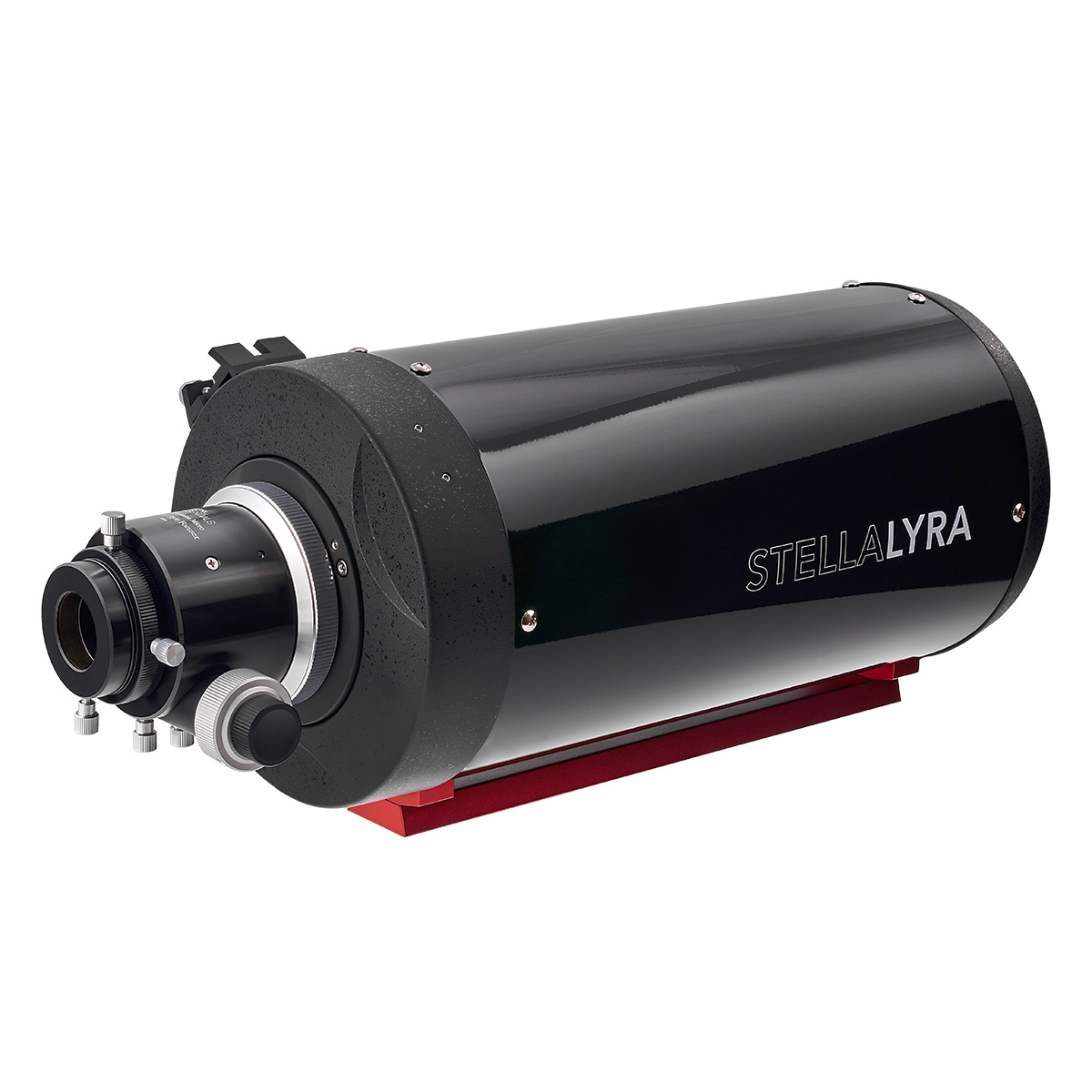

StellaLyra 6'' f/9 M-CRF Ritchey-Chrétien Telescope OTA
  Zoom
StellaLyra 6'' f/9 M-CRF Ritchey-Chrétien Telescope OTAStellaLyra 6'' f/9 M-CRF Ritchey-Chrétien Telescope OTAStellaLyra 6'' f/9 M-CRF Ritchey-Chrétien Telescope OTA
StellaLyra 6'' f/9 M-CRF Ritchey-Chrétien Telescope OTAStellaLyra 6'' f/9 M-CRF Ritchey-Chrétien Telescope OTAStellaLyra 6'' f/9 M-CRF Ritchey-Chrétien Telescope OTA

About this product

Model:  stellalyra_6_rc

6" f/9 StellaLyra Ritchey-Chrétien

The RC optical design delivers images free of coma, spherical and chromatic aberrations, so is an excellent choice for colour or monochrome imaging of smaller galaxy and nebulae targets.

A fixed position primary mirror eliminates image shift that often occurs when focusing some other telescope designs.

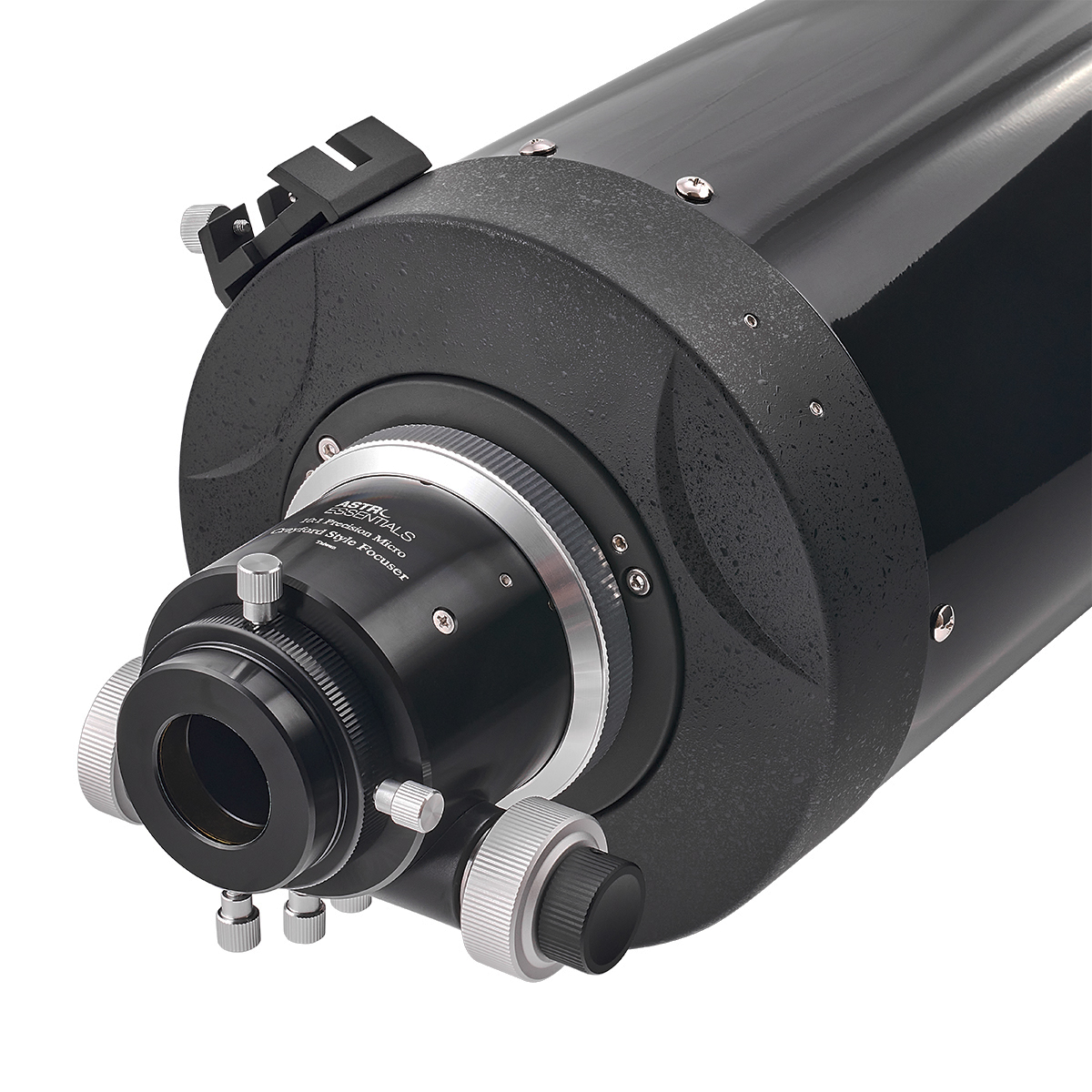

It also features a sturdy 2" dual-speed rotatable Crayford focuser.

Three CNC-machined spacer rings are included that provide flex-free focus extension when required.

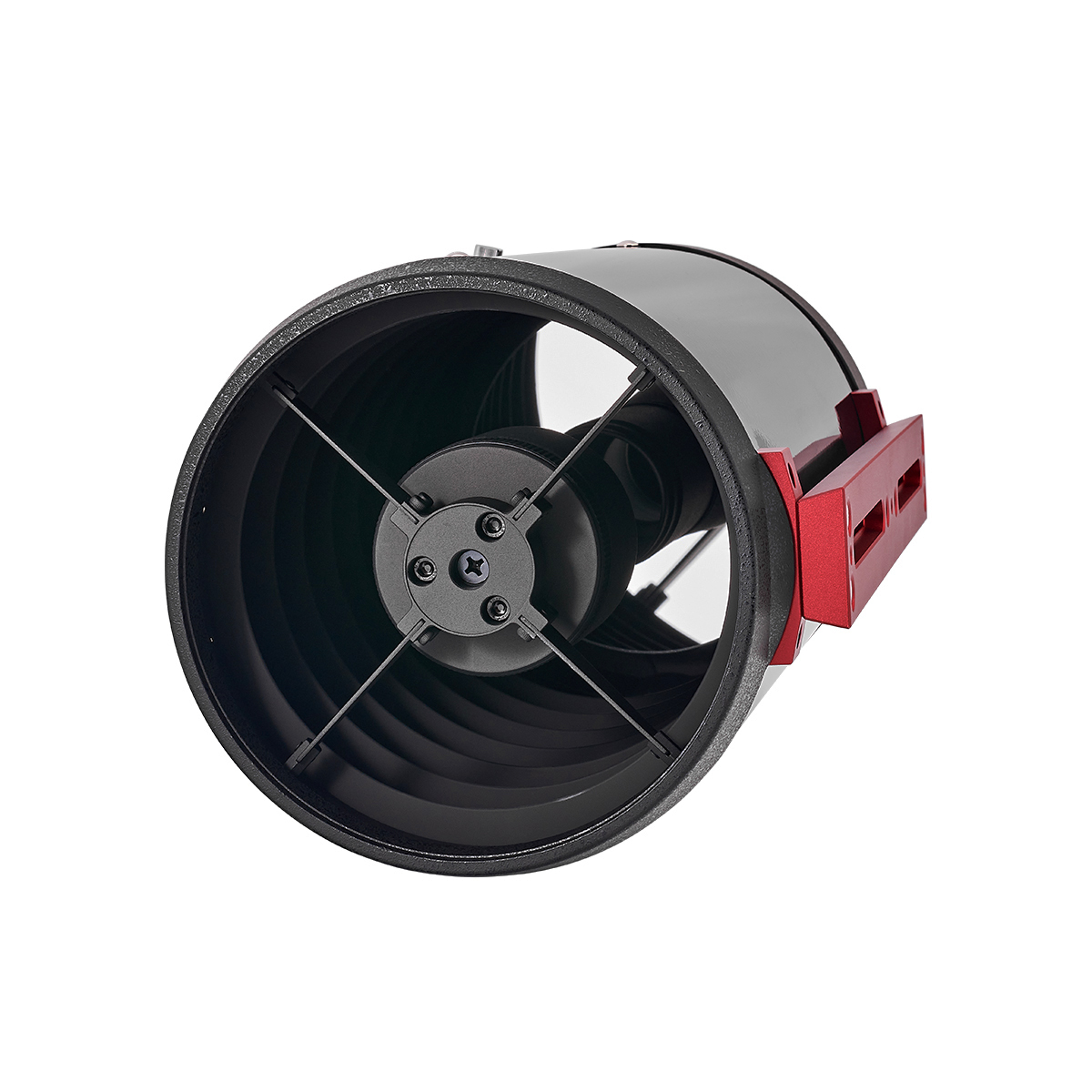

Interior knife edge baffles reduce stray light for maximum contrast.

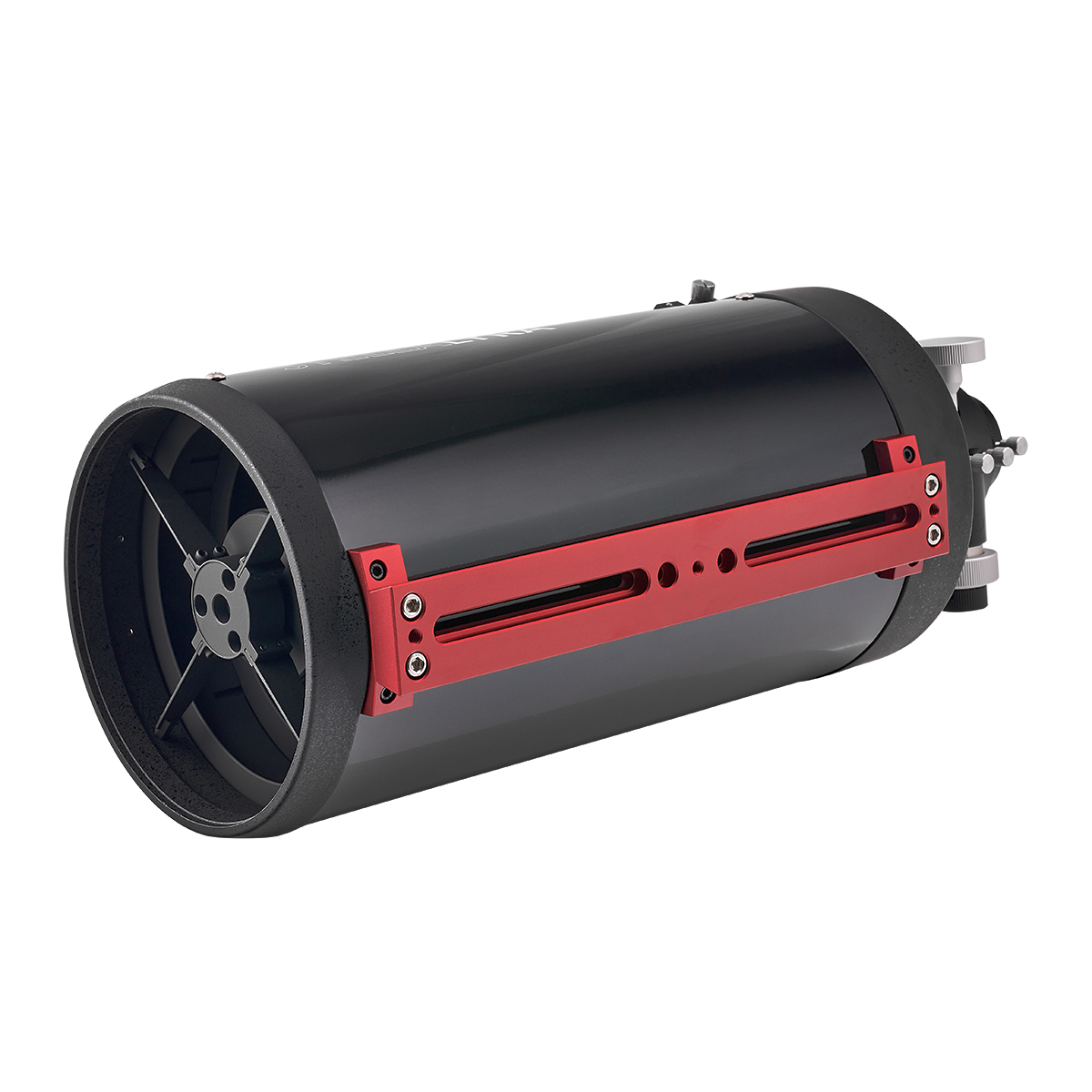

It is fitted with a Vixen-style dovetail mounting plate.

FEATURES

  • Coma-free, chromatic aberration-free, spherical aberration-free optics
  • 153mm (6") optical aperture
  • 1370mm focal length
  • f/9 focal ratio
  • Fixed primary
  • Quartz primary and secondary mirrors
  • Primary mirror: Hyperbolic primary mirror with enhanced Al coating to 95% reflectivity
  • Secondary mirror: Hyperbolic with enhanced Al coating to 95% reflectivity
  • Multiple knife-edge baffle system
  • 2" dual-speed Crayford focuser
  • Vixen/Synta Style Finder scope base
  • Vixen-Style 44mm Dovetail

Extensions

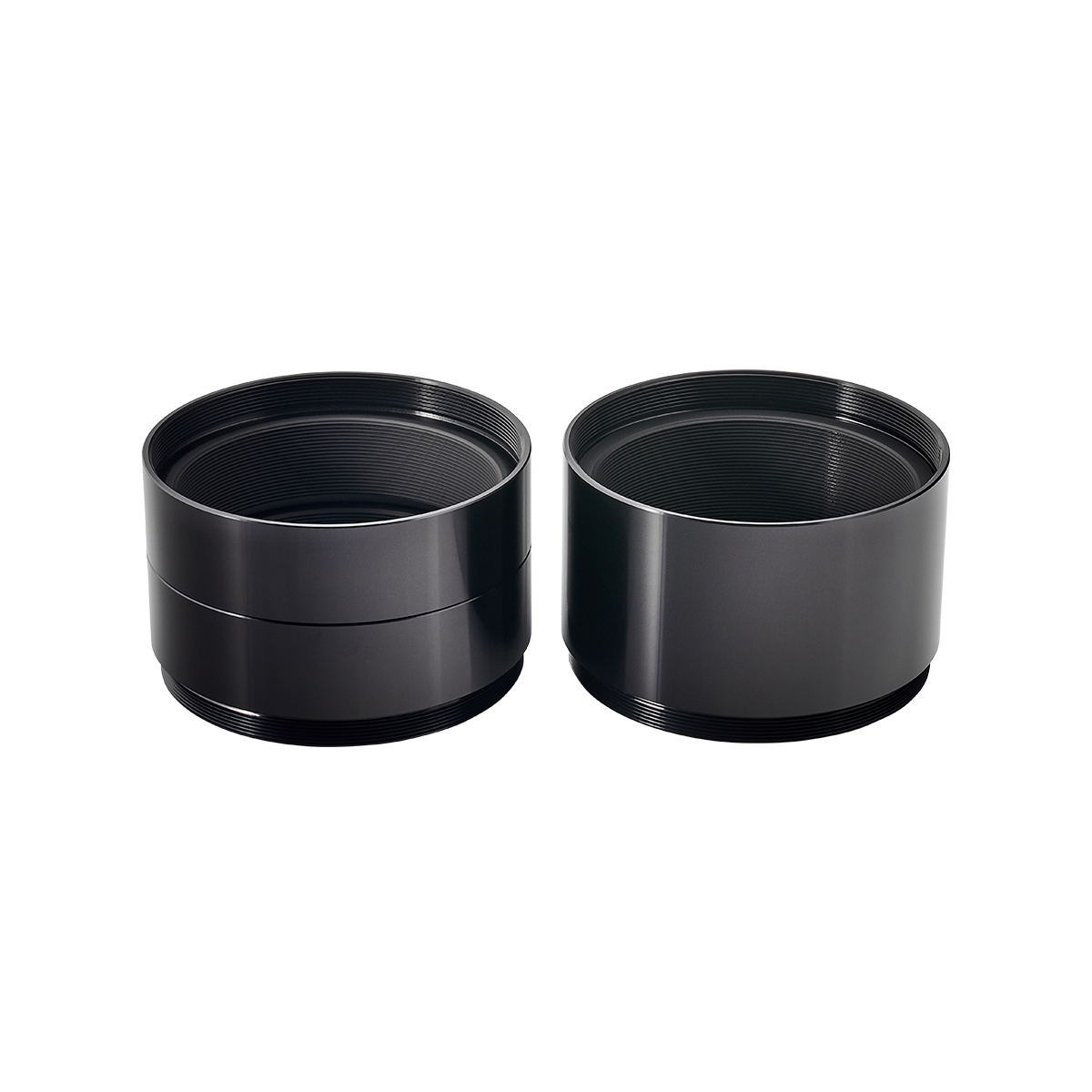

The telescope is supplied with 2x 25mm, and 1x 50mm CNC-machined focuser extension rings with matt-black interiors.

Telescope Field of View Simulator


What's in the box

  • Telescope OTA
  • 2" to 1.25" Adapter
  • 2x 25mm Focuser Extension Adapters
  • 1x 50mm Focuser Extension Adapters

Specifications

  • 6" F/9 M-CRF Ritchey-Chrétien OTA (black):
  • Ritchey-Chretien optical tube assembly w/6" F/9 primary mirror
  • Dual speed 2" Crayford-style focuser with 1.25" eyepiece adapter
  • Vixen-style dovetail rail
  • 1x 50mm / 2" and 2x 25mm / 1" extension rings
  • Vixen-style finder base (finder not included)
  • Front dust cover
  • Aperture: 153mm (6")
  • Focal ratio: f/9
  • Focal length: 1370mm
  • Primary mirror: Hyperbolic primary mirror with enhanced Al coating to 95% reflectivity
  • Secondary mirror: Hyperbolic with enhanced Al coating to 95% reflectivity
  • Secondary mirror holder: 4-vane all metal spider
  • Tube outside diameter = 193mm / 7.6" including end rings
  • Tube length = 391mm / 15.4”
  • Tube weight (with included accessories): 5.61kg / 12lbs-6oz
  • Shipped size: 61cm x 29cm x 33cm / 24" x 11.5" x 13"
  • Shipped weight: 7.45kg / 17lbs-9oz

Customer reviews

Average Rating (5 Reviews):
Write a Review and share your opinions!

Rating (max 5):
Great Scope - Bad Focuser
23 February 2023  |

As the title suggests, I found the scope to be great, I have been getting great planetary images and close-ups of the moon. It's great for that as these targets are lower in the sky and only need my colour GPCAM, which is tiny. As soon as i put my 183mm, filter wheel and OAG, the focuser was not having any of it, as soon as you got anywhere close to the zenith, it gave up and slipped. Ive tightened the tension screw as much as i can and still having issues. I guess for the price, i shouldnt expect too much and Im sure im overloading the focuser, but worth bearing in mind. Having so few clear nights, its frustrating to loose half a night each time it slips
For planets and luna imaging and viewing, its awesome!!


Rating (max 5):
Very capable scope after some minor upgrades.
10 February 2023  |

For the price point there isn't a better scope for galaxy season. Good reach, good mirrors, good size and weight. I purchased this with the astro essentials 0.75x reducer and combined they are a very good pair optically. With the reducer in it is worth noting I have had no problems with Nina plate solving with a 533mc sensor.

There are a couple of caveats however. In my opinion you need to spend a little money on this scope to maximize it's performance. Firstly, as expected with any mirrored telescope you will need to collimate it on arrival. Mine wasn't wildly out and don't be scared away by the reputation rc's have for being a nightmare to collimate. If you can collimate a newtonian you can collimate an RC. I have, however struggled a little with tilt. I have got collimation very close but as the imaging train from visual back is sooooo long, a tilt adapter is a must if you want perfect alignment down your imaging train. The second minor issue is the focusser. It has a premium look to it but it has some slack in it internally. This is not a show stopper, but if you compare a flat taken with the focus tube wound in compared to full extension you can see the differing sag in the imaging train as the vignette moves off centre. On the plus side, if you are imaging you are not going to be moving focus from lock to lock, and once focus is set I haven't had it slip throughout the night.

So, I am saving some pennies up for a tilt adapter which I think is a must for imaging. If you buy it with this scope and the 0.75x reducer you will be getting a very capable scope with a couple of good focal lengths for just over Ł600. Eventually I may upgrade the focuser too but the stock one will certainly see me through for a while.


Rating (max 5):
StellaLyra 6" RC telescope
20 August 2022  |

Excellent service and delivery. I kept the clouds in the box and the scope had it's first light on Friday. You get a very clean image, no distortion, flat across the field of view and minimal tilt. Was slightly out of collimation probably due to transportation, nothing a bit of tweaking didn't fix. Balance is an issue in Dec and was very back heavy as other reviewer has noted when loaded up with motor focuser, filter wheel and astrocam. For it's price point you do get a lot of quality scope for the money.


Rating (max 5):
StellaLyra RC6 OTA
18 October 2021  |

I've had the telescope for about a week now, and as always it came with clouds . Last night was clear although the moon was a bit distracting, first impressions are that this is a quality telescope, with edge to edge clarity, decent focusser, and with the extension tubes it works for all of my equipment. With and 2" diagonal, and celestron 15mm omni plossl, the views are outstanding. I can certainly recommend this.


Rating (max 5):
Super value telescope
14 April 2021  |

Had proper first light with the telescope last night. Very impressed with the quality of the scope. My stars were round right to the edge of the field of view and the scope was perfectly collimated out of the box. Focal length is just long enough to give excellent magnification on galaxies and clusters but not too long to make image scale a problem.

The only slight negative with the scope is that even when mounted on full extent of vixen dovetail the scope is badly out of balance on the declination axis. I have had to purchase a counterweight to fit to the front of the telescope. This problem is further compounded by the fact that I needed to fit all four (ie. 4”) of draw tube extension onto the focuser to get the scope into focus. Once you add filter wheel, oag and camera it is very out of balance. I suspect visual astronomers will also have same balance issue but not to the same extent.

The other minor point is that there is no M48 or M42 thread or adaptor provided for attaching to the focuser. The only means of attaching cameras and eye pieces is using the supplied 2” or 1.25” compression ring with a nose piece fitted to camera/oag/filter wheel. The compression rings are of the anti marring type.

Bottom line is that you are paying for a scope and no useful additional accessories, but at the price I appreciate that all the investment has gone into optimising the quality of the scope. I quite happy purchasing the extra components to complete the setup.

FAQ

Please fill in the form below to ask a question.

*
*
*

Q1. Will it accept a Baader SteelTrack focuser?

Yes :-)
The Baader SteelTrack RT will fit:
https://www.firstlightoptics.com/baader-diamond-steeltrack-focusers/baader-steeltrack-diamond-rt-for-refractors.html
Using Baader adapter 2957283:
https://www.firstlightoptics.com/baader-diamond-steeltrack-focusers/baader-steeltrack-diamond-rt-adapter-m90x1-for-refractors-gso-rc-scopes.html
