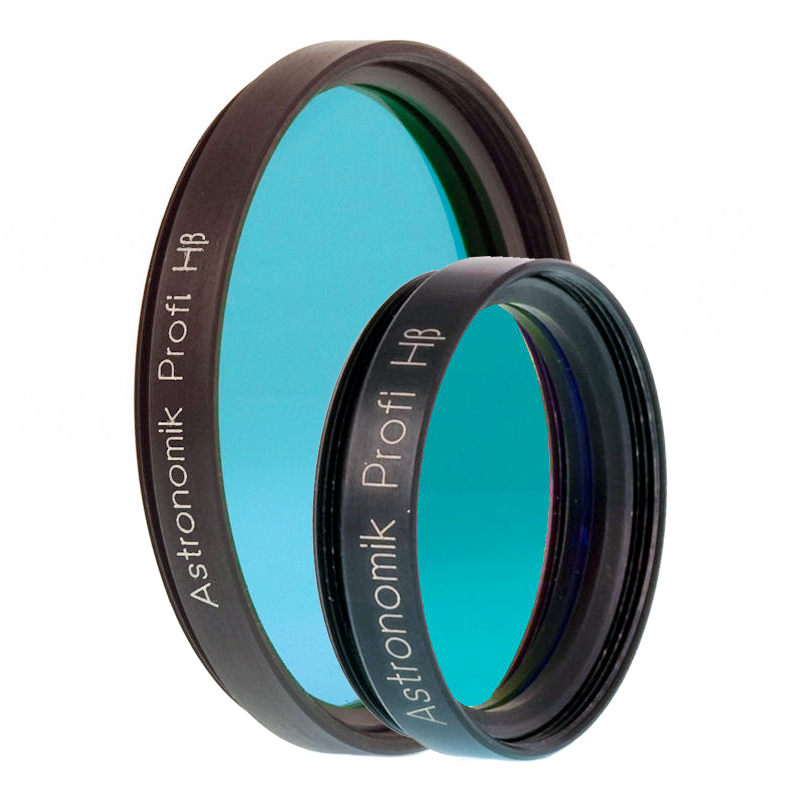

Astronomik H-beta Filter

Astronomik H-beta Filter
  Zoom
£89.00
Choose:

:

In stock - Shipped 1-2 working days.

Model:  ak_h-beta_125
Part Number:  8H0057
Brand:  Astronomik

Astronomik

The Astronomik H-beta is a filter for visual observation, in particular with instruments of larger aperture.

It lets the light of the H-beta emission line pass nearly unhindered and blocks the remaining spectral range to the extent that the eye is dark adapted. By the use of the Astronomik H-beta filter, the contrast is increased so strongly, that even the observation of the Horse Head Nebulae with telescopes of 10" - 12" reaches the realm of the possible.

FEATURES

  • Transmission of nearly 100% of the H-beta line
  • Complete blocking of all disturbing wavelengths
  • Main operational use: Hydrogen Nebulae
  • Not sensitive to high humidity or ageing effects
  • Scratch-resistance!
  • Excellent quality substrate, diffraction limited - the optical performance of your telescope will not be reduced
  • Parfocal with other Astronomik filters
  • 1mm Glass Thickness
  • Supplied in a high-quality, long lasting, filter box

Main use

The optimal aperture ratio for the use of the filter is 1:4,5 to 1:6. The range of application extends from 1:3.5 to 1:15. Transmission losses and chromatic distortions, which arise with other filters, are only apparent with the Astronomik filters when extremely fast aperture ratios of 1:3 and higher are used.

The Astronomik H-beta filter will allow you to view large objects, in the whole field of view of the eyepiece, even when using wide-angle eyepieces - not only in the center of the eyepiece.

This filter should be used on telescopes with a diameter of 8 " (20cm) or larger. Smaller instruments do not gather enough light for meaningful and satisfying astronomical work.

Due to the high optical quality of the Astronomik H-beta filter substrate you will see the same needle-sharp stars as you would from your regular telescope.

Other uses

  • In the whole sky, there are few objects that benefit from the use of this filter in visual observation. On the other hand h-beta filters often decide about seeing or not seeing an object. Without a filter the eye is hardly able to discover the low contrasts of H-alpha regions.
  • With EOS Clip Filter even in extreme light polluted areas photography with DSLR cameras becomes possible.

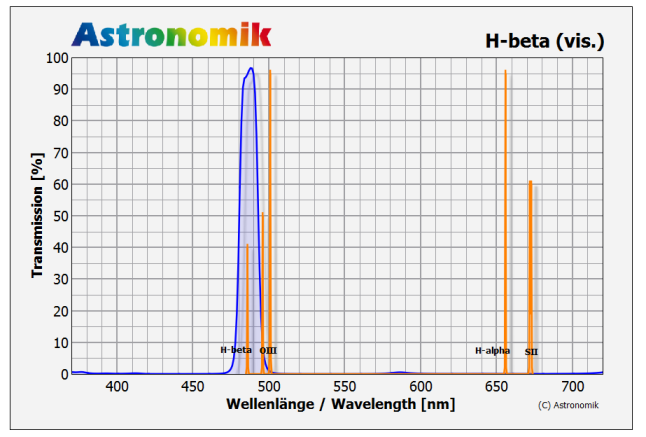

Transmission Chart

  • The horizontal axis is the Wavelength in Nanometers (nm). 400nm is deep blue, at 520nm the human eye senses green and at 600nm red. At 656nm is the famous "H-Alpha" emission line of hydrogen.
  • The transmission in % is plotted on the vertical axis.
  • The blue line shows the transmission of the filter.
  • The most important emission lines from nebulas are shown in orange. The most important lines are from ionised Hydrogen (H-alpha and H-beta) and double ionised oxygen (OIII).

The major emission lines of artificial light pollution:
| Hg 435,8nm | Hg 546,1nm | Hg 577,0nm | Hg 578,1nm |
| Na 589,0nm | Na 589,6nm | Na 615,4nm | Na 616,1nm |

The major emission lines of nebulas:
H-β 486,1nm | OIII 495,9nm | OIII 500,7nm | H-α 656,3nm

Suitability

  • Visual observation (dark skies): Very good, but only suitable for a few objects
  • Visual observation (urban skies): Unsuitable
  • Film photography: It depends, very long exposure time
  • CCD photography: Good, when used with an additional IR-block-filter
  • DSLR photography (original): Very good, but only suitable for a few objects
  • DSLR photography (astro modified): Very good, but only suitable for a few objects
  • DSLR photography (MC modified): Good, when used with an additional IR-block-filter
  • Webcam / Video (Planets): Unsuitable
  • Webcam / Video (Deep Sky): Unsuitable

Technical Data

  • Transmission of nearly 100% of the H-beta line
  • Complete blocking of all disturbing wavelengths
  • Main operational use: Hydrogen Nebulae
  • Scratch-resistant!
  • Excellent carrier material. The optical performance of your telescope is not reduced by the filter in any way.
  • Parfocal with other Astronomik filters
  • Glass thickness: 1mm
  • Completely resistant against high humidity, scratches and ageing effects
  • Diffraction limited, the filter will not reduce the optical performance of your telescope!
  • Astronomik filters are delivered in a high-quality, long lasting, filter box



There are currently no specifications available for this product.

Astronomik H-beta Filter Questions & Answers

Please fill in the form below to ask a question.

Your Name: *
Your Email Address: *
Your Question: *
 *
Please add the two numbers

Average Rating (1 Review):
Write a Review and share your opinions!

Rating (max 5):
I have seen the horsehead with this filter
Friday, 27 April 2018  |

Hb filters are not the first on an astronomers list. But once you have a UHC and O3 then these are next on your list especially if you are chasing the "horsehead" in Orion! This filter worked for me, what more can I say?
