About this product

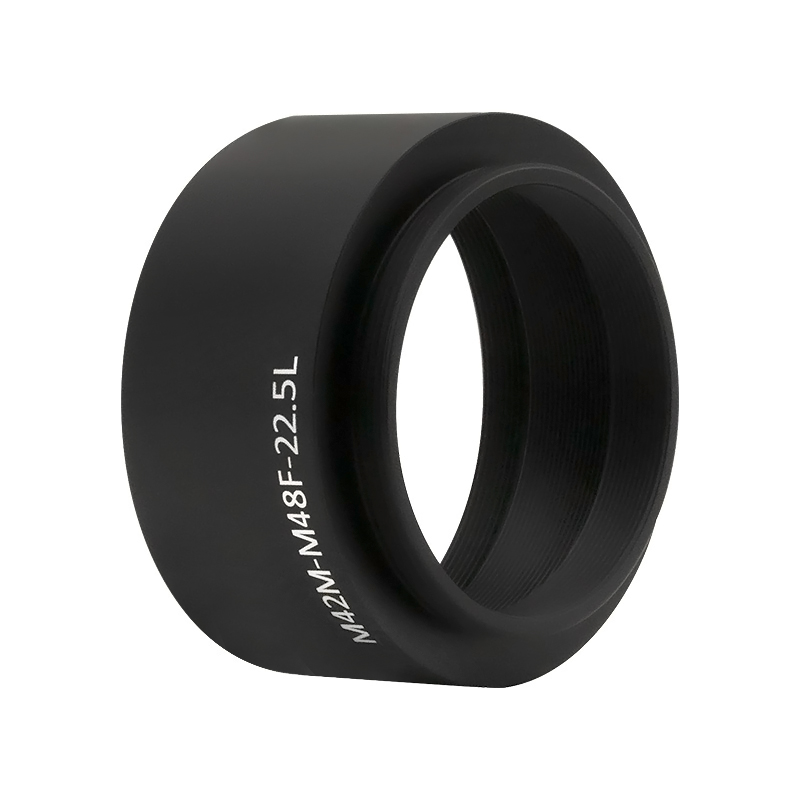

Part Number: ZWO M42-M48-22.5

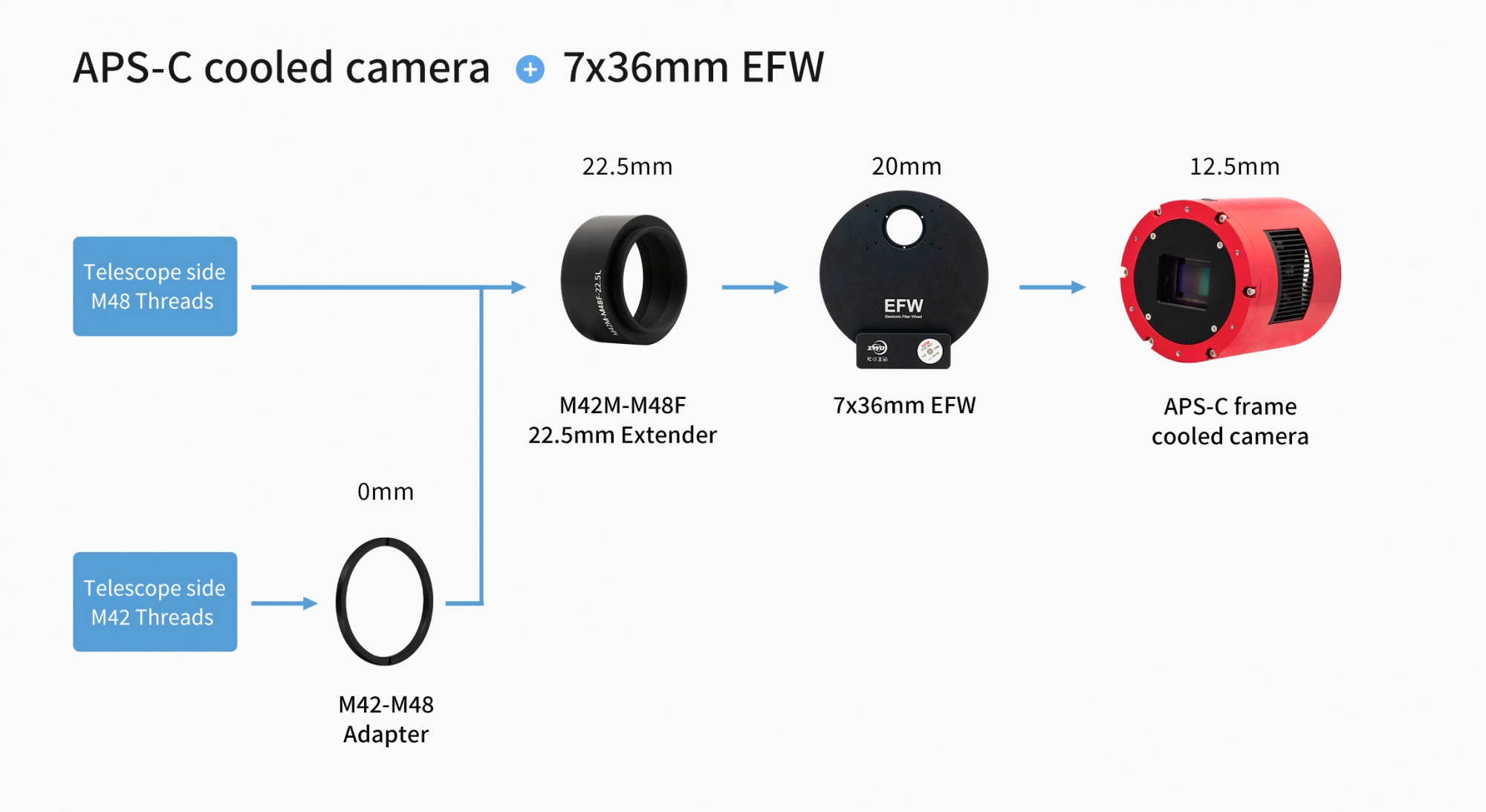

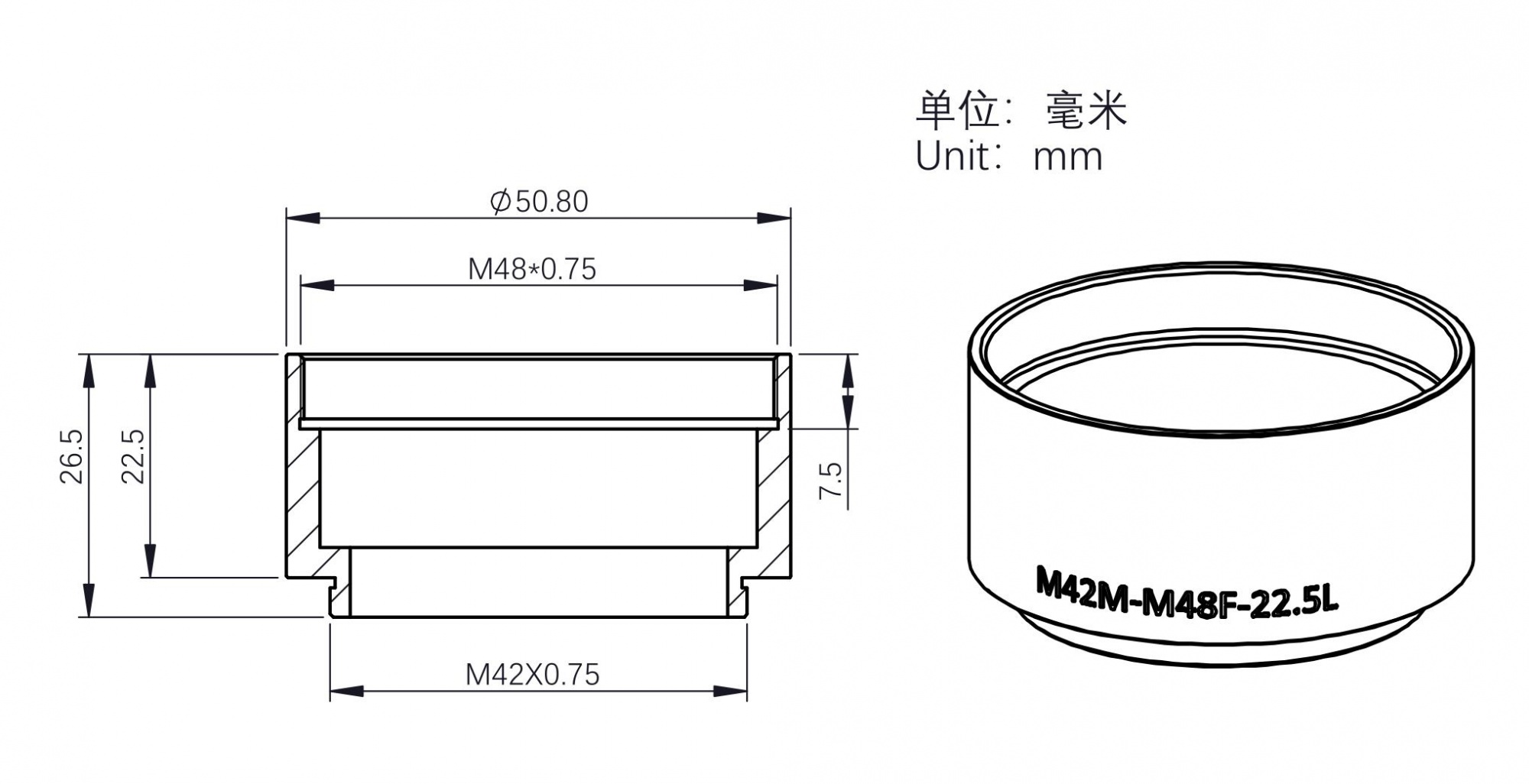

The thickness of the M42M-M48F 22.5mm extender is 22.5mm. It is an important astronomical accessory for ASI2600MM Pro users who want to connect the camera to the 7x36mm filter wheel to reach 55mm back focus distance without the involvement of the OAG-L.
When connecting the ASI2600 to the 36mm EFW, you need to first unscrew the sensor tilt plate included with the camera , then use the screws to fix them. This can help you get the distance between the filter and the sensor much closer.
