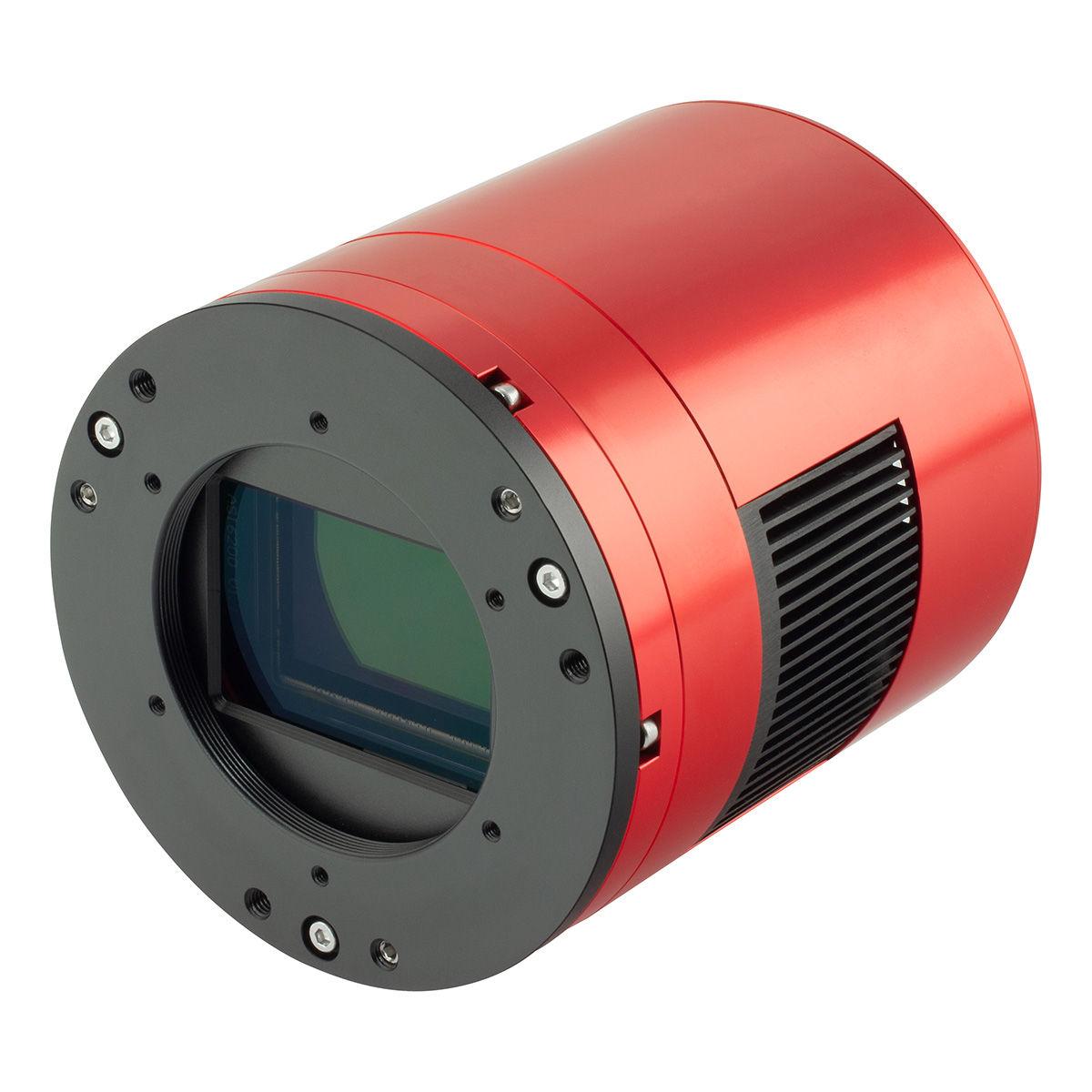

ZWO ASI 6200MC-Pro Full Frame USB 3.0 Cooled Colour Camera
  Zoom
ZWO ASI 6200MC-Pro Full Frame USB 3.0 Cooled Colour CameraZWO ASI 6200MC-Pro Full Frame USB 3.0 Cooled Colour CameraZWO ASI 6200MC-Pro Full Frame USB 3.0 Cooled Colour CameraZWO ASI 6200MC-Pro Full Frame USB 3.0 Cooled Colour Camera

ZWO ASI 6200MC-Pro Full Frame USB 3.0 Cooled Colour Camera

£3,999.00✓ 2 year warranty

:

2x in stock shipped 1-2 working days

About this product

Model:  zwo_asi6200mc-pro
Part Number:  ZWO ASI6200MC-P

Features Sony's highly sensitive Full Frame 62MP IMX455 sensor, 2-stage TEC cooling and no Amp Glow!

ASI6200MC Pro uses Sony’s latest back-illuminated IMX455 Full Frame format native 16-bit ADC sensor. It has 3.76µm, ultra-low 1.2e readout noise and an innovative breakthrough resulting in zero amp-glow.

Amazing Craftsmanship, Lightweight body, Solid image quality:

We have been working hard to reduce the weight of the camera while improving the performance of the camera. After years of technical accumulation and repeated weight loss experiments by ZWO engineers, ZWO finally concentrated the ASI6200 to 0.7KG.

Full Frame format:

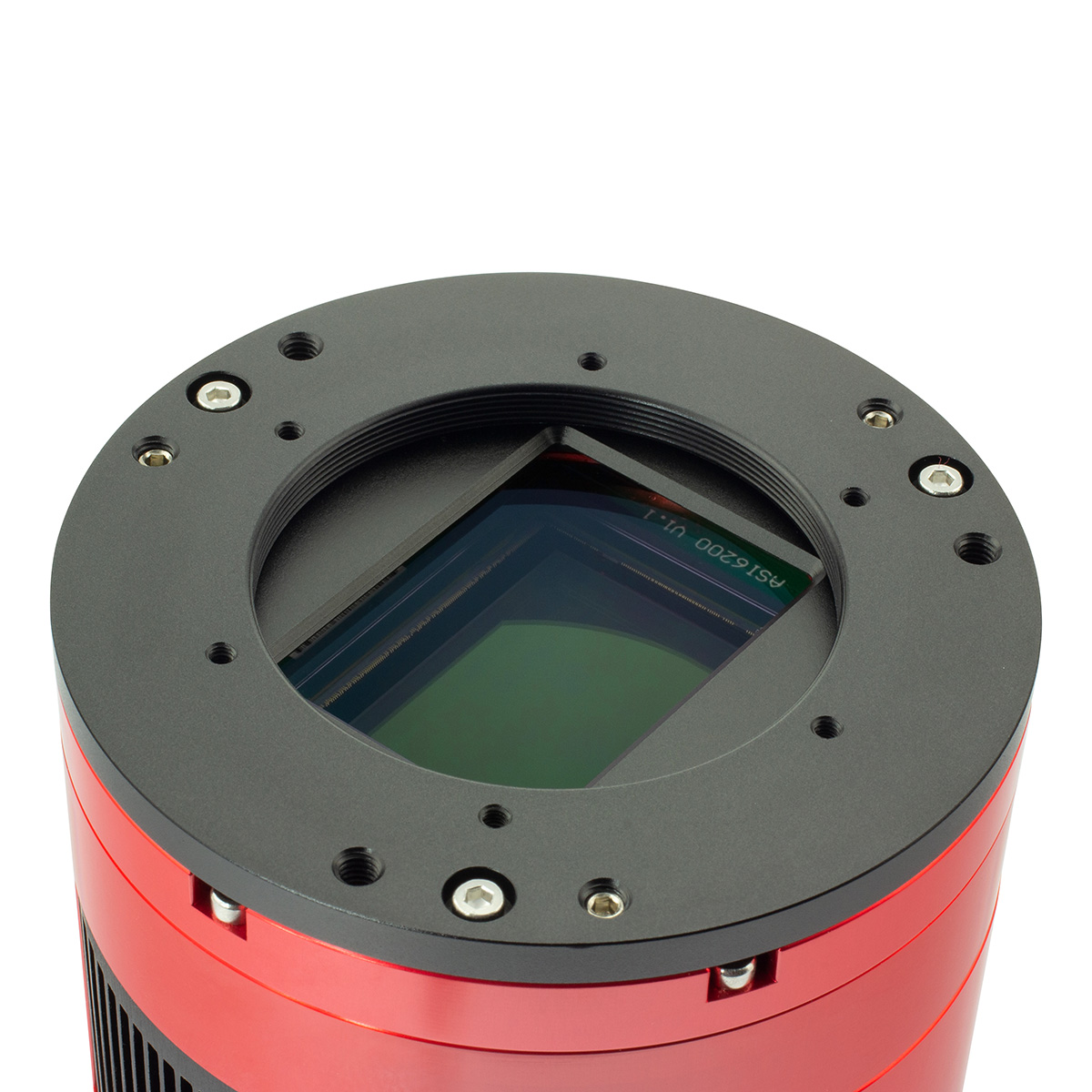

The ASI6200MC Pro uses full frame format, the sensor length and width are 36mm * 24mm and the diagonal is 43.3mm. This is a 62MP camera with a small pixel size of 3.76um that can accommodate a large well depth of 51.4ke.

All ZWO cameras include a 2-year warranty.

FEATURES

  • Sony IMX455 Sensor
  • 9576x6388 3.76 μm Pixels
  • 256MB DDR3 Memory Buffer
  • Zero Amp Glow!
  • Regulated two-stage Tec-Cooling: 35 degree below ambient temperature
  • Extremely low read noise - 1.0-3.5e
  • 16Bit ADC - provides real 16bit dynamic range
  • Electronic shutter - no issues with vibrations sometimes found in mechanical shutters
  • USB3.0 Port (back compatible with USB2.0)
  • AR coated protective window - all light can pass
  • Compatible with Windows / Mac OS / Linux

Native 16bit ADC

ASI6200MC Pro is our first batch of CMOS astronomy cameras with 16bit ADC. This 16bit ADC is not a CCD 16bit ADC, and it can really achieve a dynamic range output of 14 stops. This significantly improves the image sharpness and contrast, and the colour changes are smoother and more natural.

IMX455 backlit sensor

Sony’s back-illuminated CMOS image sensor improves sensitivity and noise reduction – the key factors to enhancing image quality, while radically realigning their fundamental pixel structure from front-illumination to back-illumination. It has retained the advantages of CMOS image sensors such as low power consumption and high-speed operation.

With a conventional front-illumination structure, the metal wiring and transistors on the surface of the silicon substrate that form the sensor’s light-sensitive area (photo-diode) impede photon gathering carried out by the on-chip lens. A back-illuminated structure minimises the degradation of sensitivity to optical angle response, while also increasing the amount of light that enters each pixel due to the lack of obstacles such as metal wiring and transistors that have been moved to the reverse of the silicon substrate.

Sony has newly developed a unique photo-diode structure and on-chip lens optimised for back-illuminated structures, that achieves a higher sensitivity and a lower random noise without light by reducing noise, dark current and defect pixels compared to the conventional front-illuminated structure.

DDR Memory Buffer

ZWO Pro cameras feature a 256MB DDR3 memory buffer to enable data transfer stability and reduced amp-glow caused by the slow data transfer speed when using a USB2.0 port.

Camera Field of View Simulator

Camera Performance

The ASI6200MC Pro has excellent performance with a dynamic range of up to 14stops. When the gain value is 100, the magical HCG high gain mode is turned on, the readout noise is greatly reduced, and the dynamic range is basically unchanged. It is recommended to set the gain to 0 or gain 100 in deep space.

QE Curve

We suppose that the QE peak value of the ASI6200MC Pro is above 80%.

Zero Amp Glow

Traditional CMOS sensors produce a weak infrared light source during operation quite often seen in the corner of uncalibrated images as the tell tale signs of ‘amp glow’. As the ASI6200MC Pro uses zero amp glow circuitry, you won’t have to worry about amp glow even when using high gain, long exposure imaging.

With amp glow – exposure 300 second exposure:

ASI6200 frame with no amp glow – Exposure 300 seconds:

Anti-dew

ASI6200MC Pro comes with the polyimide heater that can avoid any dew problems.

The anti-dew heater  which completely fit the  protective window will heat it to avoid any dew problems.

The heat anti-dew heater power is around 5W and can be turn off  in software to save power.

Two-stage TEC cooling, ultra-low dark current

ASI6200MC Pro uses two stage TEC cooling that can lower the CMOS sensor temperature to more that 35c below ambient, which can greatly reduce dark current generation and sensor noise even with extended exposure times.

The unique dark current suppression technology can even further reduce dark current noise.

At a cooling temperature of 0 °, the dark current noise is only 0.003e/s/pix. This means 300s exposure can only cause 0.9e dark current noise, which is completely negligible!

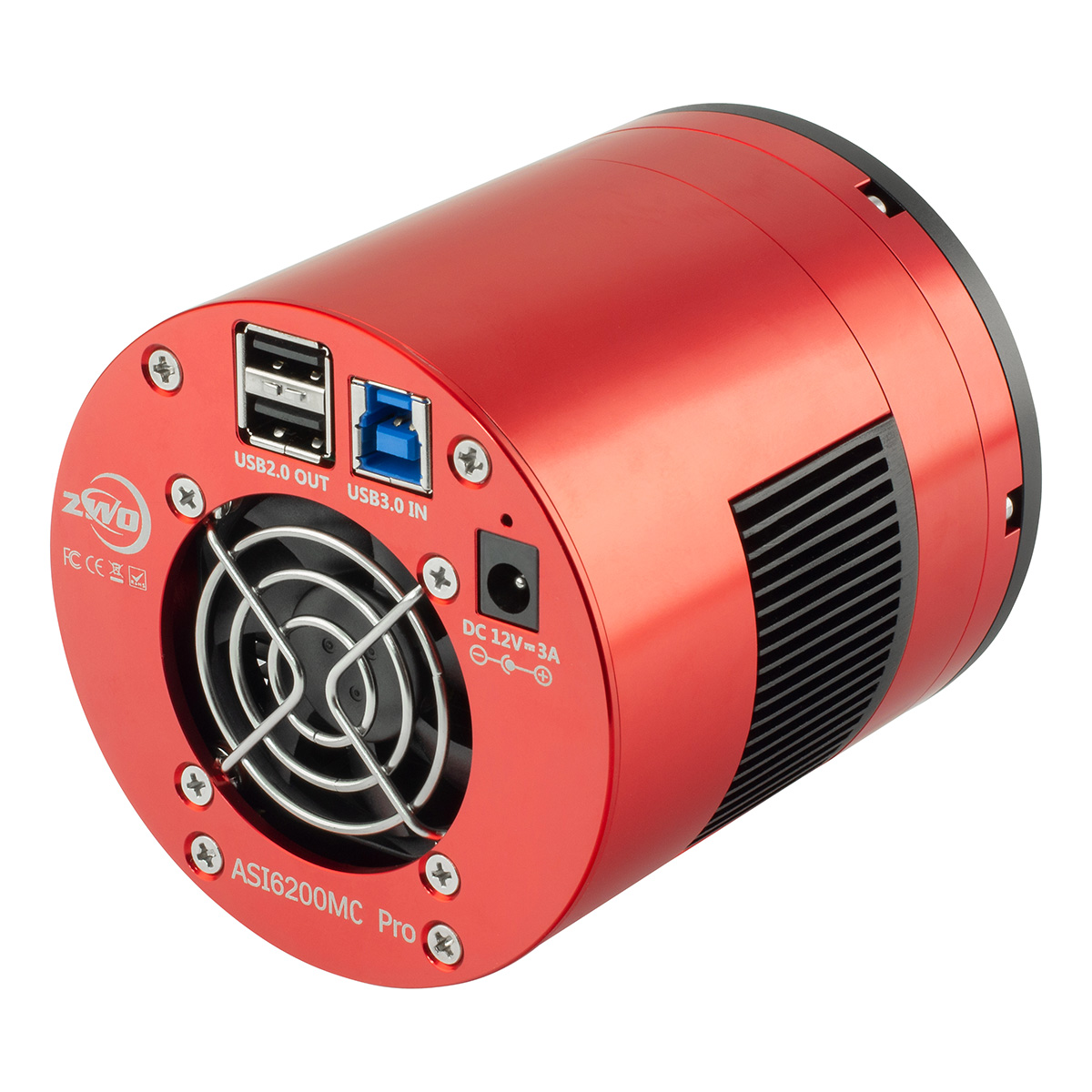

Note:We recommend using an external 12V power supply to power the camera instead of USB 3.0/2.0 only

ASI6200 vs KAI11002

Mechanical Diagram

Connecting Diagram

  1. Nikon-M54 adapter
  2. EOS-M54 adapter
  3. Nikon lens
  4. Canon lens

What's in the box

  • ASI6200MC-Pro Camera

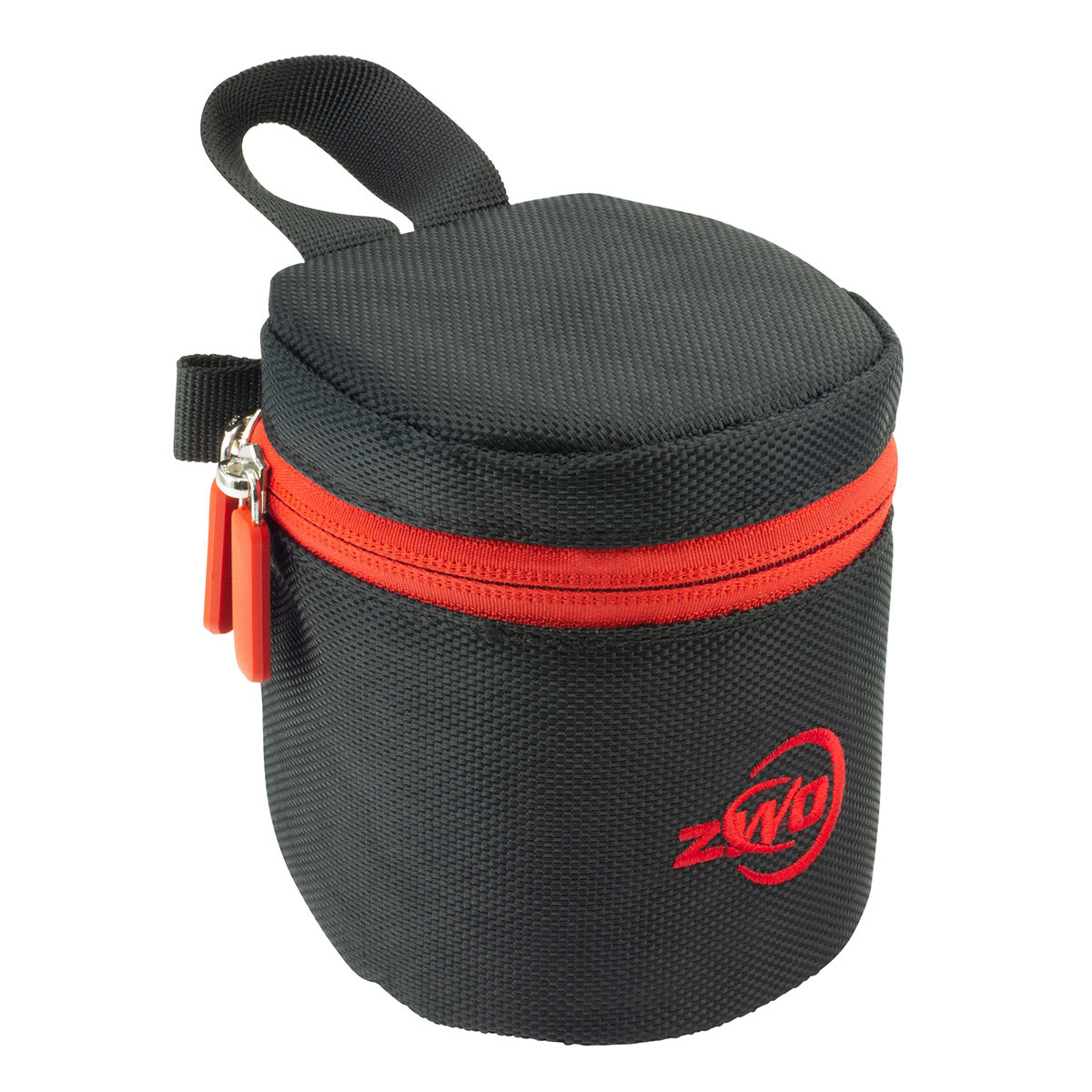

  • Soft Padded Case
  • 2-metre USB 3.0 Cable
  • USB 2.0 Short Cable x2
  • T2 Extender 21mm
  • T2-M48 16.5mm Extender
  • M54-M48 21mm Extender
  • M42-M48 Adapter
  • 2" Cover
  • Allen Key

Downloads / Manuals

The following manuals and downloads are available for this product:

Software

ZWO Software and Drivers
