Baader Protective T-Ring for Canon EOS
Baader Protective T-Ring for Canon EOSBaader Protective T-Ring for Canon EOSBaader Protective T-Ring for Canon EOS
Baader Protective T-Ring for Canon EOSBaader Protective T-Ring for Canon EOS

Baader Protective T-Ring for Canon EOS

  (7 Reviews)
✓ 2 year warranty


1x in stock shipped 1-2 working days

About this product

Model:  baad_t-ring_2958550
Part Number:  2958550

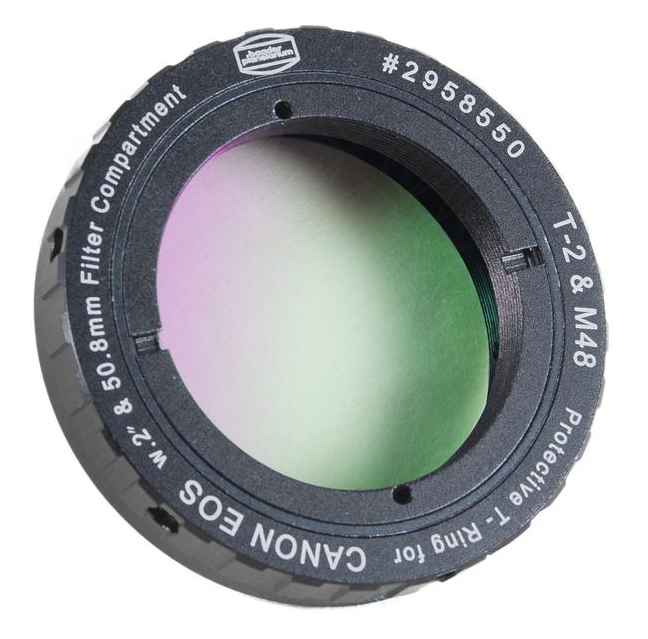

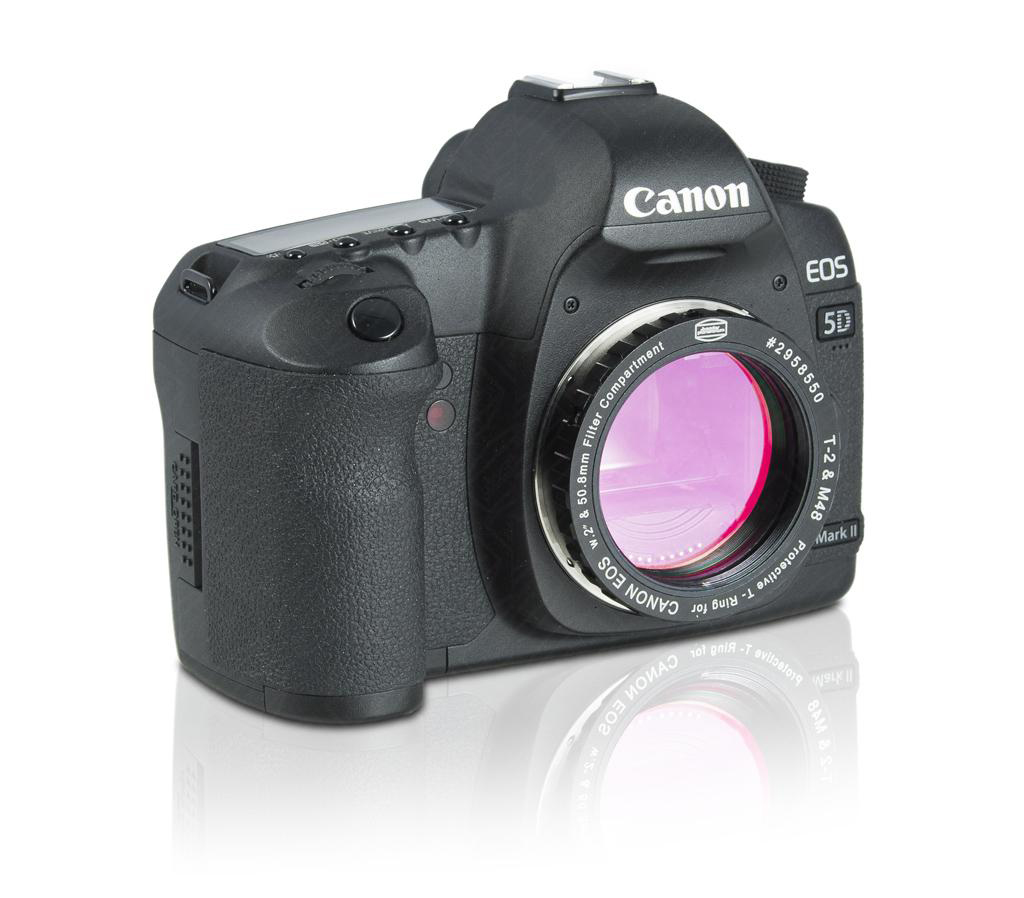

The Baader zero tolerance protective Canon EOS T Ring is the BEST T Ring available for Canon EOS DLSR with EF bayonet fitting.

Offers a number of advantages over a regular T Ring:

  • Zero tolerance design optimised to fit Canon EF bayonet fitting. The result is a wobble-free T ring with no lateral play ensuring a stable image platform even for long exposures or during telescope slewing.
  • Designed to offer the largest possible free aperture resulting in less vignetting even with extremely short focal length telescopes.
  • T2, M48 or 2" nosepiece connections included.

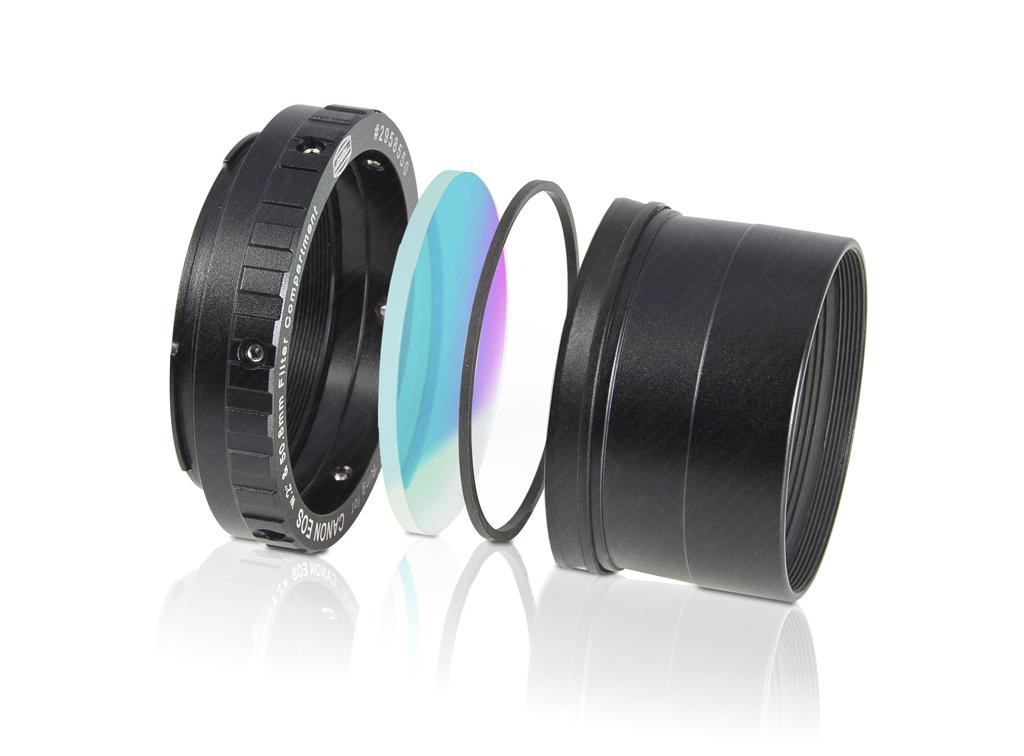

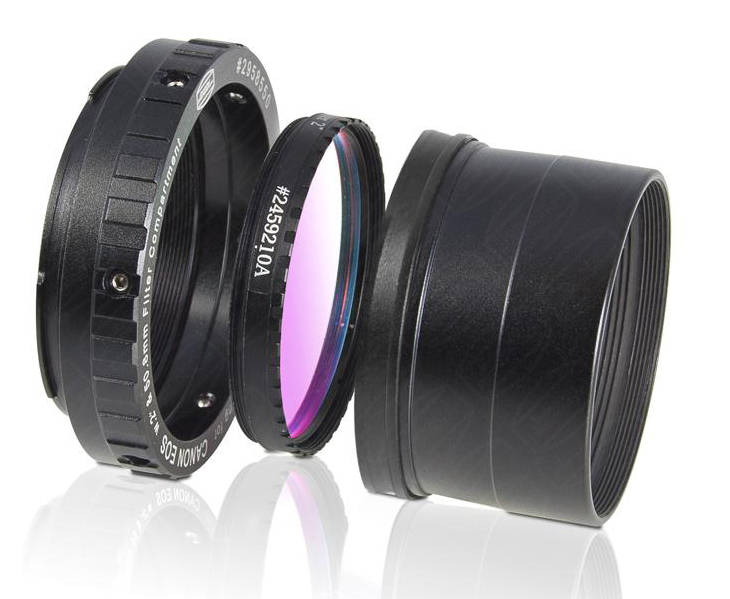

  • Ability to accept Baader 2" LPFC (low profile filter cell) or unmounted 2" filters without extending the back focus.
  • Optional clear filter to protect your camera sensor from dust ingress (ideal for long exposures) and humidity.

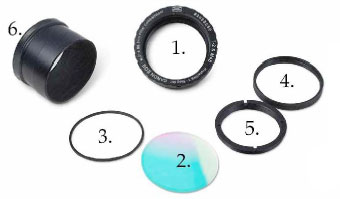

Components Supplied

1. Protective T-Ring for Canon EOS body
2. Optional: Baader clear protective filter, 50.4mm x 3mm (protective T-rings are available with a range of pre-assembled filters. see below for details)
3. Temperature compensation ring (to prevent filter damage at high temperatures)
4. S52/M48 adapter ring (M48 corresponds to the international 2" Astro filter thread)
5. M48/T-2 insert ring
6. S52/2" connector socket (with additional 2" M48 filter thread on the front side)

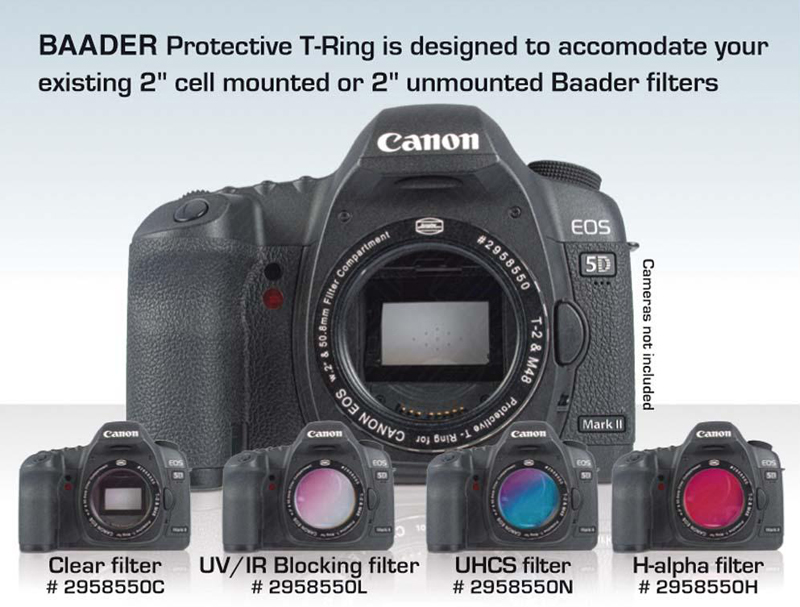

Filter Options


Baader Zero Tolerance Protective T-Ring for Canon EOS is available in the following variations:

  • 2958550     zero tolerance Protective Canon DSLR T-Ring incl. large clear aperture 2" nosepiece and convertible T-2/ M48 female threads
  • 2958550C  zero-tolerance Protective Canon DSLR T-Ring w. clear filter incl. plane-optically polished dust protection clear-filter w. Phantom Group™ multi-coating
  • 2958550L   zero-tolerance Protective Canon DSLR T-Ring w. mounted UV/IR blocker/ L-Filter
  • 2958550N   zero-tolerance Protective Canon DSLR T-Ring w. Baader UHC-S Nebula Filter
  • 2958550H   zero-tolerance Protective Canon DSLR T-Ring w. Baader H-alpha 7nm Narrowband-filter

For full details on how to setup and use the Baader Zero Tolerance Protective T-Ring for Canon EOS please see the product manual.


Customer reviews

Average Rating (7 Reviews):
Write a Review and share your opinions!

Rating (max 5):
Missing Part and Instructions
05 October 2021  |

Although well made there was a missing temperature compensating 'o' ring and no instructions although they are available from Baader's Web site after some searching.

Rating (max 5):
Versatile product, but has some play in camera adapter
22 March 2021  |

I'm using this for my EOS 1DX mk3, with a low profile Optolong 2" filter. The filter fits inside the T-ring perfectly, and the grub screw clamp fitting for the S52/2" connector socket is firm. The only criticism I have is that the Canon adapter that screws into the camera body has a tiny amount of play in it, it is not completely rigid as with a lens. I've not yet tested this on a long exposure, but imagine that there will come a point where it has a slight bearing on the alignment of the sensor. Given that I want this for long exposures, it's not ideal - otherwise I'd have given five stars.

Rating (max 5):
Excellent service!
10 October 2019  |

Good quality item and fast delivery, will shop again.

Rating (max 5):
Very good T-ring
03 September 2019  |

Having issues with another T-ring, from another brand, that was not fitting very well (there was some play when inserted in the camera body, causing tilting in my image), this one is a perfect fit for my Canon body (650D). The thing is in place and does not move at all.
Materials used feel solid and I have a good level of confidence when mounting my camera using this ring on my telescope.

I recommand.

Rating (max 5):
Good quality but...optional filter?
13 April 2017  |

This is good quality but be aware that when purchasing without a filter, spacing for the MPCC will be incorrect as the t-ring is mechanically thicker to account for the filter in the light path. The filter is optional only if you don't intend to use the MPCC with it. I wish I had discovered this before i purchased it.

Rating (max 5):
Baader t ring
27 May 2015  |

Very high quality t ring as you would expect from Baader. My only reservation would be that if you plan to change from 2" nosepiece to t-2 insert ring during an astrophotography session then this is only reasonably done indoors. Apart from this the adaptability and quality of this t ring is second to none.

Rating (max 5):
Excellent piece of kit!
30 November 2014  |

As expected a very well made and engineered product. Not cheap but it has the advantage of being able to connect to either a standard T fitting or an M48 fitting (ideal for SW field flatteners etc).
The best bit though is being able to fit a 2" filter in it (as long as it's no more than 6mm deep). So yes, if you need to know a Hutech IDAS D1 fits perfectly!
