About this product

Model: rowan_az75_enc
Part Number: 21531201a

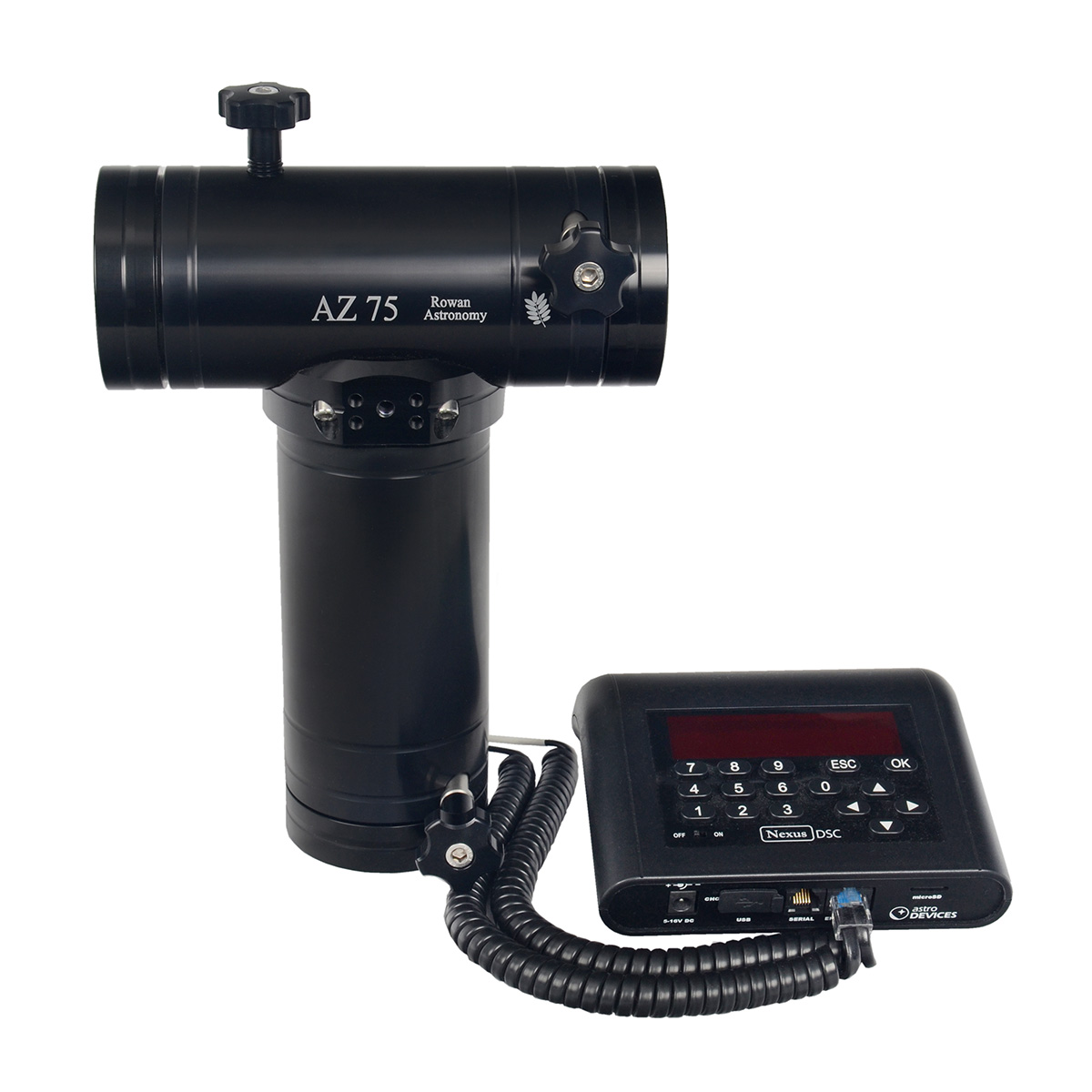

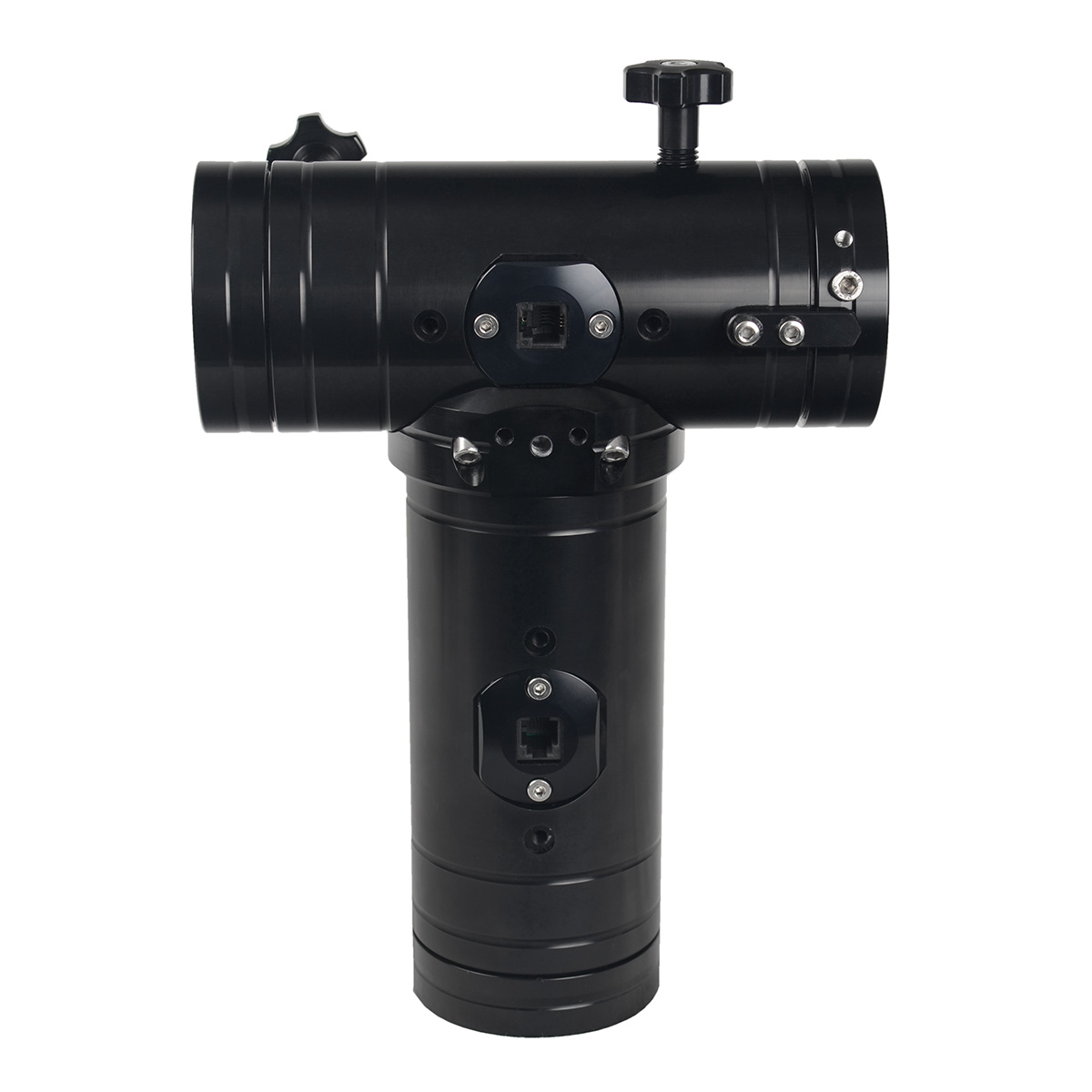

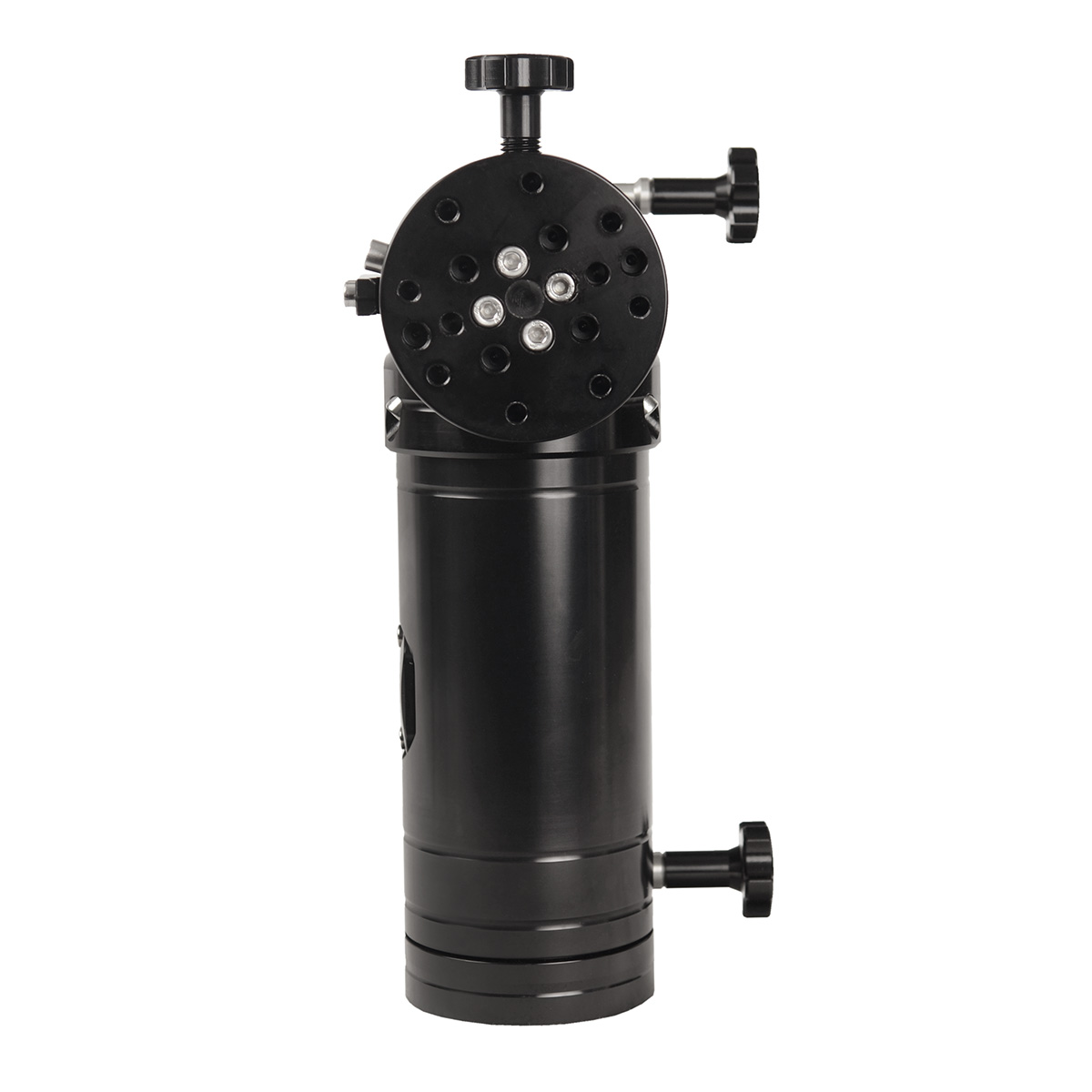

This new premium mount from Rowan Astronomy is essentially a smaller more portable version of their highly regarded AZ100.

Fully CNC machined with black anodised finish and stainless steel hardware.

Features include adjustable friction clutches on both axis for smooth push-to observing.

32mm diameter aluminium axis shafts supported in high quality ball and taper bearings.

Top elevation axis lock for convenient eyepiece changes.

The mount base has a 3/8" unc tapped hole for convenient attachment to suitable photo tripods.

If requested we can also supply this mount with M12 or M10 tapped holes for use with astronomy mounts.

Load capacity: 15 kg each side, depending on scope length
Mount weight: 4.1kg

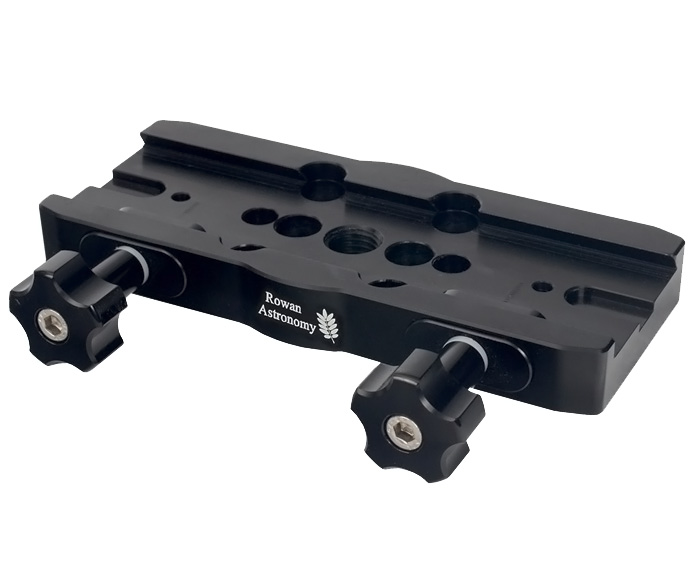

Mount weight with 2 x V saddles: 4.4kg

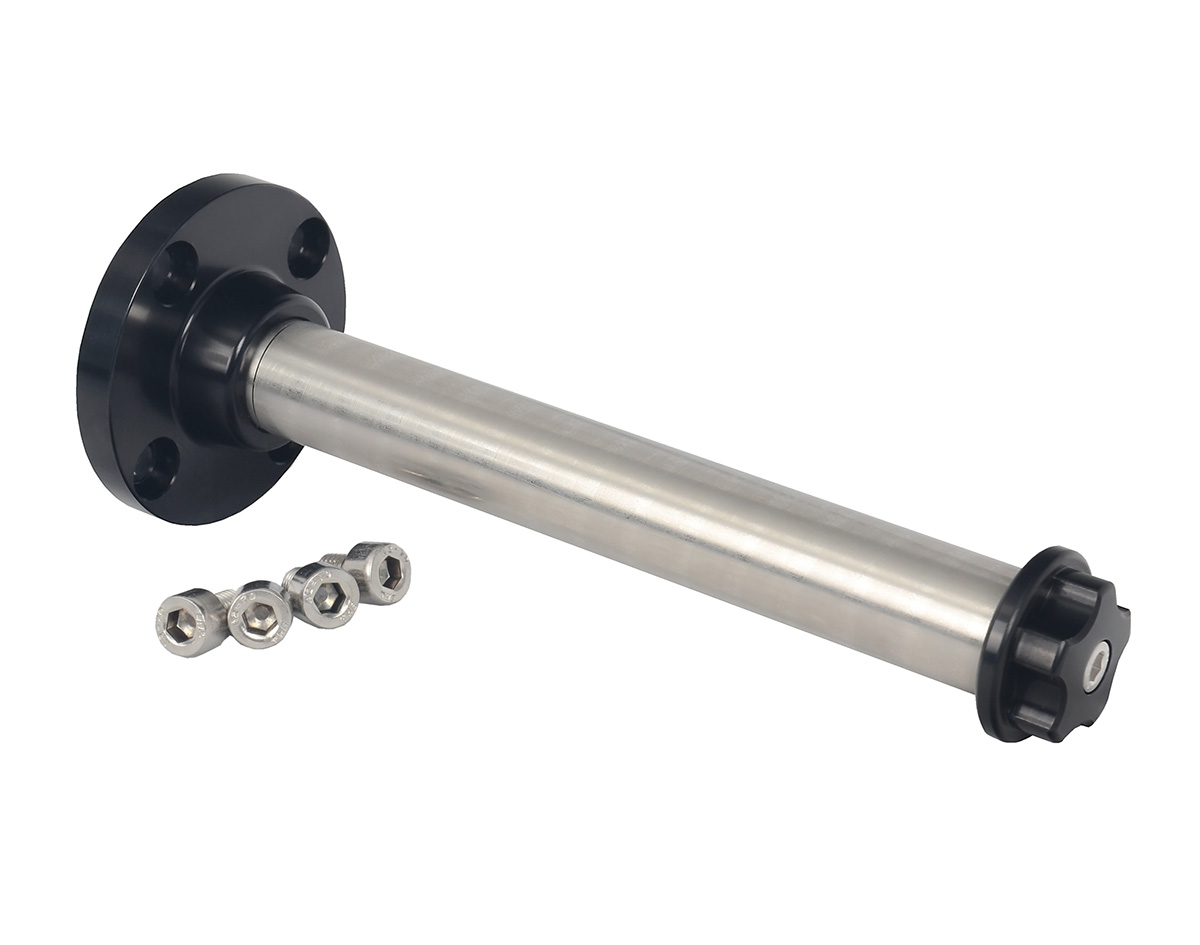

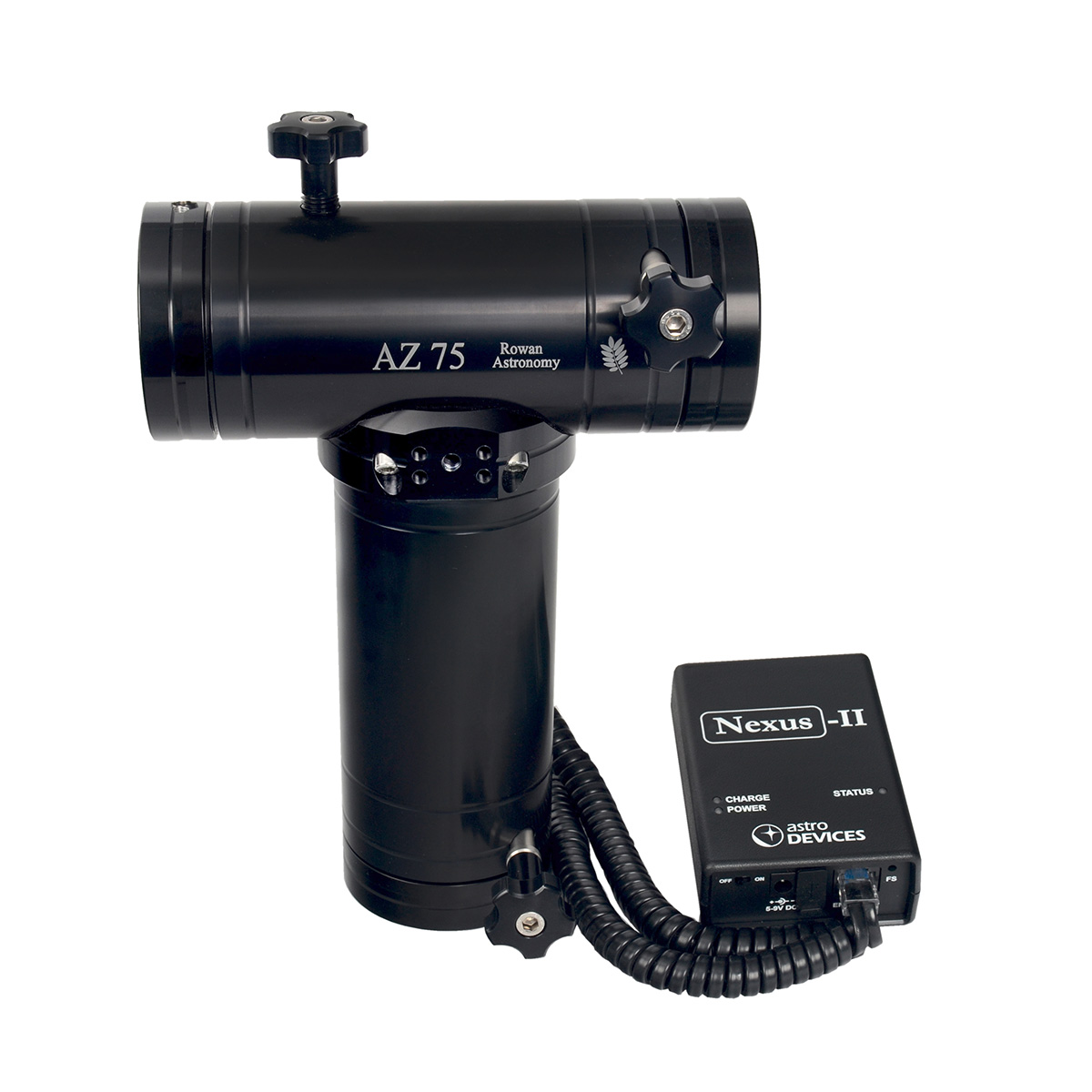

Note 1: Options available on this page do not include saddles, counterweight shaft, counterweight and optional Nexus Shelf.

Note 2: This AZ75 mount is compatible with AZ100 saddles.
