About this product

Model:  scopetech_mount_zero

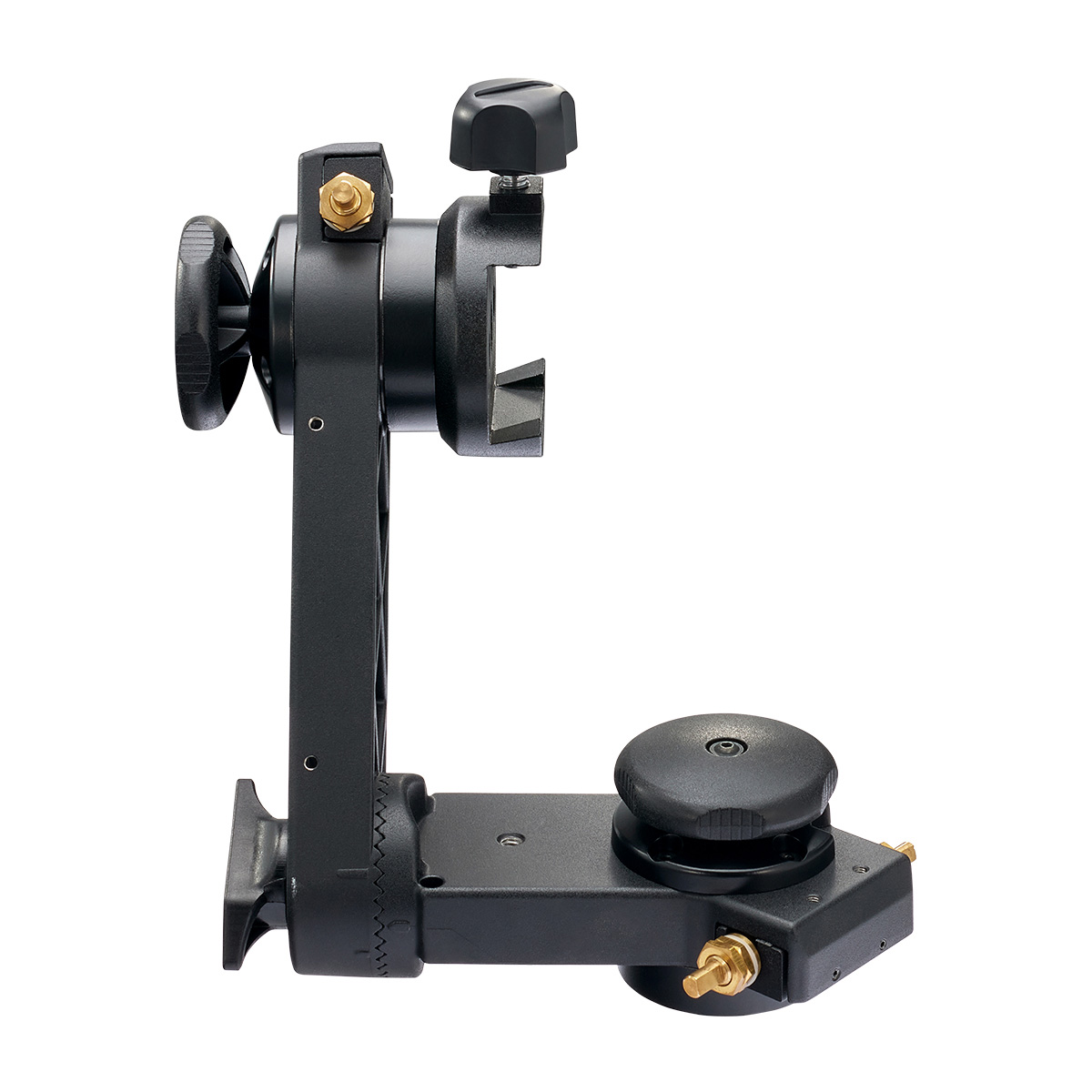

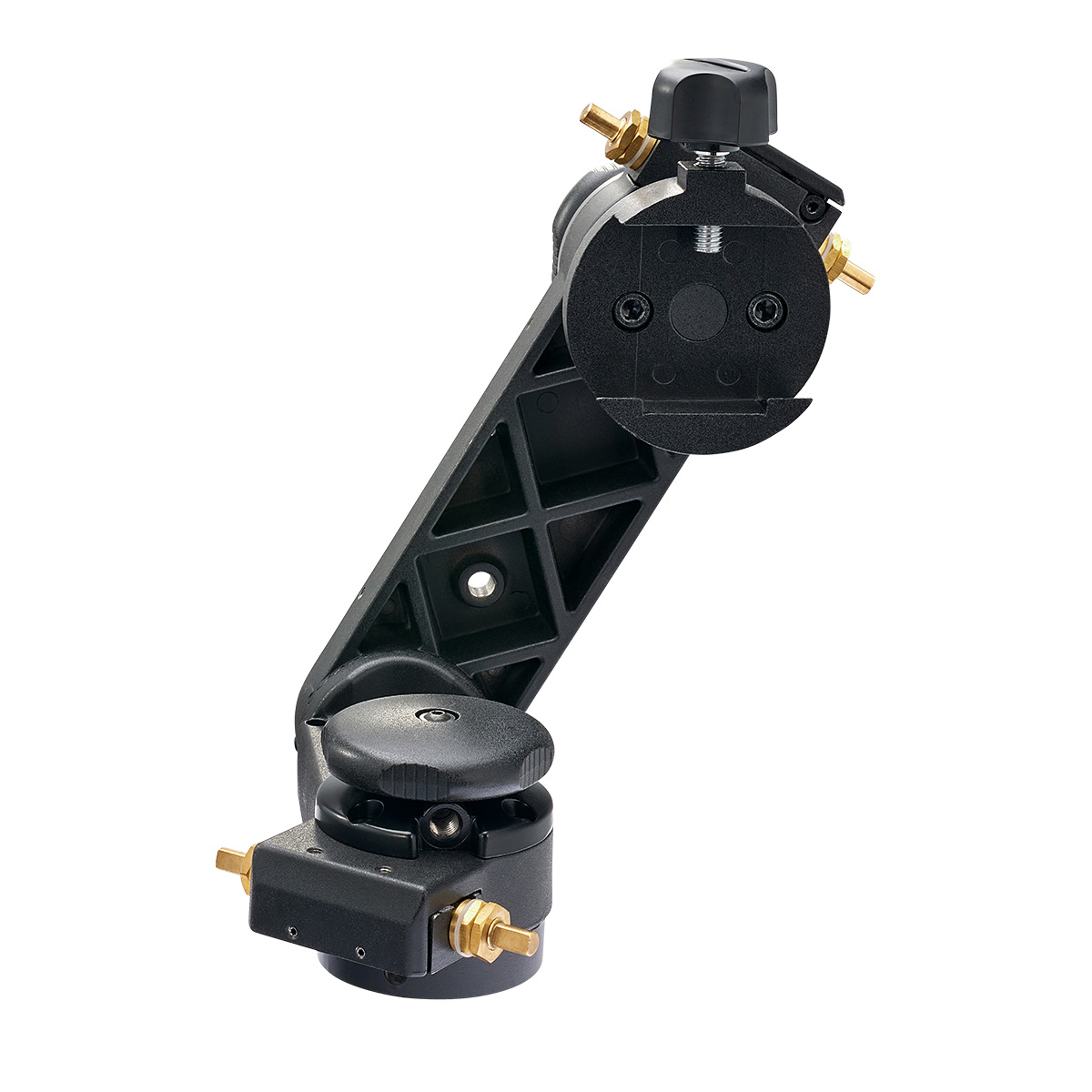

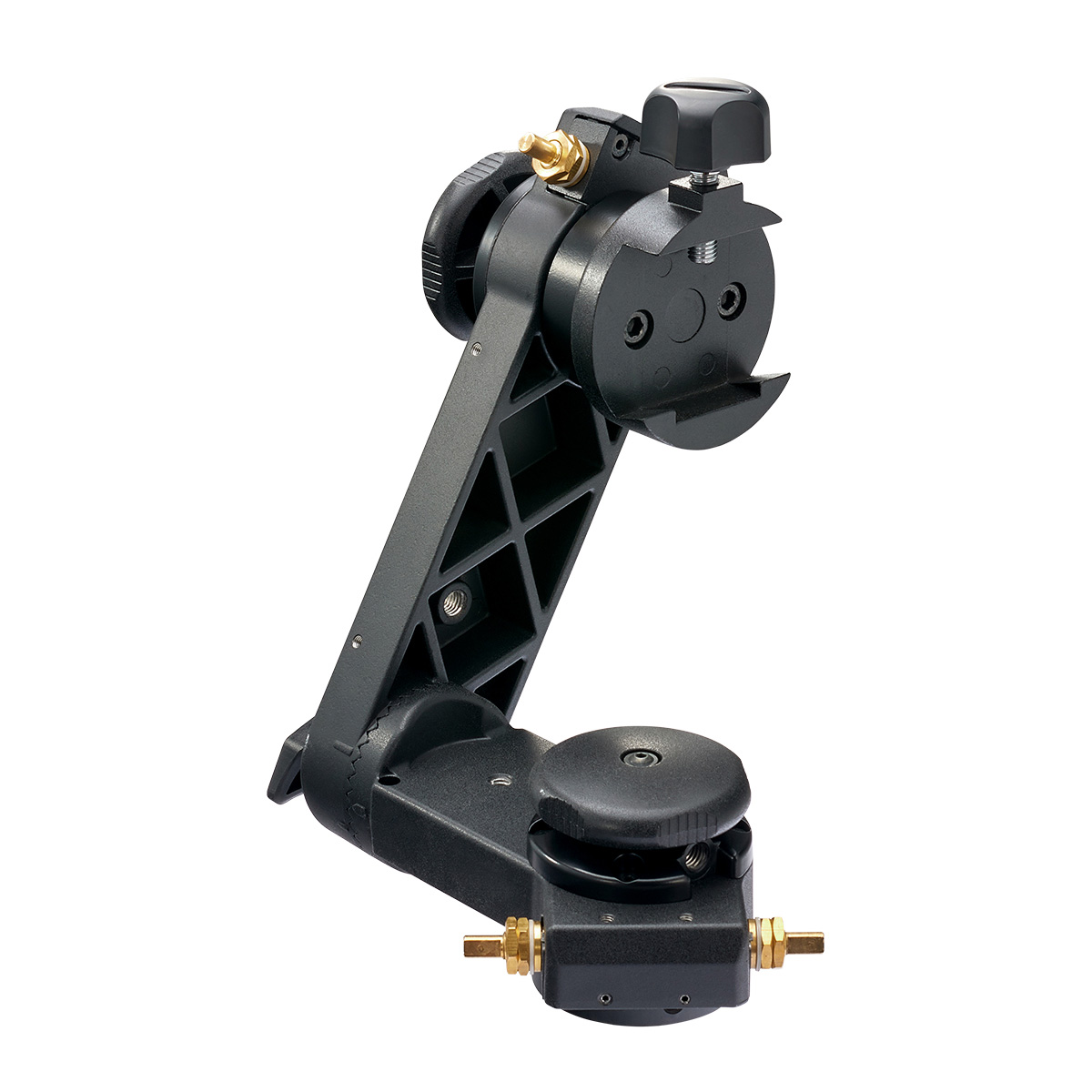

New Japanese Single Arm Fork Mount- Zero

Introducing a new ultra-portable, single arm fork mount from ScopeTech.

This deceptively simple alt-azimuth mount features a ball bearing plus worm gear and wheel on each axis rather than a basic clutch meaning there is no need to tighten / loosen once the friction is set. Use the mount manually by pushing the scope around or use optional flexible slow-motion controls for accurate adjustment.

Exquisite Japanese engineering makes this mount a pleasure to use.

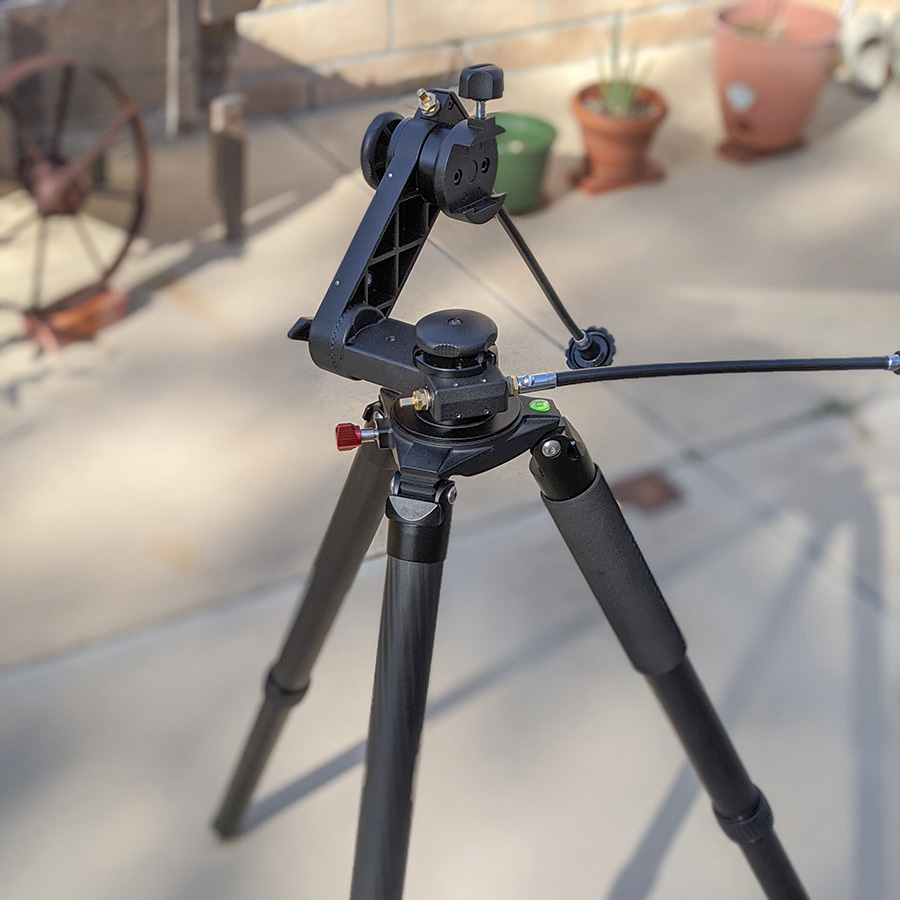

NOTE: Tripod and slow-motion control cables shown in photo are not included but are available separately.

You can download the Zero Maintenance Manual here

FEATURES

  • 7kg payload
  • Compact & Lightweight: 240mm x 100mm x 110mm when fully packed down.
  • Super portable - weighs only 1.4kg!
  • Hirth joint allows arm angle adjustment at 10º increments whilst maintaining rigidity
  • Free stop and slow motion controls
  • CAE-designed super solid arm structures
  • Flexible slow-motion control cables available separately - uses the popular 6mm diameter
  • 3/8" tripod mount at the base and includes a 1/4" bushing adapter
  • Vixen-style Dovetail Clamp
  • Standard Takahashi 35mm separation threaded holes on the arm mean you can attach Takahashi clamshells directly.

Specifications

Arm

  • 2x M6 Threaded Holes / 35mm Centers
  • 2x M8 Threaded Holes / 35mm Centers

Base

  • Center 3/8"-16 Tripod Bushing
  • 1/4"-20 Tripod Bushing Adapter Supplied with handy storage threaded hole in the base
  • 2x M6 Threaded Holes / 35mm Centers
  • 2x M8 Threaded Holes / 35mm Centers

Downloads / Manuals

ScopeTech Mount Zero Manual (in Japanese).

Customer reviews

Average Rating (1 Review):
Write a Review and share your opinions!

Rating (max 5):
Quality mount with a few small caveats
Thursday, 21 October 2021  |

The Zero promises excellent portability, useful features, and a decent capacity.

I already own the Skywatcher AZ5 but had good reason to believe this would be an upgrade. In practice, it met my high expectations and proved to be an upgrade over the AZ5 in most areas. I primarily compared the mounts on a sturdy carbon fibre tripod, carrying a Vixen SD81S loaded to ~4.5kg.

First, the Zero is solidly made with smooth operation. I often feel that thereís a little play inherent to the AZ5 but the Zero feels precise. The finish is good but not quite premium.

Portability is incredible. While the AZ5 head is only a few hundred grams heavier, itís harder to assemble in the field and is a larger, more awkward shape. Furthermore, the Zero folds down neatly, clearly showing the thought put into its design.

It is capable of both free movement and slow motion without clutch adjustment. Operation is very smooth, lacking the stiction found in the AZ5. The slow motions take more force to turn than the AZ5 but are smoother.

The capacity of the mount is rated at 7kg. I think itís fairly accurate. Itís not rock solid and does wobble slightly when focusing but is still a noticeable step up from the AZ5. Stability varies between scope designs but I would say a 100mm refractor is probably the largest Iíd be happy to use on the Zero full-time.

The Zero also comes with weaknesses. The clutches canít be locked. This demands some caution if you like to move your rig in one piece. Balance is critical. Even tightened fully, the gears can rotate, and your scope will swing down if unbalanced. Like the AZ5, slow motion will not work if balance is too far off.

Finally, the price. While it competes in capacity with the AZ5 and Porta II, its price is a level above. Even the Japanese price of ~35,000yen is fairly expensive. The same money can get you a Stellarvue M2C for example. That mount is rated for a much greater capacity but gives up the slow motion. For its price, I would recommend the Zero to those who know their needs well.

Advantages: extremely portable, well built, decent capacity, offers slow motion controls.
Disadvantages: high price in its class, clutches cannot be locked and balance is extremely important.
