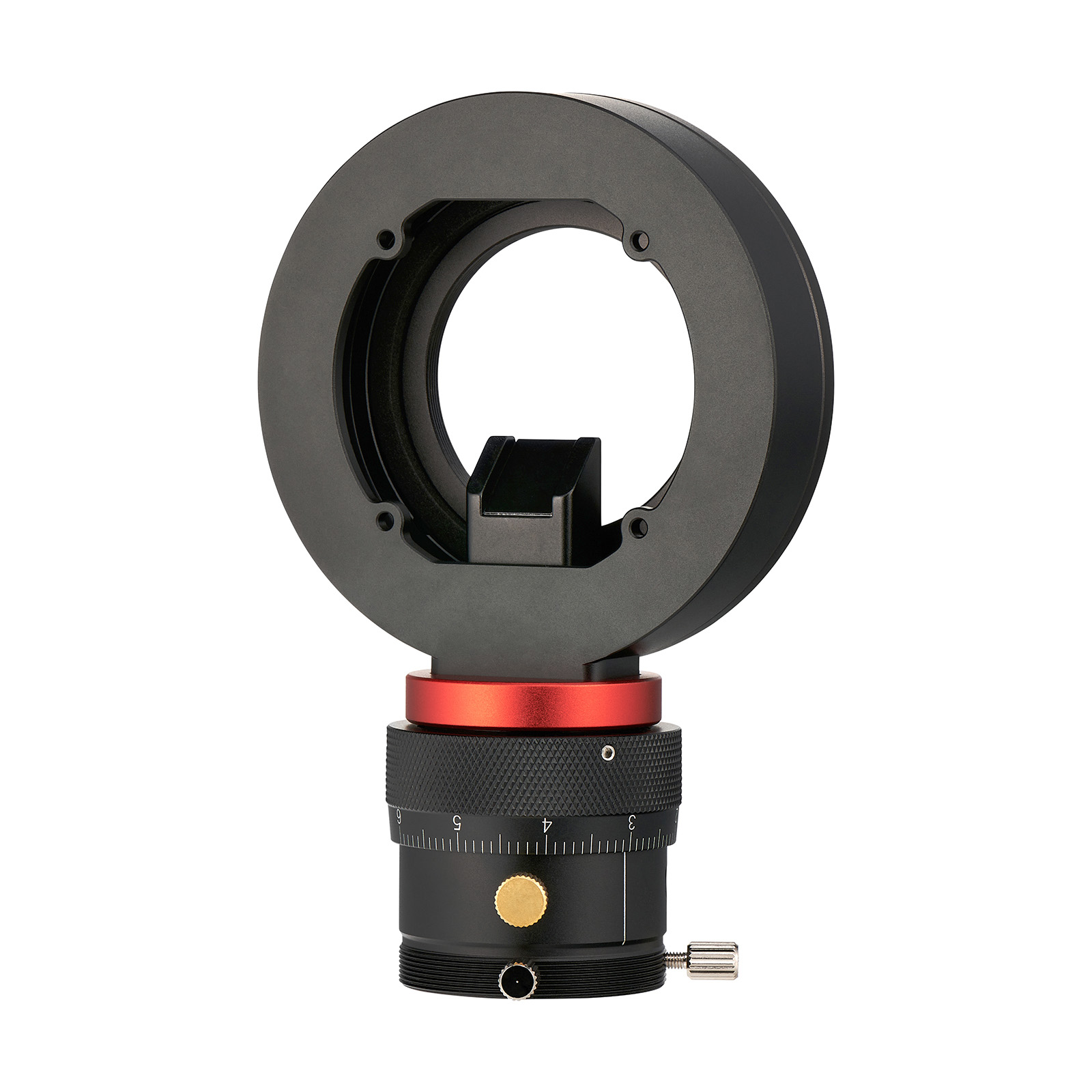

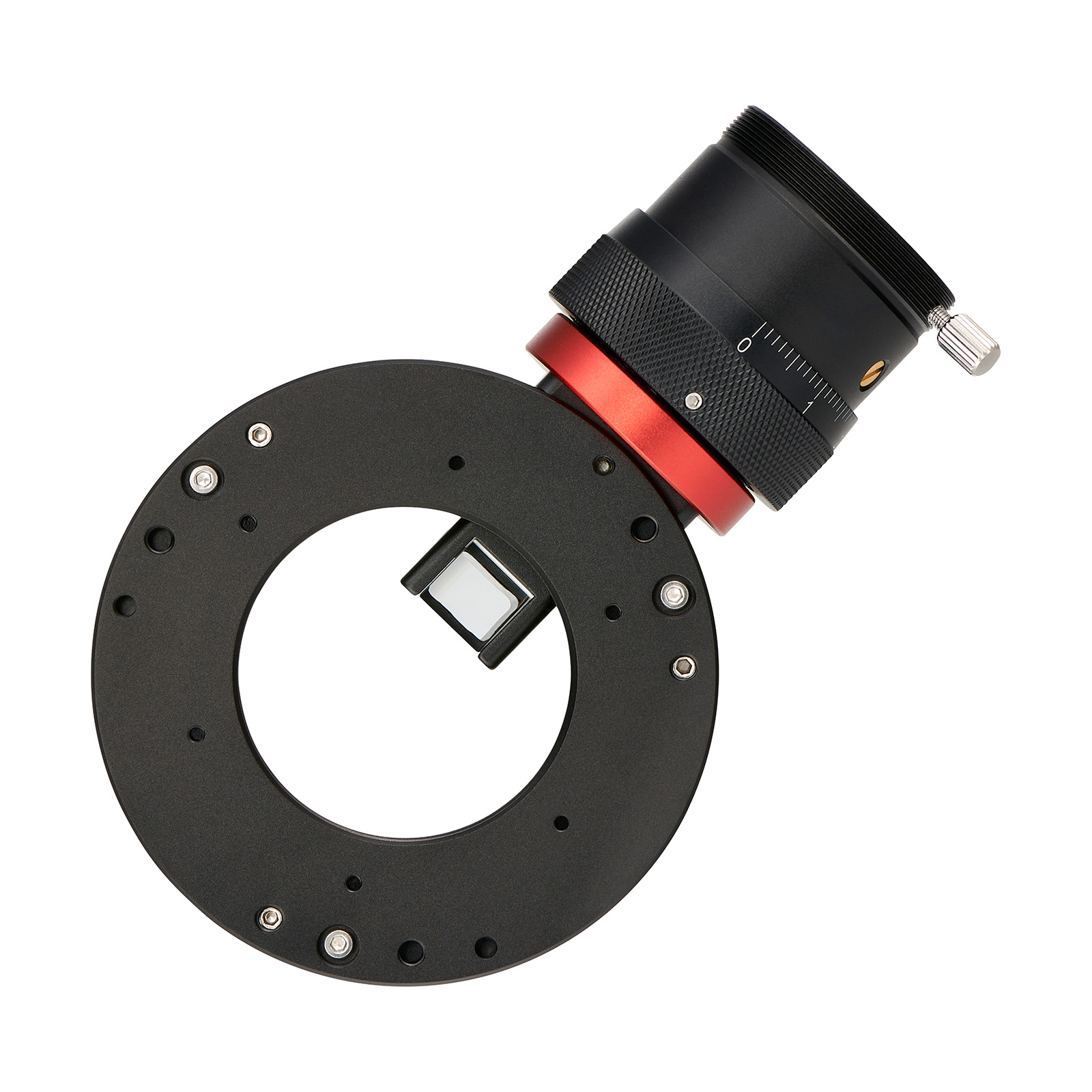

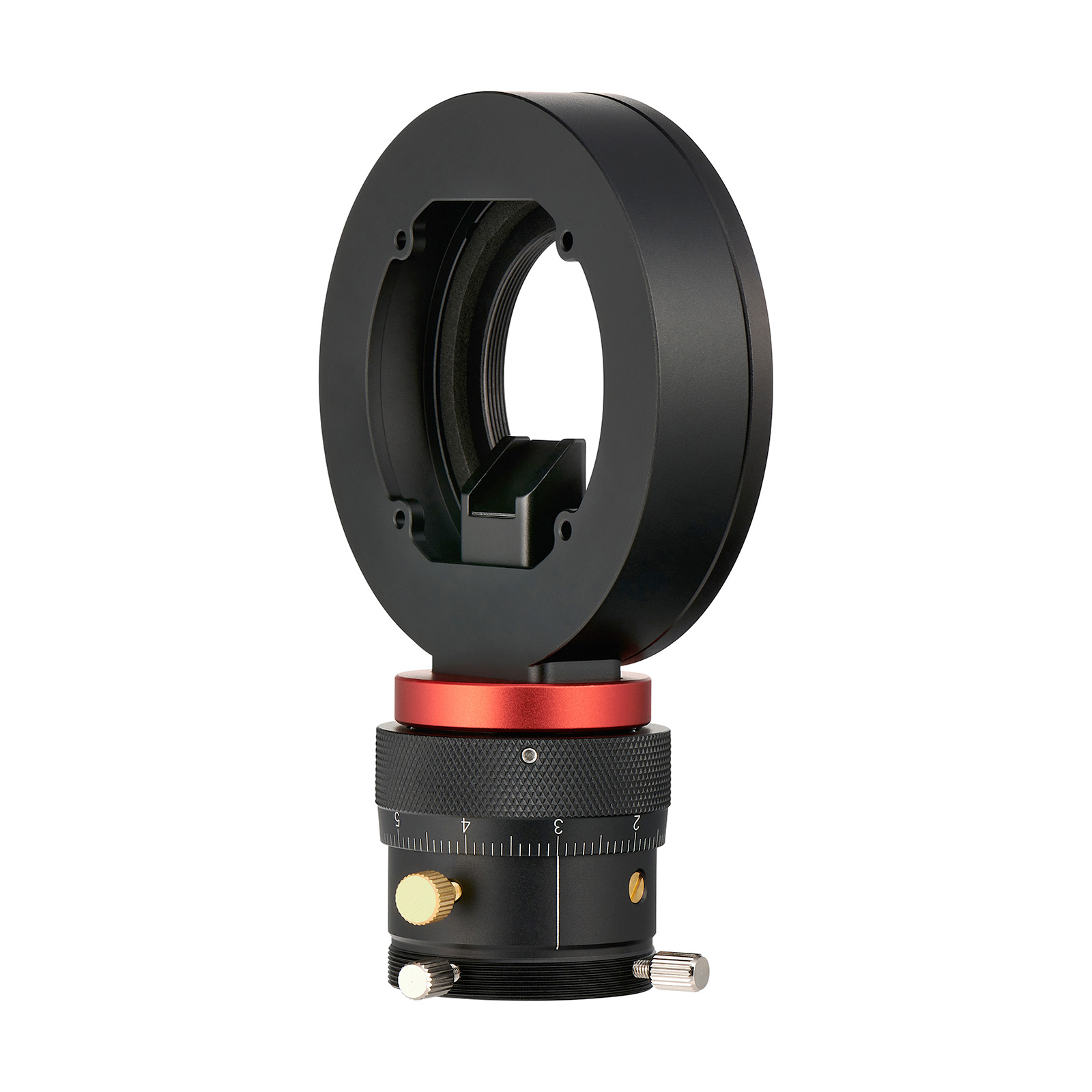

ZWO OAG-L Off Axis Guider
  Zoom
ZWO OAG-L Off Axis GuiderZWO OAG-L Off Axis GuiderZWO OAG-L Off Axis GuiderZWO OAG-L Off Axis Guider

ZWO OAG-L Off Axis Guider

£214.00
  (3 Reviews)
✓ 2 year warranty

:

4x in stock shipped 1-2 working days

About this product

Model:  zwo_oag_l
Part Number:  ZWO-OAG-L

NEW ZWO OAG-L Off Axis Guider with larger 12mm x 12mm prism.

This new ZWO OAG-L is for use with ZWO APS-C (ASI2600) or full frame (ASI6200/2400) cameras and (only) EFW 36mm V2,  EFW 2" (5x or 7x slot model) filter wheels, or the ZWO M54 Adaptor, with no EFW.

Provides a wider clear aperture than the previous model.

Easy to use and particularly well suited to longer focal length telescopes or telescopes with moving mirror focussing systems.

Features

  • Lightweight and exquisite
  • 17.5mm thickness.

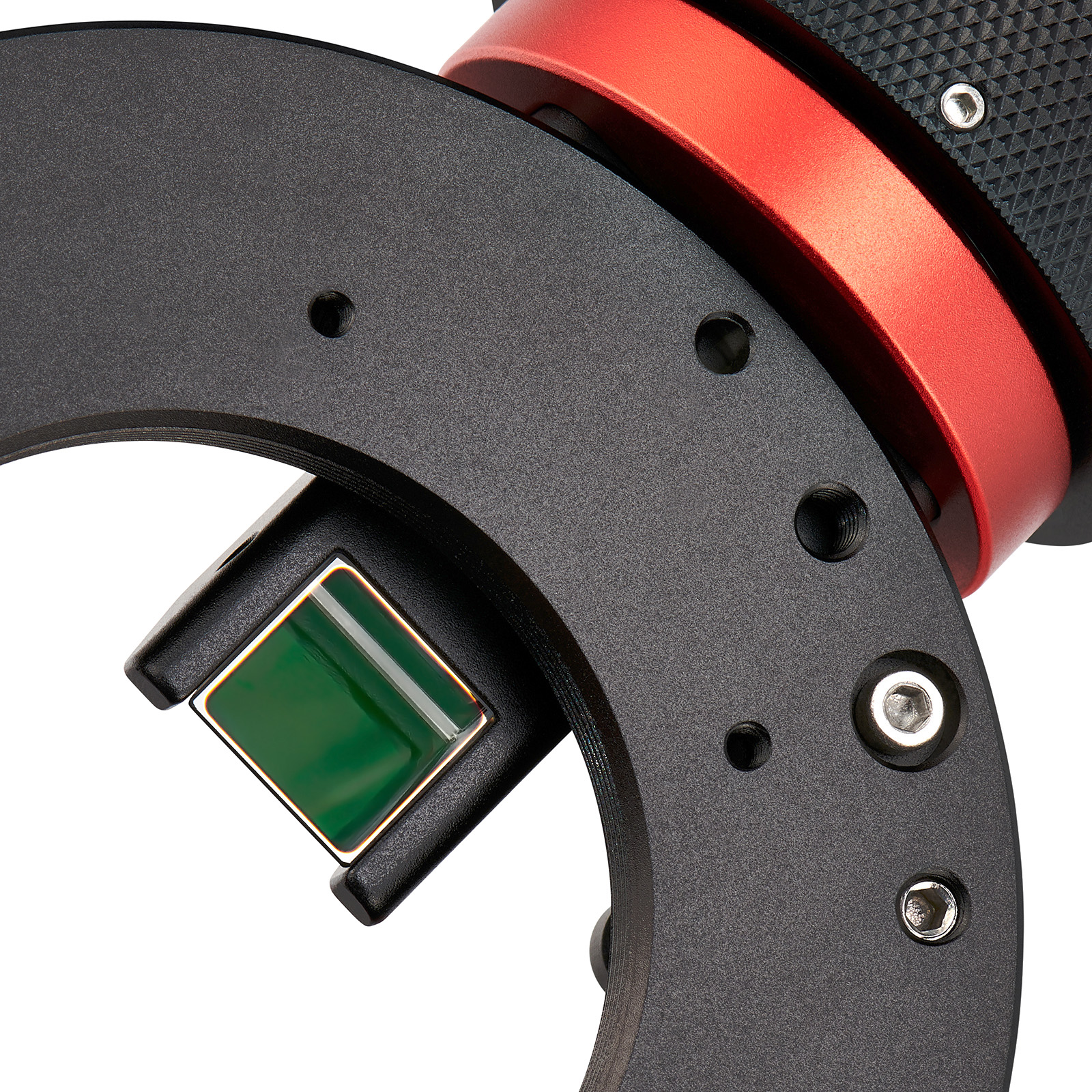

  • Prism size: 12x12mm.
  • The effective light-passing aperture is 11.7mm*8.3mm.

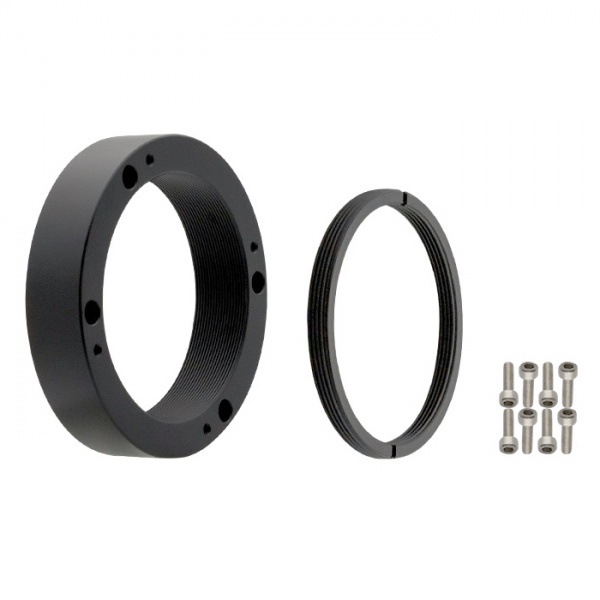

  • Packaged with an M48 sensor tilt plate (5mm)
  • It also works with ASI Mini cameras ASI174MM Mini, ASI290MM Mini and ASI120MM Mini.
  • The large clear aperture supports full-frame cameras without vignetting.

NOTES:

  1. Considering the large prism size, we don’t recommend you use the OAG-L with telescopes with rear screw thread smaller than M48.
  2. The significant differences between OAG-L and M68 OAG are the prism size and the threads. The OAG-L design removed the inner threads so you can directly use the screws to connect it to other equipment.
  3. If the thread of your telescope side is M48, then you don’t need to remove the M48 sensor tilt plate coming with OAG-L.

Customer reviews

Average Rating (3 Reviews):
Write a Review and share your opinions!

Rating (max 5):
ZWO not properly testing products
18 January 2024  |

Usual prompt delivery and service from FLO, but not so impressed with ZWO product testing. After much back and forth, it's clear that the instructions from ZWO on how to connect it scope>OAG>Filter-Wheel>Camera hasn't been tested with a very wide range of scopes, as there are lots of people complaining in forums that the guidecam cannot get close enough to the prism to focus, even with all extensions removed and the prism set to reduce FL to the guidecam. I've spent hours going back and forth, to no avail. It's pretty useless to me, and I either have to pull the camera further back off the Filterwheel, messing up my back-focus (which is tight anyway), and suffer an increased vignette for larger sensors, or use a guide-scope.
Other than the fact the product is well-made, it's not great. More testing before releasing products, please ZWO!!


Rating (max 5):
Much better than the original
21 September 2022  |

I was using V1 on a 132mm setup, the stars could never be fully focussed and the small mirror size was noticeable. This fixed both and has improved guiding significantly..


Rating (max 5):
So far so good
20 July 2022  |

Nice piece of kit. Not had a chance to use this extensively but thereís no doubt itís an improvement on the smaller prism model ZWO also manufacture. Looking forward to improved guiding.
