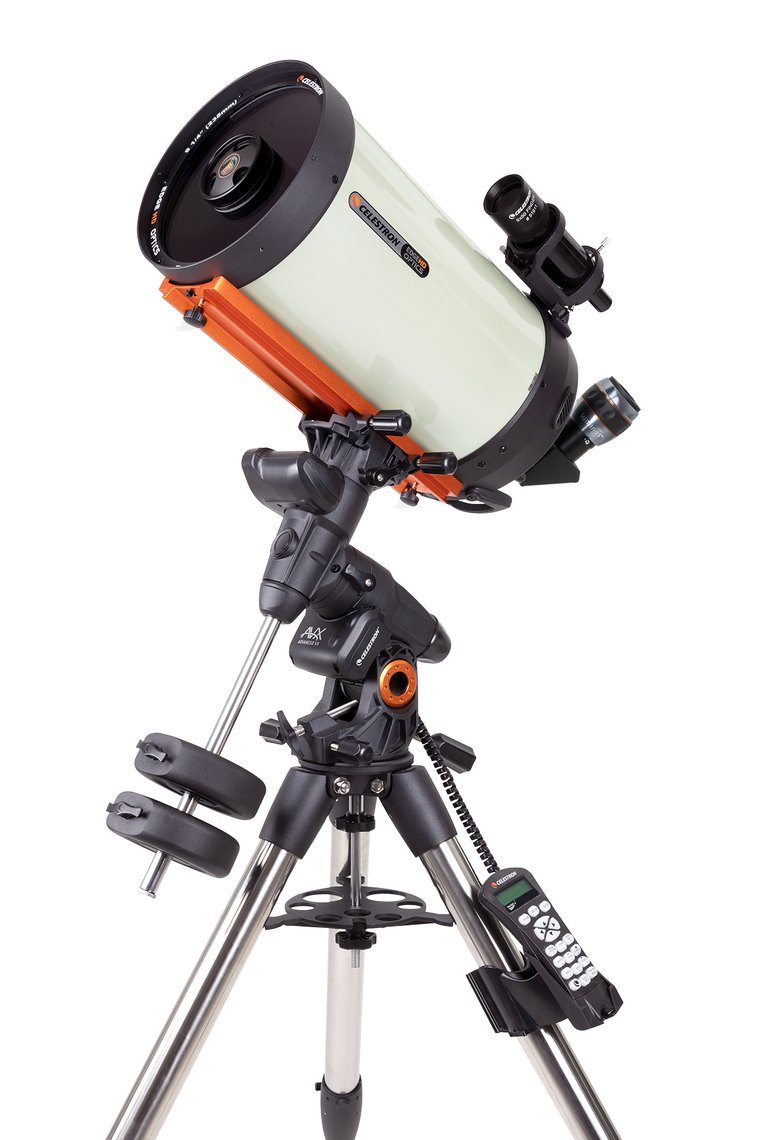

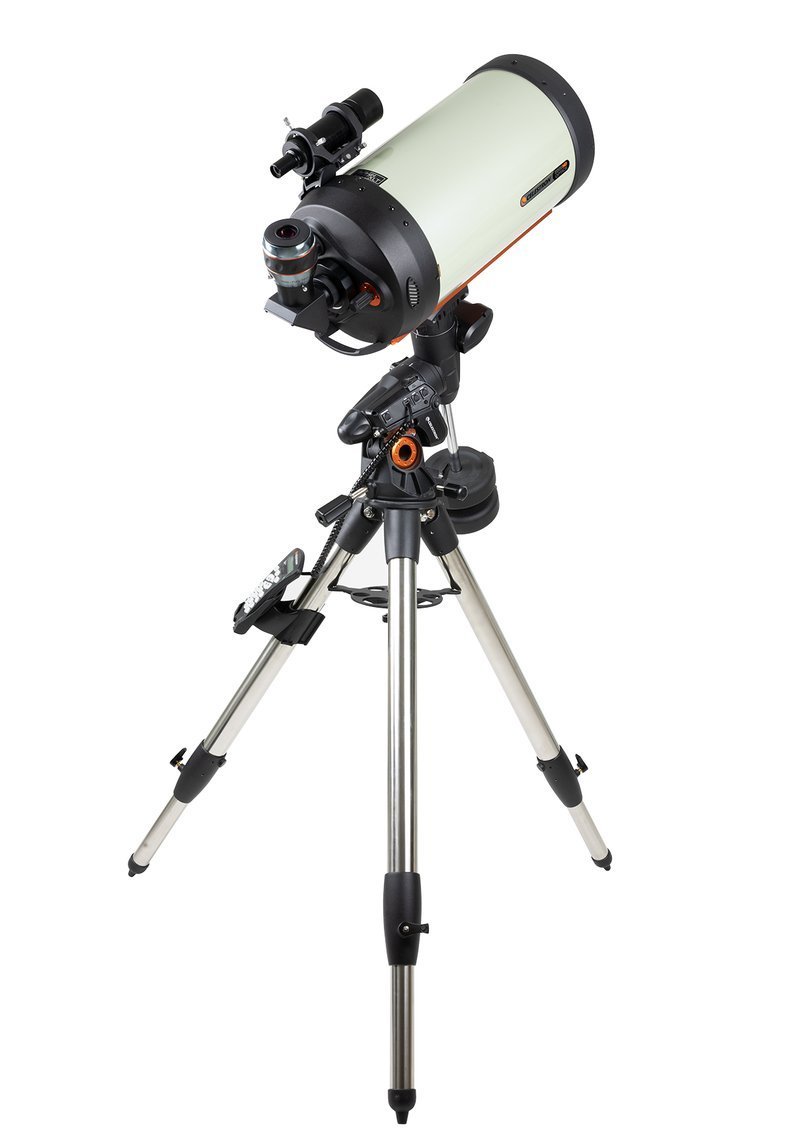

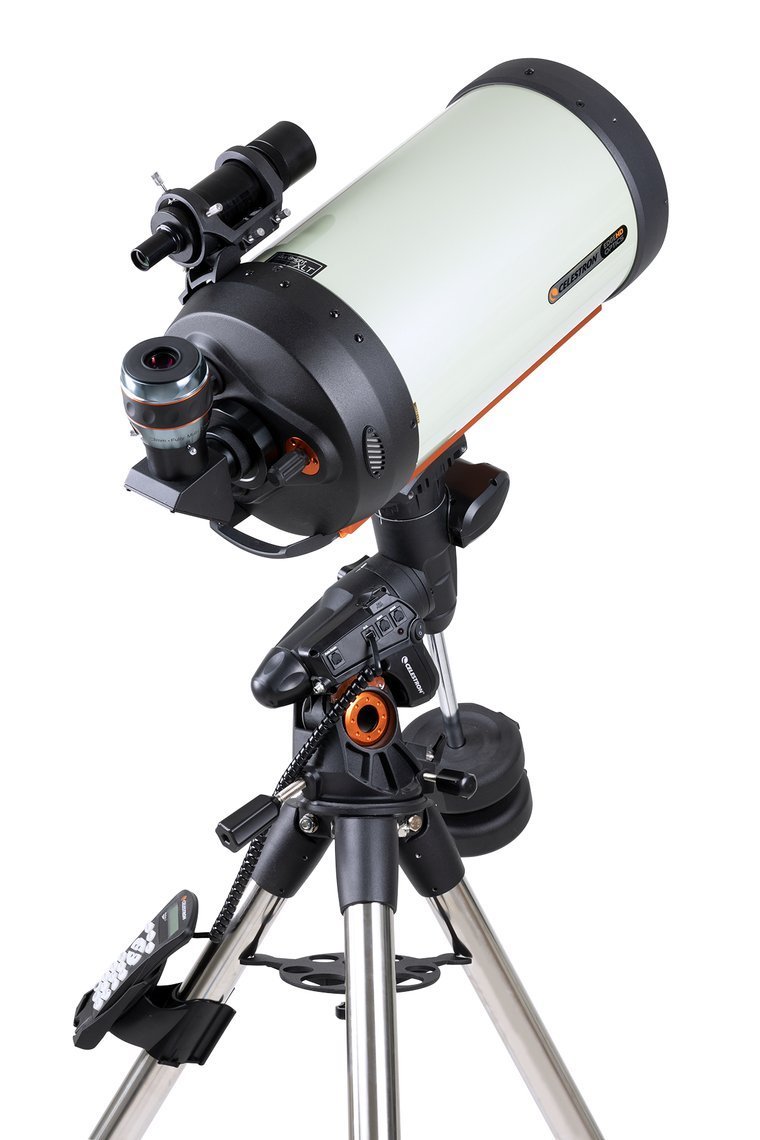

Celestron C9.25 Edge-HD VX GOTO

£2,869.00✓ 2 year warranty

:

Out of stock due 40-60 working days

About this product

Model:  c925edgehd-vx-12033
Part Number:  12033-CGL

PROMO: Includes FREE ZWO ASI 120MC-S USB 3.0 Colour Camera worth £153!

Combines Celestron's Advanced VX computerised equatorial mount with its acclaimed EdgeHD optical system.  With over 9 inches of aperture and premium StarBright XLT coatings, the 925 EdgeHD gives you over 1000 times the light gathering power than the unaided eye. It also delivers more resolution than the 800 with less weight than the 1100.

EdgeHD is an aplanatic, flat field Schmidt-Cassegrain telescope that produces aberration-free images across a wide visual and photographic field of view. The optical system was designed to reduce more than just off-axis star coma; it also provides an astrograph-quality flat focal plane all the way to the edge of the field of view.

The new Advanced VX mount is specifically designed to provide optimum imaging performance for smaller telescopes. Features include permanent programmable periodic error correction, all star polar alignment, autoguider support and the ability to image across the meridian without doing a meridian flip so you can seamlessly image the best part of night sky. Compared to the earlier CG5-GT mount the Advanced VX also has larger base castings for improved stability under heavier loads and upgraded motors for more torque.



FEATURES

  • 9.25" HD Optical Tube Assembly
  • Advanced VX EQ Mount and Tripod
  • Celestron’s premium StarBright XLT coatings provide maximum light transmission
  • A 9x50 finderscope, 2” mirror diagonal for more comfortable viewing, and wide-angle 23 mm Luminos 2" eyepiece are all included
  • Fat-field, coma-free optics provide pinpoint stars all the way to the edge of today’s largest imaging sensors and widest eyepieces
  • Aluminum optical tube with tube vents featuring an integrated 95-micron mesh filter allows hot air to be released from behind the primary mirror. Mirror support knobs hold the mirror in place and reduce image shift during imaging
  • Versatile design accommodates 2 focal ratios: native f/10 or ultra-fast f/2 imaging with a removable secondary mirror and third-party accessories
  • Integer gear ratios and permanently programmable Periodic Error Correction eliminates recurring track errors from the worm gear.
  • Autoguider port for long exposure imaging
  • New motors offer improved tracking performance & provide more power to overcome load imbalances
  • Updated industrial design offers more rigidity, less flexure and improved aesthetics
  • New design allows viewing or imaging across the meridian without interference from the motors housings
  • Improved latitude range.  Can be used between 7 – 77 degrees latitude.
  • NexStar+ hand control offers multiple language programming (English, French, Italian, German, Spanish)

What's in the box

  • Telescope OTA
  • VX Mount
  • 9x50 Finderscope
  • 40mm Eyepiece

Specifications

Optical Design EdgeHD
Aperture (mm) 235mm (9.25")
Telescope Type Computerized (GOTO)
Focal Length (mm) 2350mm (93")
Focal Ratio f/10
Eyepiece 1 (mm) 23mm (.91")
Magnification 1 102x
Finderscope 9x50
Optical Tube Aluminum
Fastar Compatible Yes
Tripod Adjustable, Stainless Steel
Tripod Legs 2"
Total Weight 59 lbs (27 kg)
Power Supply Car battery adapter
Highest Useful Magnification 555x
Lowest Useful Magnification 34x
Limiting Stellar Magnitude 14.4
Resolution (Rayleigh) 0.59 arc seconds
Resolution (Dawes) 0.49 arc seconds
Light Gathering Power
(Compared to human eye)
1127x
Optical Tube Length 559mm (22")
Optical Tube Weight 21 lbs (9.53 kg)
EQ Mount Weight 17 lbs (7.71 kg)
Tripod Weight 18 lbs (8.16 kg)
Counterweight Bar 12" Length, 0.75" Diameter lbs (5.44 kg)
Counterweights 2 x 12 lbs
Latitude Range 7-77 deg
Motor Drive Low cog DC Servo motors with encoders, both axes
Slew Speeds Nine slew speeds, 4 deg/sec maximum
Tracking Rates Sidereal, Solar and Lunar
Tracking Modes EQ North and EQ South
Alignment Procedures 2-Star Align, Quick Align, 1-Star Align, Last Alignment, Solar System Align
Communication Ports 2x AUX ports, Autoguider port, RS-232 port (on hand control)
Computer Hand Control Double line, 16 character Liquid Crystal Display; 19 fiber optic backlit LED buttons
Database 40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects
Power Requirements 12V DC 3.5A (tip positive)
Internal Clock Yes
GPS Optional SkySync GPS Accessory

Downloads / Manuals

The following manuals and downloads are available for this product:

Celestron Advanced VX Manual

Customer reviews

Be the first to Write a Review for this item!

FAQ

Please fill in the form below to ask a question.

*
*
*

Q1. Does this comes with a 90 deg star diagonal?

Yes - this does come with a 1.25 inch, 90 degree diagonal.


Q2. Does this comes with a serial cable for connection to a PC?

No, unfortunately this is not supplied with a computer serial cable. These are available separately at our website here: Serial cable for Skywatcher and Celestron mounts (Choose the 'Celestron' option).

Many newer computers come without an RS-232 port so to use this cable you will need a USB to RS-232 adapter which we can also provide: Celestron USB to RS-232 Adapter.
