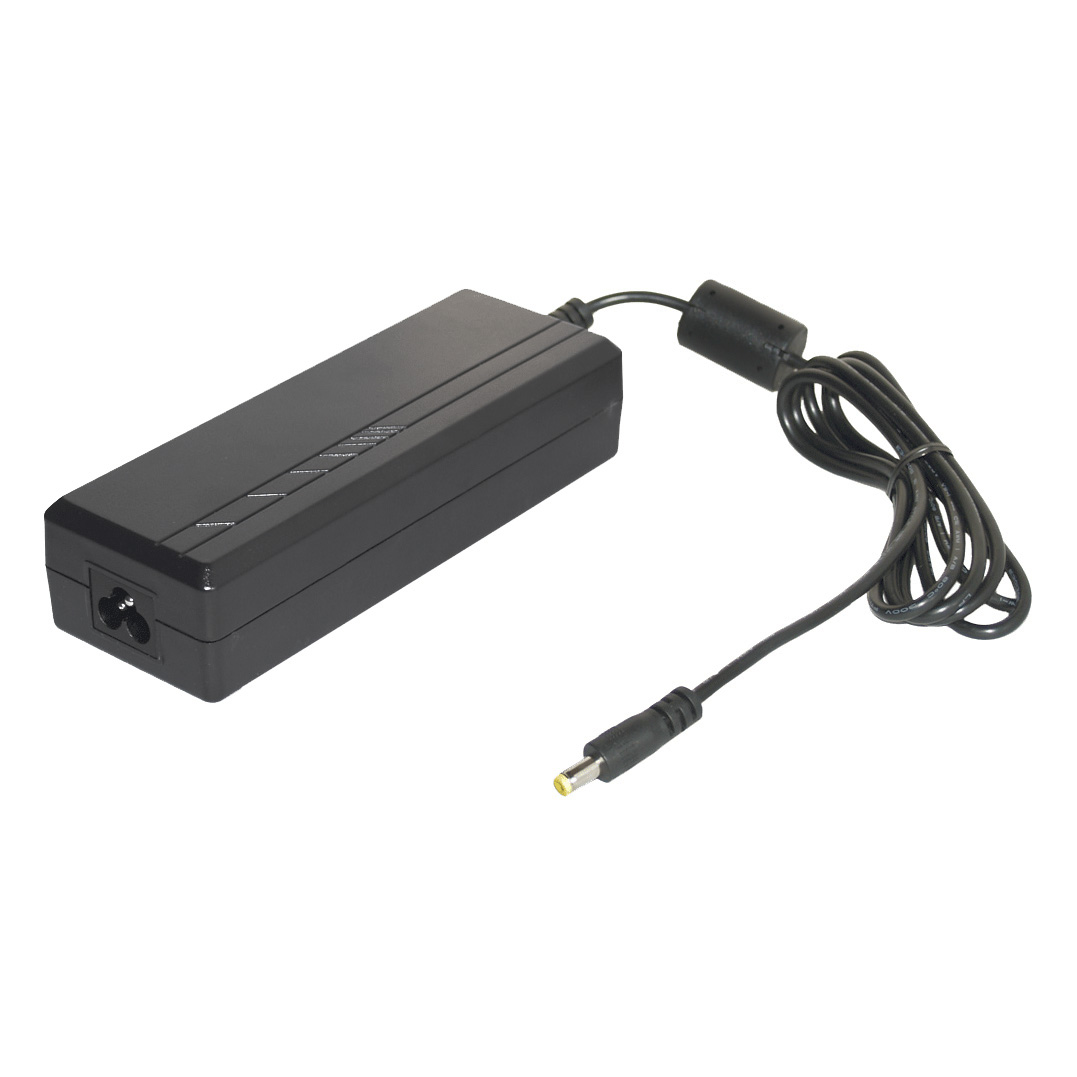

Pegasus Astro Power Supply Unit - XT60 (UPBv2)

£65.00✓ 2 year warranty



:

5x in stock shipped 1-2 working days

About this product

Model:  peg_psu_xt60_uk
Part Number:  PEG-PSU-XT60-UK

Pegasus Astro Power Supply Unit - XT60 (UPBv2)

The perfect match for Pegasus Astro Products. It can provide 12V and up to 10Amps. (120W of total power). Low ripple and noise ensures that you will provide the required and correct “electric juice” to your precious equipment. You can choose from UK, US, EU or Australian power cords.

This version has an XT60 connector suitable for Ultimate Powerbox v2 units.

Protections

  • Over current/ Short protection: The power supply will self-protect any output to ground & auto recovery when abnormal circuit faults remove. An output short circuit is defined as any output impedance less than 0.1 ohms.
  • Over Voltage: The power supply will be auto recovered when faults remove
  • Input protection: F1:6.3A 250V Fuse The power supply shall be protected against power line surges and any abnormal condition
  • No Load protection The power supply is provided with no load operation to prevent the power supply and system from damage.
  • Protection class I, (ITU-T K.21 Surge 6KV on request)

Certifications

Specifications

Output Voltage: 12.5V
Loading: 0-10 Amps
Max. Power : 120 Watt
Input Voltage Range: 90-264V
Frequency: (47-63)Hz
Connector Size: 5.5 * 2.1mm or 5.5 * 2.5mm or XT60
Cord Length: 150cm / 5 feet
Regulated Output With Low Ripple Noise
Sealed / Protected Enclosure  humidity / dust cannot enter
Safety Agency Requirements and EMI/EMS Certified
Efficiency level (ErP)  VI
CE and FCC certificate acquired
Dimensions: 169 x 61 x 39 [mm]
