About this product
Part Number: GS600

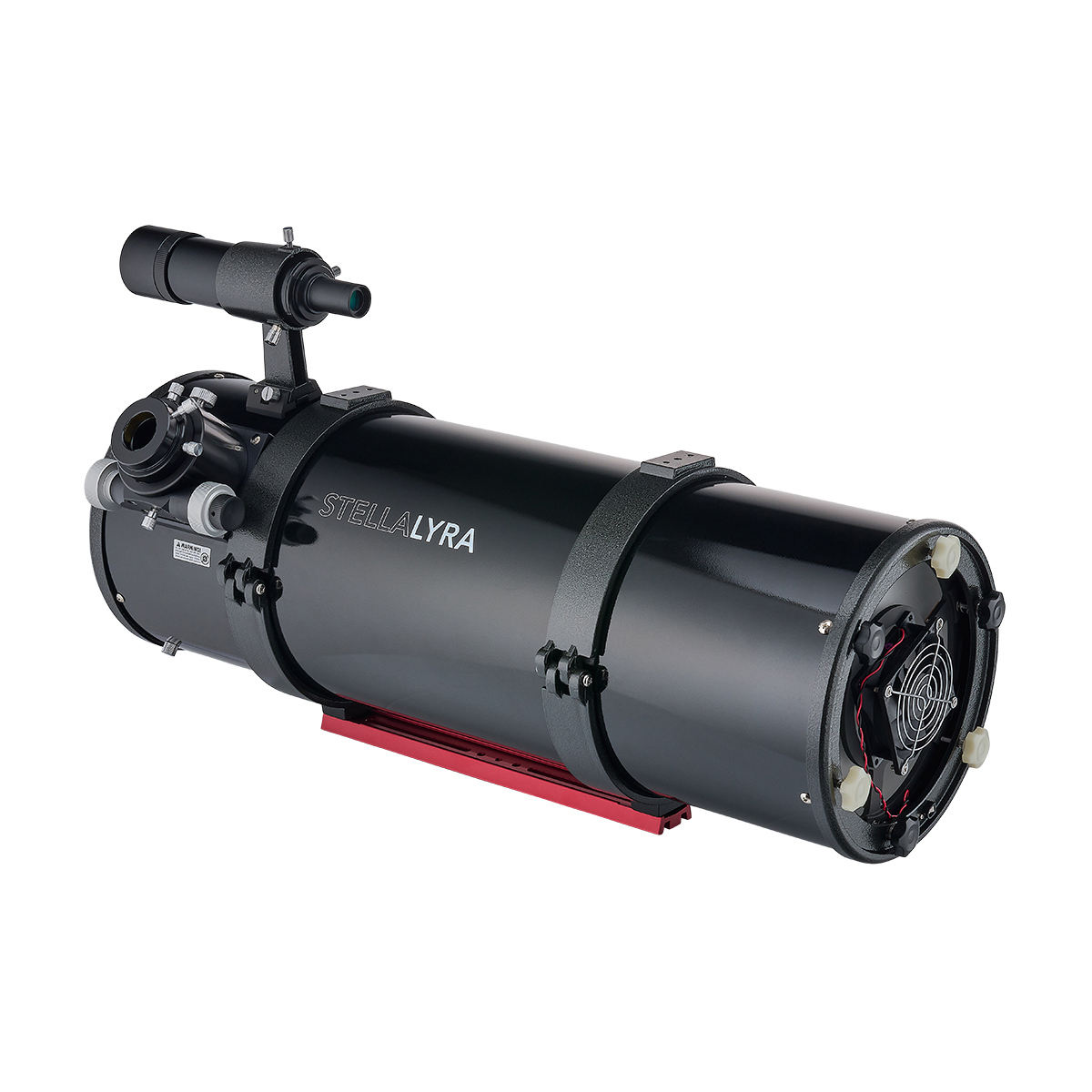

8" f/4 StellaLyra Imaging Newtonian Reflector Telescope
Designed and manufactured to a very high standard by Guan Sheng Optical (GSO) in Taiwan.
This 8" StellaLyra reflector with a fast f/4 focal ratio is an excellent choice for deep-sky imaging with a dedicated astronomy CMOS/CCD camera or DSLR.

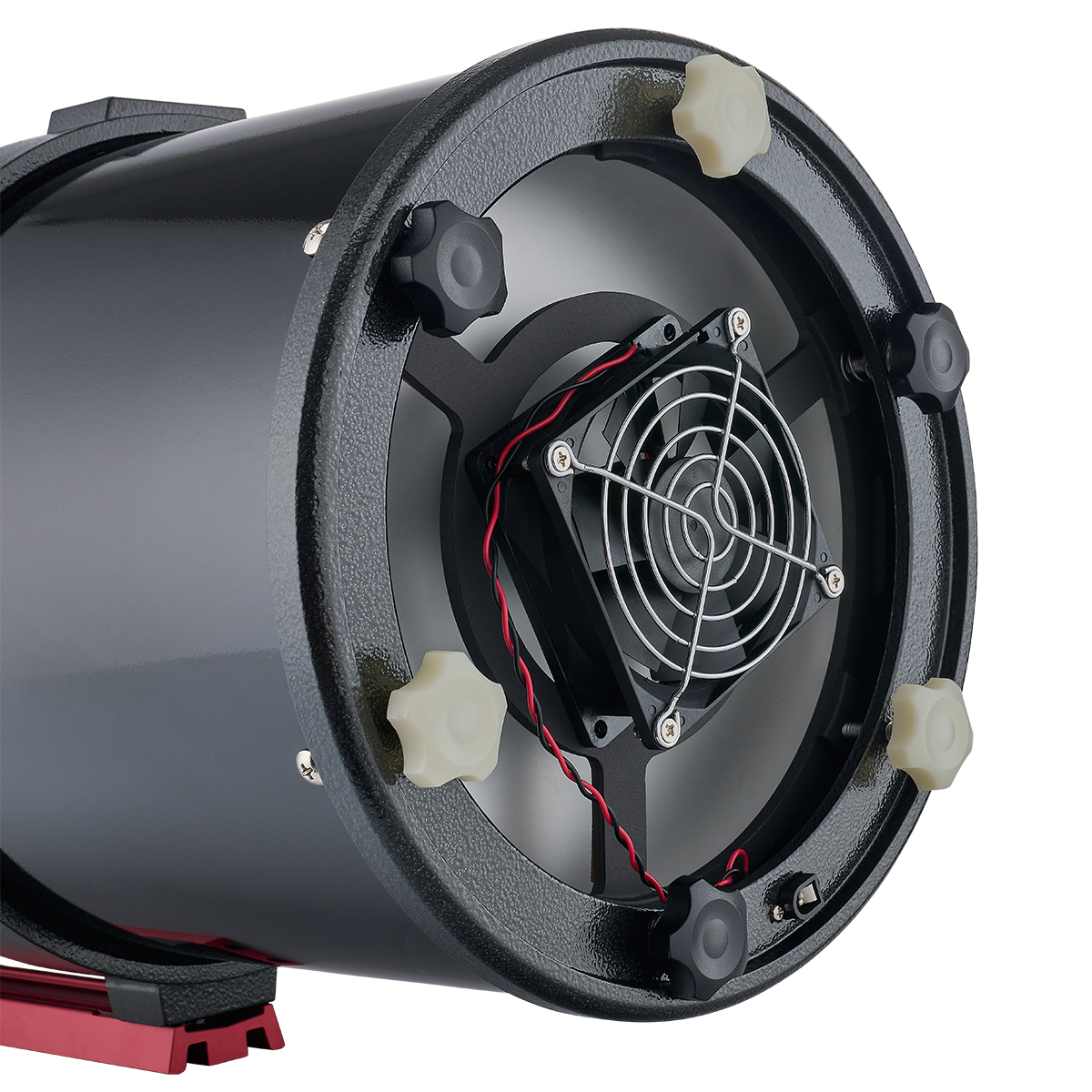

All StellaLyra Newtonian telescopes feature GSO aluminised parabolic primary mirrors with minimum 93% reflectivity and a silicon-dioxide protective overcoat to ensure the surface remains bright for years. Chunky collimation knobs enable easy collimation adjustment without tools, and an integrated fan reduces cooling time.

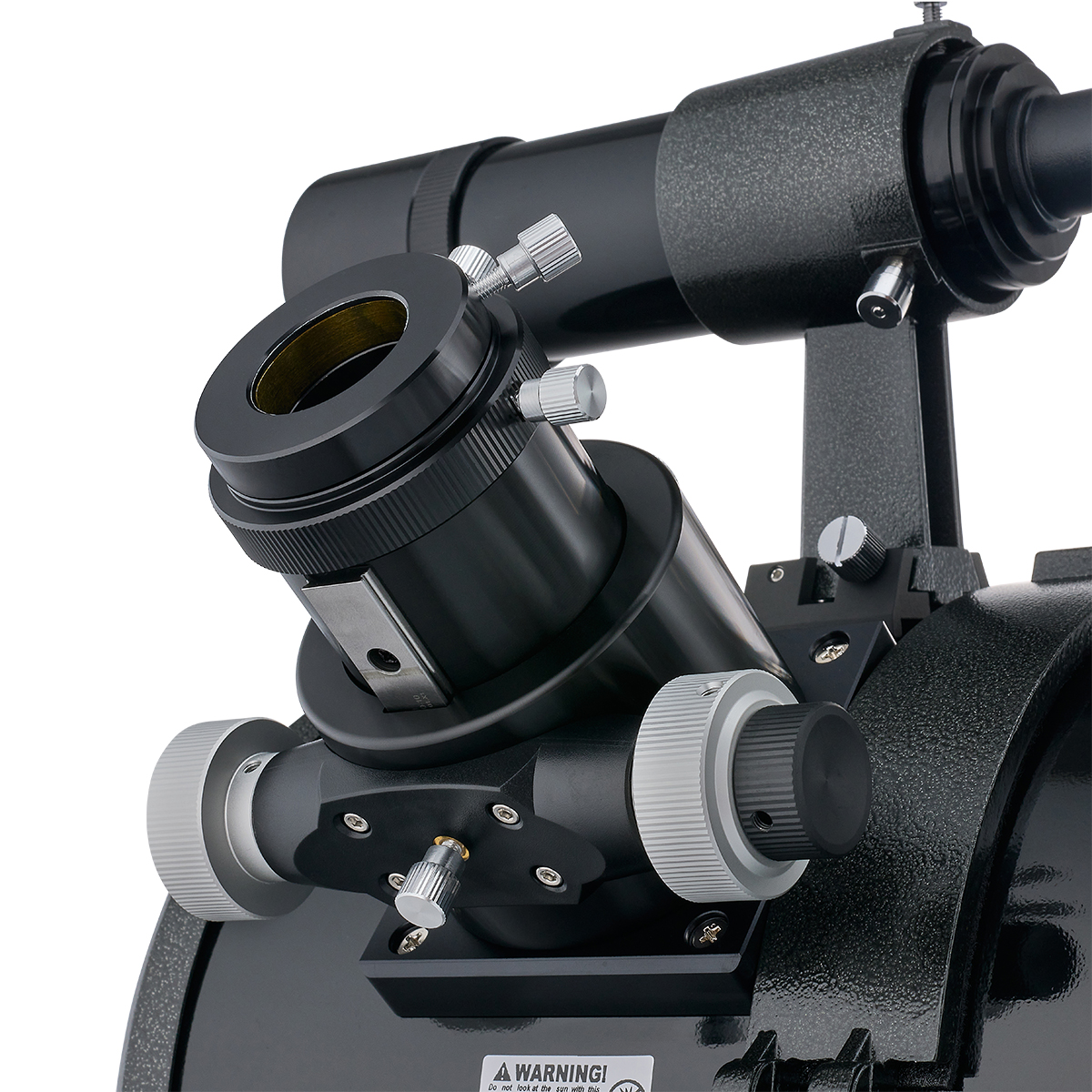

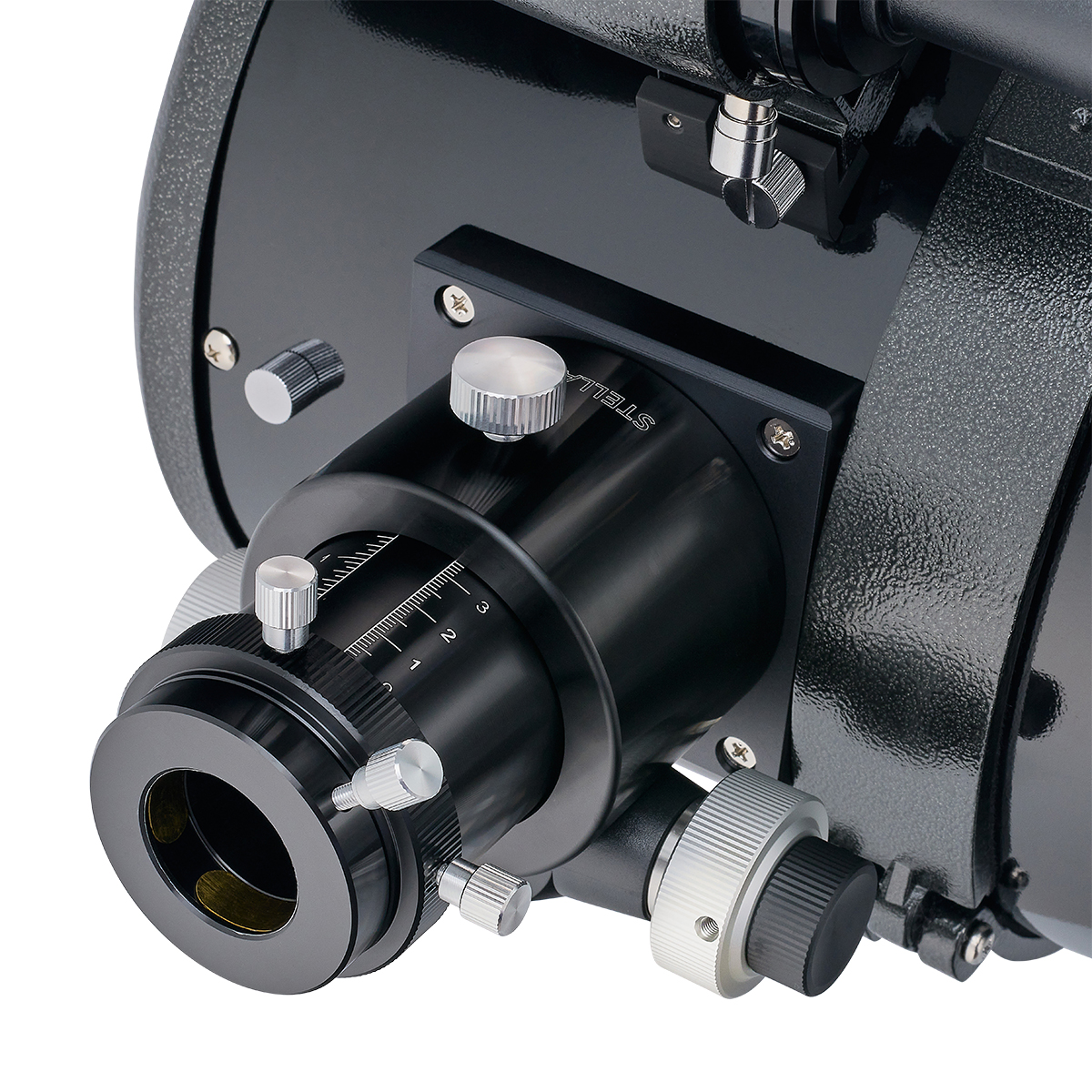

The sturdy dual-speed 2" Linear Bearing (aka Monorail) Crayford focuser has enough tension for most small/medium size imaging payloads and provides precise, smooth focus adjustments.

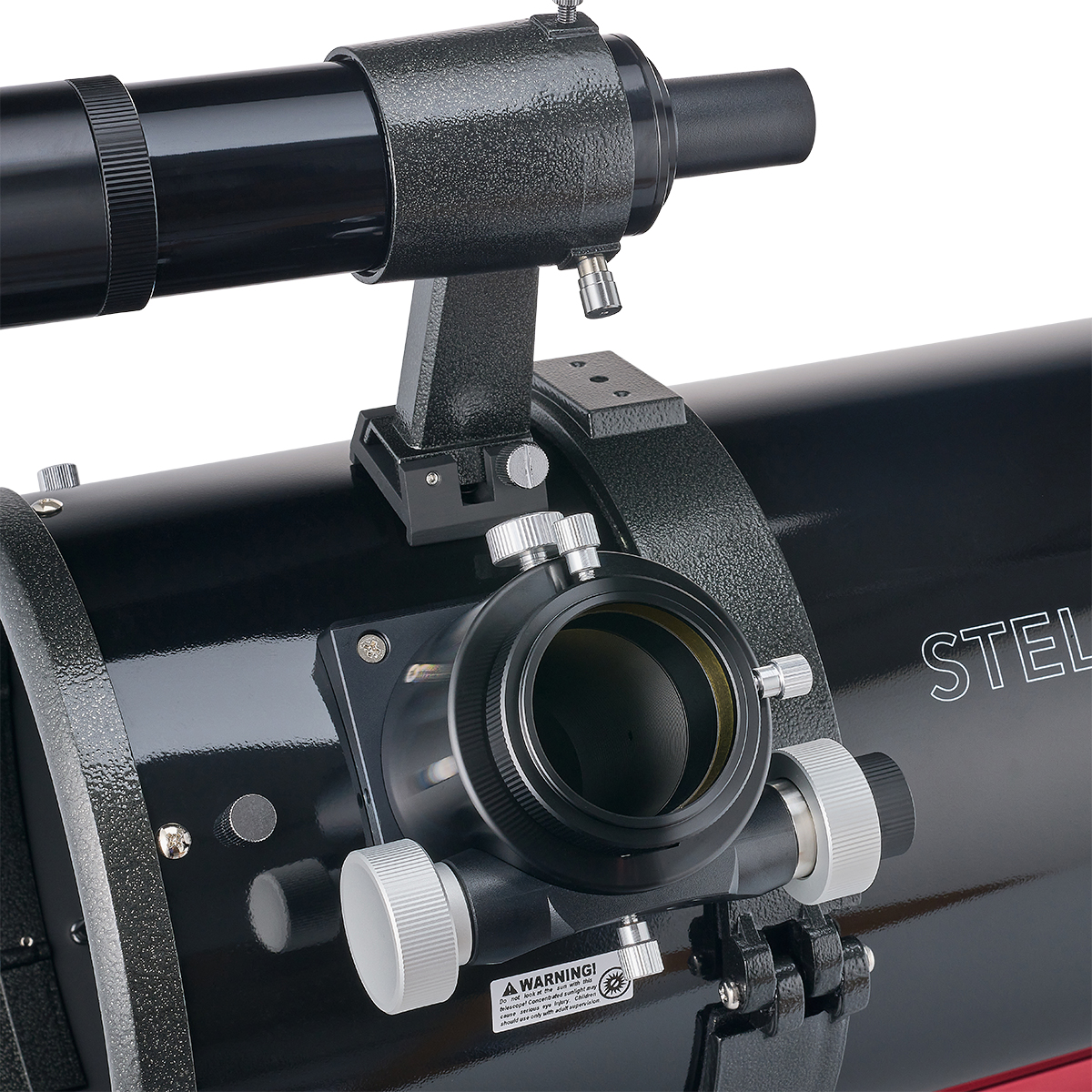

A nicely made 8x50 straight finderscope with fully multicoated optics is included and can be adapted (adapter available separately) for use as a convenient guide-scope.
A 2"-1.25" adapter and 35mm focus extender are included for visual astronomy.
It is supplied with metal tube-rings and a Vixen-style dovetail mounting plate.
Note: For astrophotography, a coma corrector is required for optimum results.
- 203mm (8") optical aperture
- 800mm focal length
- f/4 focal ratio
- BK7 primary and secondary mirrors
- Primary mirror: Parabolic with enhanced Al coating for 93%+ reflectivity
- Secondary mirror: 70mm Minor Axis with enhanced Al coating for 93%+ reflectivity
- Adjustable primary and secondary collimation
- 2" dual-speed Linear Bearing (aka Monorail) Crayford focuser
- Vixen/Synta Style Finder scope base
- 8x50 Straight through finder and bracket
- Vixen-Style 44mm Dovetail
Telescope Field of View Simulator
What's in the box
- Telescope OTA
- 8x50 Finderscope
- 35mm 2" Focus Extension tube
- 2" to 1.25" Adapter
- Tube Rings
- Vixen-style Dovetail
- Cooling Fan & Battery Holder
|Model ||8" f/4 Imaging Newtonian |
|Optical design ||Newtonian Reflector |
|Aperture ||203mm (8") |
|Focal ratio ||f/4 |
|Focal length ||800mm |
|Primary mirror ||BK7 Parabolic primary mirror, minimum 93% reflectivity |
|Mirror coatings ||Aluminum and silicone dioxide (SiO2) |
|Secondary mirror ||Minimum 93% reflectivity |
|Focuser ||2" dual-speed Crayford |
|Finderscope ||Straight Through 8x50 |
|Cooling Fan ||Mirror Cooling Fan with Battery Holder Pack |
|Accessories ||35mm 2" extension tube & 2" to 1.25" eyepiece adaptern |
|Tube outside diameter ||236mm / 9.3" At End Caps, 232mm / 9.2" Across Tube Body |
|Tube length ||730mm / 28.7" |
|Tube weight ||8.4kg / 18lbs 8oz with Rings / Dovetail / Finder |
