About this product
Part Number: 2956256

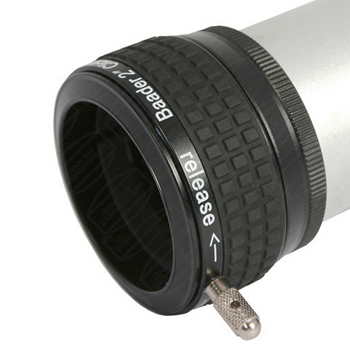

Screws directly to the M56 thread on the Sky-Watcher 80ED, 100ED, 120ED & Evostar 120 telescope's focuser draw tube.
Also fits Celestron and Orion equivalent telescopes.
Once you start using the Baader ClickLock Terminal you’ll never want to go back…
The ClickLock mechanics have already been tried and trusted with Baader's earlier 1.25" model. The larger 2" ClickLock series is even better!
Optical path: 37mm
Features of the Baader 2-inch ClickLock System
- Even a 20 degree rotation of the rotary lever sufficient enough to firmly and safely secure any 2” accessory.
- The heaviest tested load is a complete C14 telescope with bolt-SCL terminal (# 2956233) and a 2 "Click Lock diagonal (# 2926100) with Scopos 30mm Ultra eyepieces (# 3004030) shown in the photo. The C14 was raised by holding the eyepiece! (We don't recommend this, please don't try it).
- Ratchet function - shows acoustic and haptic display of the position of the clamp. You’ll be able to recognise even in the dark and without examination if the terminal is open or closed.
- Massive clamp (tension ring) holds even the most expensive accessories absolutely safe and free of scratches and bruises.
- CL-terminals - available for many telescope systems. Extensive range of clips allows the retrofitting of the Baader 2” ClickLock-clamping on many telescopes (or accessories). (More ClickLock terminals for Vixen and other branded telescopes are in preparation)
- The position of the rotary lever is adjustable by 6 camera-head screws, or by 6 Allen keys; with the help of these the CL terminal can be set for left-handed operation as an option.
|Average Rating (7 Reviews): |Great replacement for the stock visual back on my C8
01 November 2021 | Armando
Definitely gives me confidence that my diagonal is secure and won't rotate or worse yet, fall out. A slight ratchet to the right and my diagonal is securely attached to the visual back. And, a slight move to the left unlocks the clamp and releases the diagonal. No more worries.
Great product and great service from FLO
27 July 2021 | Alexandre
I live in Canada and the item was never available here. Always back order. So I decided to buy from FLO. Excellent service. It all happened in less than a week. Great product and great service. Thanks FLO!
04 July 2020 | Rodger
great service from FLO as ever
Don't be put off by the price as this is probably the best way to secure imaging equipment to the scope.
Small cost vs camera, EFW etc hitting the floor.
22 May 2020 | Stephen
purchased for my ed 80 which I'm using as a solar scope.
Perfect fit and holds the diagonal., quark and ep nice and solid.
07 December 2019 | Lee
Great replacement for the ED80 Pro and really is a solid flexibly way of attaching eyepiece/camera accessories. With the reducer and adapter the distance the focuser extends is a lot less due to the optical path addition of 37mm.
09 September 2019 | Mike
An expensive piece of kit but well worth the money a quality itiem that does the job it is designed for
No more wories about the diagnol slipping and crashing to the floor
A nice upgrade to my Skywatcher ED80 Telescope - Fast delivery to Australia
10 January 2019 | Rob
I have been looking for this item locally and stores are out of stock so I decided to try an order with FLO. I am happy to say it arrive within three days. UK to Sydney Australia - just fabulous. The item itself holds the eyepiece or the ZWO camera much more securely. Recommended upgrade for the ED80.
