Deep Sky Dad AF3 Autofocuser Kit for Askar FMA180 Telescope
  Zoom
 Deep Sky Dad AF3 Autofocuser Kit for Askar FMA180 TelescopeDeep Sky Dad AF3 Autofocuser Kit for Askar FMA180 Telescope

Deep Sky Dad AF3 Autofocuser Kit for Askar FMA180 Telescope

£255.00✓ 2 year warranty

:

1x in stock shipped 1-2 working days
Share

About this product

Model:  deepskydad_af3_fma180
Part Number:  AF3ASKARFMA180

Introducing the Deep Sky Dad AF3 Auto Focuser kit for the Askar FMA180 Telescope.

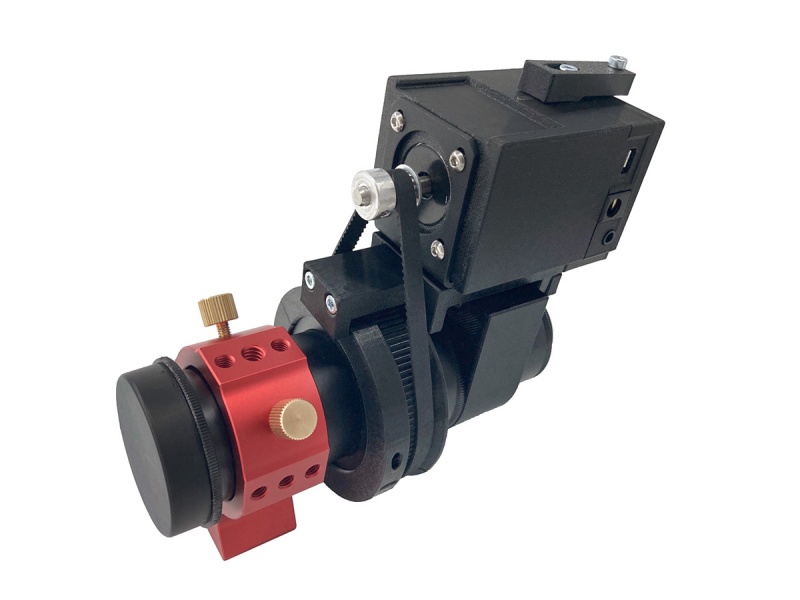

The autofocusing motor rests on the special trolley, connected to the rails. This keeps autofocuser pulley in line with lens focusing ring and enables a balanced, compact solution.

The AF3 boasts a stealth drive feature to minimise noise and vibration. In addition to the smoother motion it also provides more accurate movement with micro stepping down to 1/256. The enclosure was also optimised for easier assembly but has retained backwards compatibility with existing Astro Dad adapters.

The AF3 is ASCOM/INDI compatible.

Features

  • ASCOM/INDI Supported
  • INDIGO Supported
  • The SKy X Pro X2 Focuser Plugin
  • Custom Step Size
  • Speed/Current Control
  • Optional Hand Controller
  • Optional Temperature Probe
  • Settle Buffer Option
  • Compact Design (44.5mmx48.5mmx50.2mm)
  • Weight 170grams

Software Downloads

Power adapter: 12V - 14V MAX (1A min) with 5.5mm x 2.1mm plug (not included)

Connectivity (not included): Mini USB cable OR Micro USB cable (2020)

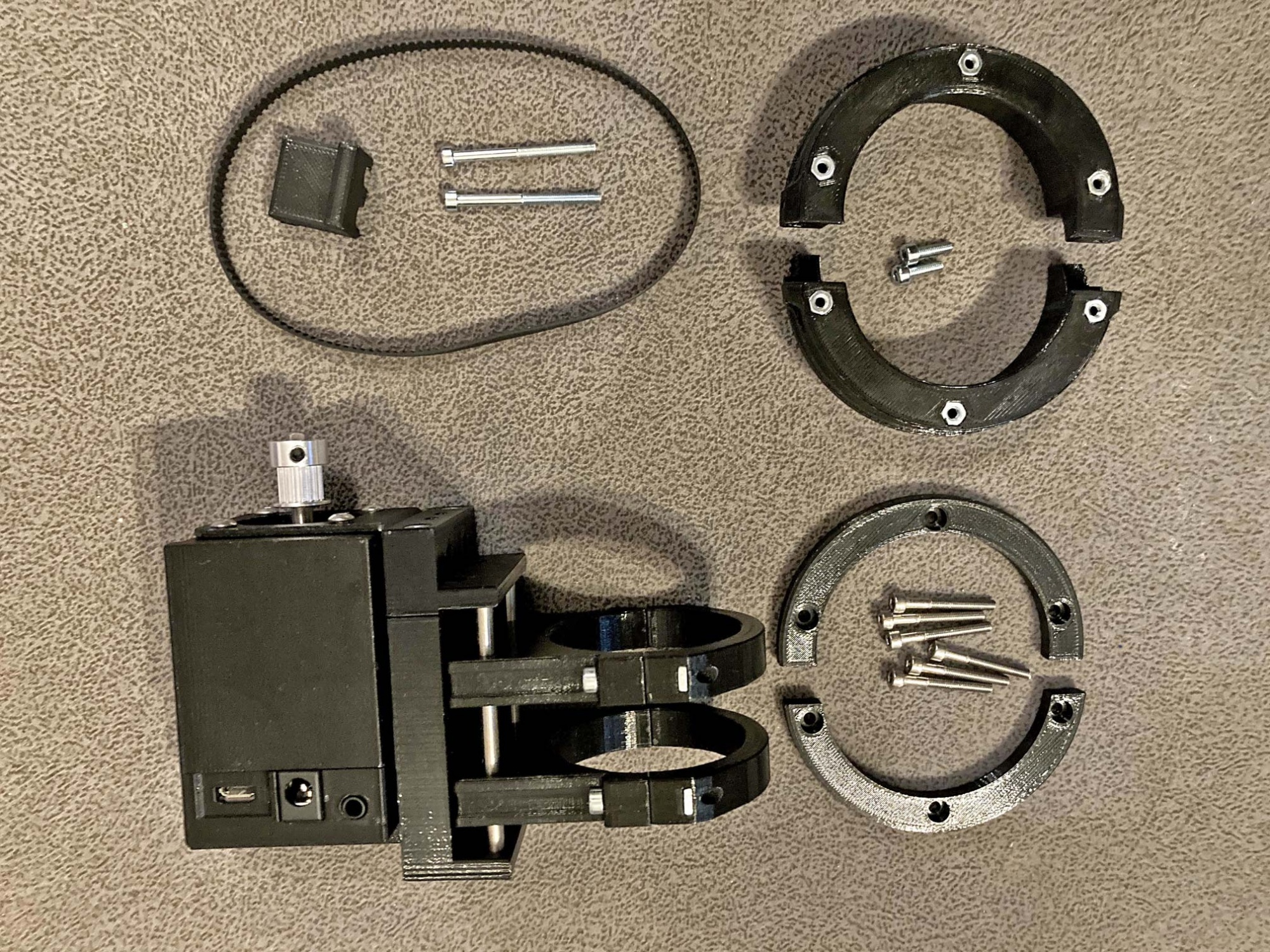

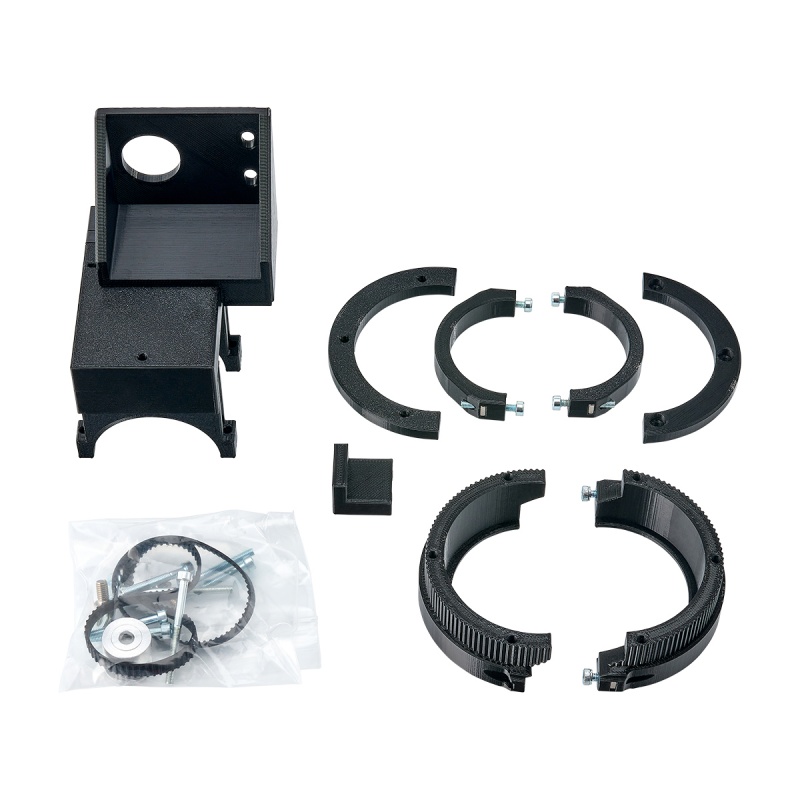

What's in the box

  • 1x AF3s unit, assembled (trolley, rails, compression rings)
  • 1x 20T MXL pulley
  • 1x 3D printed helical focuser compression MXL ring
  • 1x 3D printed helical focuser compression MXL ring lid
  • 1x 3D printed helical focuser compression MXL ring arm
  • 1x MXL timing belt
  • 2x 10mm M3 bolt (for 3D printed helical focuser compression ring)
  • 6x 25mm M3 bolt (for attaching MXL ring lid)
  • 2x 35mm M3 bolt (for attaching MXL ring arm)
