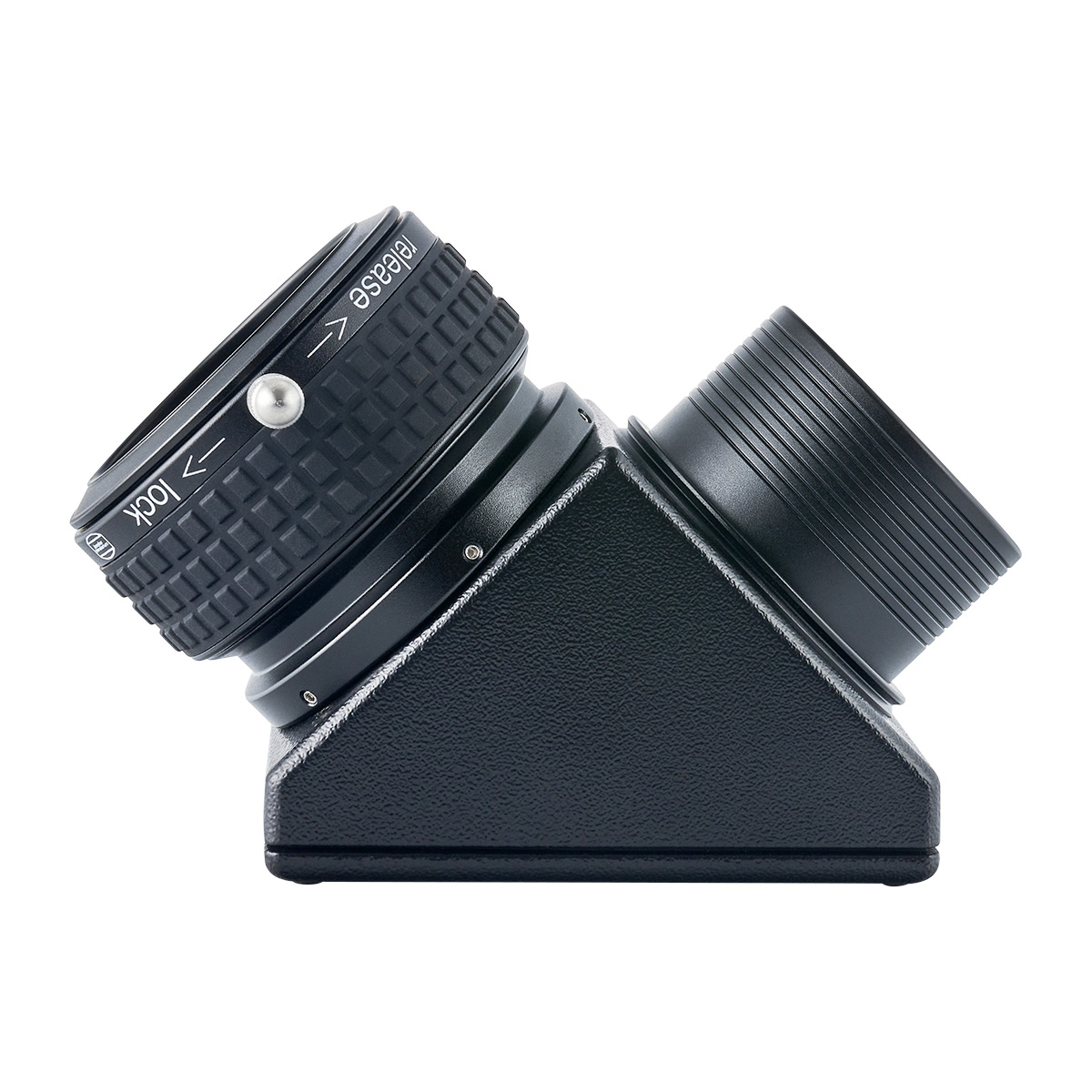

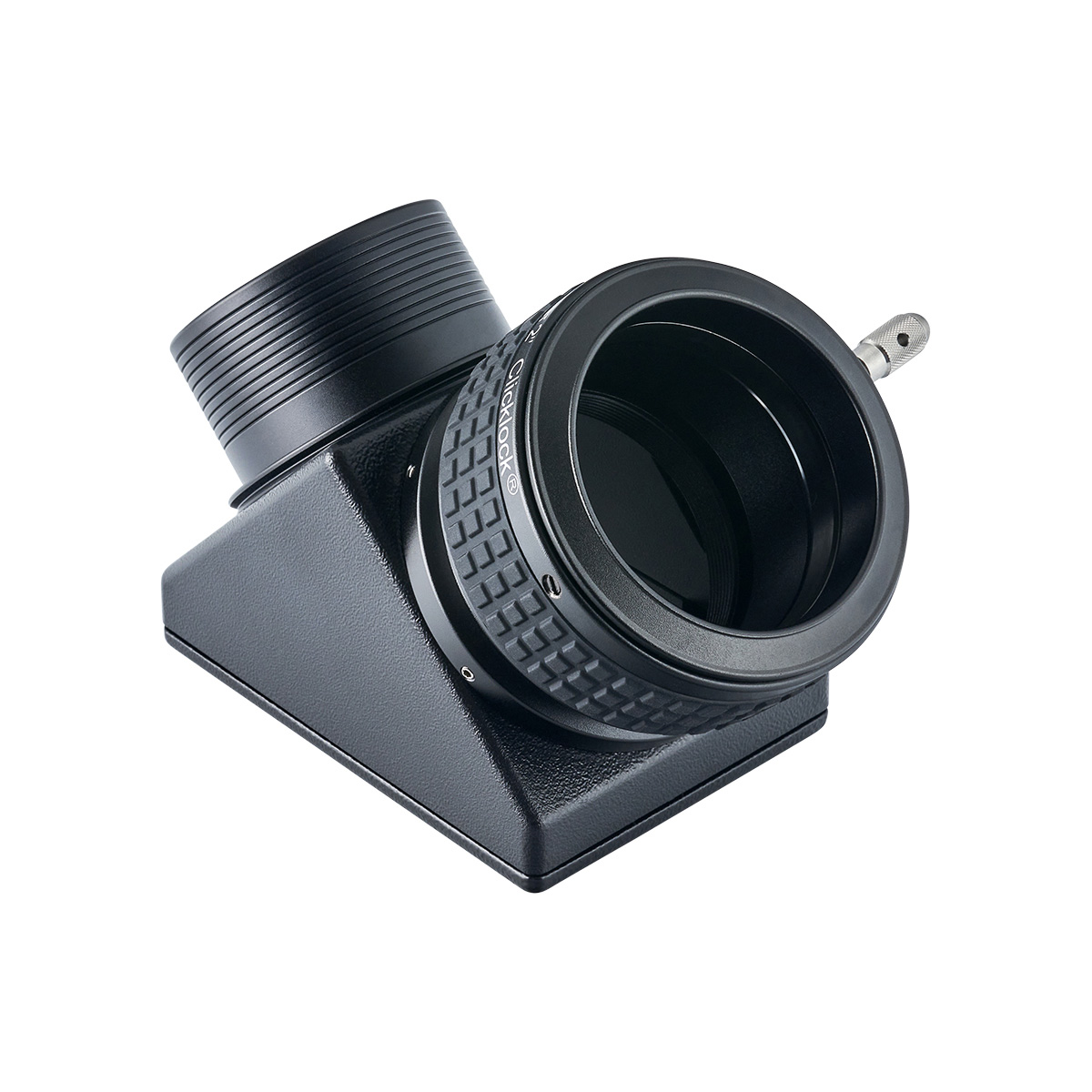

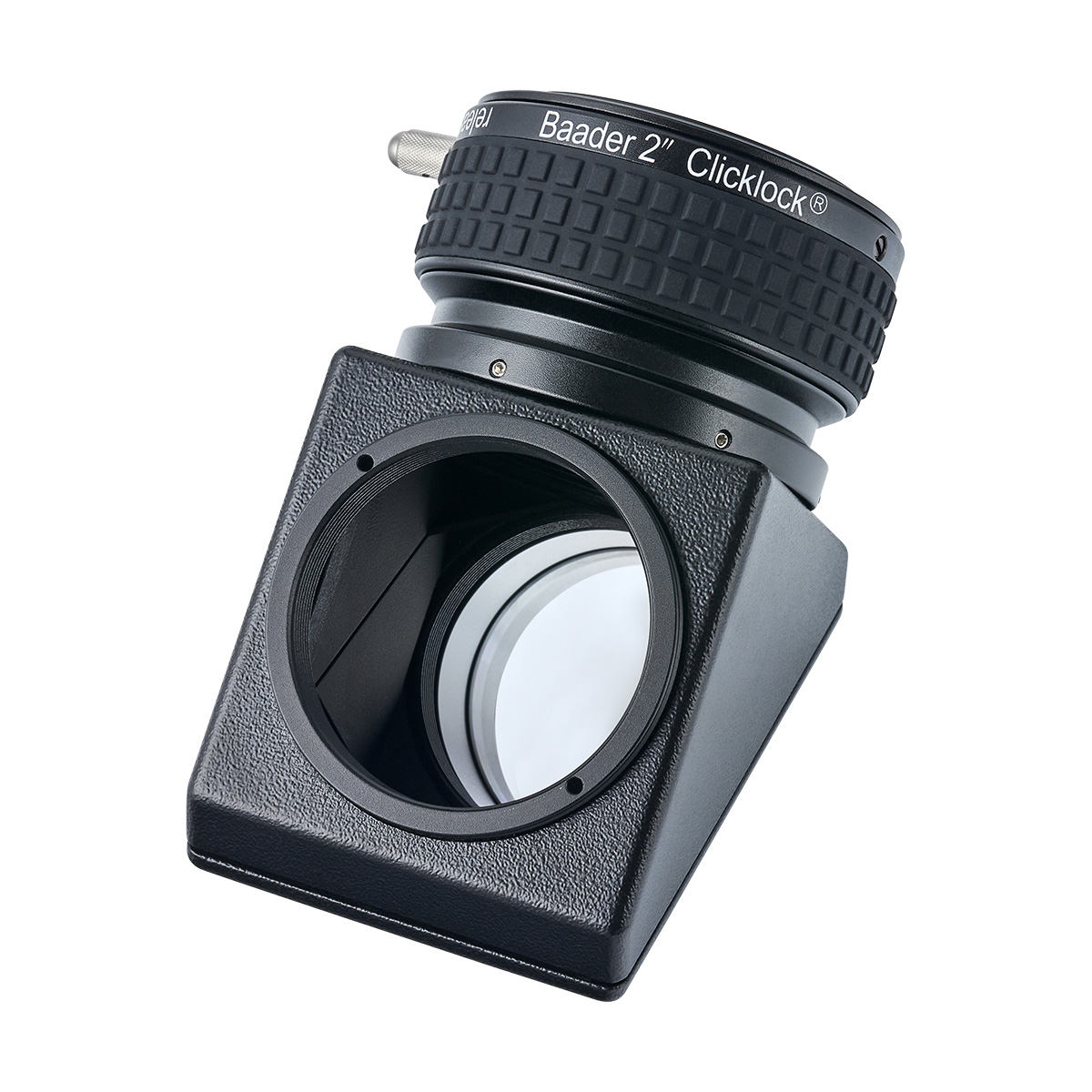

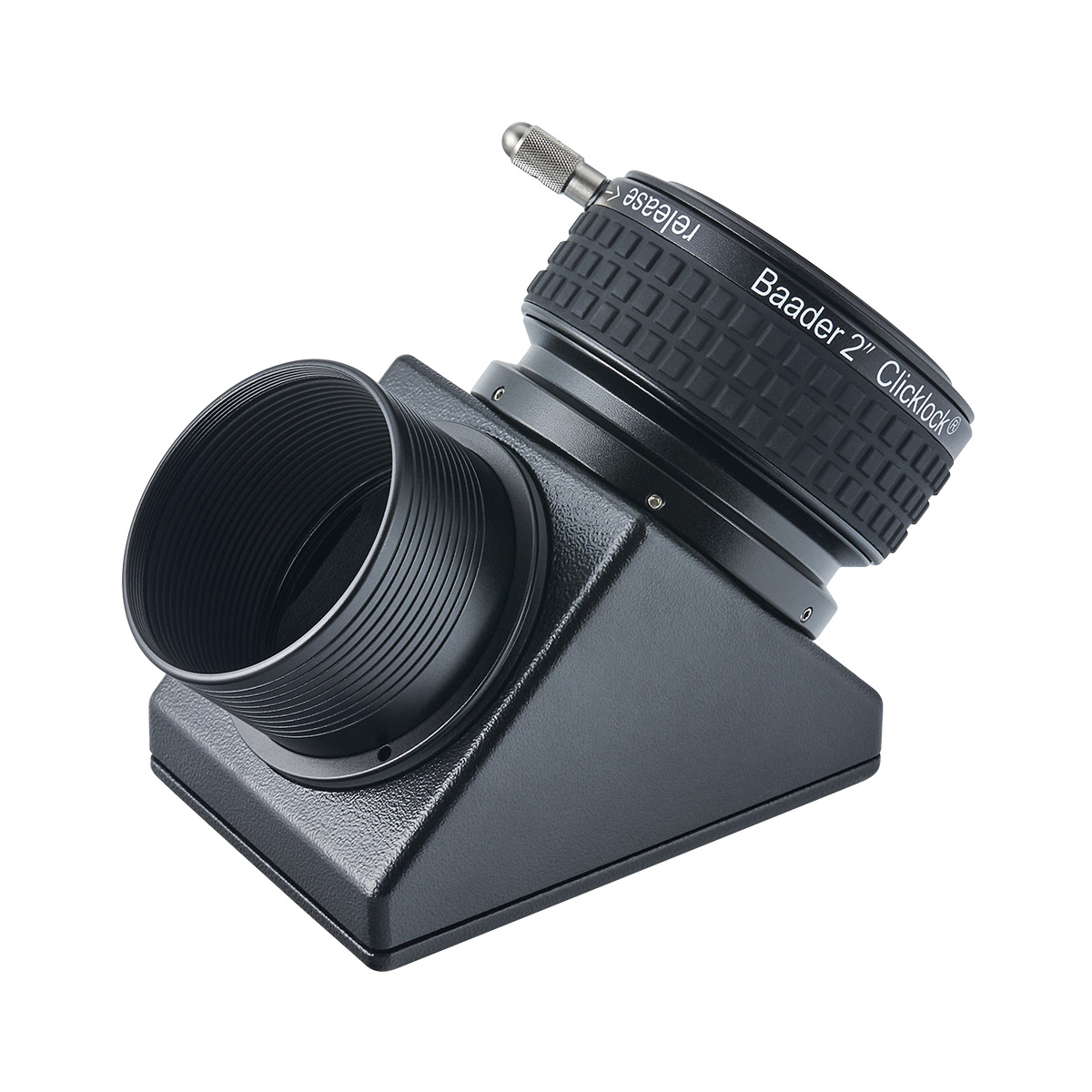

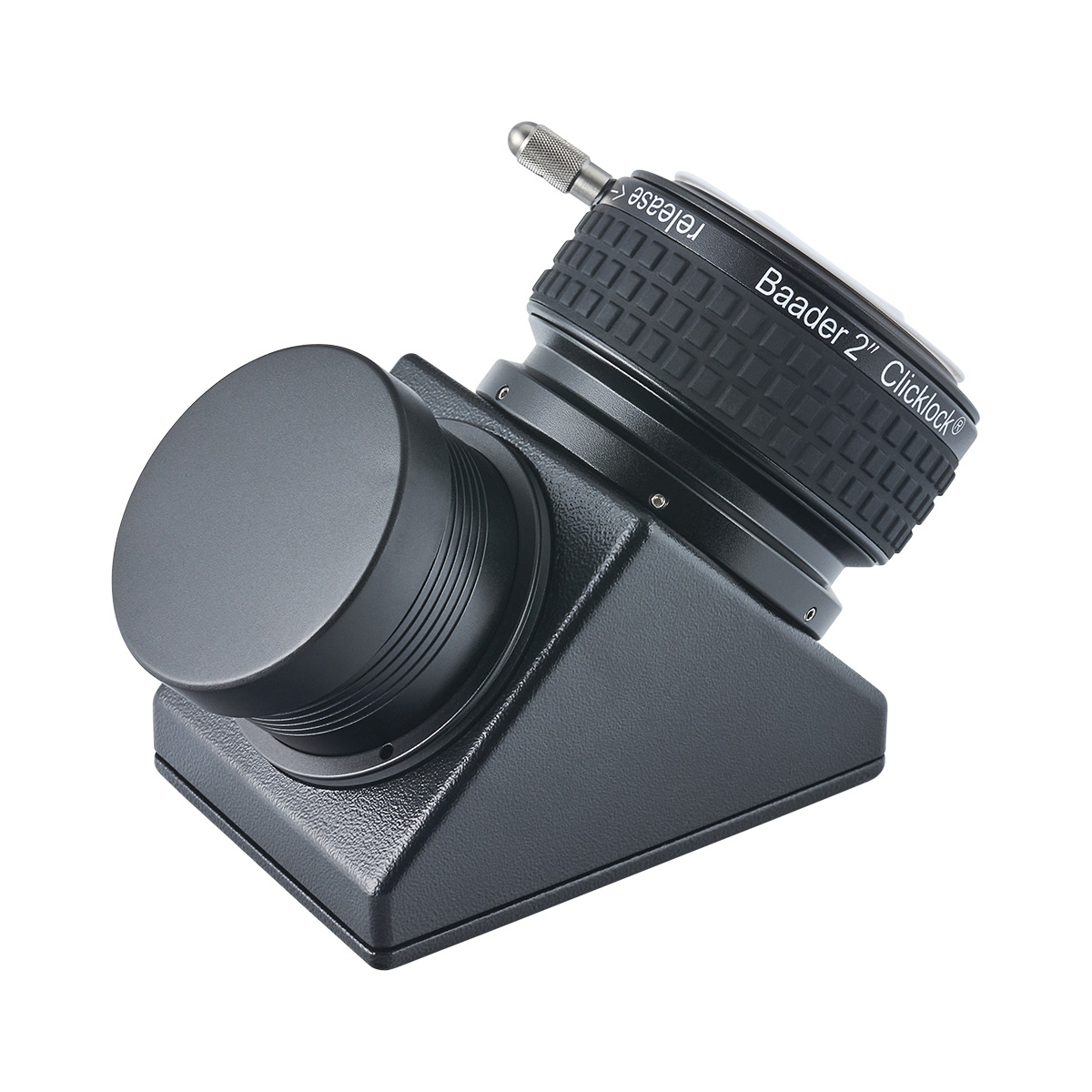

Baader 2'' BBHS Diagonal with 2'' ClickLock Clamp
  Zoom
Baader 2'' BBHS Diagonal with 2'' ClickLock ClampBaader 2'' BBHS Diagonal with 2'' ClickLock ClampBaader 2'' BBHS Diagonal with 2'' ClickLock Clamp
Baader 2'' BBHS Diagonal with 2'' ClickLock ClampBaader 2'' BBHS Diagonal with 2'' ClickLock Clamp

Baader 2" BBHS Diagonal with 2" ClickLock Clamp

£358.00✓ 2 year warranty

:

Out of stock due 15-20 working days

About this product

Model:  baader_2456115
Part Number:  2456115

Baader 2" BBHS Mirror Diagonal with 2" ClickLock Clamp

Superb quality 2" diagonal with ultra secure 2" ClickLock Clamp and safety Kerf nosepiece with 2" filter thread.

FEATURES

  • 2" BBHS star diagonal with 2" ClickLock terminal and black case. Provides greatest reflectance over most spectral range from 390 to 2000nm
  • Includes Baader 2" Safety Kerf nosepiece with 2" filter thread (#240815) with additional grip and security from inadvertent slipping
  • Much higher in brilliance than standard dielectric coatings
  • BBHS = Broadband Hardsilver coating with dielectric protective overcoating
  • T-2 BBHS-Sitall zenith mirrors on both sides with T-2 Photo thread

Specifications

MANUFACTURER Baader Planetarium
SKU (#) 2456115
WEIGHT (KG) 0.444
OPTICAL DESIGN Mirror Diagonal
INNER CONNECTION (LENS SIDED) Thread, M48, M55, 2" (50,8mm)
OUTER CONNECTION (LENS SIDED) Barrel, Dovetail ring, S58, 2" (50,8mm)
INNER CONNECTION (EYEPIECE/-CAMERA-SIDED) Thread, Clamp, M55, 2" (50,8mm)
REFLECTION SURFACE BBHS coated, Dielectrically protected
IMAGE ORIENTATION Erect image, Mirror inverted
OPTICAL LENGTH (MM) 112
CLAMPING SYSTEM ClickLock
DEFLECTION ANGLE 90°
INNER DIAMETER / CLEAR APERTURE (MM) 47.5
