About this product

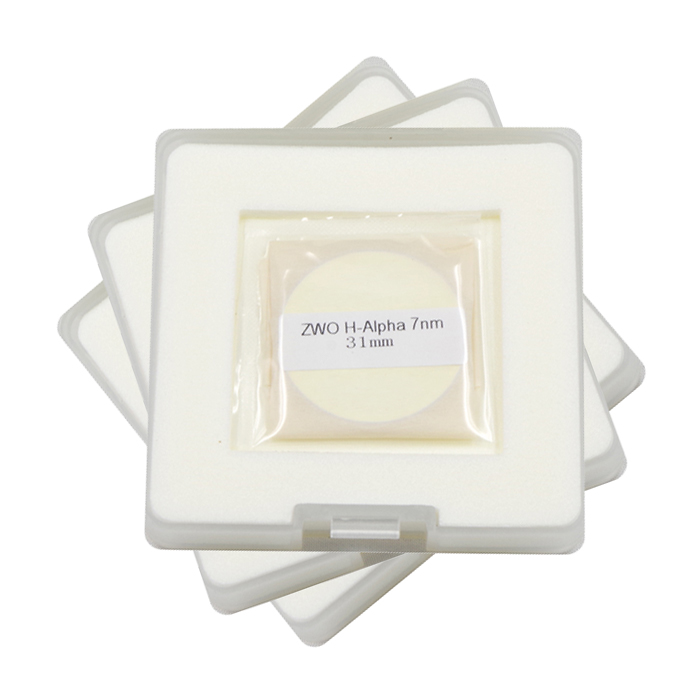

Part Number: ZWO-NB7nmD31
New & Improved with higher light transmission and less reflection (reduced halos around bright stars).
Has a bandwidth of 7nm and passes light at 656nm wavelength.
Has a bandwidth of 7nm and passes light at 500nm wavelength.
Has a bandwidth of 7nm and passes light at 672nm wavelength.
- FWHM: 7±0.5nm
- Glass Thickness 2.0+/-0.03 mm (1.25”/31mm/36mm)
- Fine optically polished glass ensures accurate 1/4 wavefront over both surfaces
- Around 90% transmission at selected wavelengths
- Infrared wavelength 700-1100nm cut-off
- <0.1% transmission of off-band, OD3 (Optical Density)
