About this product
Part Number: ASI533MM-P
Features Sony's highly sensitive 9MP IMX533 sensor, 2-stage TEC cooling and no Amp Glow!

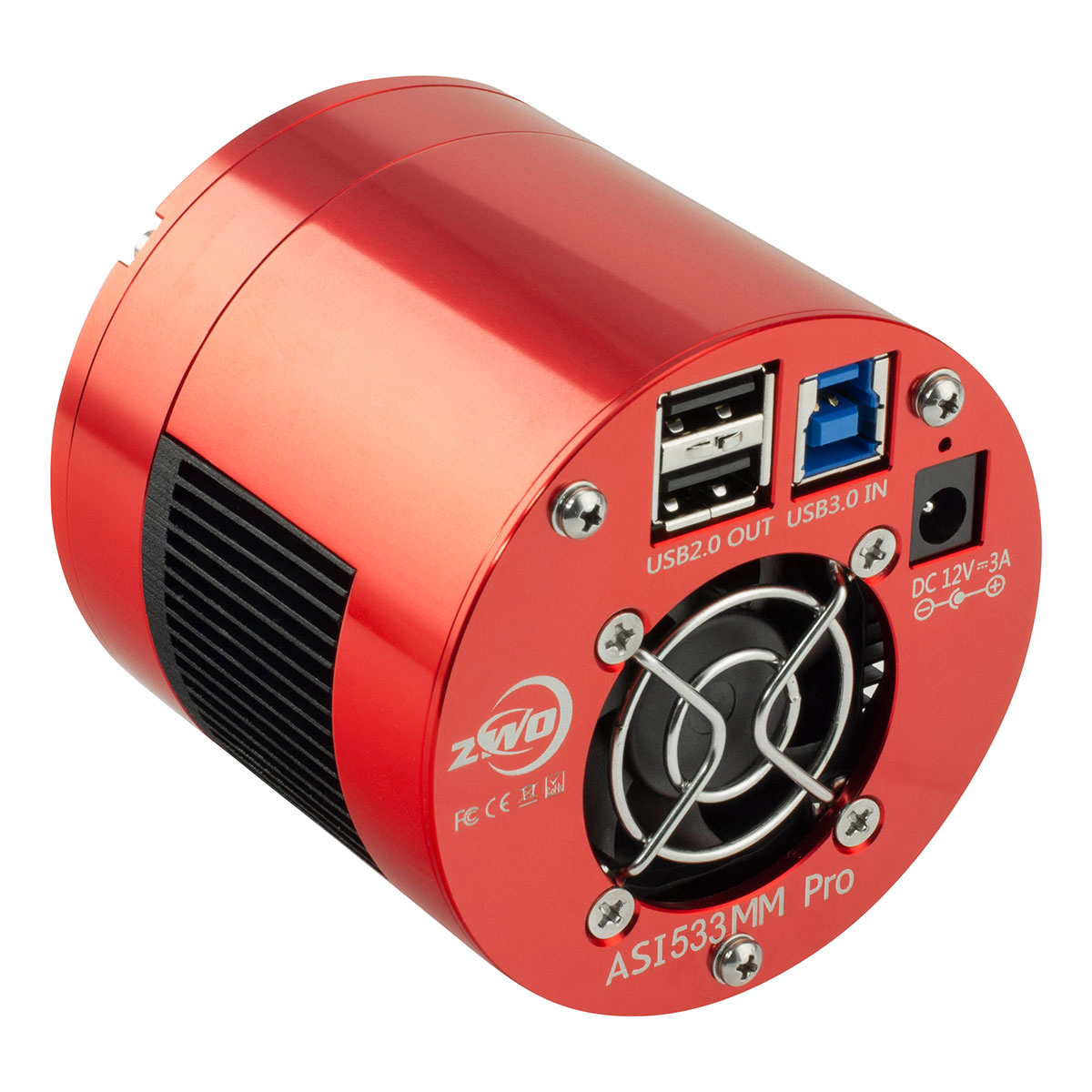

The ASI533MM PRO features SONY’s latest back illuminated IMX533CLK-D sensor, with a square (15.97mm diagonal) 9.07MP sensor that is ideal for astronomical photography needs and is the monochrome equivalent to the very successful ASI 533MC-Pro.
As you would expect this latest generation camera retains the key features of the ASI183 and ASI533 MC Pro cameras such as an attractive QE figure, high frame rate along with other excellent characteristics of the ASI183/ASI533 MC Pro cameras, including new and improved features such as zero amp glow, extreme low read out noise (as low as 1.0e), 3.76 microns pixel size and an improved 2 stage TEC cooler giving enhanced cooling capabilities.
The IMX533 is a 9MP CMOS image sensor with a square format and 3.76 um pixel size, capable of producing frames at 20 frames/sec in 14bit mode.
Read out noise is as low as 1.0e which makes it comparable to SCMOS or EMCCD sensors and highly suitable for high definition, low noise imaging.
All ZWO cameras include a 2-year warranty.
- Sony IMX533 CLK-D Sensor
- 256MB DDR3 Memory Buffer
- Zero Amp Glow!

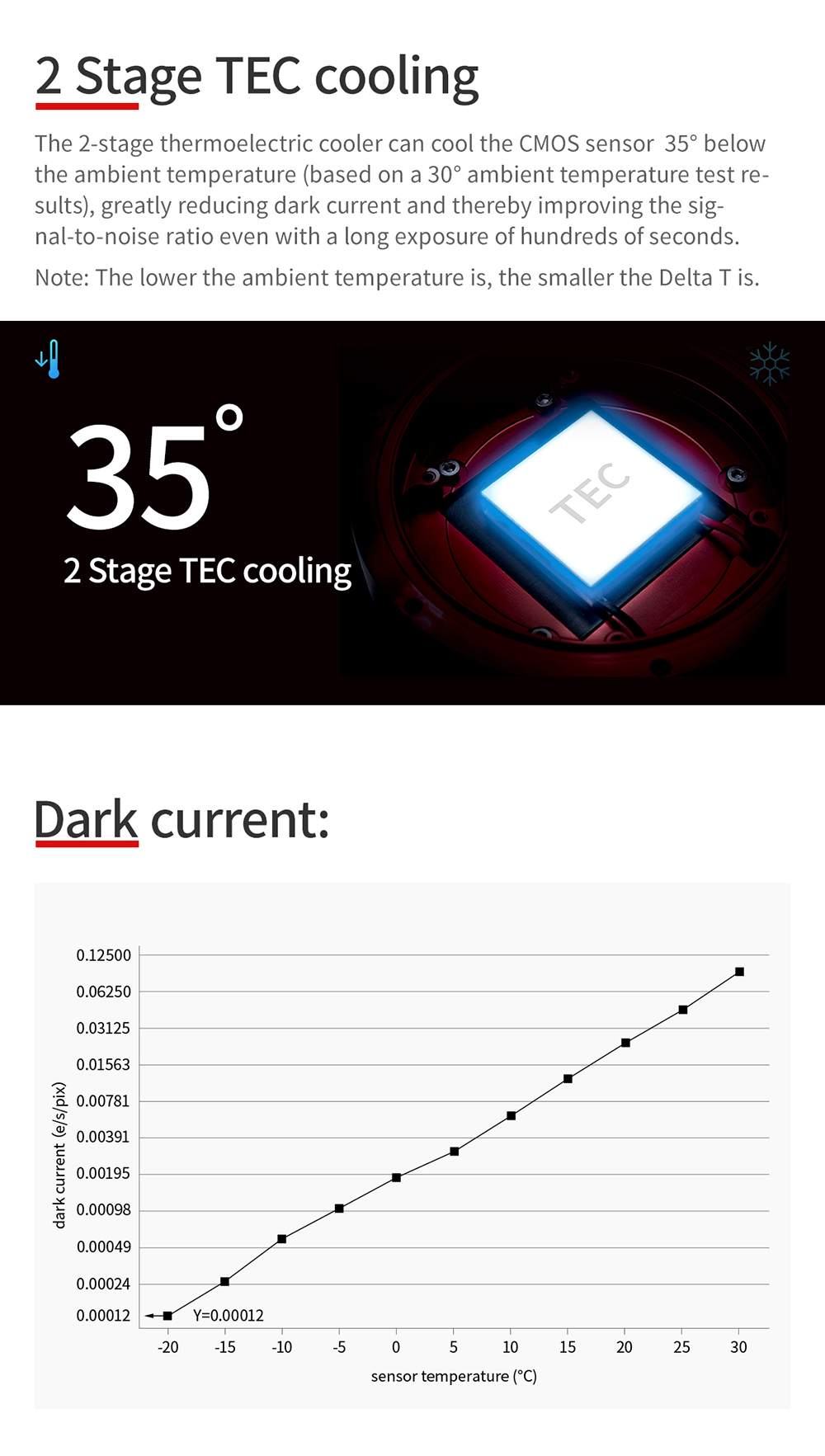

- Regulated two-stage Tec-Cooling: 35 degree below ambient temperature
- Extremely low read noise - 1.0-3.8e
- 14Bit ADC - provides real 14bit dynamic range

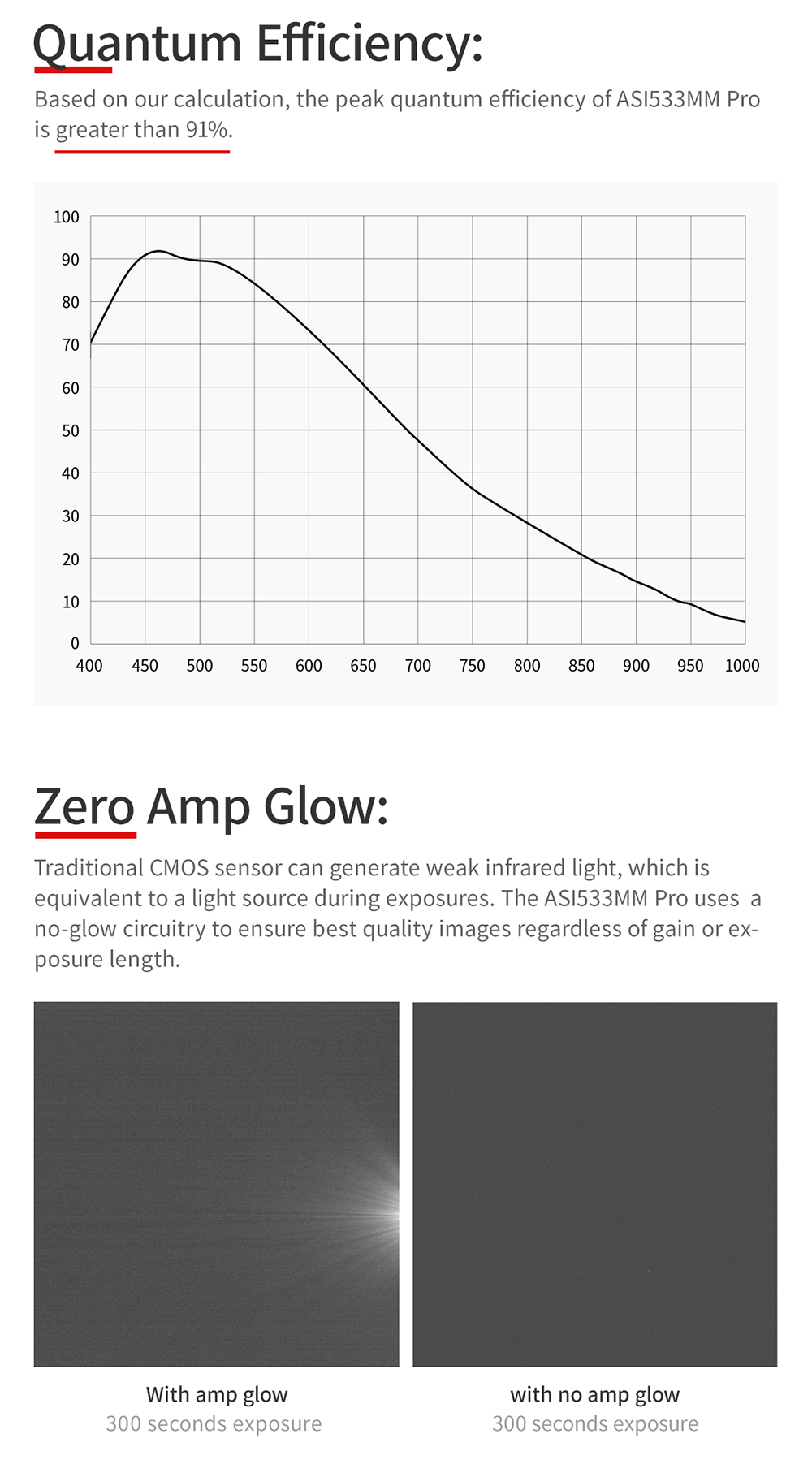

- QE Peak - 91%
- Full Well Depth - 50000e
- Electronic shutter - no issues with vibrations sometimes found in mechanical shutters
- USB3.0 Port (back compatible with USB2.0) - 20fps@3008x3008
- AR coated protective window - all light can pass

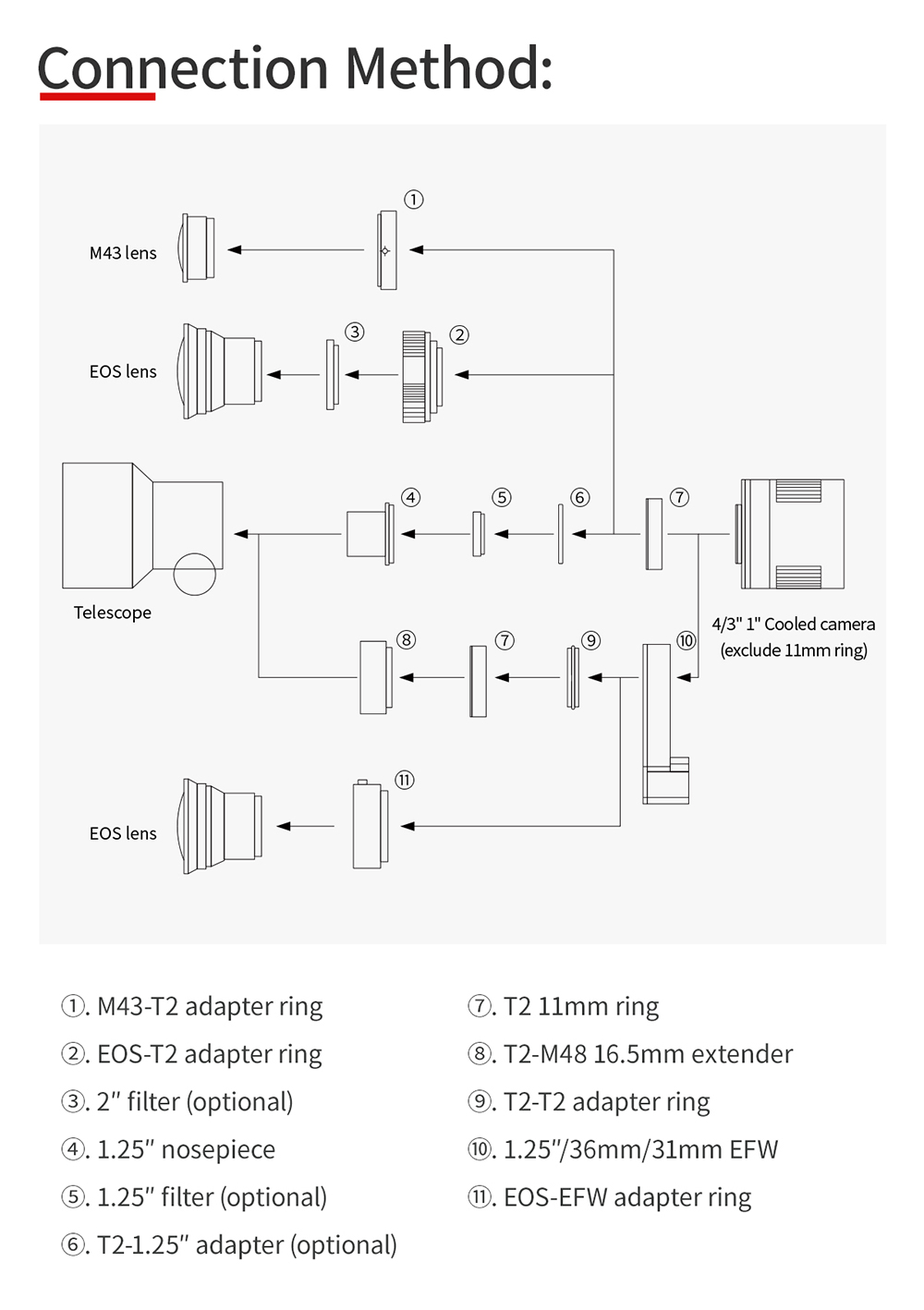

- Interface M42x0.75
- Compatible with Windows / Mac OS / Linux

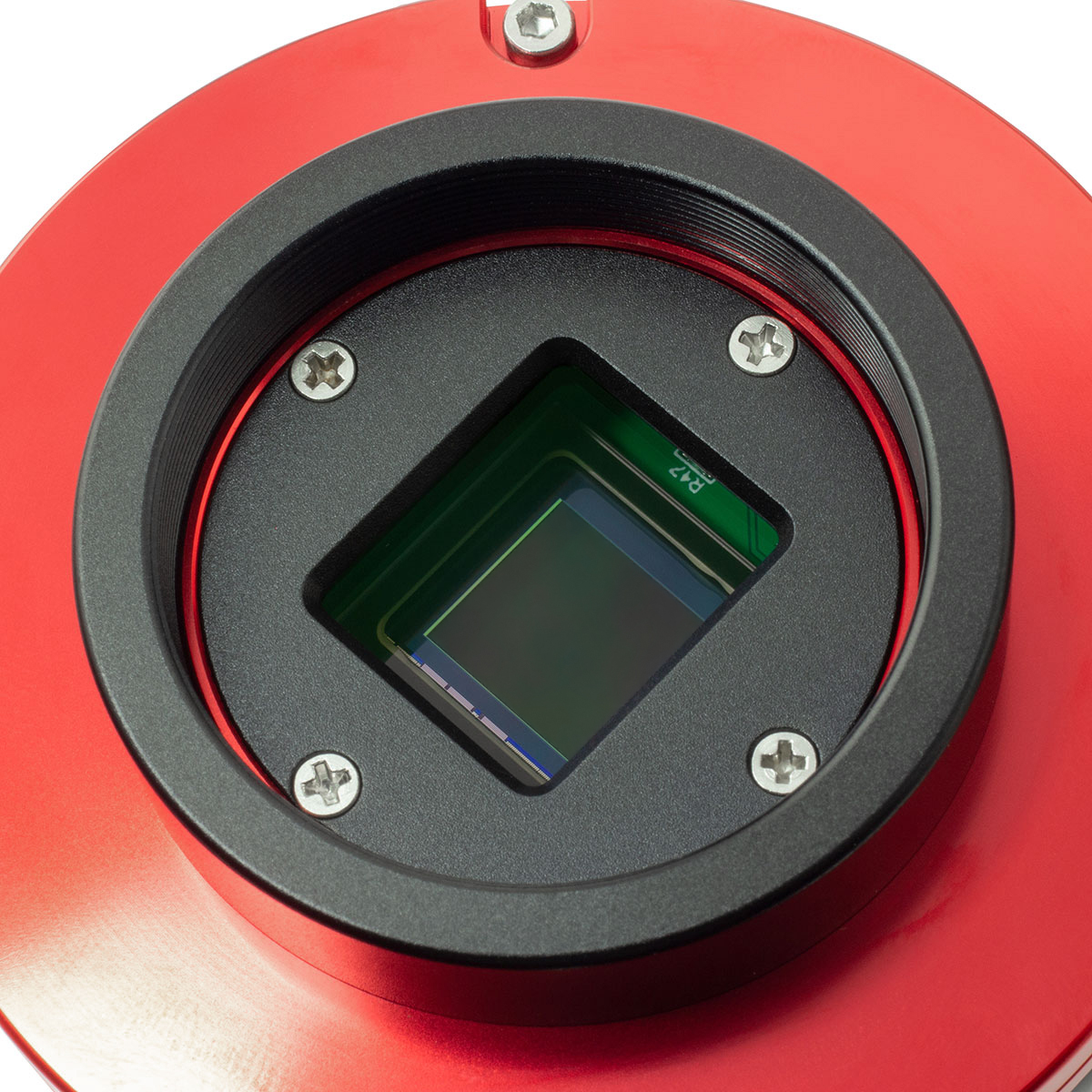

IMX533 backlit sensor
Sony’s back-illuminated CMOS image sensor improves sensitivity and noise reduction – the key factors to enhancing image quality, while radically realigning their fundamental pixel structure from front-illumination to back-illumination. It has retained the advantages of CMOS image sensors such as low power consumption and high-speed operation.
With a conventional front-illumination structure, the metal wiring and transistors on the surface of the silicon substrate that form the sensor’s light-sensitive area (photo-diode) impede photon gathering carried out by the on-chip lens. A back-illuminated structure minimises the degradation of sensitivity to optical angle response, while also increasing the amount of light that enters each pixel due to the lack of obstacles such as metal wiring and transistors that have been moved to the reverse of the silicon substrate.
Sony has newly developed a unique photo-diode structure and on-chip lens optimised for back-illuminated structures, that achieves a higher sensitivity and a lower random noise without light by reducing noise, dark current and defect pixels compared to the conventional front-illuminated structure.

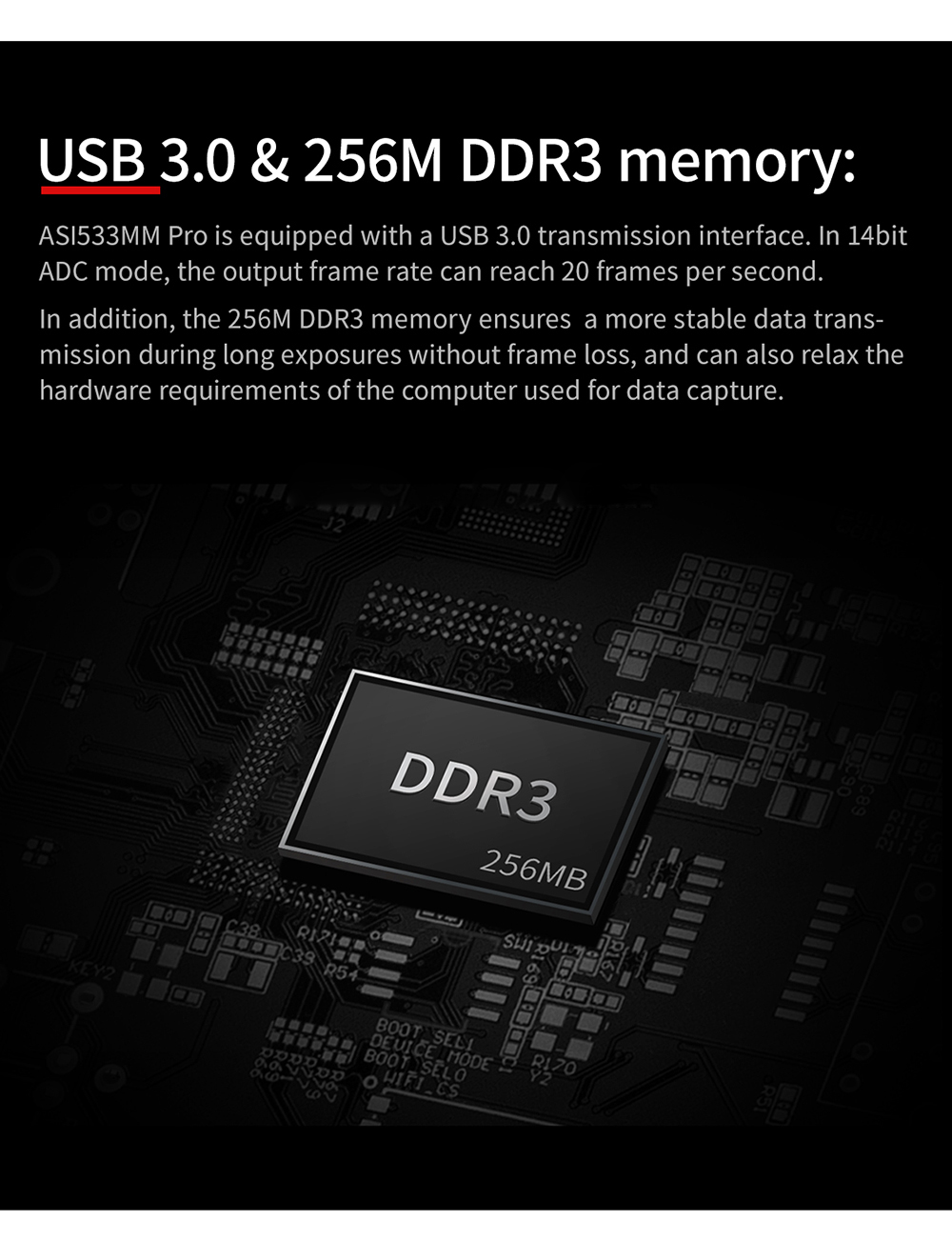

DDR Memory Buffer
ZWO Pro cameras feature a 256MB DDR3 memory buffer to enable data transfer stability and reduced amp-glow caused by the slow data transfer speed when using a USB2.0 port.
Camera Field of View Simulator

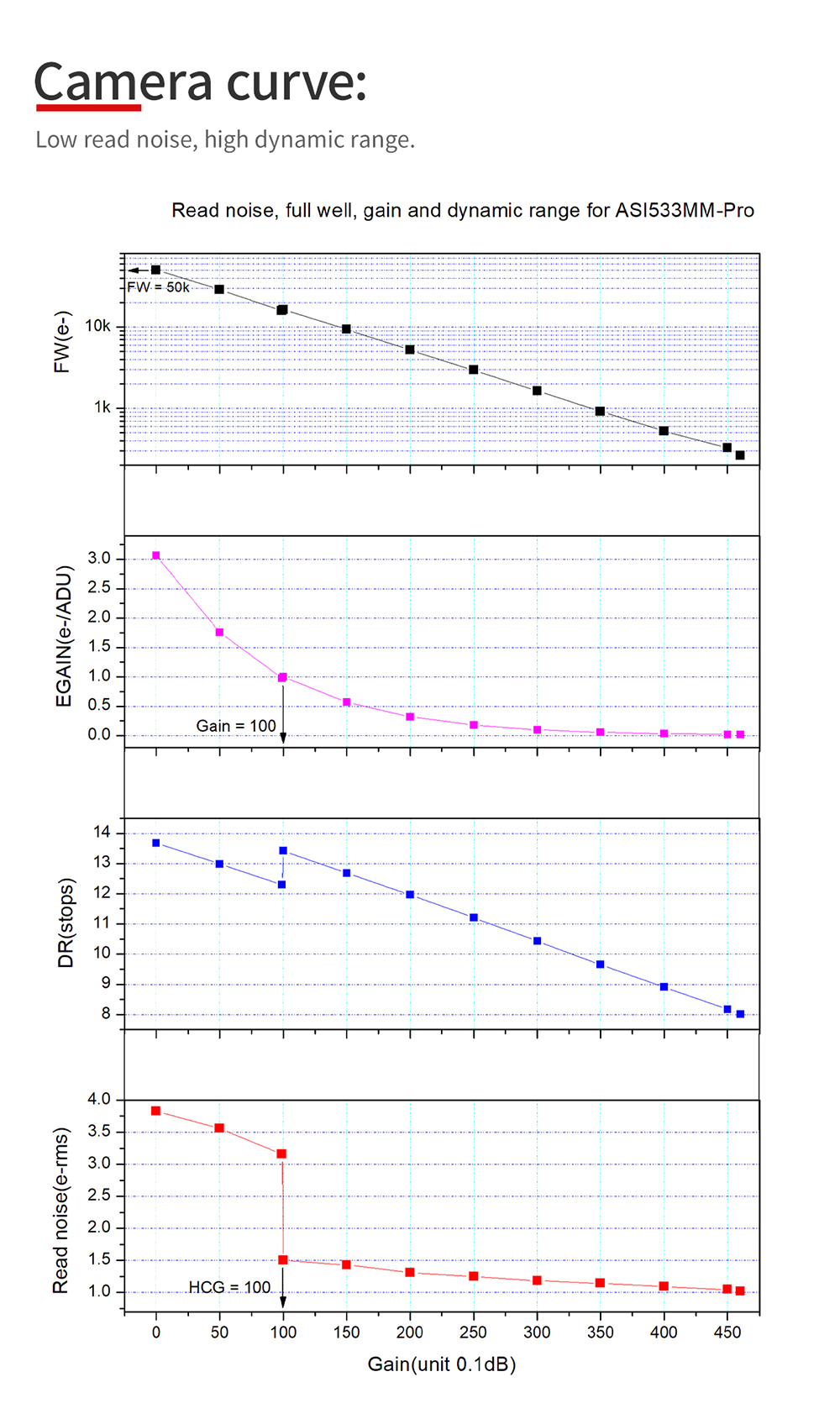

Low read-out noise, high dynamic range.
|Sensor ||Sony IMX533CLK-D |
|Diagonal ||15.97mm |
|Resolution ||9 Mega Pixel 3008*3008 |
|Pixel Size ||3.76μm |
|Max FPS at full resolution ||20fps |
|No Bayer Pattern ||Monochrome |
|Shutter ||Rolling shutter |
|Exposure Range ||32μs-2000s |
|ROI ||Supported |
|Read Noise ||1.0-3.8e |
|QE peak ||TBD |
|Full well ||50000e |
|ADC ||14bit |
|DDRIII Buffer ||256MB |
Non-volatile memory /
On camera storage
Build-in total 192K byte user-accessible space
(image size up to 480X320)
|Interface ||USB3.0/USB2.0 |
|Interface ||USB3.0/USB2.0 |
|Adaptor ||M42X0.75 |
|Protect window ||D32-2-AR |

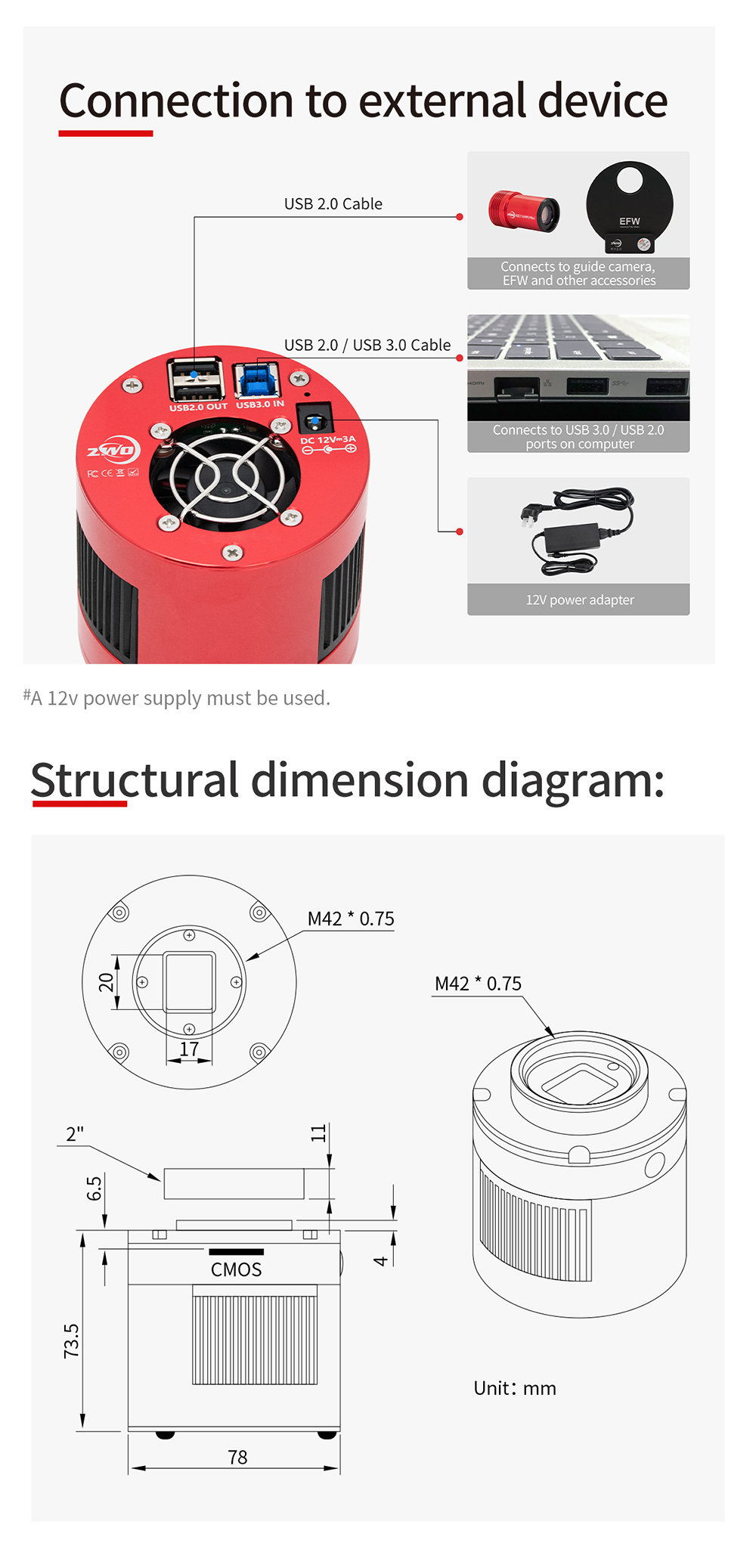

|Dimensions ||78mm Diameter |
|Weight ||470g |
|Back Focus Distance ||17.5mm |
|Cooling ||Regulated Two Stage TEC |
|Delta T ||35°C-35°C below ambient |
|Camera Power consumption ||650mA at 5V |
|Cooler Power consumption ||12V at 3A Max |
|Working Temperature ||-5°C—45°C |
|Storage Temperature ||-10°C—60°C |
|Working Relative Humidity || 0%—80% |
|Storage Relative Humidity ||20%—95% |
- 3008×3008 19.88fps
- 1920×1080 54.11fps
- 1280×720 79.74fps
- 640×480 116.55ps
- 320×240 216.45fps
Additional resolutions can be user defined.
